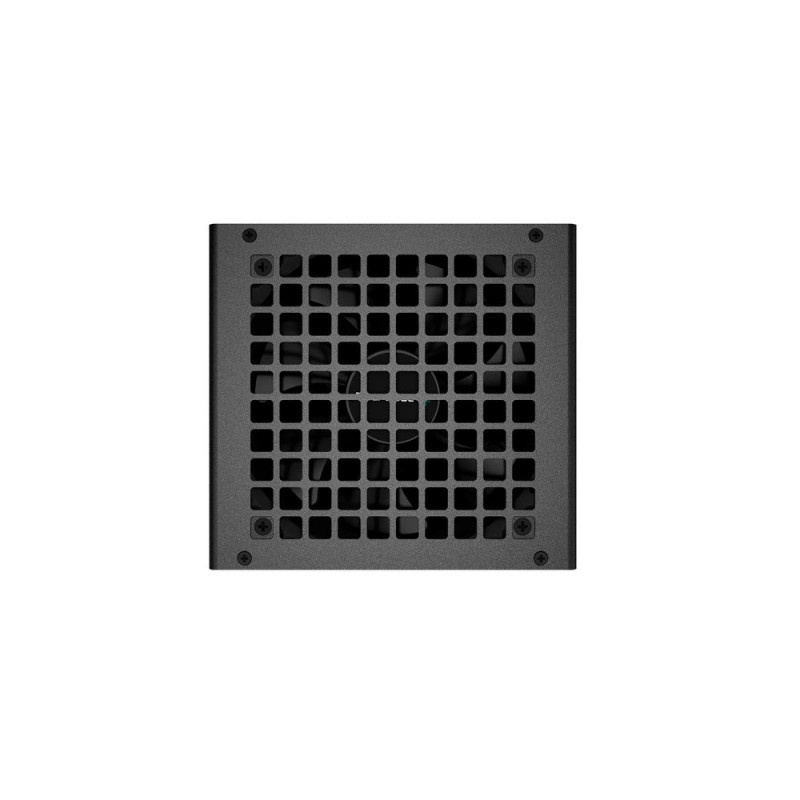

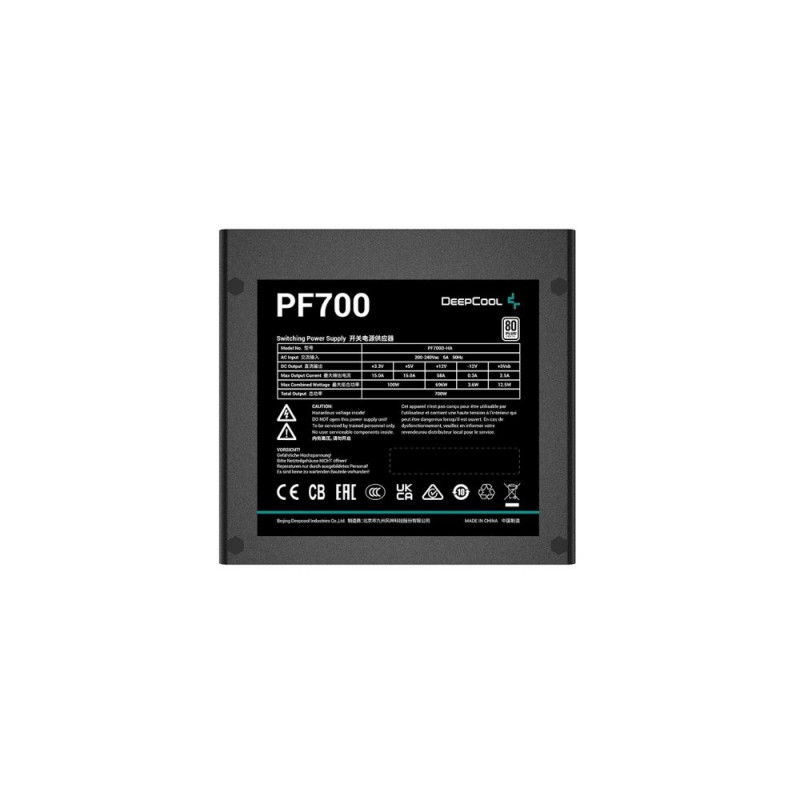

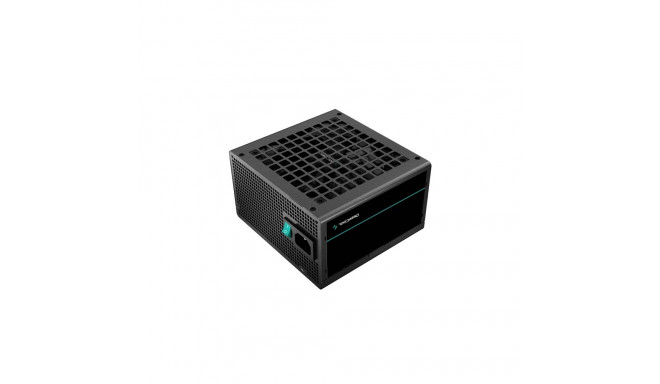

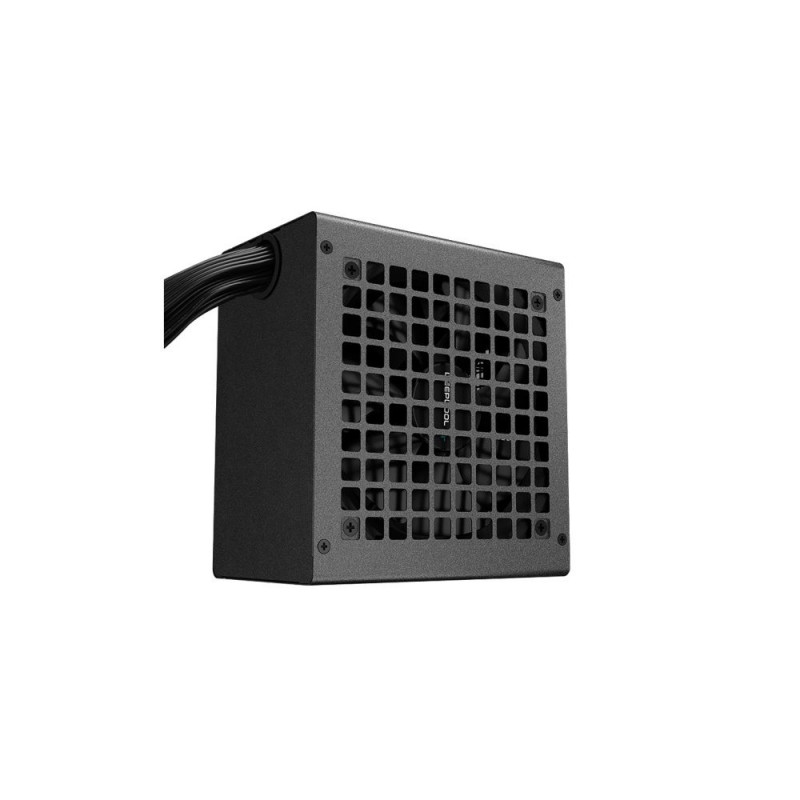

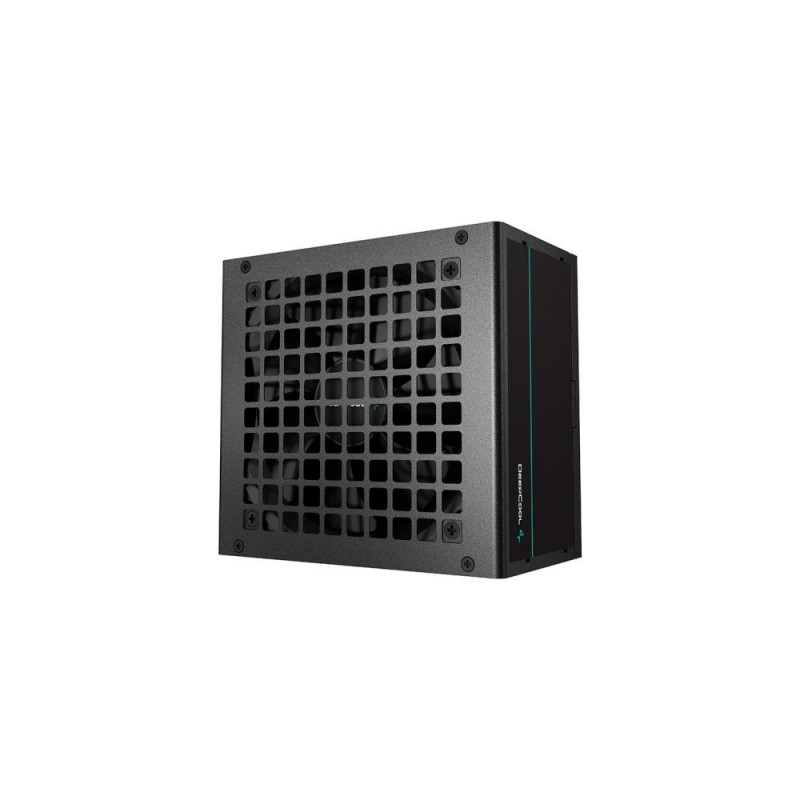

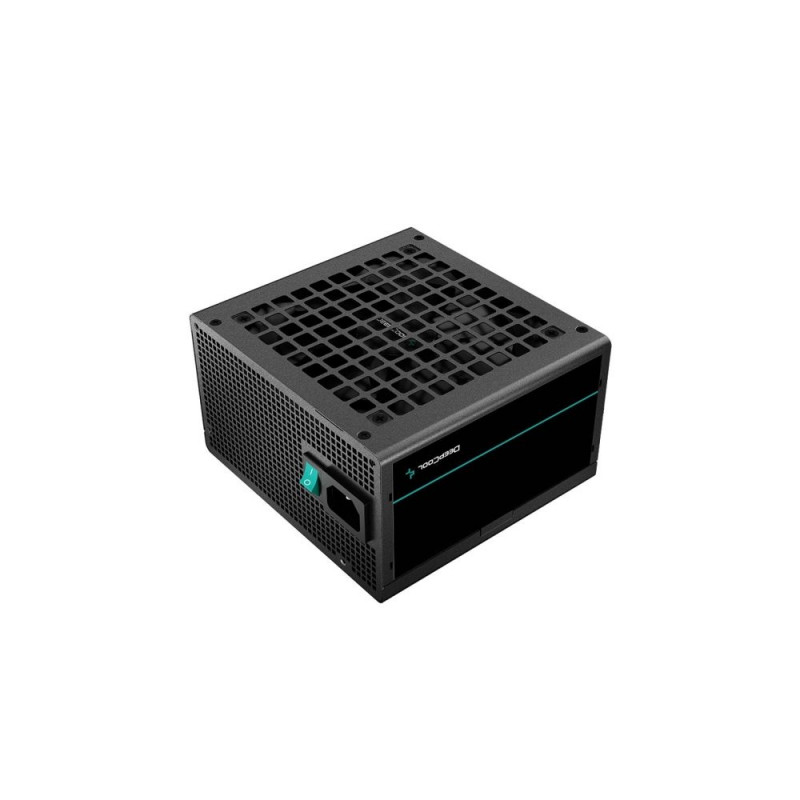

Power Supply Unit - DeepCool PF700 700W 20+4 pin ATX Active Cooling Black

100,99 €

Monthly payment starting from 3,02 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The DeepCool PF700 power supply unit provides 700 W of power with a 20+4 pin ATX connector and includes one 12 cm active cooling fan. It features multiple protection mechanisms, 80 PLUS certification, and supports up to four SATA power connectors.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

DeepCool PF700 Power Supply Unit 700 W 20+4 Pin ATX Black

The DeepCool PF700 power supply unit provides 700 W of power with a 20+4 pin ATX connector and includes one 12 cm active cooling fan. It features multiple protection mechanisms, 80 PLUS certification, and supports up to four SATA power connectors.


  • Powerful 700 W output with 85% efficiency for reliable performance.
  • Active cooling with a 12 cm fan for optimal heat dissipation.
  • Comprehensive protection features including under voltage and short circuit protection.
  • Non-modular design with multiple connectors, including 4 SATA and 2 PCIe power connectors.

Design
On/off switch Yes
Fan diameter 12 cm
Number of fans 1 fan(s)
Product colour Black
Cooling type Active
Power
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Total power 700 W
AC input frequency 50 Hz
AC input voltage 220 - 240 V
Power protection features Under voltage, Short circuit, Over voltage, Over power
Efficiency 85%
Combined power (+12V) 696 W
Hold time 12 ms
Combined power (+5Vsb) 12.5 W
Combined power (+3.3V) 100 W
Max output current (+5V) 15 A
Max output current (+12V) 58 A
Combined power (+5) 100 W
Max output current (+3.3V) 15 A
Combined power (-12V) 3.6 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Performance
Purpose PC/Server
80 PLUS certification 80 PLUS
Mean time between failures (MTBF) 100000 h
Power supply unit (PSU) form factor ATX
ATX version 2.4
Ports & interfaces
EPS power connector (4+4 pin) Yes
Number of SATA power connectors 4
Motherboard power connector 20+4 pin ATX
Cabling type Non-Modular
PCI Express power connectors (6+2 pin) 2
SATA power cable length 750 mm, 900 mm, 600 mm, 450 mm
Motherboard power cable length 55 cm

Width 150 mm
Height 86 mm
Length 140 mm
Country CN
Product Weight 1820 g

Dimensions and weights

Gross weight
2.11 kg
Package width
20 cm
Package height
12.5 cm
Package length
17.5 cm

Product codes

EAN
6933412711537
Manufacturer code
R-PF700D-HA0B-EU
