LC-Power LC6550B-SI V3.1

Addional discount of 10%
will be applied in shopping cart
(min. 14€ purchase)
68,99 €

Monthly payment starting from 2,06 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

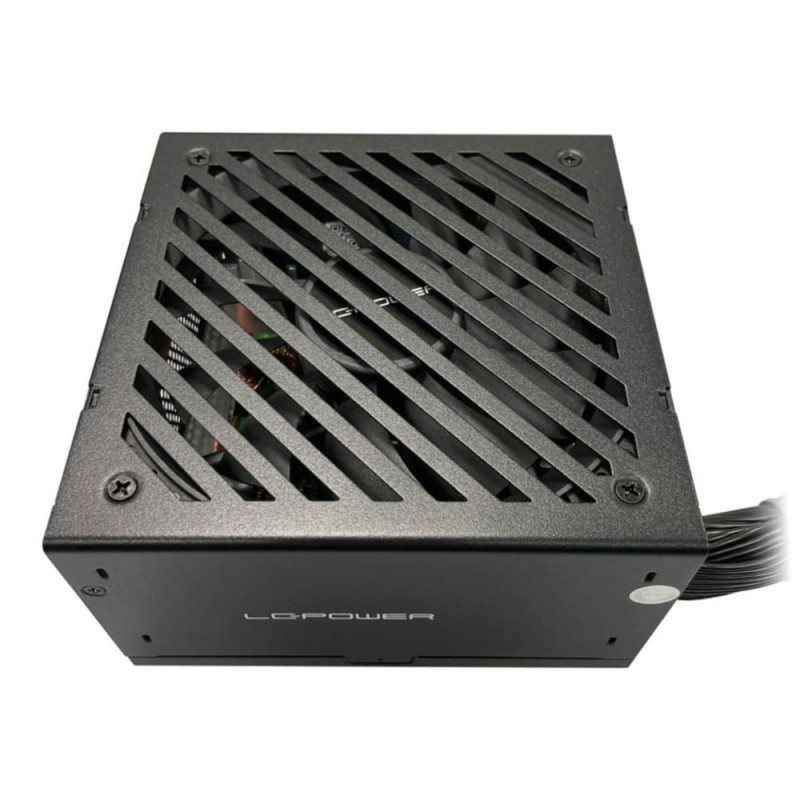

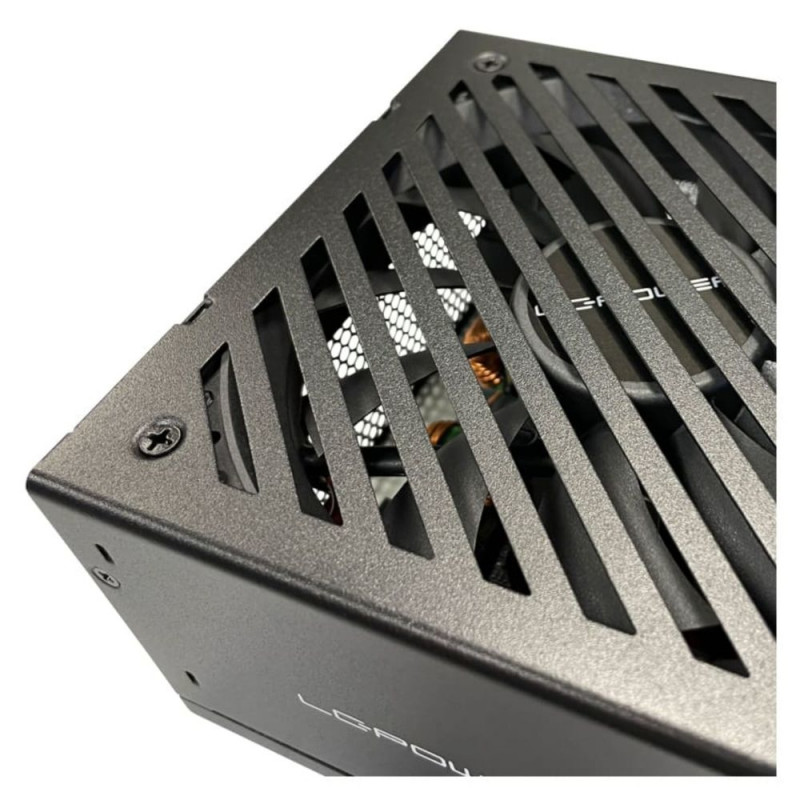

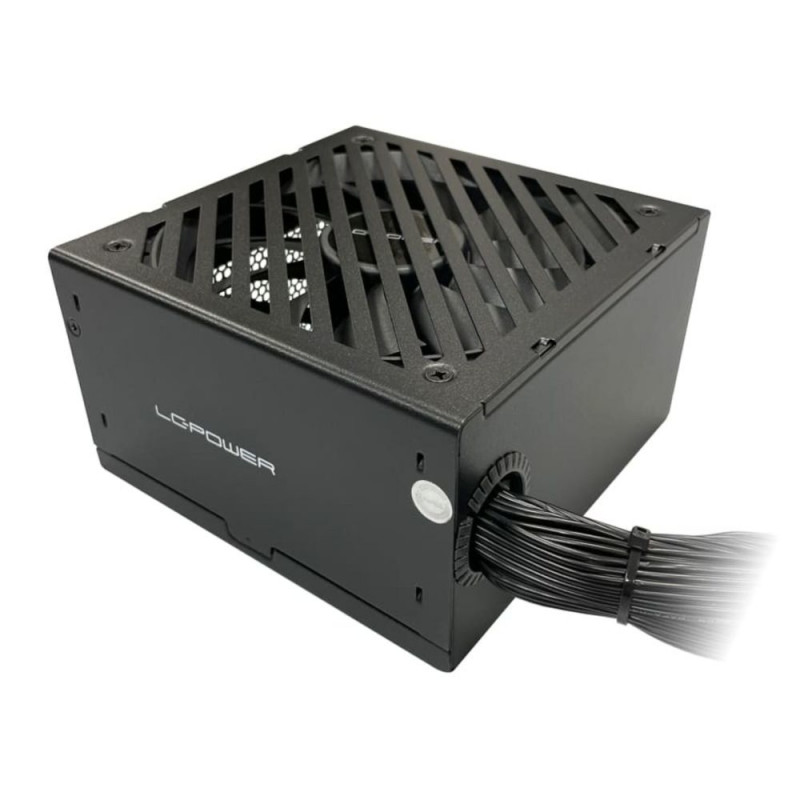

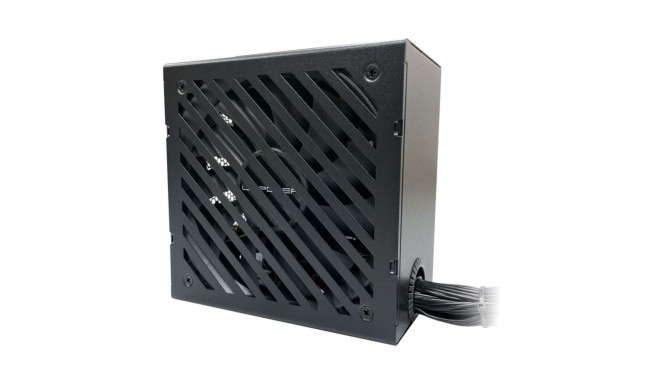

LC-Power LC6550B-SI V3.1, PC Power Supply, PCIe 5.1, 550 W

The LC6550B-SI V3.1 is an 80 PLUS BRONZE certified ATX power supply that offers good performance and system stability. The power supply of the Integrator series provides 550 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and ensures powerful cooling. It is ideal for all mid-range systems.

It features a 20+4-pin motherboard connector that is compatible with most motherboards, as well as a 550 mm 4+4-pin motherboard 12V connector, a 750 mm 4+4-pin motherboard 12V connector, four SATA, and two PATA connectors that provide stable power supply for powerful CPUs, hard drives, and drives. For graphics cards, it has two PCI-Express 6+2-pin connectors and a powerful PCI-Express 5.1 12V 2x6 12+4-pin connector that enables direct and reliable power supply for multiple GPUs.

Features:

  • ATX form factor, V 3.1
  • Power: 550 W
  • Fan: 135 mmBlack flat cables
  • 80 PLUS Bronze certified
  • Efficiency of up to 85%
  • Six safety circuits
  • DC-to-DC technology
  • Powerful +12 V rail: 45.8 A
  • Connectors:
    • 1x Motherboard 20+4-pin, cable length: 550 mm
    • 2x Motherboard 4+4-pin 12V, 8-pin EPS, cable length: 1x 550 / 1x 700 mm
    • 1x PCIe 5.1 / 12V, 12+4-pin, cable length: 1x 600 mm
    • 2x PCIe 6+2-pin, cable length: 1x 550 / 1x 700 mm
    • 4x SATA, cable length: 2x 450 / 2x 600 mm
    • 2x PATA, cable length: 2x 750 mm
  • PFC: Active
  • Input AC:** 100 - 240 V
  • Output DC:** 3.3 / 5 / 12 V (20 / 20 / 45.8 A)
  • Safety circuits:** OCP (overcurrent protection), OPP (overpower protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (inrush current protection), UVP (undervoltage protection)
  • Material: Metal, plastic
  • Dimensions: 86 x 150 x 150 mm
  • Weight: approx. 1.74 kg
  • Color: Black

Feature2 netzteil-nicht-modular
Power (Watt) 550
Form Factor ATX
ATX Version 3.1
Certification 80PLUS Bronze
Efficiency at Full Load (%) 85
PFC Type (Power Factor Correction) Active PFC
Cable Management Non Modular
Fan (Number) 1
Type of Cooling Active
Fan Diameter (mm) 135
ATX-Mainboard 1x 20+4pin
ATX12V 2x 4+4pin
EPS12V 1x 8pin
PCIe 2x 6+2pin
PCIe 5.0 (12VHPWR) 1x
S-ATA 4x
P-ATA / IDE 2x
Input Frequency (Hz) 50 - 60
Input Voltage (V) 100 - 240
Amperage 10
Colour Black

Dimensions and weights

Gross weight
1.74 kg
Package width
15 cm
Package height
8.6 cm
Package length
15 cm

Product codes

EAN
4262443280661
Manufacturer code
LC6550B-SI V3.1
