Axagon PCES-SJ2 interface cards/adapter Internal SATA

Addional discount of 10%
will be applied in shopping cart
(min. 10€ purchase)
24,99 €

Main info

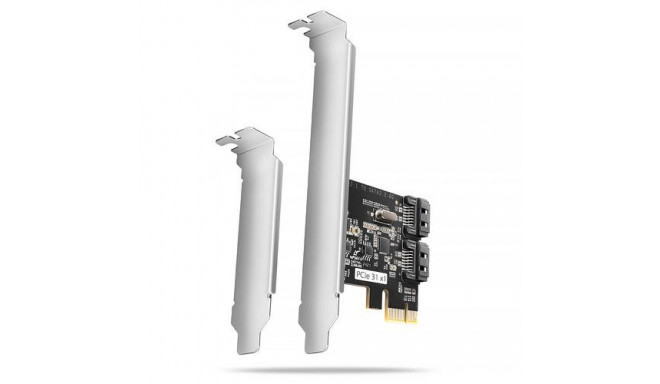

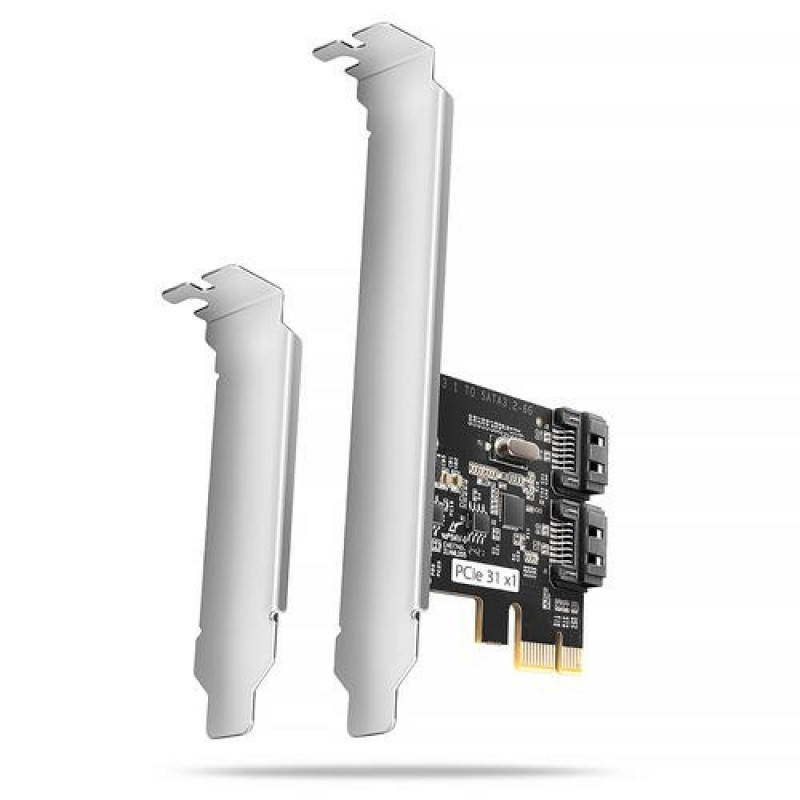

The AXAGON PCES-SJ2 PCI-Express controller extends your desktop PC with two SATA ports with a transmission rate up to 6 Gb/s. <br><br>The card equipped with JMicron chipset not only supports SATA 3.0 specification, but also other SATA tec
The AXAGON PCES-SJ2 PCI-Express controller extends your desktop PC with two SATA ports with a transmission rate up to 6 Gb/s. <br><br>The card equipped with JMicron chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier.<br><br>Easy installation without the need to install drivers in most operating systems.<br><br>Thanks to the included low profile bracket the controller can be fitted into both standard and low profile PC cases. <br><br>Input: <br>• PCI-Express 3.0 interface, PCI-Express 1.0a / 1.1 / 2.0 /2.1 compatible. <br>• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots. <br>• A bandwidth of 1-Lane PCI-Express 3.0 bus 2 Gb/s bidirectional. <br><br>Output:<br>• 2x independent Serial ATA port, SATA III 6G standard.<br>• 2x internal 7-pin SATA data connector. <br>• Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.<br><br>Other features:<br>• Full Plug and Play support. <br>• Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s). <br>• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s). <br>• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s). <br>• Compliant with Serial ATA AHCI (Advanced Host Controller Interface) specification. <br>• Hot Plug support for connecting and disconnecting SATA devices while running. <br>• Native Command Queuing (NCQ) support.<br>• TRIM feature support for SSD disks. <br>• Port Multiplier Command Based Switching feature support.<br>• Boot support from connected disk incl. cooperation with computer motherboard BIOS/UEFI.<br>• The Jmicron JMB582 chipset is used. <br><br>Supported operating systems:<br>• MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit versions of OS Windows), Linux with kernel 2.6.x and above.<br><br>Package contains:<br>• PCI-Express Gigabit Ethernet card with a standard bracket,<br>• low profile bracket,<br>• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,<br>• packed in a cardboard box.Axagon PCES-SJ2. Host interface: PCIe, Output interface: SATA, Host interface gender: Male. Product colour: Black, Country of origin: China, Certification: CE. Data transfer rate (max): 2 Gbit/s. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 112 mm

Dimensions and weights

Gross weight
0.07 kg
Package width
145 cm
Package height
25 cm
Package length
112 cm

Product codes

EAN
8595247907745
Manufacturer code
PCES-SJ2
