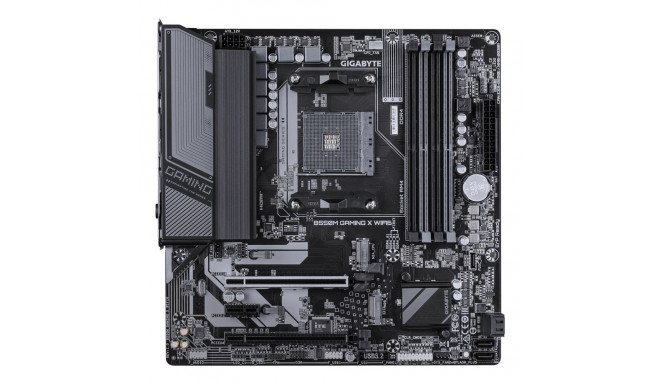

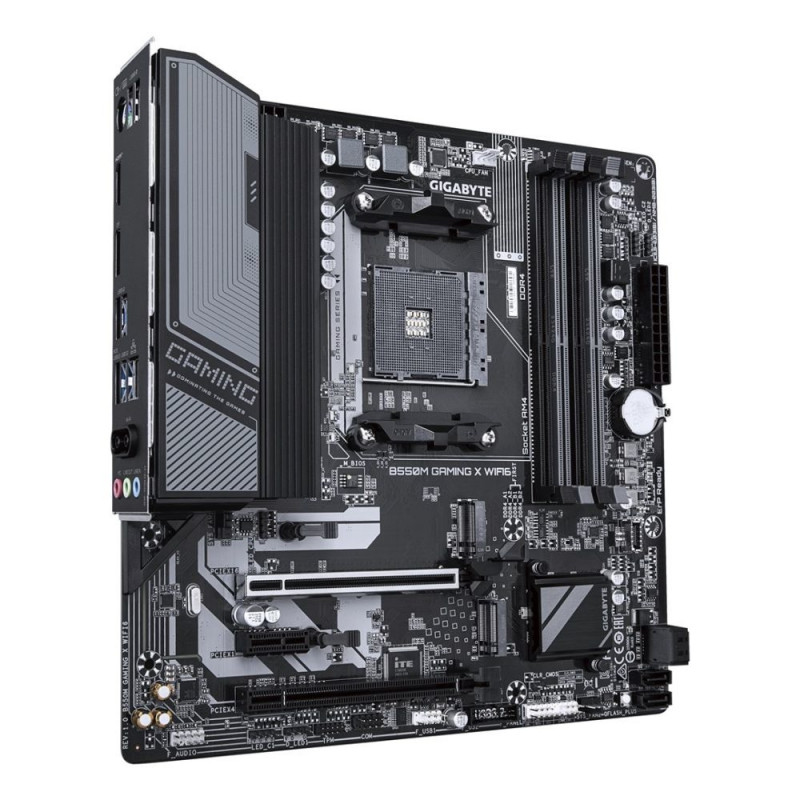

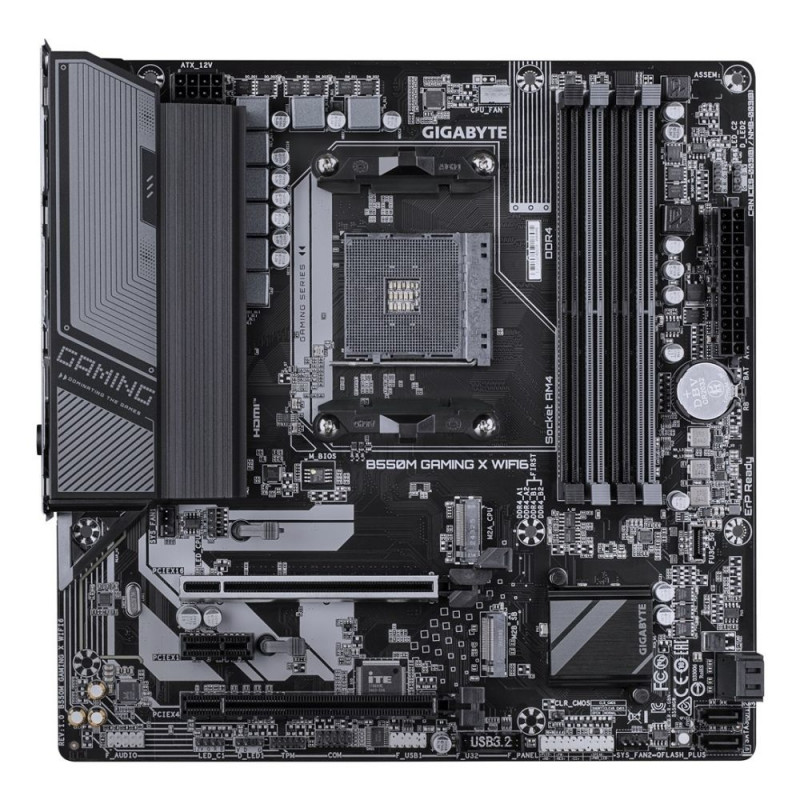

Gigabyte B550M GAMING X WIFI6 (B550,AM4,mATX,DDR4) Motherboard

141,99 €

Monthly payment starting from 4,84 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Motherboard chipset AMD B550
PS/2 ports quantity 1
Cooling type Passive
Bluetooth version 5.3
LAN controller Realtek RTL8111H
Number of SATA III connectors 4
Supported storage drive types HDD & SSD
Ethernet LAN Yes
Width 244 mm
Number of HDDs supported 4
ATX Power connector (24-pin) Yes
Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA III
WiFi-AP antenna jack 2
Headphone outputs 1
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Package width 270 mm
TPM connector Yes
Wi-Fi Yes
PCI Express x1 (Gen 3.x) slots 1
Product colour Dark brown
Batteries included Yes
WLAN controller model Realtek RTL8851BE
Maximum internal memory 128 GB
Memory slots type DIMM
BIOS type UEFI AMI
PCI Express x16 (Gen 3.x) slots 1
HDMI version 2.1
Desktop Management Interface (DMI) version 2.7
Maximum internal memory per slot 32 GB
Ethernet LAN (RJ-45) ports 1
Bluetooth Yes
Battery type CR2032
Number of storage drives supported 6
Package weight 1.24 kg
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
PCI Express x16 (Gen 4.x) slots 1
Products per shipping (inner) case 1 pc(s)
Depth 244 mm
Processor manufacturer AMD
RGB LED pin header Yes
Number of battery cells 1
Warranty period 3 year(s)
Number of memory slots 4
Front panel connector Yes
Serial port headers 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Clear CMOS jumper Yes
Package height 68 mm
Supported memory types DDR4-SDRAM
Antenna included Yes
Motherboard chipset family AMD
USB 2.0 ports quantity 2
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
DisplayPorts quantity 1
Supported processor sockets Socket AM4
Battery weight 3 g
Motherboard form factor micro ATX
2nd M.2 largest key size 2280
1st M.2 largest key size 2280
Unbuffered memory Yes
Processor socket Socket AM4
RAID support Yes
Lithium weight per battery 0.07 g
Number of RGB LED pin headers 5
Height 35 mm
Number of M.2 (M) slots 2
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Front panel audio connector Yes
HDCP Yes
Weight 1.14 kg
Microphone in Yes
DisplayPort version 1.4
Audio output channels 7.1 channels
2nd M.2 highest PCI Express generation 3.0
HDMI ports quantity 1
Audio chip Realtek ALC1220-VB
Supported memory clock speed (max) 3200 MHz
USB 2.0 connectors 1
Parallel processing technology support Not supported
Power source type ATX
Line-in Yes
Package depth 268 mm
Screws included Yes
1st M.2 highest PCI Express generation 4.0
Maximum resolution 5120 x 2880 pixels
ECC сompatibility ECC & Non-ECC
Number of EPS power connectors (8-pin) 1
DirectX version 12.0
Ethernet interface type Gigabit Ethernet
Warranty 24 (F)
Wi-Fi standards 802.11b
PC health monitoring Temperature
RAID levels 10
Compatible processor series AMD Ryzen 5000 Series
Supported memory clock speeds 2133
Windows operating systems supported Windows 10 x64

Dimensions and weights

Package width
272 cm
Package height
276 cm
Package length
76 cm

Product codes

EAN
4719331870096
Manufacturer code
533128
