Home page » Computers & IT»Computer components»Mainboards»GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4

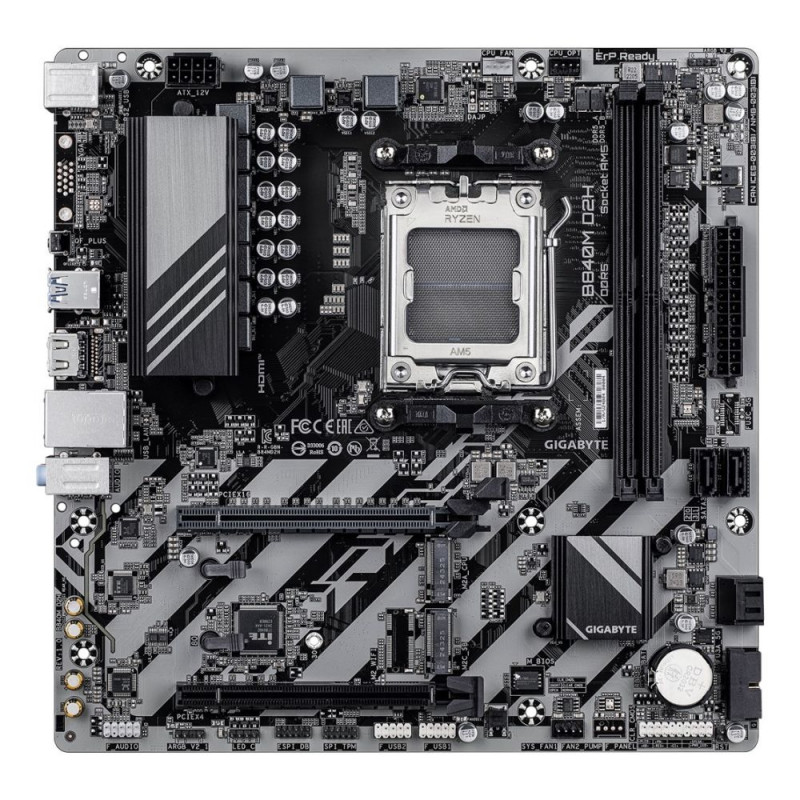

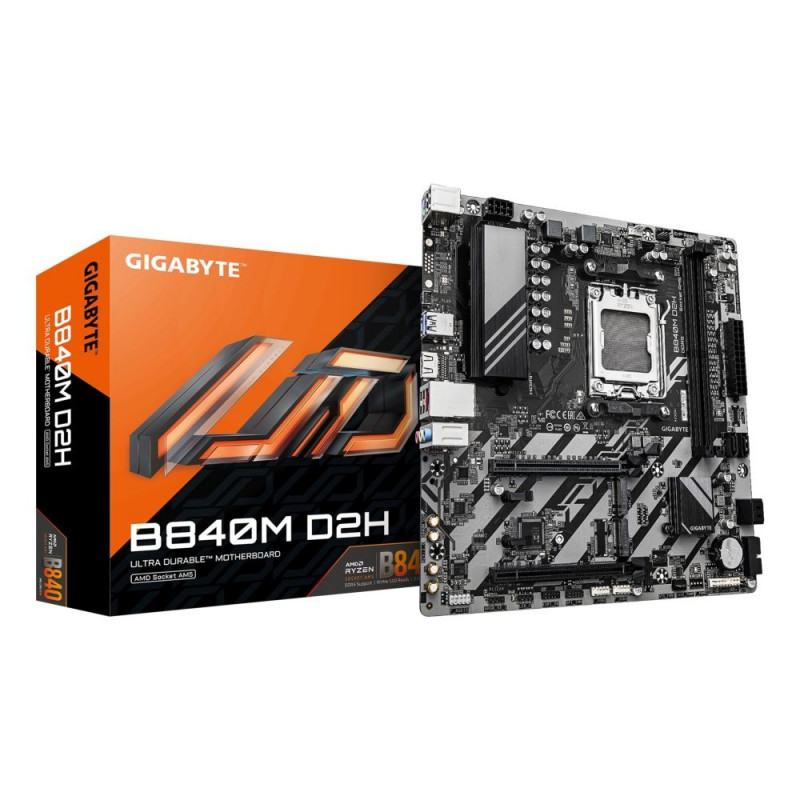

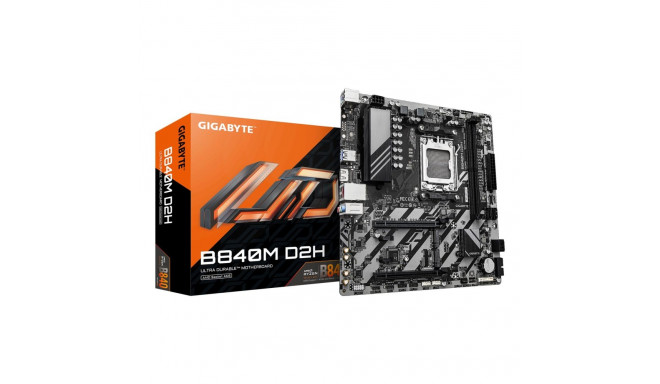

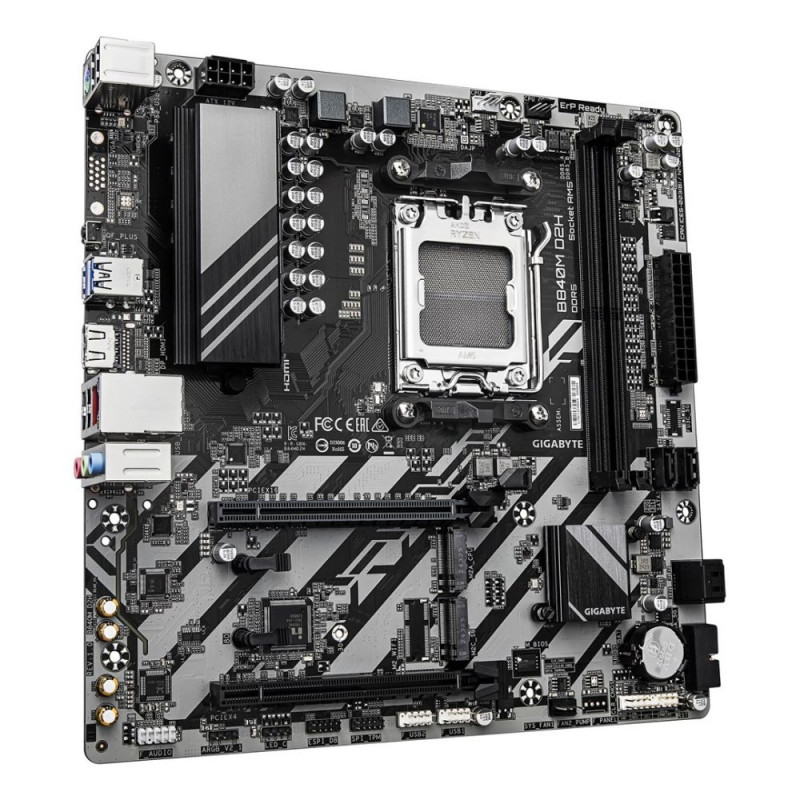

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4

FREE SHIPPING
WITHIN ESTONIA!

120,99 €

Monthly payment starting from 3,62 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
PS/2 ports quantity 1
Cooling type Passive
Wi-Fi No
Batteries included Yes
ATX Power connector (24-pin) Yes
LAN controller Realtek RTL8125
Number of M.2 (M) slots 2
Supported processor sockets Socket AM5
Package height 54 mm
1st M.2 highest PCI Express generation 4.0
Microphone in Yes
Supported memory clock speed (max) 7600 MHz
Battery weight 3 g
System Management BIOS (SMBIOS) version 2.7
Motherboard form factor micro ATX
2nd M.2 largest key size 2280
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Front panel audio connector Yes
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 4
Supported memory types DDR5-SDRAM
HDMI ports quantity 1
Weight 940 g
Clear CMOS jumper Yes
CPU fan connector Yes
Processor manufacturer AMD
HDCP Yes
Number of SATA III connectors 4
Ethernet LAN Yes
Supported storage drive types HDD & SSD
BIOS memory size 256 Mbit
RGB LED pin header Yes
1st M.2 largest key size 2580
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Motherboard chipset family AMD
Depth 244 mm
Number of water pump connectors 1
Headphone outputs 1
Audio chip Realtek ALC897
Package depth 265 mm
TPM connector Yes
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Battery technology Lithium-Manganese Dioxide (LiMnO2)
RAID support Yes
Width 244 mm
Number of HDDs supported 4
Lithium weight per battery 0.07 g
Number of RGB LED pin headers 3
Maximum resolution 4096 x 2160 pixels
Package width 265 mm
Number of storage drives supported 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Desktop Management Interface (DMI) version 2.7
Memory slots type DIMM
BIOS type UEFI AMI
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Maximum internal memory 128 GB
PCI Express x16 (Gen 3.x) slots 1
Height 35 mm
HDMI version 2.1
Package weight 1.03 kg
Component for PC
Warranty period 3 year(s)
PCI Express x16 (Gen 4.x) slots 1
Product colour Dark brown
Front panel connector Yes
Number of battery cells 1
Products per shipping (inner) case 1 pc(s)
Number of memory slots 2
Line-in Yes
Audio output channels 7.1 channels
2nd M.2 highest PCI Express generation 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
ECC сompatibility Non-ECC
Number of CPU fan connectors 2
Power source type ATX
Processor socket Socket AM5
Screws included Yes
USB 2.0 connectors 2
Parallel processing technology support Not supported
ACPI version 5.0
Number of chassis fan connectors 1
Number of EPS power connectors (8-pin) 1
Motherboard chipset AMD B840
DirectX version 12.0
Warranty 24 (G)
RAID levels 1
Compatible processor series AMD Ryzen 8000 Series
Supported memory clock speeds 6400
PC health monitoring Water cooling
Windows operating systems supported Windows 11 x64

Dimensions and weights

Package width
260 cm
Package height
70 cm
Package length
327 cm

Product codes

EAN
4719331868116
Manufacturer code
526727
