Home page » Computers & IT»Computer components»Mainboards»Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX

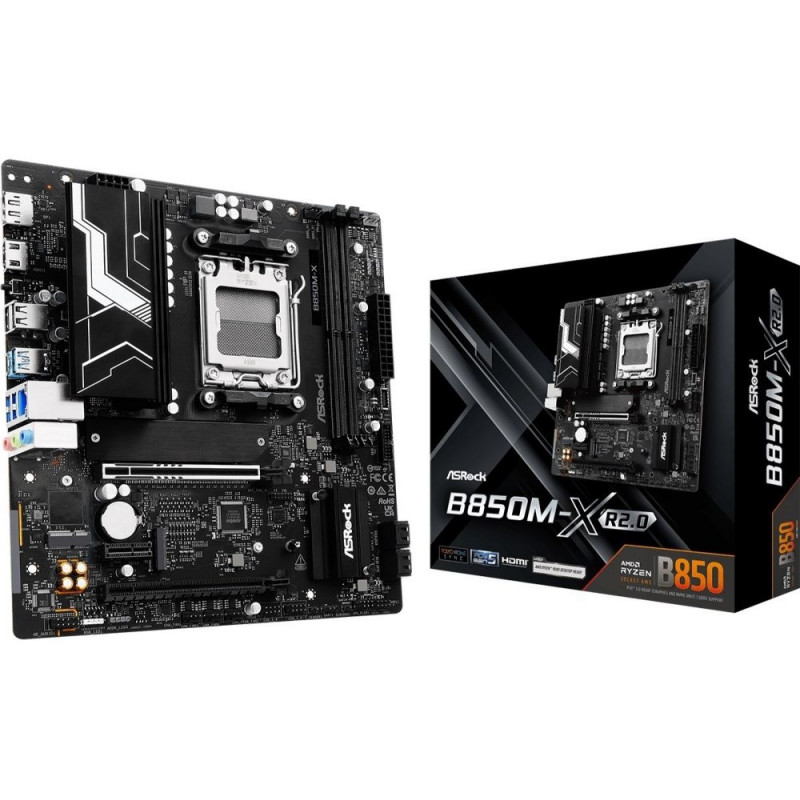

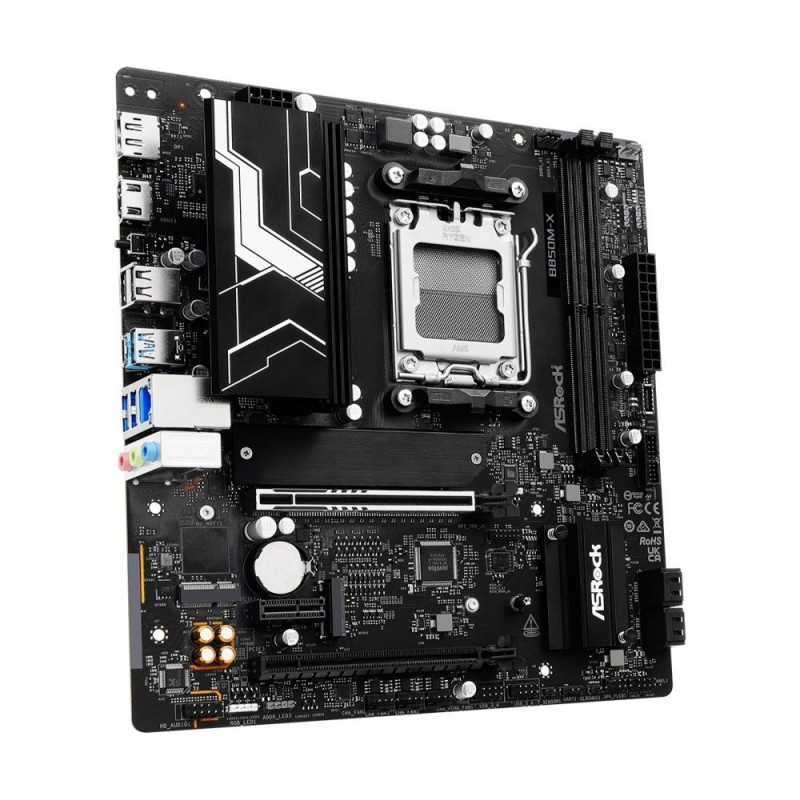

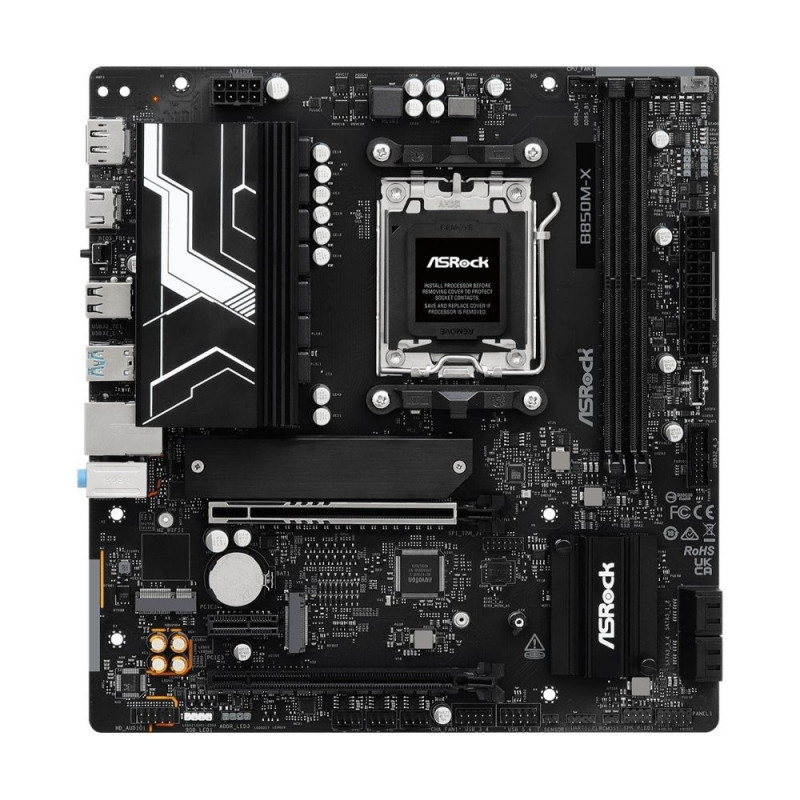

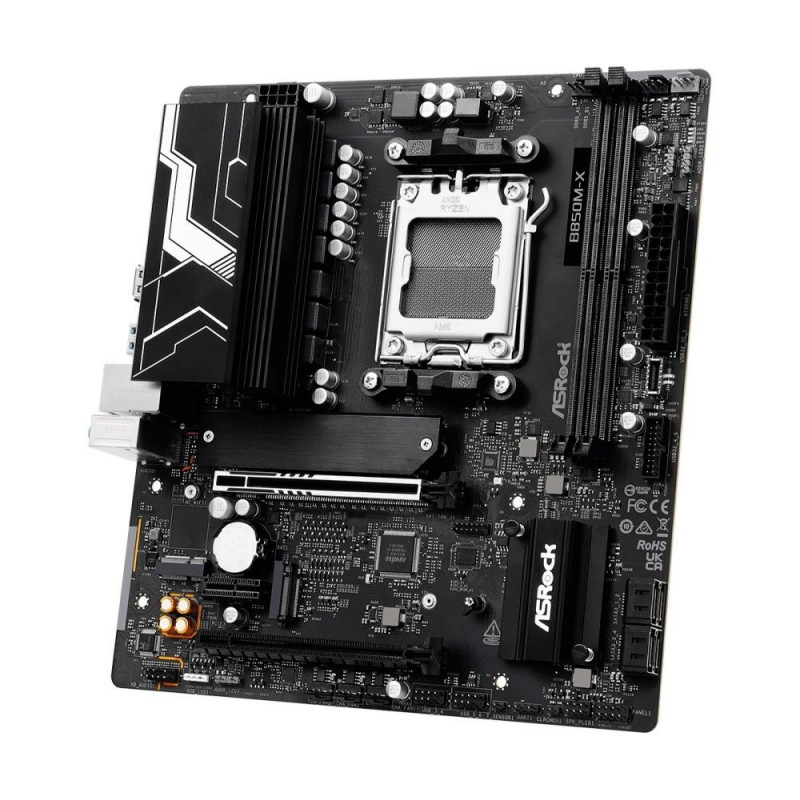

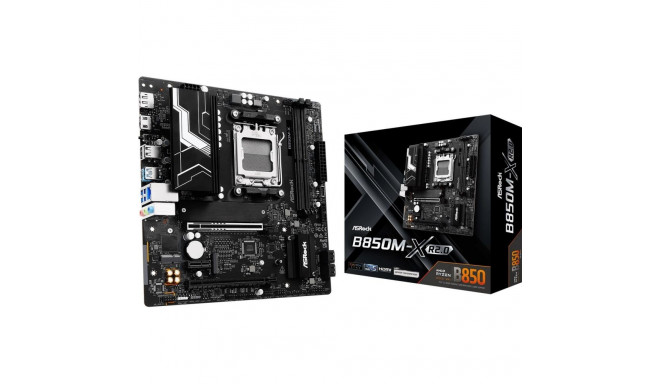

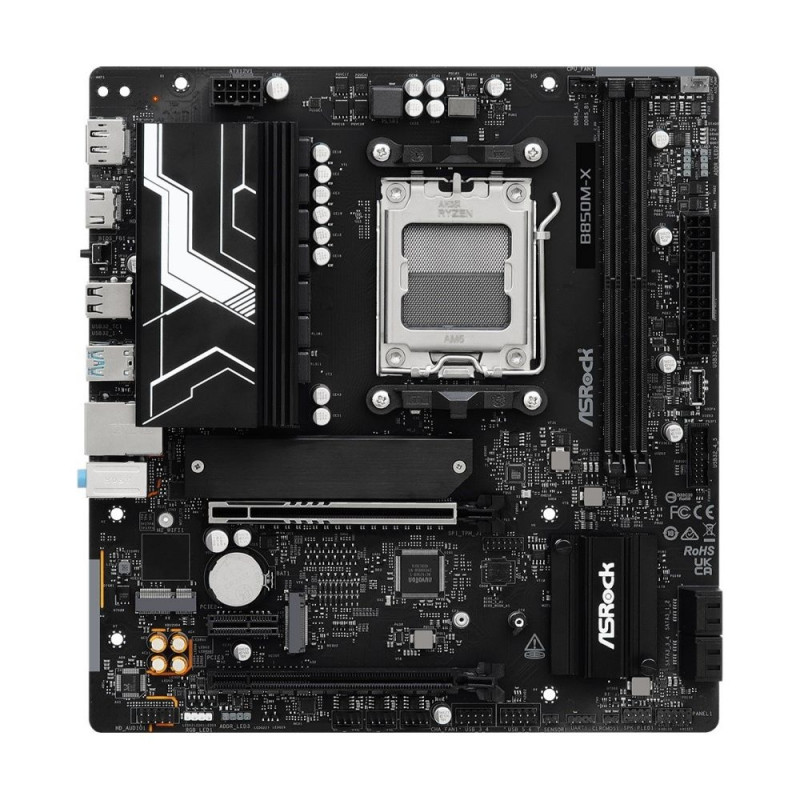

Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX

Addional discount of 4%
will be applied in shopping cart
(min. 10€ purchase)
121,99 €

Monthly payment starting from 3,65 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warranty 36 (G) Certification FCC, CE, ErP/EuP
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 36 (G)
Certification FCC, CE, ErP/EuP
Product colour Black
Audio output channels 7.1 channels
BIOS type UEFI AMI
Supported storage drive interfaces PCI Express 4.0, PCI Express 5.0, SATA III
Parallel processing technology support Not supported
USB 2.0 connectors 2
Front panel audio connector Yes
Ethernet LAN (RJ-45) ports 1
HDCP Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of M.2 (M) slots 2
Audio chip Realtek ALC897
Maximum internal memory 128 GB
RAID support Yes
Number of SATA III connectors 4
DisplayPorts quantity 1
USB 2.0 ports quantity 2
Motherboard chipset AMD B850
Motherboard chipset family AMD
Maximum resolution 3840 x 2160 pixels
DisplayPort version 1.4
Motherboard form factor micro ATX
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Supported storage drive types HDD & SSD
LAN controller Dragon RTL8125BG
Number of memory slots 2
Line-in Yes
Supported processor sockets Socket AM5
12V power connector Yes
Supported memory types DDR5-SDRAM
Wi-Fi No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Width 244 mm
TPM connector Yes
Number of chassis fan connectors 3
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Depth 226 mm
Mobile network connection No
Screws included Yes
Cables included SATA
Microphone in Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Ethernet LAN Yes
USB Type-C ports quantity 1
Number of M.2 (E) slots 1
Memory slots type DIMM
Ethernet interface type 2.5 Gigabit Ethernet
PCI Express x16 (Gen 5.x) slots 1
Audio output 3.5 mm
HDMI version 2.1
RGB LED pin header Yes
HDMI ports quantity 1
Number of EPS power connectors (8-pin) 1
Processor socket Socket AM5
ECC сompatibility ECC & Non-ECC
PCI Express x16 (Gen 4.x) slots 1
Number of CPU fan connectors 2
Number of RGB LED pin headers 1
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
Processor manufacturer AMD
PCI Express x1 (Gen 4.x) slots 1
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
Compatible processor series AMD Ryzen 8000 Series
Warnings Dispose of in accordance with local regulations for electronic waste.
RAID levels 1
Windows operating systems supported Windows 10 x64

Dimensions and weights

Package width
296 cm
Package height
264 cm
Package length
58 cm

Product codes

EAN
4711581490758
Manufacturer code
B850M-X R2.0
