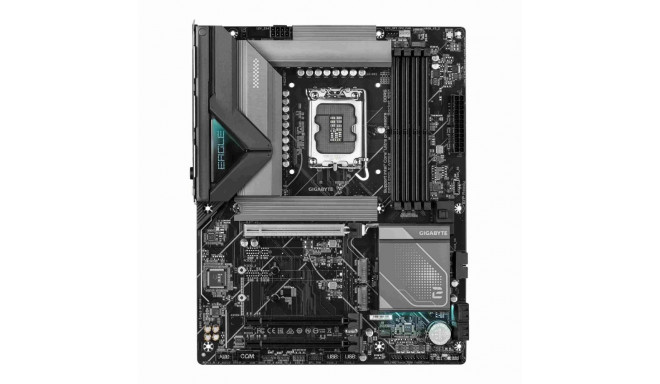

GIGABYTE B860 EAGLE WIFI6E Motherboard

238,99 €

Monthly payment starting from 8,15 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Bundled software Norton Internet Security (OEM version) LAN bandwidth management software Serial port headers
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Serial port headers 1
Number of EPS power connectors (8-pin) 1
Ethernet LAN Yes
Memory slots type DIMM
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Package height 80 mm
Number of SATA III connectors 4
Bluetooth version 5.3
Warranty period 3 year(s)
Clear CMOS jumper Yes
Number of CPU fan connectors 2
RAID support Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Supported storage drive types HDD & SSD
Wi-Fi Yes
Motherboard chipset family Intel
Supported storage drive interfaces M.2, SATA III
Desktop Management Interface (DMI) version 2.7
Bluetooth Yes
HDMI ports quantity 1
1st M.2 highest PCI Express generation 5.0
Audio output channels 7.1 channels
1st M.2 largest key size 25110
ATX Power connector (24-pin) Yes
BIOS type UEFI AMI
2nd M.2 highest PCI Express generation 4.0
Number of water pump connectors 3
Parallel processing technology support Not supported
Screws included Yes
USB 2.0 connectors 2
DisplayPorts quantity 1
Number of M.2 (M) slots 3
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Number of HDDs supported 4
Number of battery cells 1
Unbuffered memory Yes
PCI Express x16 (Gen 5.x) slots 1
Antenna included Yes
Country of origin China
Maximum resolution 4096 x 2160 pixels
Supported processor sockets LGA 1851
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
Package weight 1.92 kg
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Height 35 mm
Weight 1.72 kg
Number of RGB LED pin headers 4
RGB LED pin header Yes
CPU fan connector Yes
Number of memory slots 4
3rd M.2 highest PCI Express generation 4.0
Lithium weight per battery 0.07 g
Ethernet LAN (RJ-45) ports 1
Maximum internal memory 256 GB
Width 305 mm
Package width 335 mm
HDMI version 2.1
Power source type ATX
Number of chassis fan connectors 4
Line-in Yes
3rd M.2 largest key size 25110
Audio chip Realtek ALC897
TPM connector Yes
Front panel connector Yes
Supported memory clock speed (max) 9066 Mhz
PCI Express x16 (Gen 4.x) slots 2
Number of storage drives supported 7
Products per shipping (inner) case 1 pc(s)
Headphone outputs 1
Microphone in Yes
Battery weight 3 g
DisplayPort version 2.1
S/PDIF out connector Yes
Package depth 270 mm
WiFi-AP antenna jack 2
Motherboard form factor ATX
Supported memory types DDR5-SDRAM
2nd M.2 largest key size 25110
Processor socket LGA 1851 (Socket V1)
Front panel audio connector Yes
PS/2 ports quantity 1
HDCP Yes
ECC сompatibility ECC & Non-ECC
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Processor manufacturer Intel
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
DirectX version 12.0
LAN controller Realtek RTL8125D
USB 2.0 ports quantity 4
Maximum internal memory per slot 64 GB
Batteries included Yes
Warranty 24 (G)
Product colour Dark brown
Cooling type Passive
Motherboard chipset Intel B860
Compatible processor series Intel® Core™ Ultra (Series 1)
Windows operating systems supported Windows 10 x64
Wi-Fi standards Wi-Fi 6E (802.11ax)
RAID levels 10
PC health monitoring Voltage
Supported memory clock speeds 6400

Dimensions and weights

Package width
340 cm
Package height
85 cm
Package length
272 cm

Product codes

EAN
4719331866822
Manufacturer code
B860 EAGLE WIFI6E
