be quiet! TFX POWER 3 300W Gold Netzteil

Main info

Product has been archived

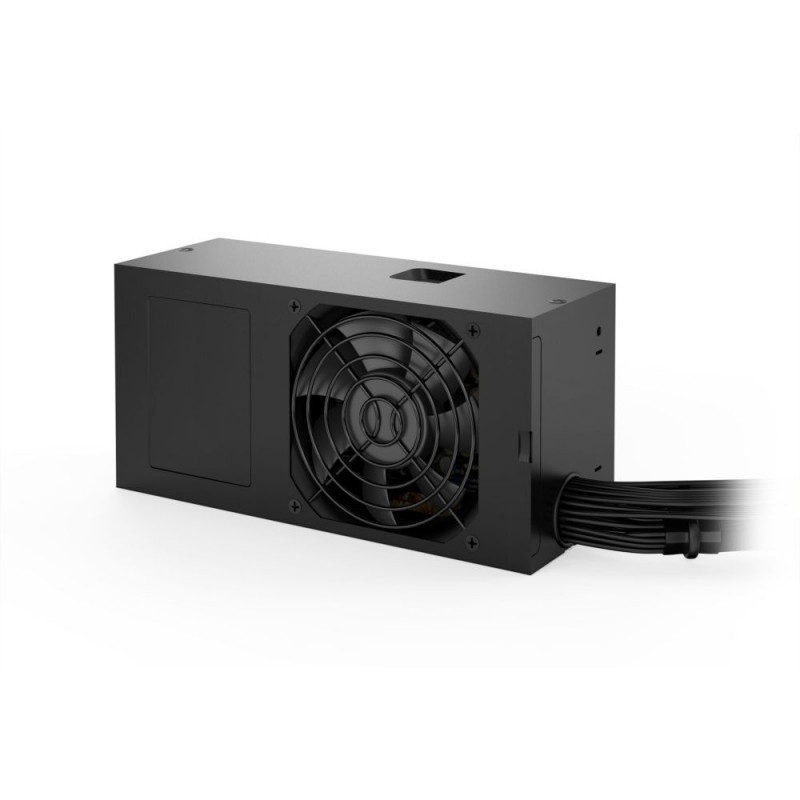

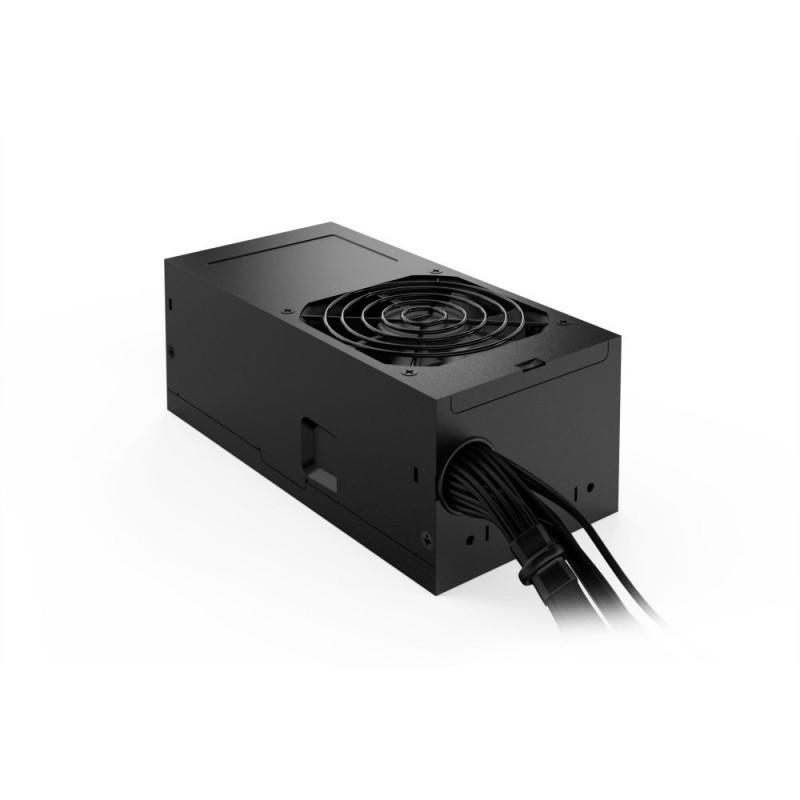

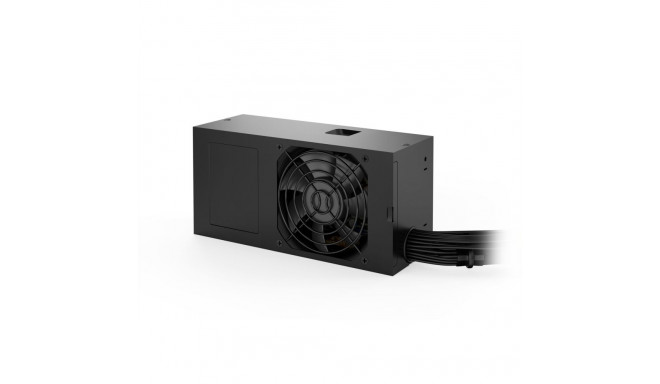

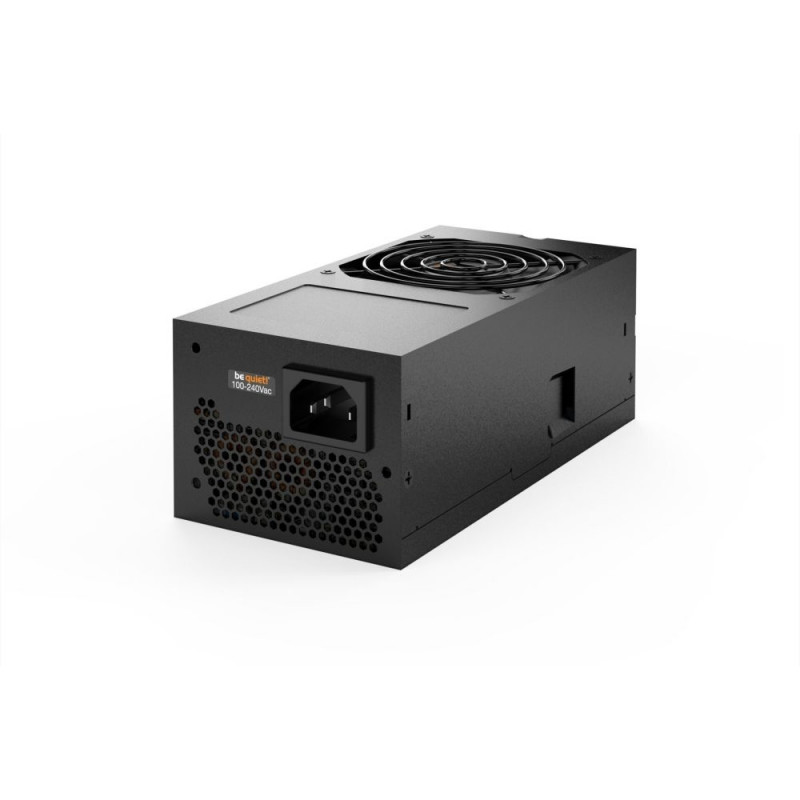

be quiet! TFX POWER 3, 300W Gold power supply

TFX Power 3 '300W Gold: the further developed high-efficiency power supply from be quiet! for mini and media PCs with 80 PLUS Gold certification and power to support a PCIe graphics card

Features:

  • For mini and media PCs with low installation depth
  • 80 PLUS Gold certificate for optimal energy use (up to 91.7%)
  • High stability due to 2 strong 12V cables supporting PCIe graphics cards
  • PCIe port for high-performance GPUs
  • 300 W stable power
  • Temperature-controlled 80 mm quality fan for quiet system operation of up to 21.7dB(A)
  • Coated cables or flat cable with up to 60cm length
  • Meets current safety and efficiency requirements
  • Less than 0.17 watts of power consumption in standby mode

Technical data:

  • Continuous power: 300 W
  • Peak power; 350 W
  • Form factor TFX 12V: version 2.52
  • Form factor EPS 12V: Version 2.92
  • Topology: Active Clamp
  • Mains voltage: 100 - 240 V
  • Power frequency: 50 - 60 Hz
  • Rated current: 4 / 2 A
  • Power consumption in stand-by: <0.17 W
  • Average service life: 100000 hrs / 25°C
  • Working range up to: 40°C
  • 80 Plus certification: gold
  • Efficiency (%) at 230V, 10% load: 82.7 %
  • Efficiency (%) at 230V, 20% load: 88.9 %
  • Efficiency (%) at 230V, 50% load: 91.7 %
  • Efficiency (%) at 230V, 100% load: 90.6 %
  • Fan: 80 mm
  • Maximum fan speed: 1323 U/min
  • Volume at (10 / 20 / 50 / 100 % load): 9.1 / 9.7 / 12.4 / 21.7 dB(A)
  • Connections:
    • 1x ATX mainboard (20+4 pin)
    • 1x CPU P4
    • 1x PCIe 6+2 pin
    • 3x SATA
    • 2x PATA
    • 1x FDD
  • Security: OCP, OPP, SCP, OVP, UVP, SIP
  • Colour: black
  • Dimensions: 175 x 85 x 65 mm
  • Weight: about 1.1 kg

Feature2 netzteil-nicht-modular
Power (Watt) 300
Top Performance (Watt) 350
Form Factor TFX
ATX Version TFX12V Version 2.52
Noise Level in Sleep Mode (dB) 9,1
Noise Level at Full Load Mode (dB) 21,7
Certification 80PLUS Gold
Efficiency at Full Load (%) 90,6
Mean Time Between Failures (MTBF) (h) 100000
Cable Management Non Modular
Fan (Number) 1
Type of Cooling Active
Fan Diameter (mm) 80
Fan Speed +/- 10% (U/Min) 1323
ATX-Mainboard 1x 20+4pin
PCIe 1x 6+2pin
Peripheral P4 1x
S-ATA 3x
P-ATA / IDE 2x
FDD / Floppy 1x
Input Frequency (Hz) 50 - 60
Input Voltage (V) 100 - 240
Amperage 4 / 2
Colour Black

Dimensions and weights

Gross weight
1.1 kg
Package width
1.75 cm
Package height
0.65 cm
Package length
0.85 cm

Product codes

EAN
4260052188293
Manufacturer code
BN323
