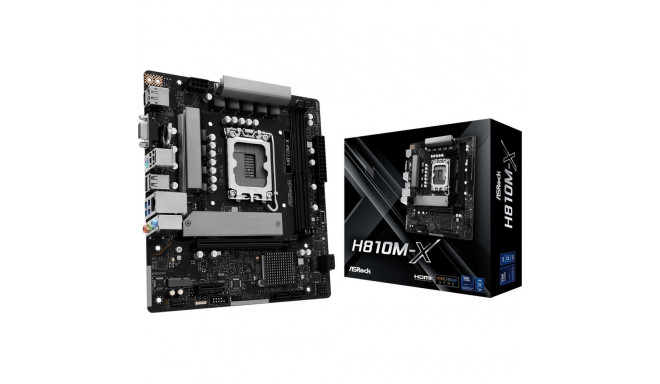

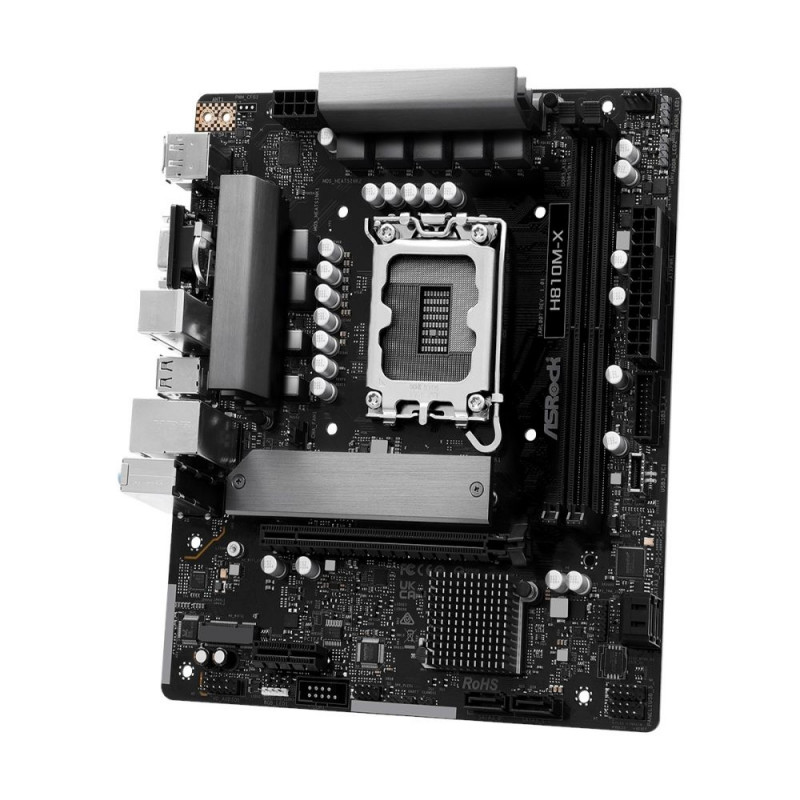

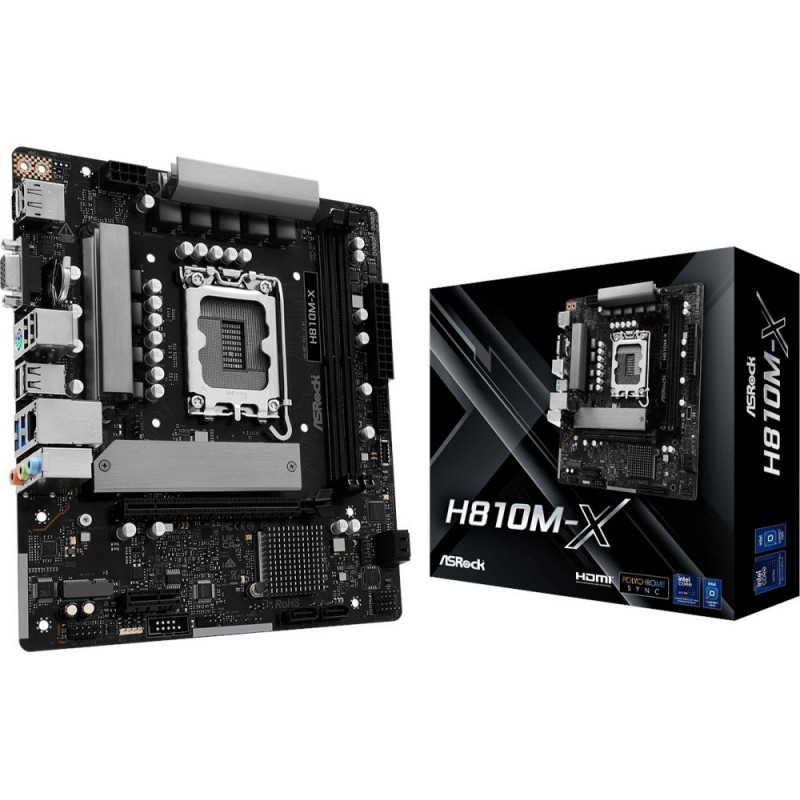

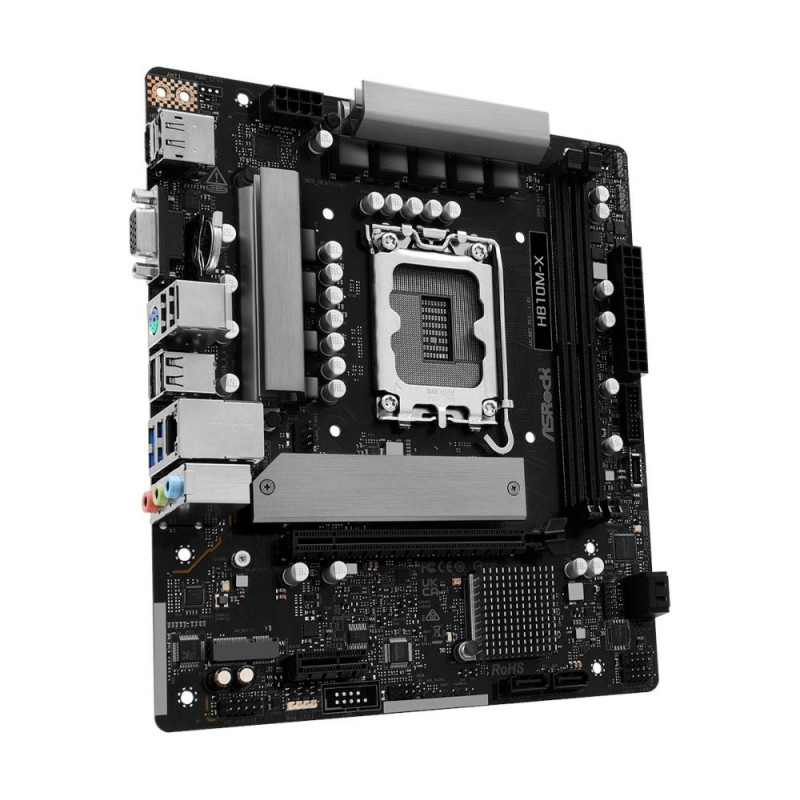

ASRock H810M-X Motherboard

Main info

Product has been archived


Warranty 36 (G)
Memory channels Dual-channel
Width 220 mm
PCI Express x16 (Gen 4.x) slots 1
Processor manufacturer Intel
Windows operating systems supported Windows 11 x64
Memory slots type DIMM
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Supported memory types DDR5-SDRAM
Ethernet interface type 2.5 Gigabit Ethernet
Depth 193 mm
BIOS type UEFI AMI
Cables included SATA
Ethernet LAN Yes
Processor socket LGA 1851 (Socket V1)
RGB LED pin header Yes
CPU fan connector Yes
Graphics card family Intel
Number of memory slots 2
Microphone in Yes
Screws included Yes
Number of M.2 (M) slots 1
PCI Express x1 (Gen 4.x) slots 1
HDMI ports quantity 1
Number of chassis fan connectors 1
Number of SATA III connectors 4
Maximum internal memory 128 GB
Motherboard form factor micro ATX
LAN controller Dragon RTL8125BG
Ethernet LAN (RJ-45) ports 2
DisplayPorts quantity 1
Audio chip Realtek ALC897
DisplayPort version 1.4
ATX Power connector (24-pin) Yes
Motherboard chipset family Intel
Supported storage drive interfaces M.2, SATA III
Audio output channels 7.1 channels
Front panel audio connector Yes
USB 2.0 ports quantity 4
Unbuffered memory Yes
Motherboard chipset Intel H810
Number of CPU fan connectors 1
ECC сompatibility Non-ECC
Warnings In case of installation problems, contact a qualified service technician.

Dimensions and weights

Package width
275 cm
Package height
240 cm
Package length
58 cm

Product codes

EAN
4711581490642
Manufacturer code
H810M-X
