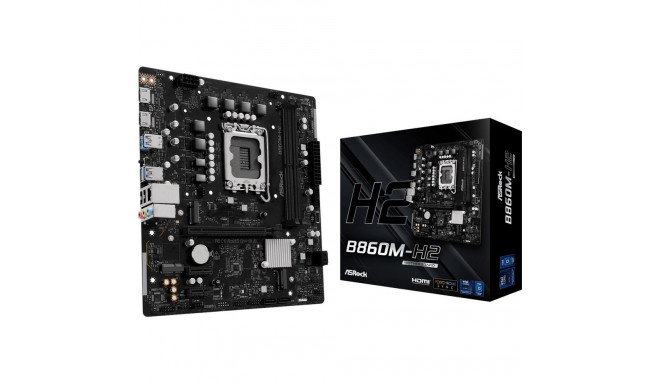

ASRock B860M-H2 motherboard

Addional discount of 6%
will be applied in shopping cart
(min. 10€ purchase)
109,99 €

Monthly payment starting from 3,29 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warranty 36 (G) Certification FCC, CE, ErP/EuP
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 36 (G)
Certification FCC, CE, ErP/EuP
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
BIOS type UEFI AMI
Unbuffered memory Yes
Number of SATA III connectors 4
Motherboard form factor micro ATX
Windows operating systems supported Windows 11 x64
Number of M.2 (M) slots 2
Motherboard chipset family Intel
Supported storage drive types HDD & SSD
USB 2.0 ports quantity 2
Supported processor sockets LGA 1851
Ethernet LAN data rates 10,100,1000 Mbit/s
Audio output channels 7.1 channels
ECC сompatibility Non-ECC
Maximum internal memory 128 GB
LAN controller Realtek 8111H
RAID support Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 2
Ethernet LAN (RJ-45) ports 1
TPM connector Yes
Audio chip Realtek ALC897
USB 2.0 connectors 2
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
CPU fan connector Yes
Bluetooth No
Flashback BIOS button Yes
1st M.2 highest PCI Express generation 4.0
Number of USB 3.2 Gen 2 Type-C ports 1
1st M.2 largest key size 2280
Number of RGB LED pin headers 1
Number of water pump connectors 1
Number of CPU fan connectors 1
Memory channels Dual-channel
Width 244 mm
HDMI version 2.1
Memory slots type DIMM
Processor manufacturer Intel
PCI Express x16 (Gen 4.x) slots 1
Antennas quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
Wi-Fi No
Processor socket LGA 1851 (Socket V1)
Supported memory types DDR5-SDRAM
12V power connector Yes
Ethernet LAN Yes
Depth 211 mm
HDMI ports quantity 2
Ethernet interface type 2.5 Gigabit Ethernet
RGB LED pin header Yes
Number of memory slots 2
Motherboard chipset Intel B860
Warnings Do not open or modify the motherboard to prevent damage.
USB connector type USB Type-C
RAID levels 1

Dimensions and weights

Package width
275 cm
Package height
240 cm
Package length
61 cm

Product codes

EAN
4711581490437
Manufacturer code
B860M-H2
