EEM2-SD2 SSD enclosure USB3.2 Gen2 M.2 NVMe/SA

FREE SHIPPING
WITHIN ESTONIA!

36,99 €

Monthly payment starting from 1,11 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

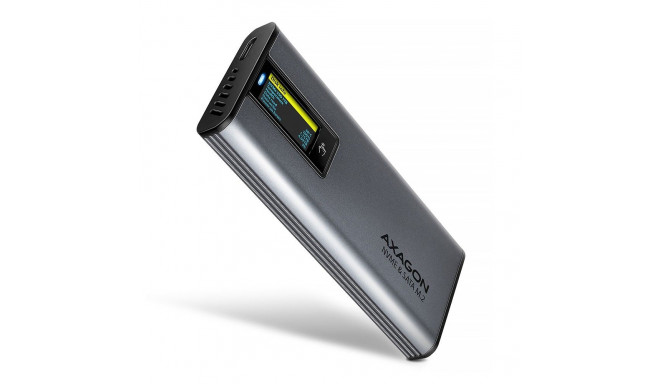

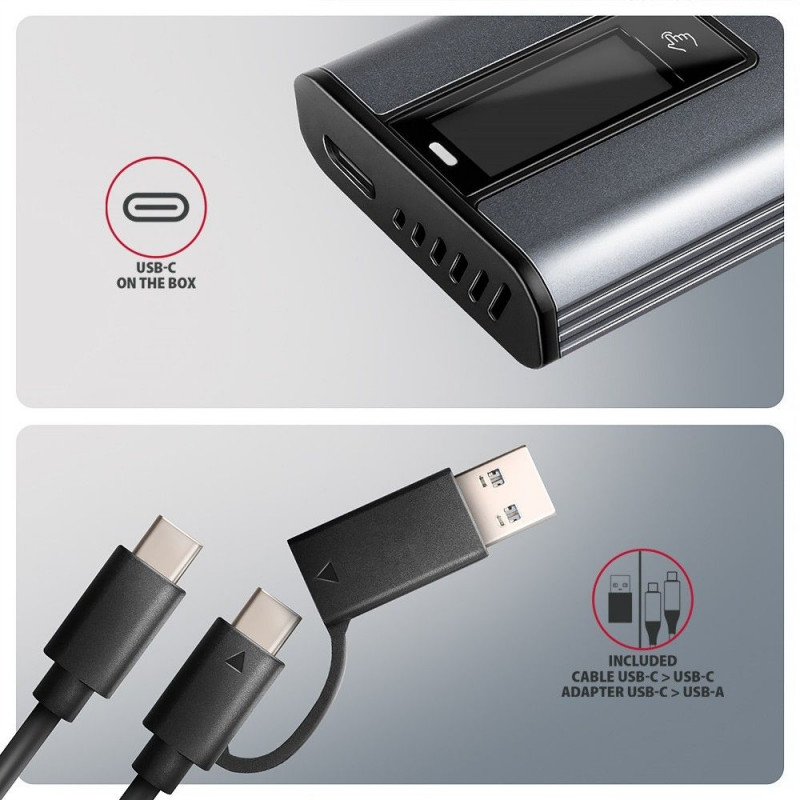

The external AXAGON EEM2-SD2 DISPLAY box with a USB 10Gbps interface is designed for M.2 NVMe or SATA SSD drives. Reliable connection to a computer is ensured by a reversible USB-C connector on the box. The package includes not only a USB-C -> USB-C cable for connecting the box to a computer, but also a USB-C -> USB-A adapter. This way, you can connect the box to any available USB port on your notebook.

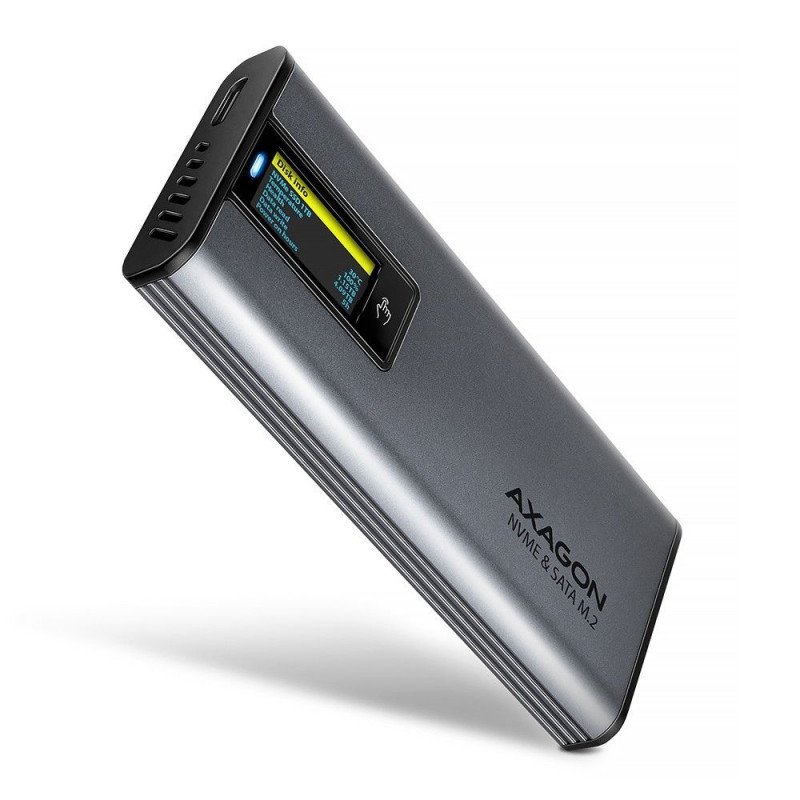

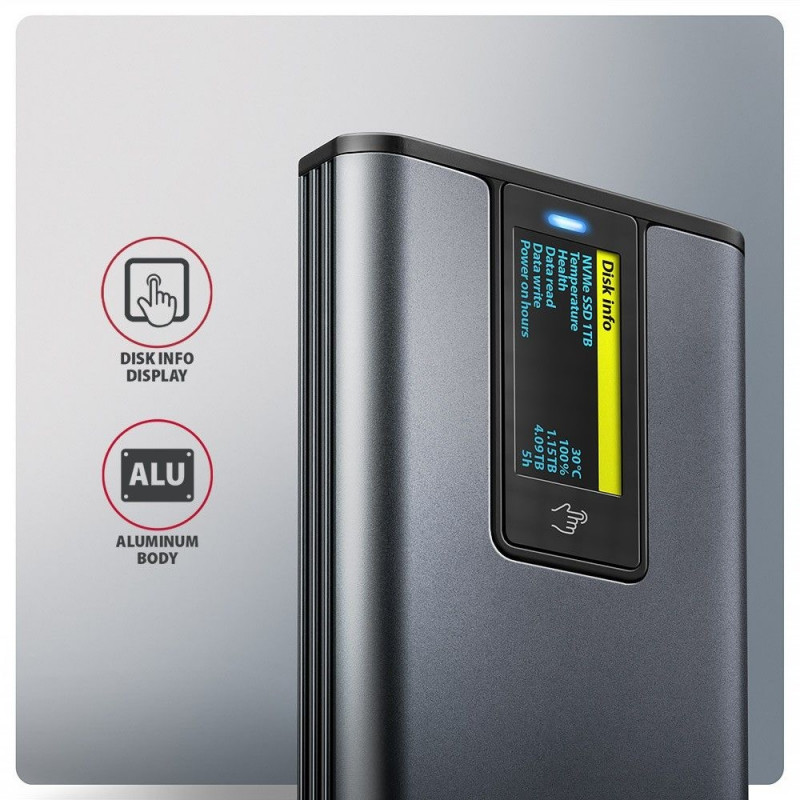

The box is equipped with an advanced LED display that provides an instant overview of your drive's status. It offers several display modes, including detection of the connected drive, the file system used, temperature, drive health, data transfer speed, and operating hours. A detailed graph allows real-time monitoring of the drives temperature, while the sleep mode saves power when idle. With this intelligent monitoring, you will always have your drive under control simply, clearly, and efficiently.

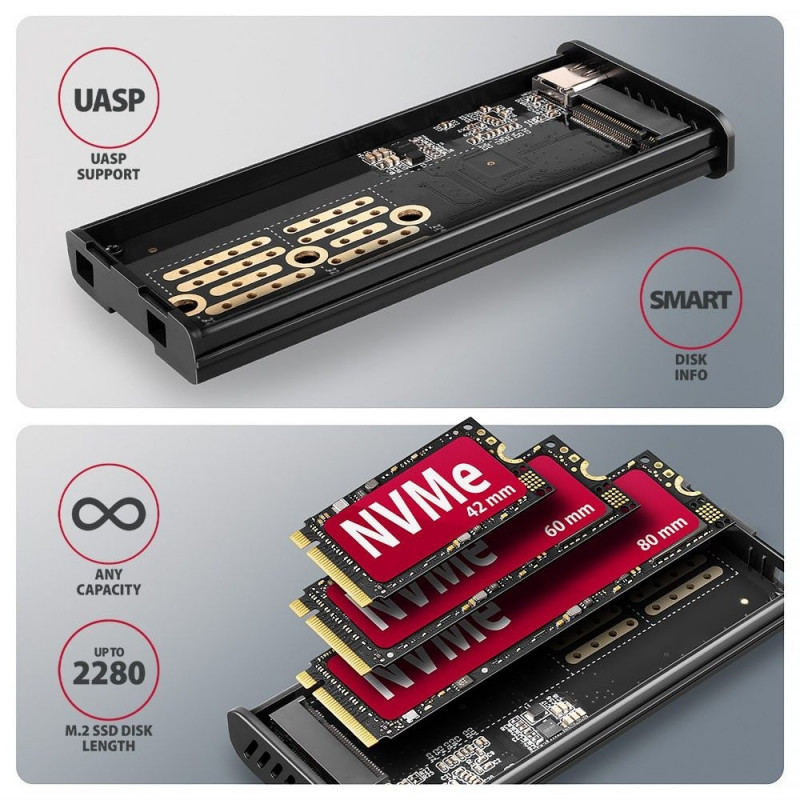

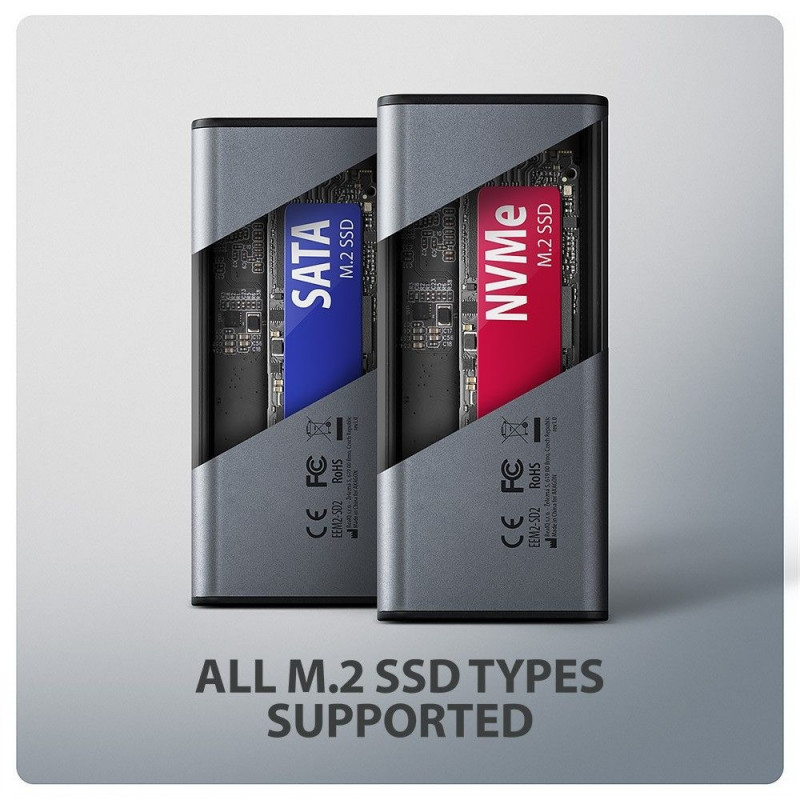

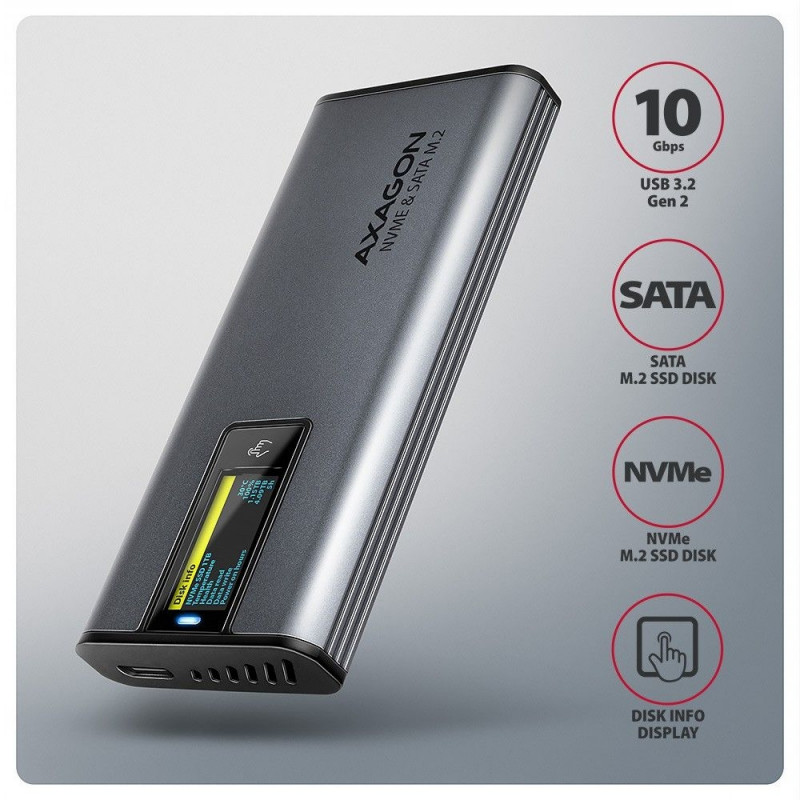

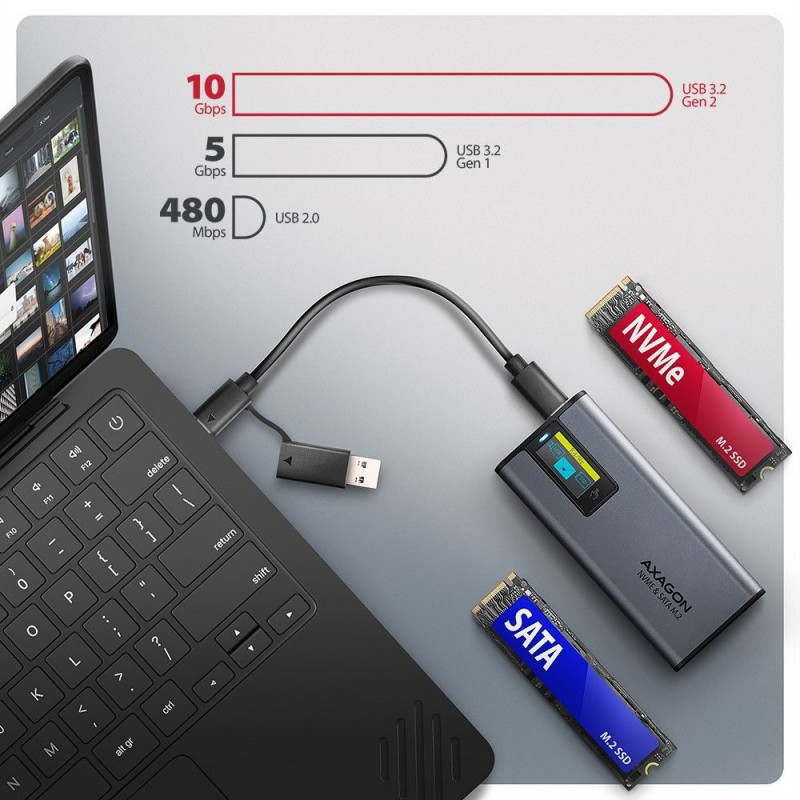

Thanks to the USB 3.2 Gen 2 interface, the transfer speed is up to 10 Gb/s. The external M.2 box also supports other modern features such as UASP, TRIM, and allows reading of S.M.A.R.T. information monitoring the condition of the drive. A unique feature, thanks to the used chipset, is the possibility to use both M.2 NVMe and SATA drives. You dont have to think about which type of M.2 drive to insert into the box. The box allows mounting of SSD cards in three different lengths42, 60 and 80 mm. M.2 cards can be single-sided or double-sided, and the box does not limit the capacity of the inserted SSD drive.

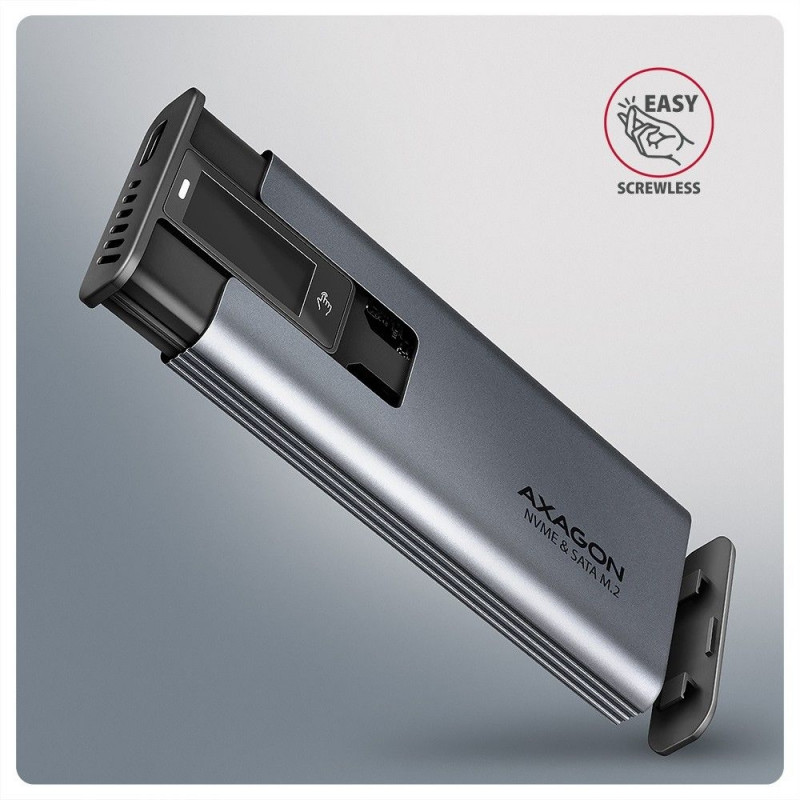

Screwless box opening makes installation and removal of the M.2 SSD drive easier. Drive replacement is quick and simple, expanding the possible uses of the box, e.g., for data migration, testing, etc. The external metal casing is finished in gray with an elegant surface that prevents unwanted fingerprints. The aluminum body of the box and the thermal pad ensure ideal cooling of the inserted M.2 SSD drive. This extends its lifespan and also prevents speed throttling, known as Thermal Throttling.

By inserting an M.2 SSD drive into this box, you can easily create a fast, compact, and universal external drive that can be used not only with computers and notebooks but also with mobile phones and tablets.

Input:

  • USB 10Gbps (USB 3.2 Gen 2), USB-C female connector.
  • Compatible with USB 5Gbps, USB 20Gbps, USB4, and Thunderbolt 3/4/5.

Supported Devices:

  • NVMe M.2 SSDs,
  • SATA M.2 SSDs,
  • designed for M key and B+M key card formats,
  • NGFF 75-pin M key slot for M.2 drives.

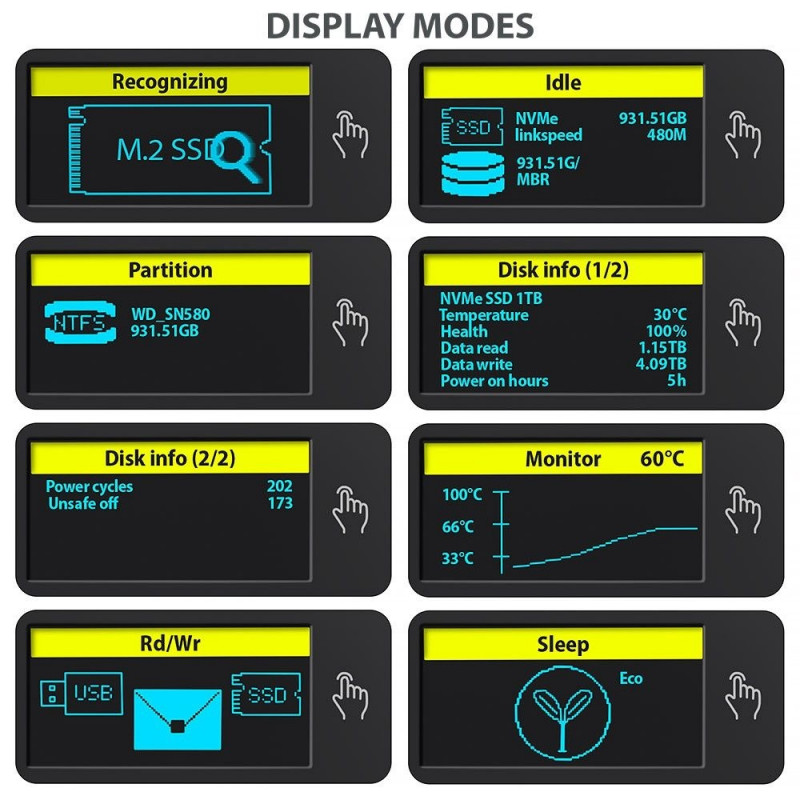

LED display shows:

  • Recognizing - disk recognition (displayed when the box is connected to a device)
  • Partition - displays the file system, size, and system name of the disk
  • Idle - inactivity (information about the disk - used interface and disk size, speed of the connected bus, partitioning standard of the disk)
  • Disk info - displays information about the disk (manufacturer label of the disk, actual disk temperature, health, amount of written / read data, total running time of the disk, number of disk removals without using safe removal)
  • Monitor real-time disk temperature using a graph
  • Rd/Wr - data transfer (during data transfer, it is possible to switch between sections)
  • Sleep - disk sleep mode

Other Features:

  • Supports transfer speeds of 10.000 / 5.000 / 480 Mbit/s.
  • Supports M key or B+M key NVMe (PCIe-Express) and SATA (AHCI) M.2 SSDs with no capacity limit.
  • Supports M.2 drives sizes 2242, 2260, 2280 mm.
  • Supports single- and double-sided M.2 SSDs.
  • Complies with PCIe Base Specification Revision 3.1a specification.
  • Complies with NVM Express 1.3 specification.
  • Complies with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).
  • Complies with USB Mass Storage Class specification.
  • The total box bandwidth / transmission rate is determined by the USB interface used (theoretically up to 10 Gbit/s).
  • The real box bandwidth / transmission rate is about 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface.
  • Supports BOT (Bulk-Only Transport).
  • Supports UASP (USB Attached SCSI) for faster transfers in Windows 8 and above.
  • Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
  • Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
  • SSD boot support in external box.
  • Possibility to connect your device while running thanks to the Hot Plug support.
  • Full Plug and Play support.
  • Standby support.
  • Power supply via USB bus up to 900 mA is sufficient in all cases.
  • A decent blue LED indicating the connection to the computer's USB and data transmission (permanent light).
  • Durable aluminum body and thermal pad improve M.2 SSD cooling.
  • Higher surface temperature is not a defect thanks to the aluminum body, the heat generated by the disk operation is better drained and transferred to the environment.
  • Connection via USB 3.2 Gen 2 type C female connector.
  • USB type C male / USB type C male cable 25 cm long and USB type C female / USB type A male adapter are included.

Type External enclosure
Form factor (width) M.2 2280
Form factor (width) M.2 2260
Form factor (width) M.2 2242
Form factor (width) M.2 2230
Form factor (width) M.2
HDD interface M.2
HDD interface NVMe
HDD interface SATA
Connectors 1 x USB 3.1
Connectors 1 x USB (Type C)
Stuff Metal
Supported operating systems Windows 10 Pro
Supported operating systems Windows 11 Pro
Supported operating systems Windows 11 Home
Supported operating systems Windows Server 2016
Supported operating systems Windows Server 2019
Supported operating systems Windows Server 2022
Supported operating systems Windows 11
Supported operating systems Linux
Supported operating systems Mac OS
Supported operating systems Windows
Supported operating systems Windows 7
Supported operating systems Windows Server 2012
Supported operating systems Windows 8
Supported operating systems Windows 8.1
Supported operating systems Windows 10
Supported operating systems Windows 10 Home
Supported operating systems iOS
Supported operating systems iPadOS
Supported operating systems Android
Supported operating systems Chrome OS
Color Gray
Dimensions 96 x 42 x 12 mm
Weight 46
Designation

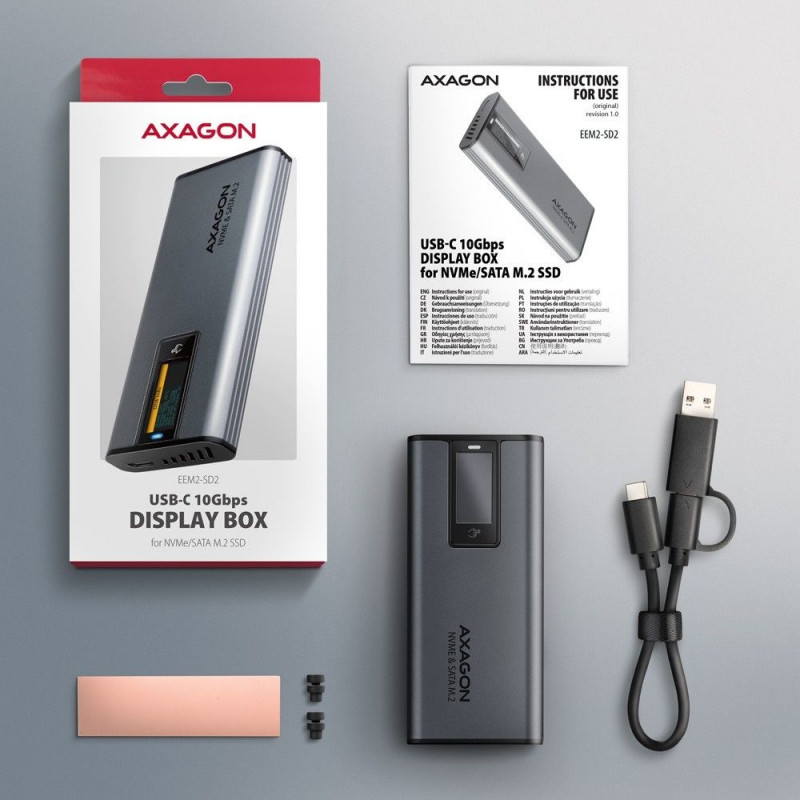

Accessories included USB-C 10Gbps external box for M.2 SSDs, USB-C - USB-C cable 25 cm long with USB-C - USB-A adapter, 1pc thermal conductive pad, multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK /

Dimensions and weights

Gross weight
0.1 kg
Package width
8.5 cm
Package height
17.5 cm
Package length
2.5 cm

Product codes

EAN
8595247908872
Manufacturer code
AIAXNOEEM2SD201
