PRIME B650M-A WIFI II

137,99 €

Monthly payment starting from 4,70 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

AMD B650 Micro-ATX Motherboard, DDR5, PCIe 5.0 M.2 Support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C port, BIOS FlashBack, Aura Sync

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Socket AM5 for AMD Ryzen Desktop Processors
  • Ultra-fast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C port
  • ASUS OptiMem II: Careful trace and via routing, as well as ground plane optimization, maintain signal integrity for improved memory overclocking
  • Comprehensive Cooling: Heatsink VRM, PCH heatsink, hybrid fan headers, and Xpert 2+ fan
  • Aura Sync RGB Lighting: Built-in addressable Gen 2 headers and an Aura RGB header for RGB LED strips, easily synced with Aura Sync-enabled hardware

CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 5200 MHz
Max memory size 192
Expansion slots 3 x PCIe 4.0 x 16
Max. number of SATA devices 4
RAID Yes
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
USB ports at back panel 8
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 2 x USB 3.0
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 4 x USB 2.0
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x RJ-45
External connectors 1 x D-Sub
External connectors 1 x DisplayPort
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 2 x USB 3.1
External connectors 2 x SMA
External connectors 1 x Flash BIOS Button
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin wentylator OPT CPU
Onboard connectors 3 x 4pin Chassis fan
Onboard connectors 1 x 4pin 12V power
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x USB 3.2 Gen 1 Type-C
Form factor micro ATX
Supported operating systems Windows 11
Supported operating systems Windows 10
Designation
Memory bus frequency 6000 MHz
Memory bus frequency 4800 MHz
Chipset type AMD B650
Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Supports up to 8K@60Hz according to the DisplayPort 1.4 specification.*** Supports 4K@60Hz according to the HDMI 2.1 specification.
Network interface 1 x Realtek 2.5Gb Ethernet
BIOS 256 Mb Flash ROM, UEFI AMI
Dimensions 24.4 x 24.4 cm

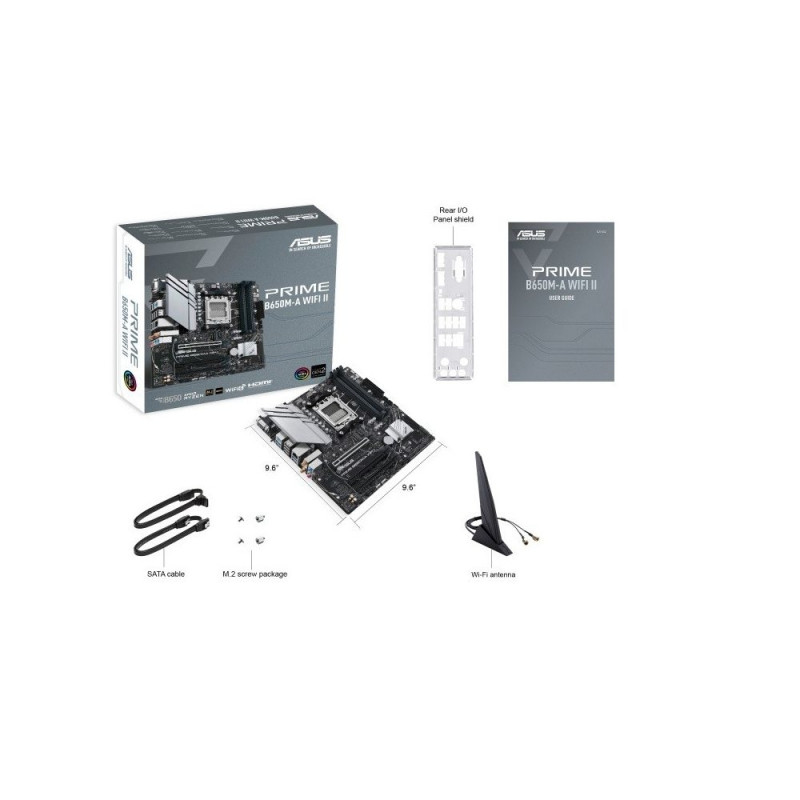

Accessories included 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi movable antennas 1 x I/O shield 1 x M.2 SSD screw set 1 x User manual
Detailed data on disk/drive interfaces Supports a total of 2 M.2 slots and 4 SATA 6 Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/
Sound card Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *7.1 Surr
Special functions ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection Safeslot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Aura Sync Aura R

Dimensions and weights

Gross weight
1.396 kg
Package width
26 cm
Package height
28 cm
Package length
7 cm

Product codes

EAN
4711387034934
Manufacturer code
KBASUAA8B650U05

Manufacturer

Manufacturer
ASUSTeK Computer Inc., Li-De Rd., 15, Taipei, 112, TW, investor@asus.com
Responsible person in the EU
Asus Europe B.V., Paasheuvelweg 25, Amsterdam, 1101, NL, advance.rma.eu@asus.com
