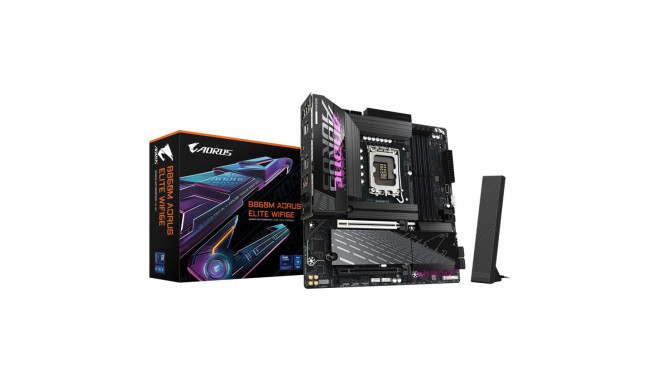

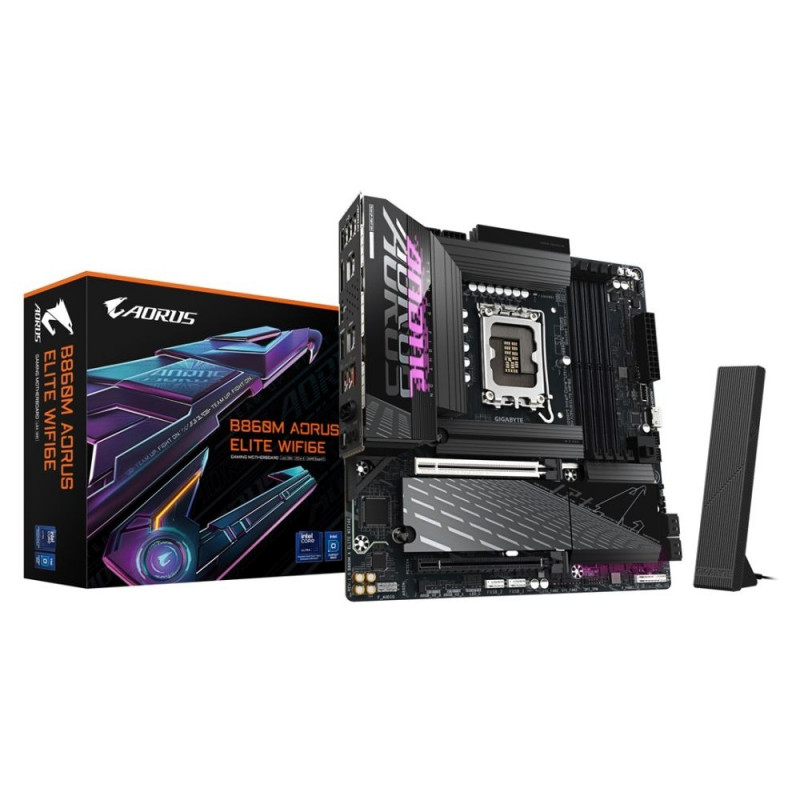

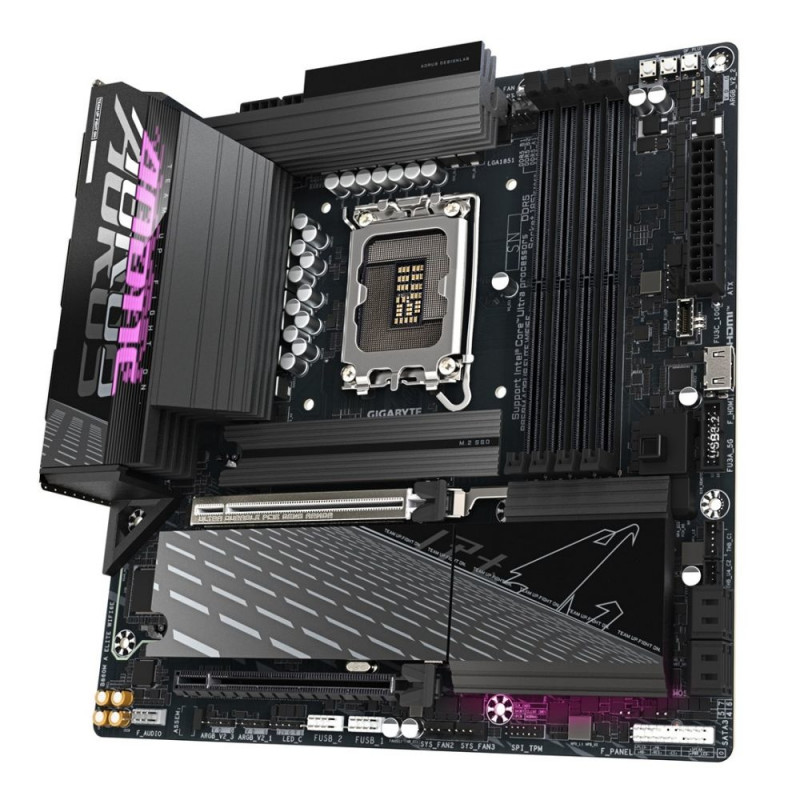

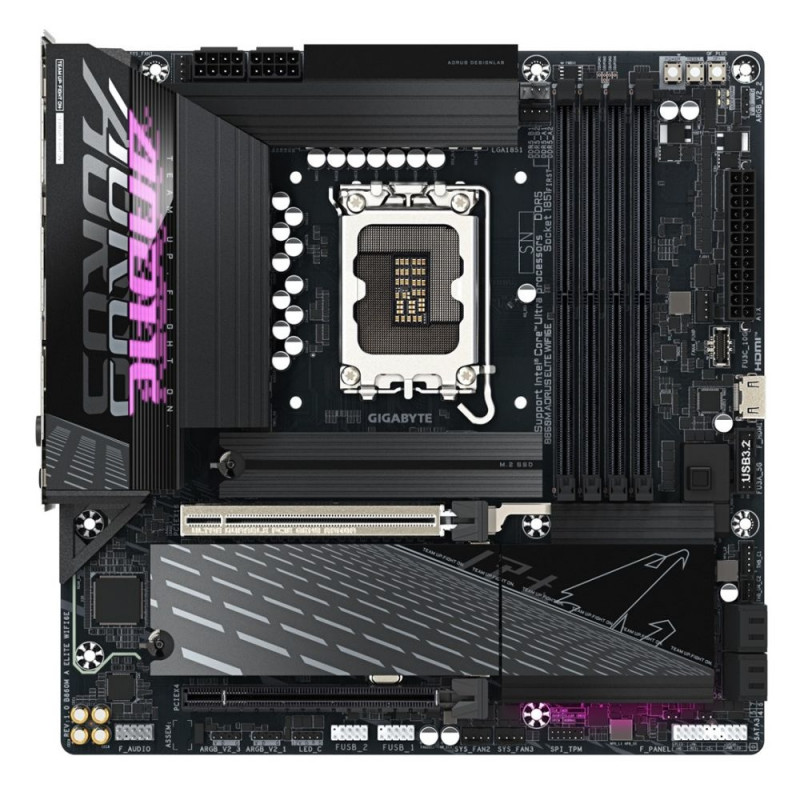

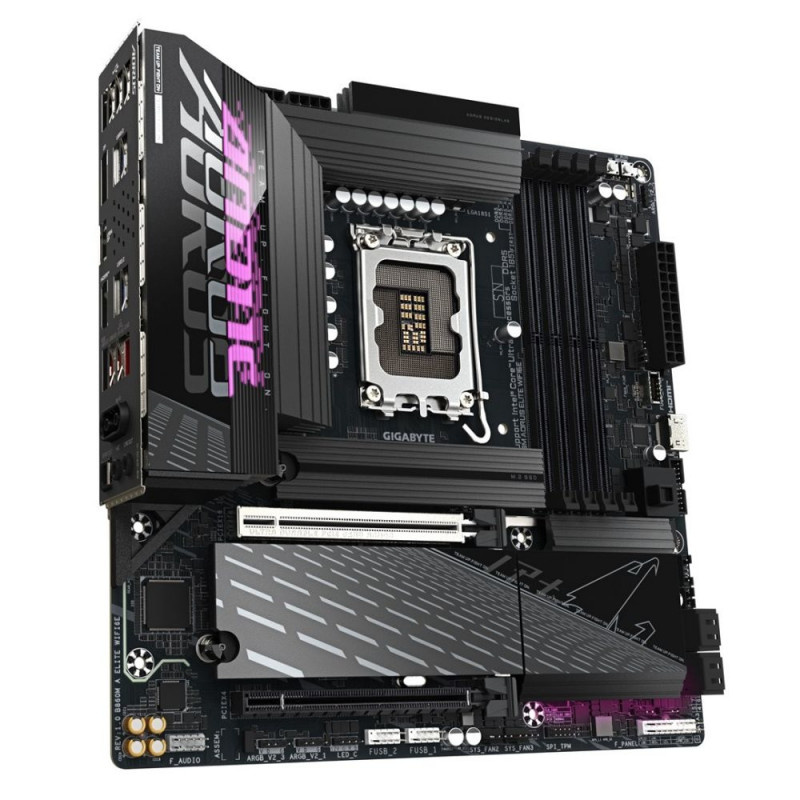

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, u

Main info

Product has been archived


Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
DisplayPorts quantity 1
Weight 1.69 kg
Windows operating systems supported Windows 11 x64
HDMI version 2.1
Batteries included Yes
Front panel audio connector Yes
Number of M.2 (M) slots 3
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
DisplayPort version 2.1
Depth 244 mm
WLAN controller model Intel Wi-Fi 6E AX211
Ethernet LAN Yes
BIOS type UEFI AMI
Audio chip Realtek ALC897
Memory slots type DIMM
Supported processor sockets LGA 1851
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Product colour Black
WiFi-AP antenna jack 2
Package depth 268 mm
Number of memory slots 4
Motherboard chipset Intel B860
Maximum internal memory 256 GB
S/PDIF out port Yes
Width 244 mm
RAID support Yes
Line-in Yes
RGB LED pin header Yes
Supported storage drive types HDD & SSD
Bluetooth Yes
Wi-Fi Yes
Number of battery cells 1
Number of SATA III connectors 4
Desktop Management Interface (DMI) version 2.7
Processor manufacturer Intel
LAN controller Realtek RTL8125
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Digital audio optical out 1
Thunderbolt headers 2
Audio output channels 7.1 channels
Products per shipping (inner) case 1 pc(s)
Ethernet LAN (RJ-45) ports 1
Motherboard chipset family Intel
Supported memory types DDR5-SDRAM
Antenna included Yes
HDCP Yes
Motherboard form factor micro ATX
Package height 68 mm
Bluetooth version 5.3
USB 2.0 ports quantity 4
Number of HDDs supported 4
Power source type ATX
Clear CMOS jumper Yes
HDMI ports quantity 1
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Unbuffered memory Yes
PCI Express x16 (Gen 5.x) slots 1
USB 2.0 connectors 2
Processor socket LGA 1851 (Socket V1)
Screws included Yes
CPU fan connector Yes
Package weight 1.89 kg
Supported storage drive interfaces M.2, SATA III
Height 35 mm
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Country of origin China
Maximum resolution 4096 x 2160 pixels
Warranty period 3 year(s)
PCI Express x16 (Gen 4.x) slots 1
ATX Power connector (24-pin) Yes
Battery weight 3 g
Headphone outputs 1
TPM connector Yes
Supported memory clock speed (max) 9200 MHz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Front panel connector Yes
Package width 270 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB4 Gen 2x2 ports quantity 1
Number of storage drives supported 7
Number of chassis fan connectors 4
DirectX version 12.0
Parallel processing technology support Not supported
Lithium weight per battery 0.07 g
1st M.2 largest key size 2280
Maximum internal memory per slot 64 GB
2nd M.2 largest key size 2580
Number of CPU fan connectors 2
ECC сompatibility ECC & Non-ECC
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
Number of EPS power connectors (8-pin) 2
1st M.2 highest PCI Express generation 5.0
Number of water pump connectors 2
3rd M.2 highest PCI Express generation 4.0
Number of RGB LED pin headers 4
Warranty 24 (G)
Component for PC
ACPI version 5.0
Cooling type Passive
BIOS memory size 256 Mbit
On-board graphics card No
System Management BIOS (SMBIOS) version 2.7
Compatible processor series Intel® Core™ Ultra (Series 1)
RAID levels 10
Supported memory clock speeds 9200 MHz
PC health monitoring Temperature
Wi-Fi standards Wi-Fi 6E (802.11ax)

Dimensions and weights

Package width
274 cm
Package height
277 cm
Package length
75 cm

Product codes

EAN
4719331866877
Manufacturer code
B860M A ELITE WIFI6E
