Home page » Computers & IT»Computer components»Mainboards»GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM,

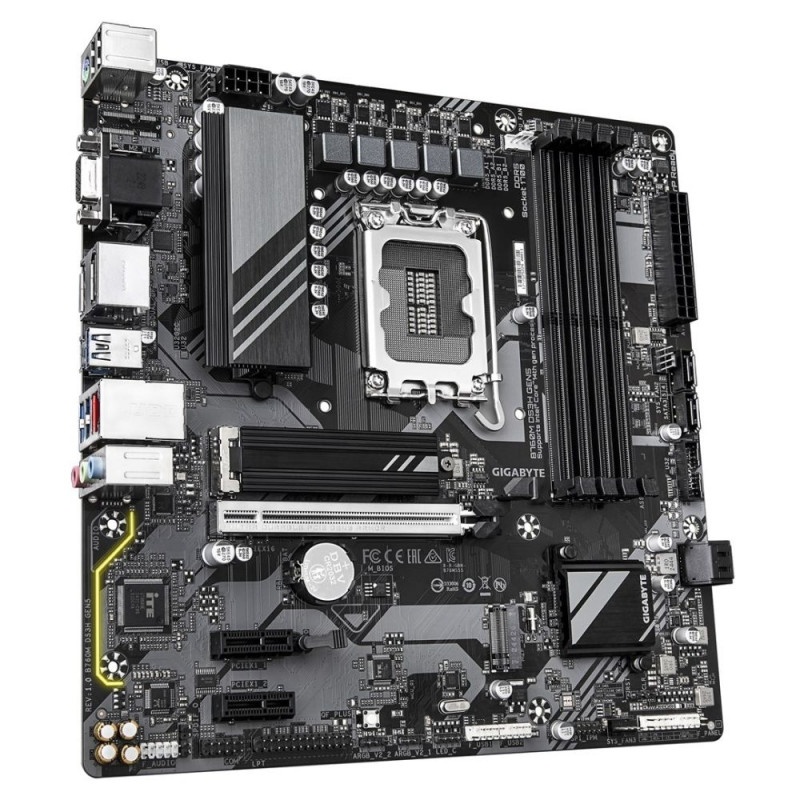

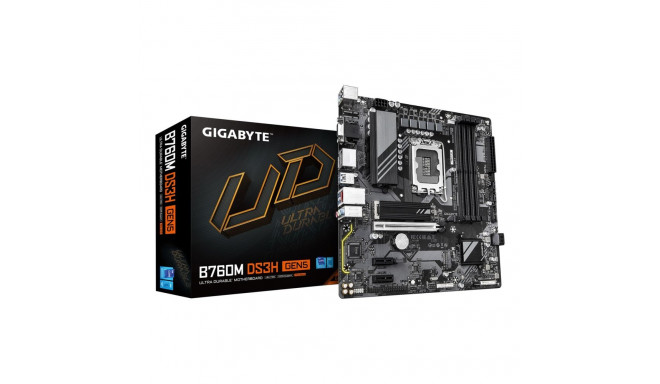

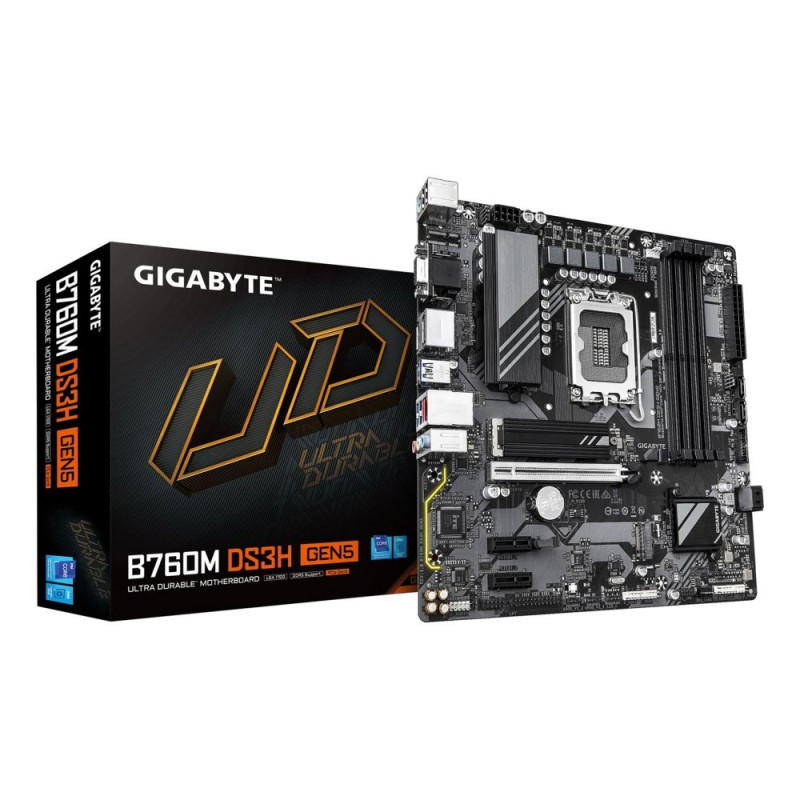

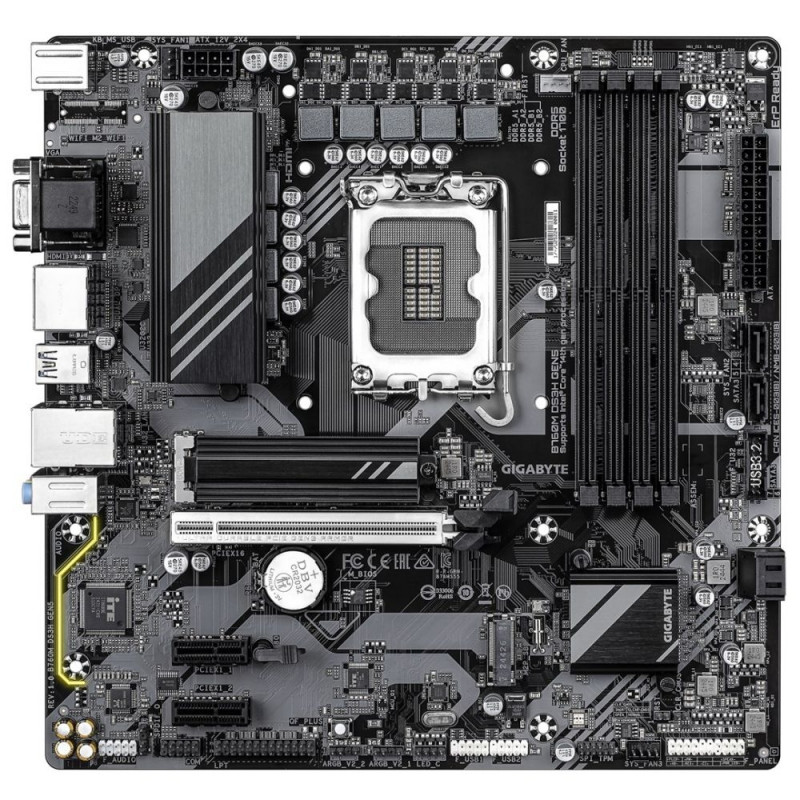

GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM,

132,99 €

Monthly payment starting from 4,53 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Warranty 36 (G)
Bundled software Norton® Internet Security (OEM version)
Ethernet interface type 2.5 Gigabit Ethernet
Memory slots type DIMM
Desktop Management Interface (DMI) version 2.7
12V power connector Yes
Ethernet LAN Yes
PS/2 ports quantity 1
HDMI version 2.1
RGB LED pin header Yes
Line-in Yes
VGA (D-Sub) ports quantity 1
Number of memory slots 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Width 244 mm
Number of HDDs supported 4
Supported memory types DDR5-SDRAM
Number of storage drives supported 6
Depth 174 mm
Clear CMOS jumper Yes
Processor socket LGA 1700
PCI Express x16 (Gen 5.x) slots 1
Processor manufacturer Intel
Microphone in Yes
HDMI ports quantity 1
Supported memory clock speed (max) 5600 MHz
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Memory channels Dual-channel
Headphone outputs 1
Number of CPU fan connectors 1
ECC сompatibility ECC & Non-ECC
Maximum internal memory per slot 64 GB
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Audio output channels 7.1 channels
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4.0
Supported storage drive types HDD & SSD
Number of RGB LED pin headers 3
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
Motherboard chipset Intel B760 Express
S/PDIF out connector Yes
Maximum internal memory 256 GB
HDCP Yes
Number of EPS power connectors (8-pin) 1
Unbuffered memory Yes
Motherboard chipset family Intel
Ethernet LAN (RJ-45) ports 1
Front panel audio connector Yes
Number of M.2 (M) slots 2
Motherboard form factor micro ATX
Supported processor sockets LGA 1700
BIOS type UEFI AMI
Cooling type Passive
DisplayPorts quantity 2
EPS power connector (8-pin) Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Serial port headers 1
DisplayPort version 1.2
Power source type ATX
PCI Express x1 (Gen 3.x) slots 2
Maximum resolution 4096 x 2304 pixels
Number of chassis fan connectors 3
Number of SATA III connectors 4
TPM connector Yes
Front panel connector Yes
USB 2.0 ports quantity 2
Parallel processing technology support Not supported
CPU fan connector Yes
RAID support Yes
Parallel connector Yes
ATX Power connector (24-pin) Yes
Supported memory clock speeds 5600
PC health monitoring Voltage
RAID levels 10
Compatible processor series Intel® Celeron®
Windows operating systems supported Windows 10 x64

Dimensions and weights

Package width
280 cm
Package height
270 cm
Package length
60 cm

Product codes

EAN
4719331872793
Manufacturer code
B760M DS3H GEN5
