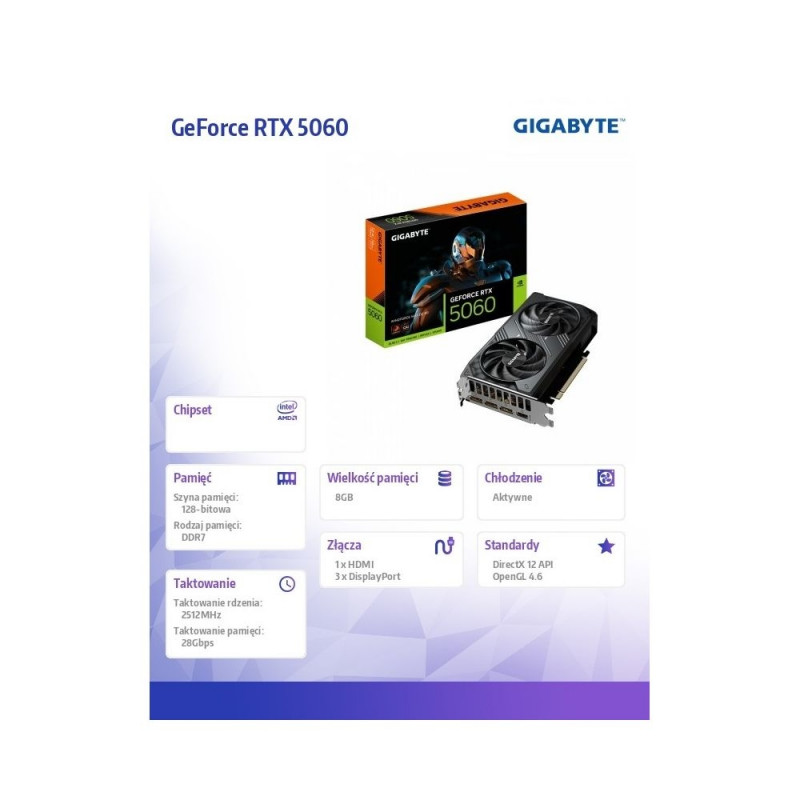

Graphics card GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 3DP/HDMI

Main info

GeForce RTX 5060 WINDFORCE MAX OC 8G Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5060 Integrated with 8GB GDDR7 128bit memory interface WINDFORCE cooling system: Hawk fan; Server-grade Thermal conductive gel Reinfo

Product has been archived

GeForce RTX 5060 WINDFORCE MAX OC 8G

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5060
  • Integrated with 8GB GDDR7 128bit memory interface
  • WINDFORCE cooling system: Hawk fan; Server-grade Thermal conductive gel
  • Reinforced structure

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE

  • ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
  • LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
  • LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.


Model GeForce RTX 5060
Graphics card connector PCI-E 16x ver. 5.0
Chipset GeForce RTX 5060
Memory type DDR7
Memory bus 128-bit
VRAM memory size 8
Core frequency 2512
Memory frequency 28
CUDA Core 3840
Video ports 1 x HDMI
Video ports 3 x DisplayPort
Cooling Active
Number of fans 2
Supported standards DirectX 12 API
Supported standards OpenGL 4.6
Dimensions 40 x 116 x 199 mm
Version Box
Other features Maximum resolution: 7680 × 4320 Recommended power supply: 550 W Power connectors: 8-pin Number of connected monitors supported: 4
Accessories included User manual

Dimensions and weights

Gross weight
0.749 kg
Package width
29.5 cm
Package height
21 cm
Package length
5 cm

Product codes

EAN
4719331356699
Manufacturer code
KGGBAN506388009
