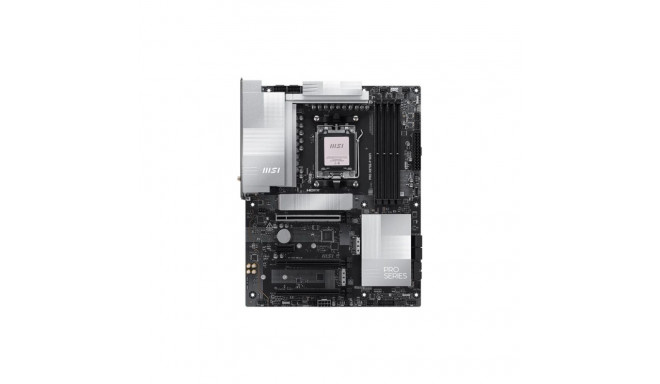

Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|PROX870E-PWIFI

271,99 €

Monthly payment starting from 9,27 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 2-4 working days

Free delivery

14 14 days return policy when purchasing online

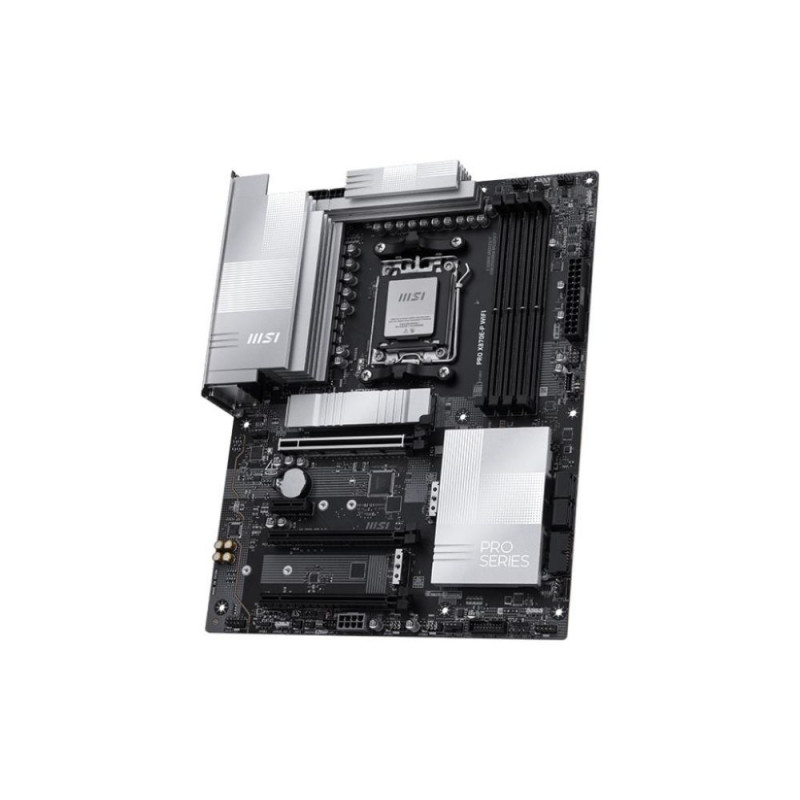

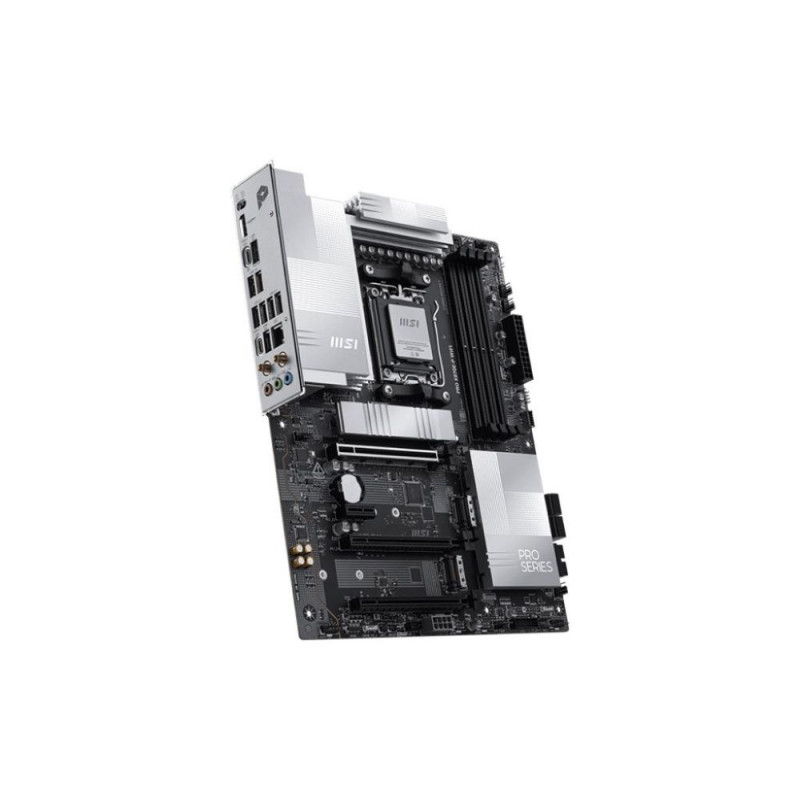

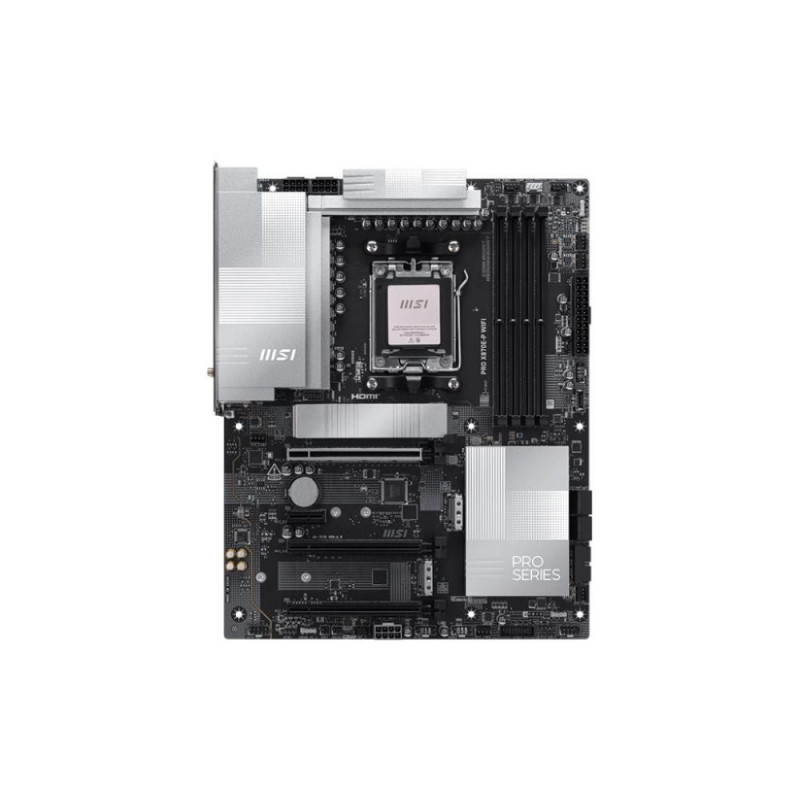

PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-P WIFI is ready for the challenge of high-end processors.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience


Infot ka tootja kodulehelt.
Summary MSI PRO X870E-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory
Features Audio output channels - 7.1 channels, Component for - PC, Motherboard chipset - AMD X870E, Motherboard chipset family - AMD, Motherboard form factor - ATX, PC health monitoring - CPU/Fan/Temperature/Voltage, Product colour - Black, Windows operating syste
Processor Compatible processor series - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series, Processor manufacturer - AMD, Processor socket - Socket AM5, Supported processor sockets - Socket AM5
Memory ECC сompatibility - Non-ECC, Maximum internal memory - 256 GB, Memory channels - Dual-channel, Memory slots type - DIMM, Number of memory slots - 4, Supported memory clock speed (max) - 8200 MHz, Supported memory clock speeds - 4800/5600/8200 MHz, Support
Storage controllers Number of HDDs supported - 7, Number of storage drives supported - 4, RAID levels - 0/1, RAID support - Yes, Supported storage drive interfaces - M.2,SATA III, Supported storage drive types - HDD & SSD
Graphics On-board graphics card - No
Internal I/O ATX Power connector (24-pin) - Yes, CPU fan connector - Yes, EPS power connector (8-pin) - Yes, Number of SATA III connectors - 4, RGB LED pin header - Yes, Total number of SATA connectors - 4, TPM connector - Yes, USB 2.0 connectors - 6, USB 3.2 Gen 1 (3

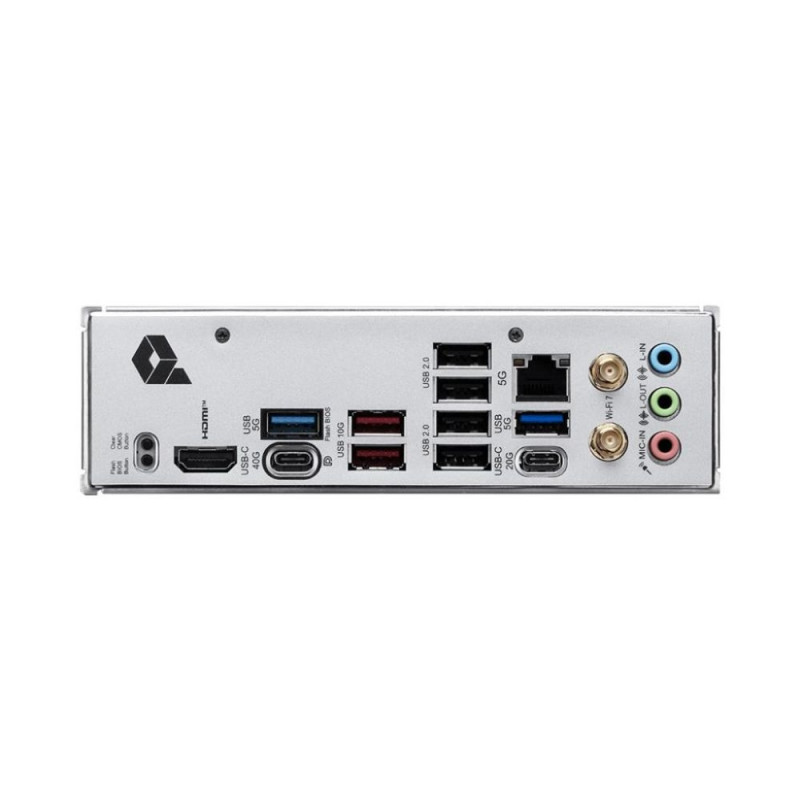

Rear panel I/O ports DisplayPort version - 1.4, DisplayPorts quantity - 2, Ethernet LAN (RJ-45) ports - 1, HDMI ports quantity - 1, HDMI version - 2.1, USB 2.0 ports quantity - 4, USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2, USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quan
Network Bluetooth - Yes, Bluetooth version - 5.4, Ethernet interface type - 5 Gigabit Ethernet, Ethernet LAN - Yes, Top Wi-Fi standard - Wi-Fi 7 (802.11be), Wi-Fi - Yes, Wi-Fi standards - 802.11a/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-
Expansion slots 1st M.2 highest PCI Express generation - 5.0, 1st M.2 largest key size - 2280, 2nd M.2 highest PCI Express generation - 4.0, 2nd M.2 largest key size - 2580, 3rd M.2 highest PCI Express generation - 4.0, 3rd M.2 largest key size - 22110, Number of M.2 (M)
Model PRO X870E-P WIFI
Units per Shipping Box 5
Unit Calculated Volume 0.007909 cubm
Unit Calculated Weight 2.15 kg

Product codes

EAN
4711377347600
Manufacturer code
PRO X870E-P WIFI
