Home page » Computers & IT»Computer components»Mainboards»Mainboard|GIGABYTE|AMD B650|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNu

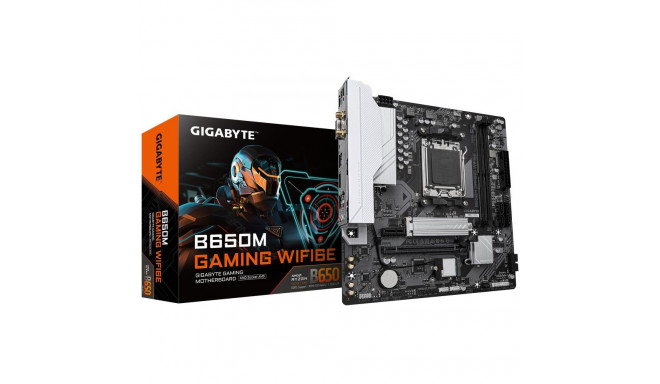

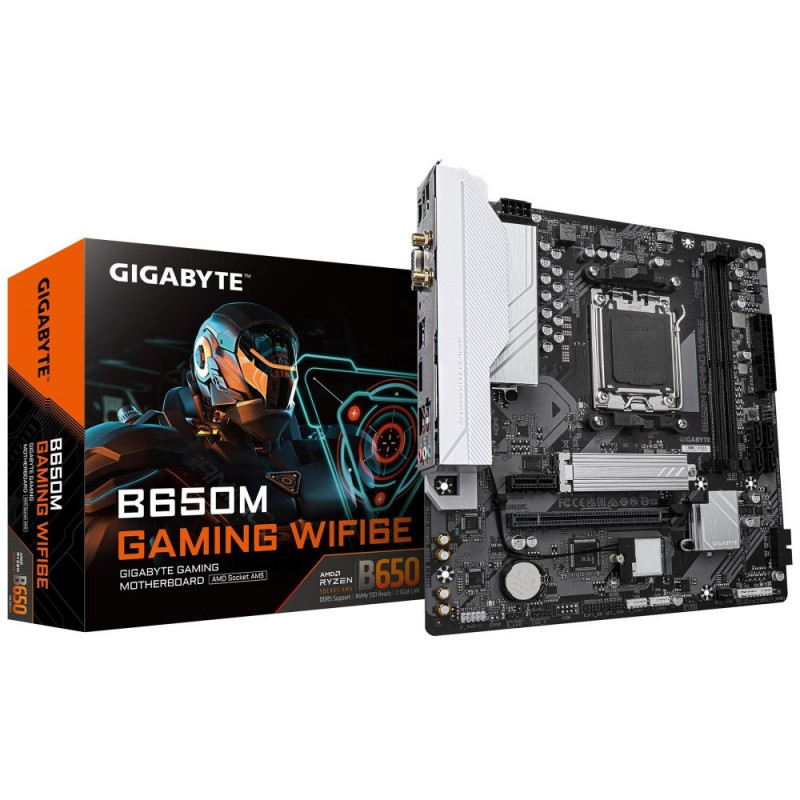

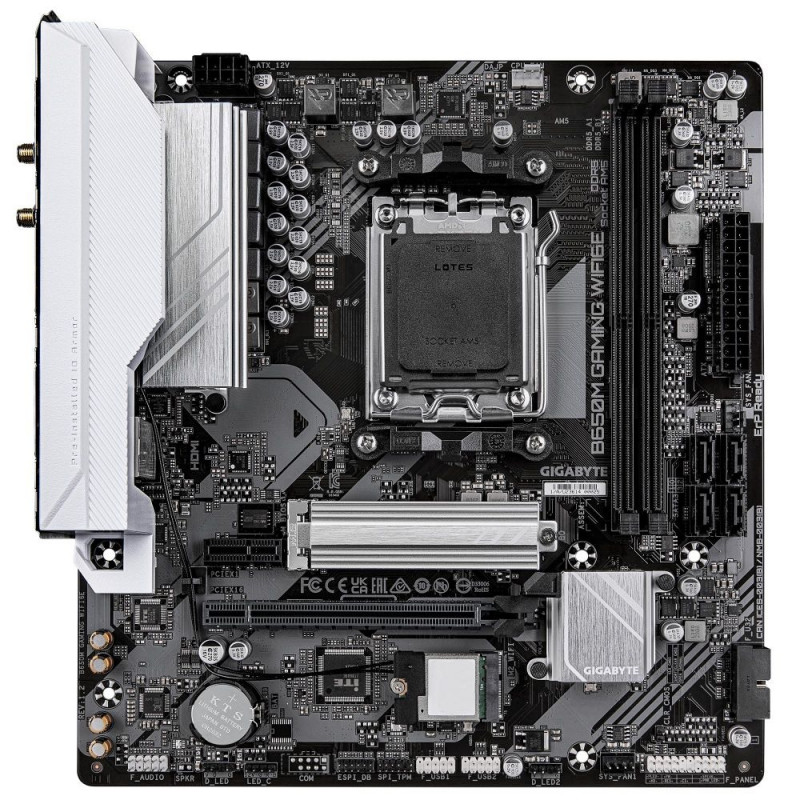

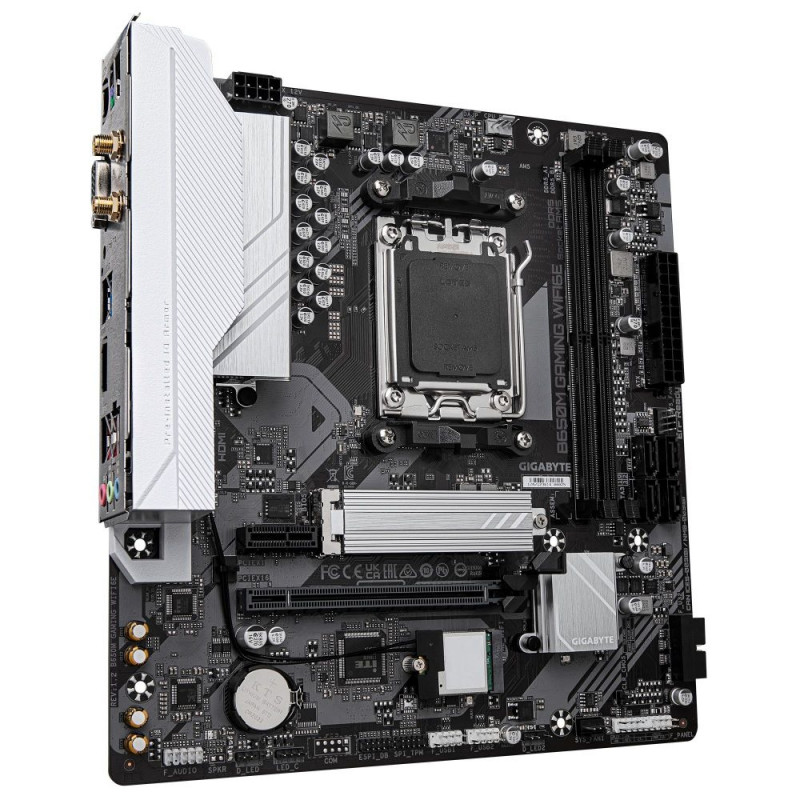

Mainboard|GIGABYTE|AMD B650|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNu

Main info

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content

Product has been archived

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI , D-sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card


Infot ka tootja kodulehelt.
Summary GIGABYTE B650M GAMING WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5 GbE LAN, WIFI 6E, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series:
Features Motherboard chipset - AMD B650, PC health monitoring - Fan/Temperature/Voltage, Component for - PC, Motherboard form factor - micro ATX, Audio output channels - 7.1 channels, Motherboard chipset family - AMD, Power source type - ATX, Windows operating sys
Processor Processor manufacturer - AMD, Processor socket - Socket AM5, Compatible processor series - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series, Supported processor sockets - Socket AM5
Memory Supported memory types - DDR5-SDRAM, Number of memory slots - 2, Memory slots type - DIMM, Memory channels - Dual-channel, ECC сompatibility - Non-ECC, Supported memory clock speeds - 4400/4800/5200/5600/6000/6200/6400 MHz, Supported memory clock speed (m
Storage controllers Supported storage drive types - HDD & SSD, Supported storage drive interfaces - M.2,SATA III, Number of HDDs supported - 4, Number of storage drives supported - 5, RAID support - Yes, RAID levels - 0/1/10
Graphics Parallel processing technology support - Not supported, Maximum resolution - 4096 x 2160 pixels, HDCP - Yes
Internal I/O USB 2.0 connectors - 2, USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1, Number of SATA III connectors - 4, Front panel audio connector - Yes, Front panel connector - Yes, ATX Power connector (24-pin) - Yes, CPU fan connector - Yes, Number of CPU fan connectors

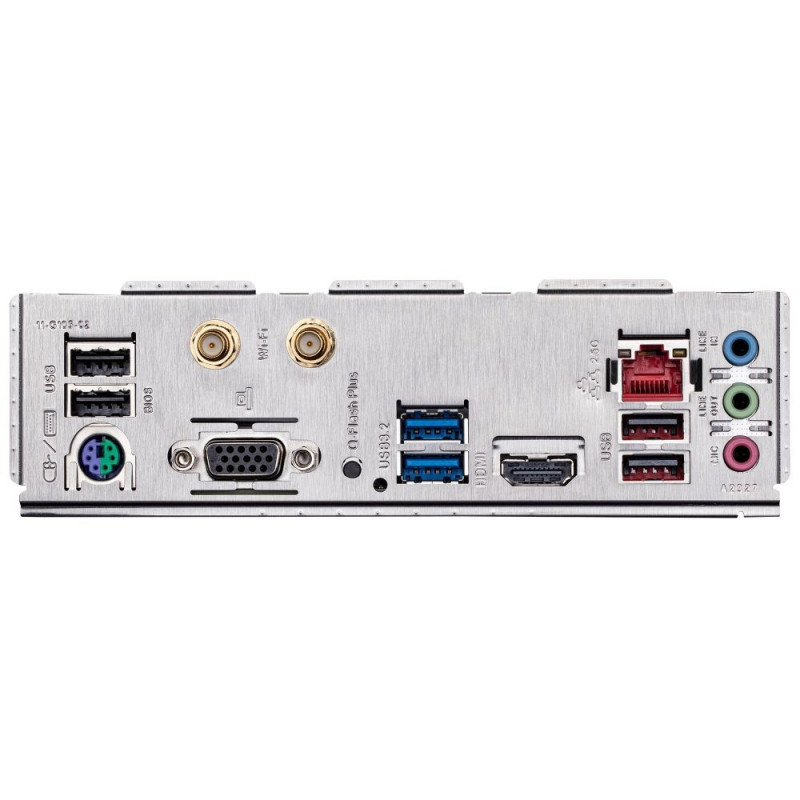

Rear panel I/O ports USB 2.0 ports quantity - 4, USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2, Ethernet LAN (RJ-45) ports - 1, PS/2 ports quantity - 1, VGA (D-Sub) ports quantity - 1, HDMI ports quantity - 1, HDMI version - 2.1, Headphone outputs - 1, Line-in - Yes, Mi
Network Ethernet LAN - Yes, Ethernet interface type - 2.5 Gigabit Ethernet, Wi-Fi - Yes, Top Wi-Fi standard - Wi-Fi 6E (802.11ax), Wi-Fi standards - Wi-Fi 6E (802.11ax), WLAN controller model - Realtek RTL8852CE, Bluetooth - Yes, Bluetooth version - 5.3
Expansion slots PCI Express x1 (Gen 3.x) slots - 1, PCI Express x16 (Gen 4.x) slots - 1, Number of M.2 (M) slots - 1, 1st M.2 largest key size - 2580, 1st M.2 highest PCI Express generation - 4.0
BIOS BIOS type - UEFI AMI, BIOS memory size - 256 Mbit, ACPI version - 5.0, Clear CMOS jumper - Yes, Desktop Management Interface (DMI) version - 2.7, System Management BIOS (SMBIOS) version - 2.7
Logistics data Country of origin - China, Products per shipping (inner) case - 1 pc(s)
Battery Battery weight - 3 g, Lithium weight per battery - 0.07 g, Number of battery cells - 1, Battery technology - Lithium-Manganese Dioxide (LiMnO2), Battery type - CR2032
Packaging data Package width - 270 mm, Package depth - 268 mm, Package height - 68 mm, Package weight - 1210 g
Packaging content Antenna included - Yes, Batteries included - Yes, Screws included - Yes, Bundled software - Norton® Internet Security (OEM version) LAN bandwidth management software
Other features Weight - 720 g
Technical details Warranty period - 3 year(s)
ELKO Logistics Data Unit Calculated Weight - 1.12 kg, Product Net Weight - 0.7 kg, Units per Shipping Box - 10, Units per Pallet -
ELKO Internal Logistics Data Unit Calculated Volume - 0.006327 cubm
Name MB AMD B650 SAM5 MATX/B650M GAMING WIFI6E GIGABYTE
Model B650M GAMING WIFI6E (rev. 1.4)

Dimensions and weights

Package width
38 cm
Package height
30 cm
Package length
55.5 cm

Product codes

EAN
4719331867942
Manufacturer code
B650M GAMING WIFI6E 1.4
