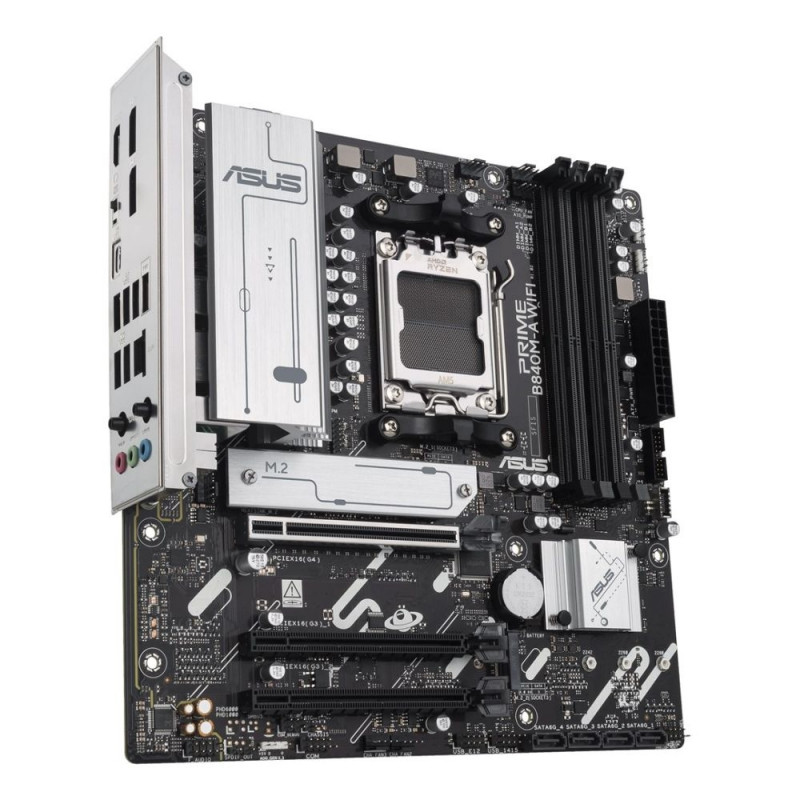

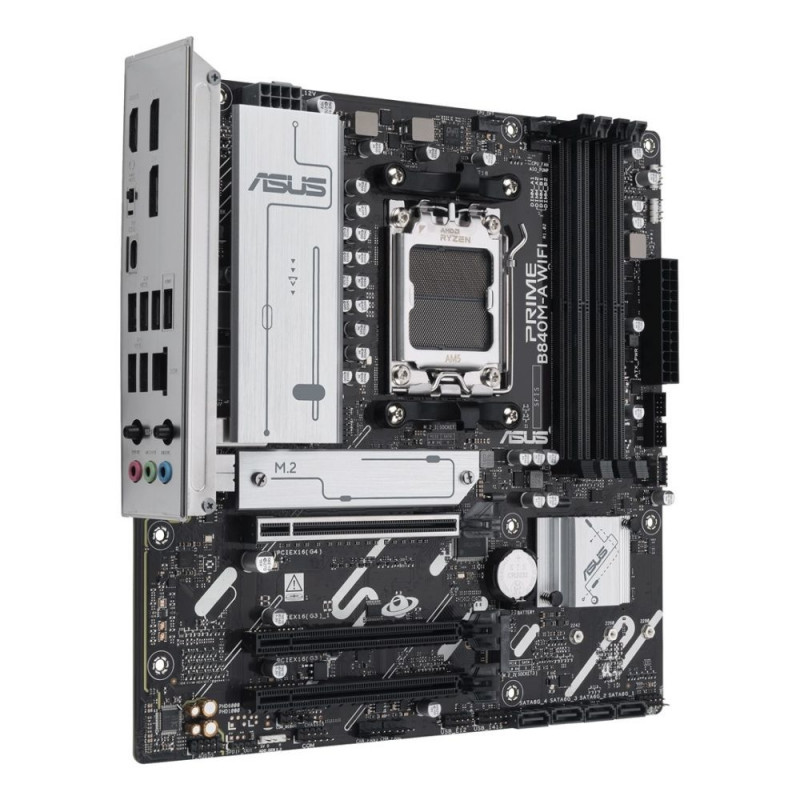

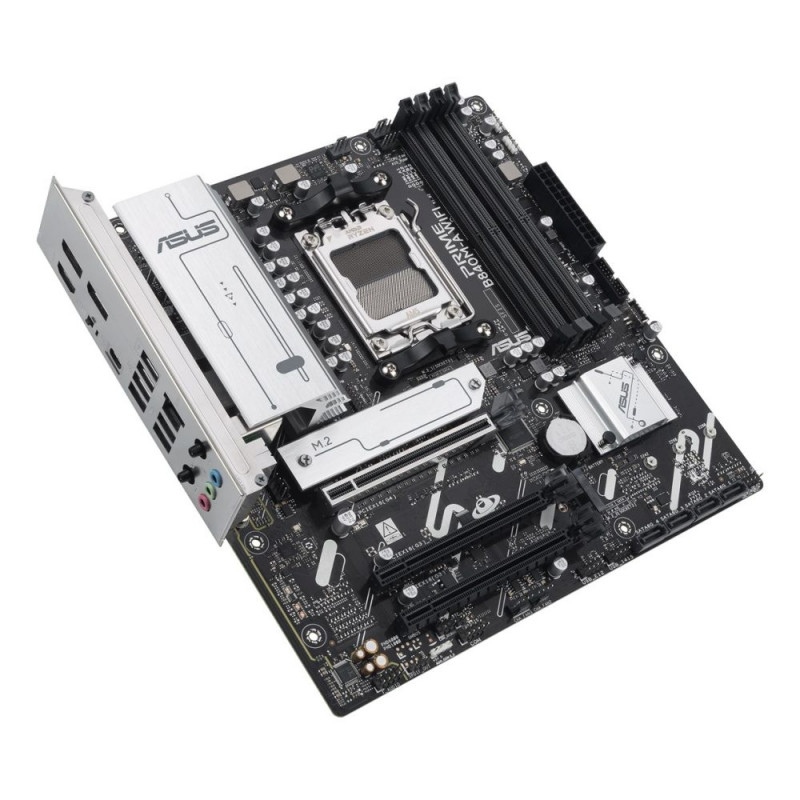

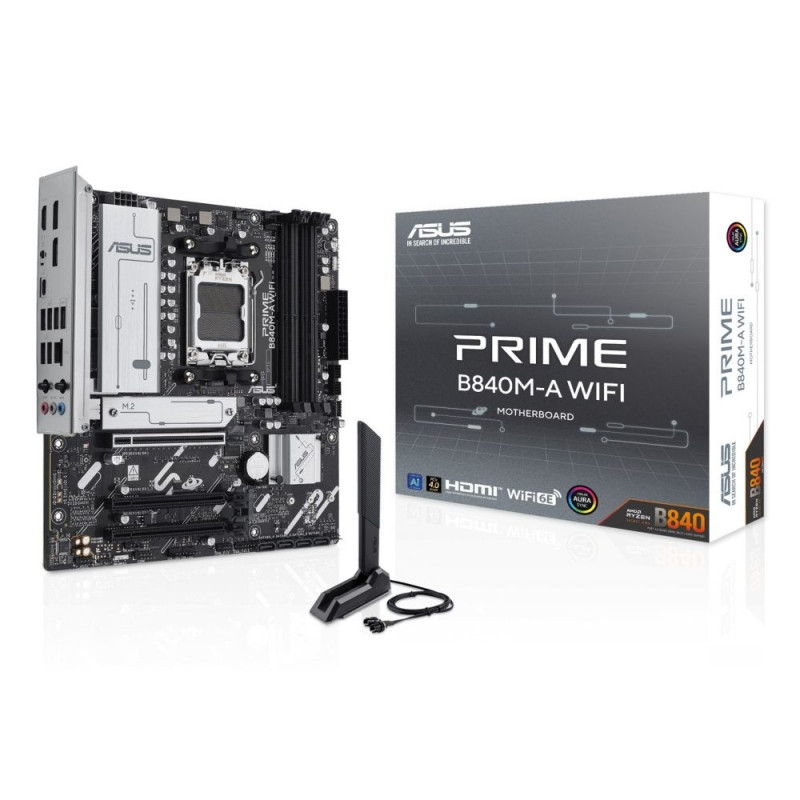

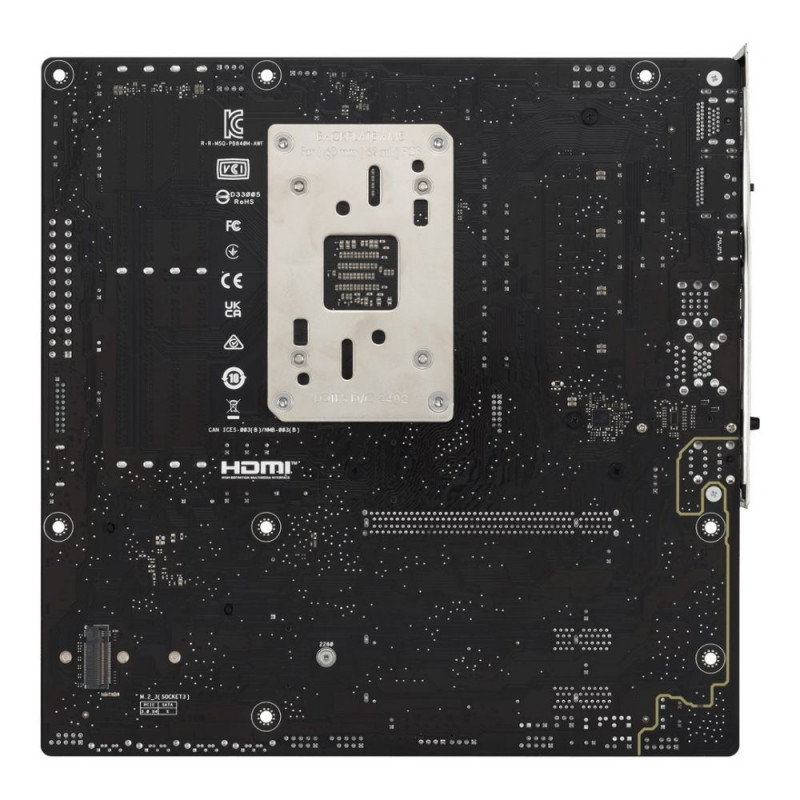

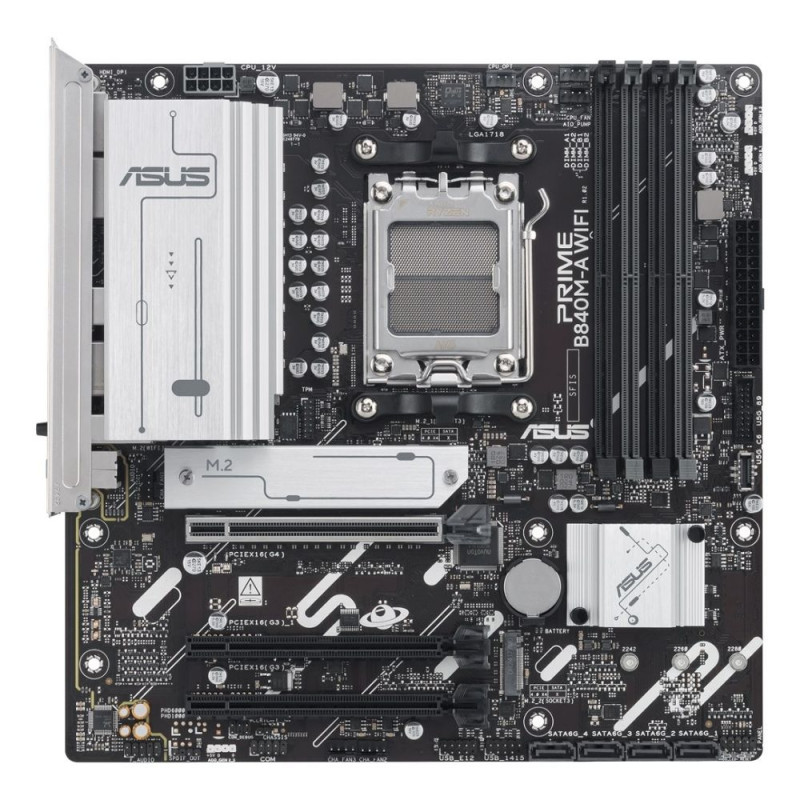

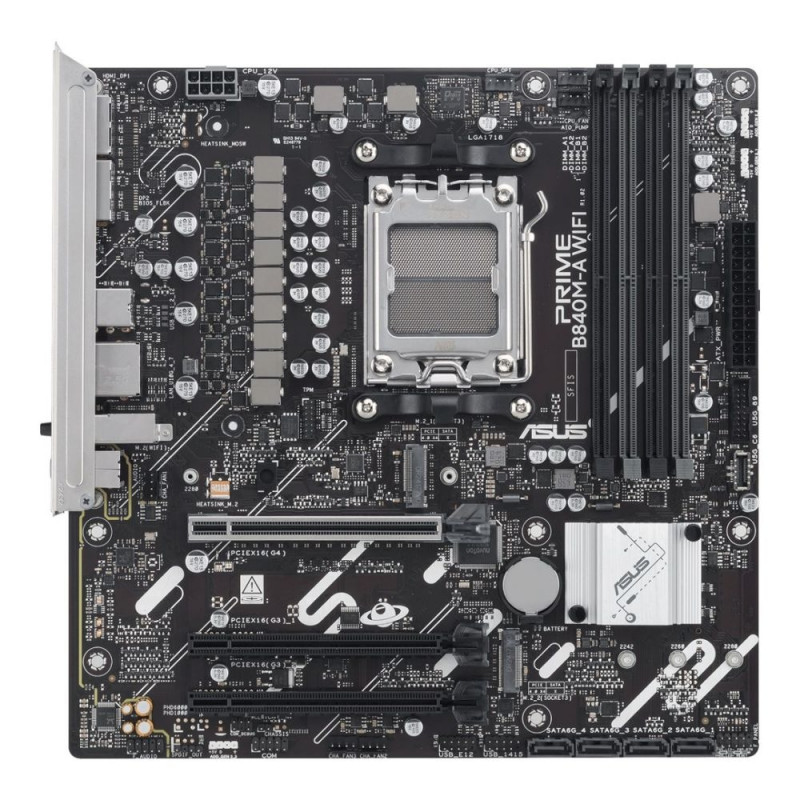

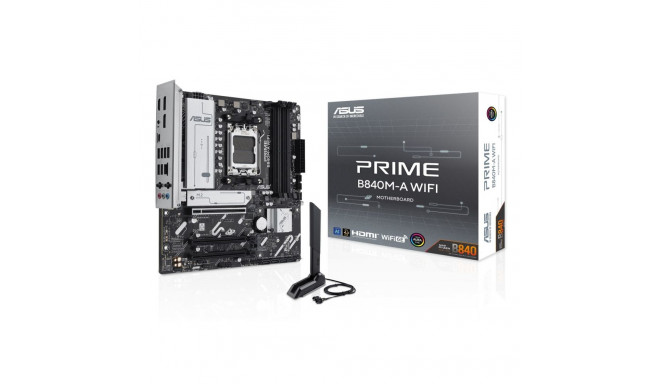

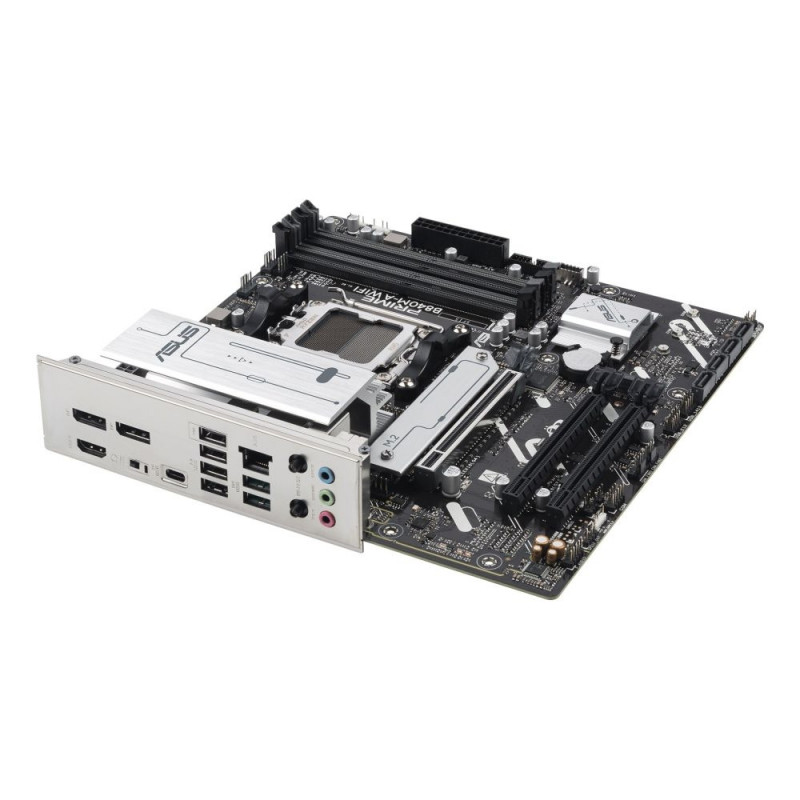

ASUS PRIME B840M-A WIFI AMD B840 Socket AM5 micro ATX

155,99 €

Monthly payment starting from 5,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Number of SATA III connectors 4 Package weight 1.52 kg
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Number of SATA III connectors 4
Package weight 1.52 kg
1st M.2 highest PCI Express generation 4.0
Supported storage drive types HDD & SSD
Motherboard chipset AMD B840
Unbuffered memory Yes
Motherboard chipset family AMD
USB 2.0 connectors 2
Bluetooth Yes
Audio output channels 7.1 channels
S/PDIF out connector Yes
Supported storage drive interfaces M.2, SATA III
Parallel processing technology support Not supported
Maximum internal memory 192 GB
Motherboard form factor micro ATX
2nd M.2 largest key size 2280
PCI Express x16 (Gen 3.x) slots 2

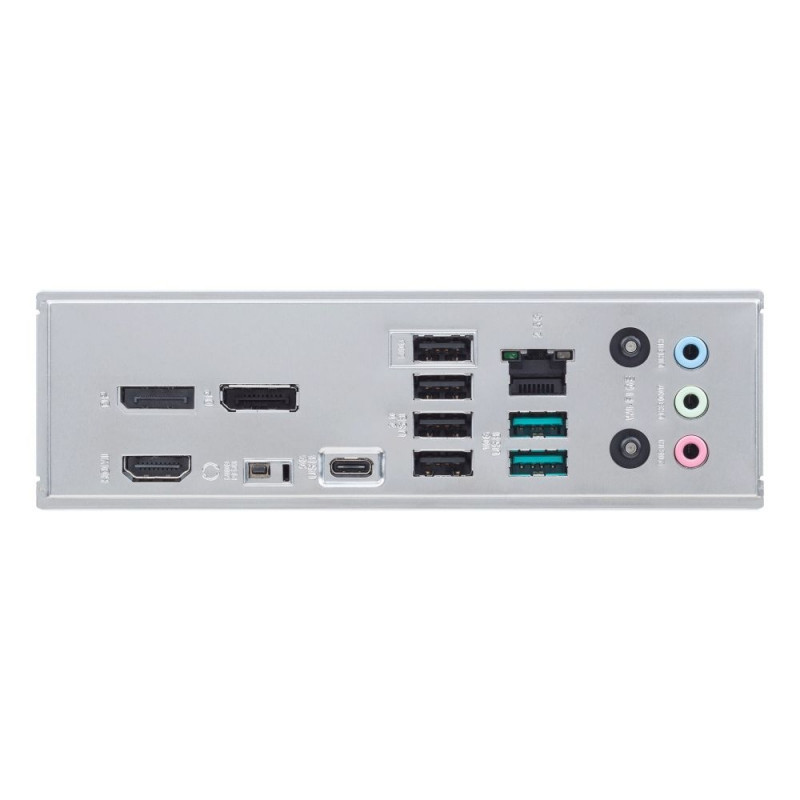

DisplayPorts quantity 2
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Front panel audio connector Yes
3rd M.2 largest key size 2280
Ethernet LAN (RJ-45) ports 1
2nd M.2 highest PCI Express generation 4.0
3rd M.2 highest PCI Express generation 3.0
ATX Power connector (24-pin) Yes
RAID support Yes
Number of M.2 (M) slots 3
Package height 67.5 mm
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Wi-Fi Yes
Screws included Yes
Depth 244 mm
Ethernet LAN Yes
BIOS memory size 256 Mbit
Wi-Fi standards Wi-Fi 6E (802.11ax)
Number of chassis fan connectors 3
Width 244 mm
Number of HDDs supported 4
Processor socket Socket AM5
Supported processor sockets Socket AM5
12V power connector Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
HDMI ports quantity 1
Processor manufacturer AMD
Number of COM connectors 1
Ethernet interface type 2.5 Gigabit Ethernet
Supported memory types DDR5-SDRAM
WiFi-AP antenna jack 1
Bluetooth version 5.3
Number of memory slots 4
BIOS type UEFI AMI
Memory slots type DIMM
PCI Express x16 (Gen 4.x) slots 1
TPM connector Yes
CPU fan connector Yes
Number of storage drives supported 7
Package depth 275 mm
Component for PC

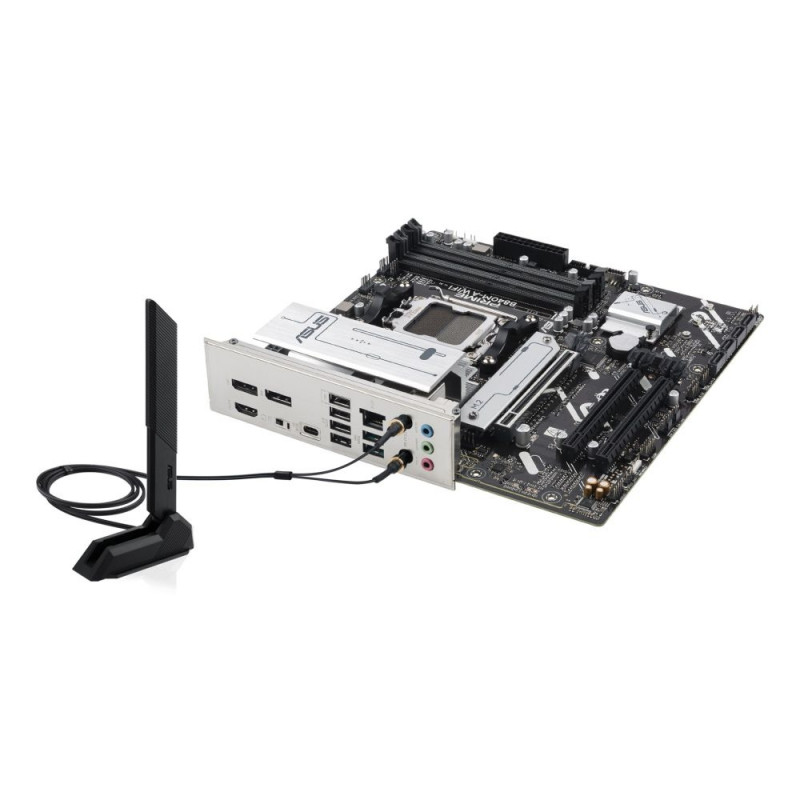

Antenna included Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Cables included SATA
Package width 275 mm
Front panel connector Yes
ECC сompatibility ECC & Non-ECC
1st M.2 largest key size 2280
Warranty 24 (G)
Compatible processor series AMD Ryzen 8000 Series
Windows operating systems supported Windows 10 x64
RAID levels 1

Dimensions and weights

Package width
280 cm
Package height
70 cm
Package length
275 cm

Product codes

EAN
4711387797143
Manufacturer code
90MB1J20-M0EAY0
