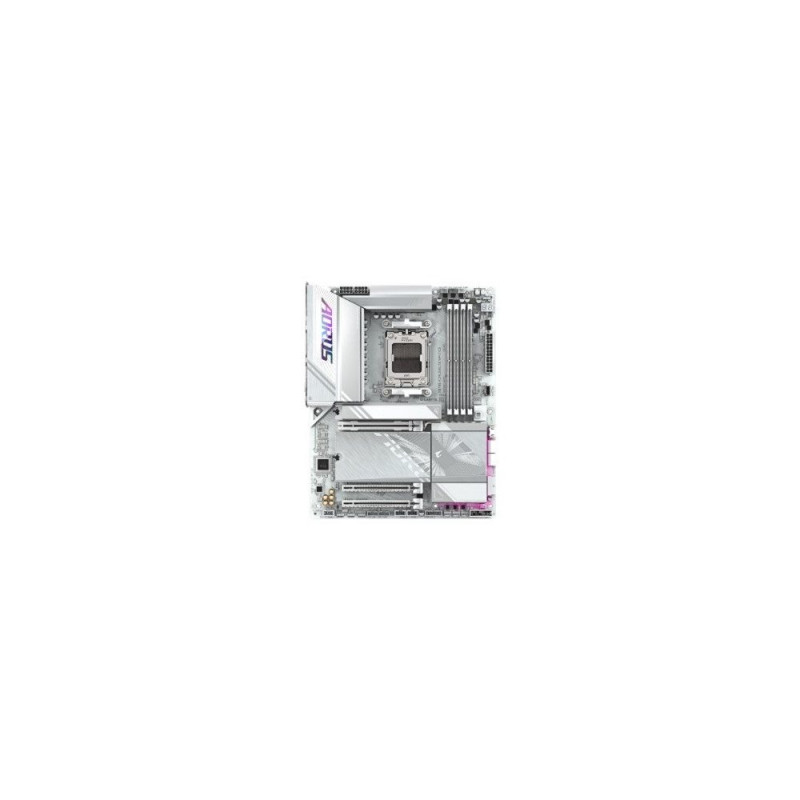

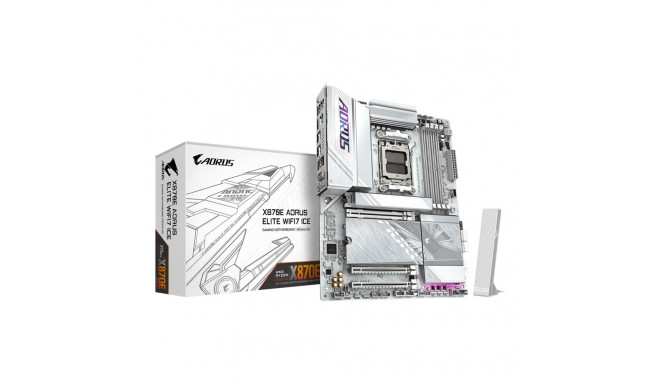

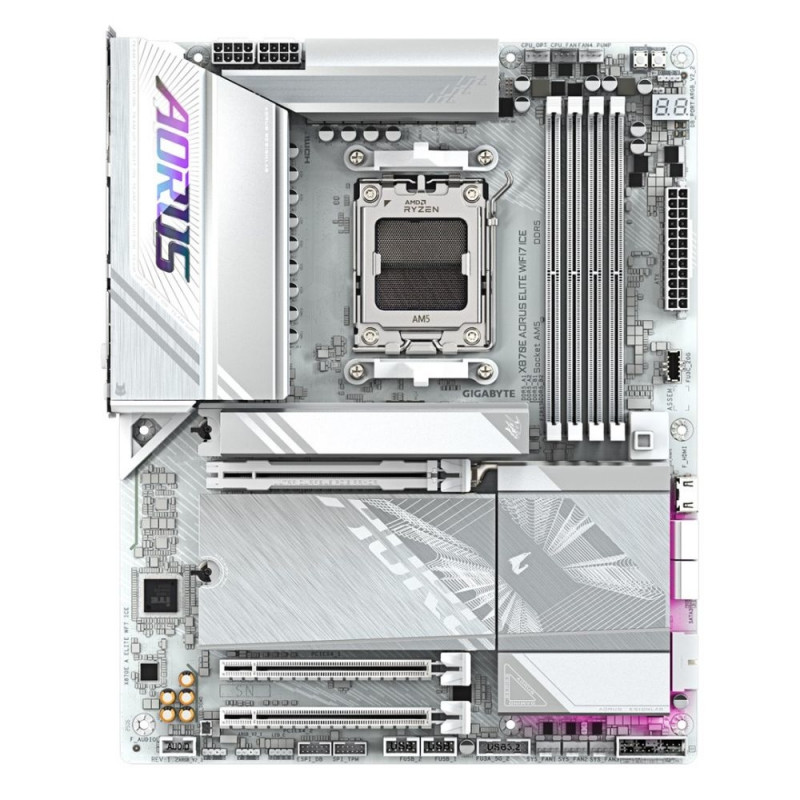

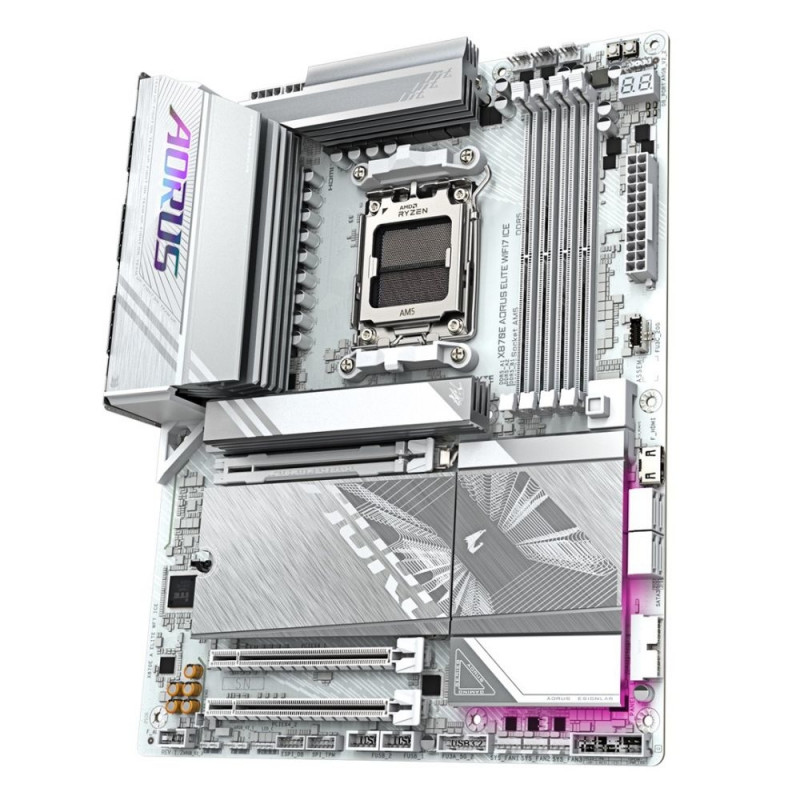

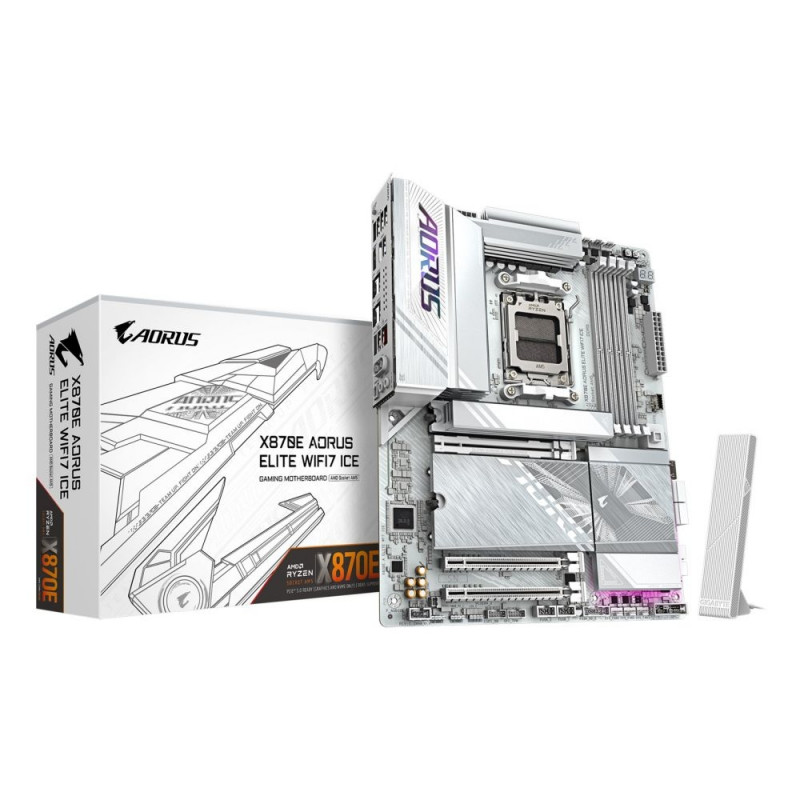

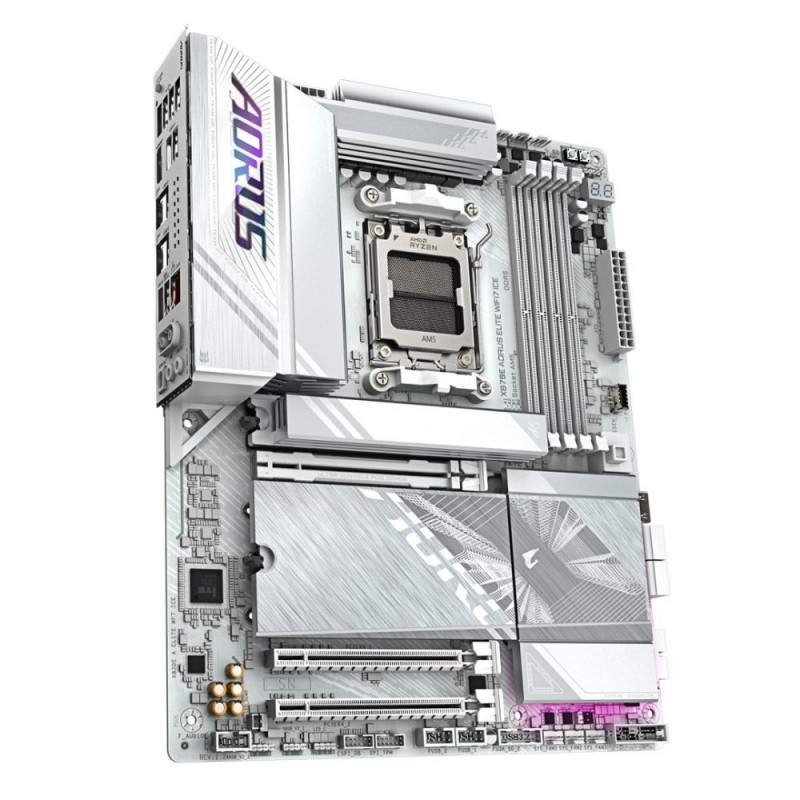

Motherboard MB AMD X870E SAM5 ATX

359 €

Monthly payment starting from 12,24 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software DirectX version
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
DirectX version 12.0
Unbuffered memory Yes
Maximum internal memory 256 GB
Motherboard chipset AMD X870E
LAN controller Realtek RTL8125
Bluetooth Yes
Product colour White
Antenna included Yes
PCI Express x16 (Gen 4.x) slots 1
Number of CPU fan connectors 2
ECC сompatibility Non-ECC
Desktop Management Interface (DMI) version 2.7
Maximum internal memory per slot 64 GB
4th M.2 largest key size 22110
Lithium weight per battery 0.07 g
3rd M.2 highest PCI Express generation 5.0
Power source type ATX
USB 3.2 Gen 2x2 connectors 1
CPU fan connector Yes
Number of SATA III connectors 4
Number of M.2 (M) slots 4
Motherboard chipset family AMD
Parallel processing technology support Not supported
USB 2.0 connectors 2
3rd M.2 largest key size 22110
Supported storage drive types HDD & SSD
4th M.2 highest PCI Express generation 4.0
RAID support Yes
Audio output channels 7.1 channels
DisplayPort version 1.4
2nd M.2 largest key size 22110
Number of water pump connectors 2
Supported storage drive interfaces M.2, PCI Express 5.0, SATA III
ATX Power connector (24-pin) Yes
Weight 2.64 kg
BIOS type UEFI AMI
Package weight 2.64 kg
PCI Express x16 (Gen 3.x) slots 1
Number of chassis fan connectors 4
2nd M.2 highest PCI Express generation 5.0
Audio chip Realtek ALC1220-VB
Ethernet LAN (RJ-45) ports 1
1st M.2 largest key size 25110
Cooling type Passive
Digital audio optical out 1
Front panel audio connector Yes
USB 2.0 ports quantity 4
HDCP Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Motherboard form factor ATX
Number of RGB LED pin headers 4
Maximum resolution 4096 x 2160 pixels
1st M.2 highest PCI Express generation 5.0
Number of EPS power connectors (8-pin) 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Headphone outputs 1
Bluetooth version 5.4
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Depth 244 mm
Batteries included Yes
Wi-Fi Yes
WiFi-AP antenna jack 2
WLAN controller model Realtek RTL8922AE
Package depth 294 mm
TPM connector Yes
HDMI ports quantity 1
Processor manufacturer AMD
Clear CMOS jumper Yes
Number of memory slots 4
Package width 345 mm
RGB LED pin header Yes
Ethernet LAN Yes
Screws included Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Windows operating systems supported Windows 11 x64
Height 35 mm
HDMI version 2.1
Battery weight 3 g
Processor socket Socket AM5
Number of HDDs supported 4
Width 305 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Number of storage drives supported 8
Package height 80 mm
Memory slots type DIMM
Wi-Fi standards Wi-Fi 7 (802.11be)
Front panel connector Yes
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Products per shipping (inner) case 1 pc(s)
Number of battery cells 1
Microphone in Yes
On-board graphics card No
Supported processor sockets Socket AM5
12V power connector Yes
Supported memory types DDR5-SDRAM
PCI Express x16 (Gen 5.x) slots 1
Warranty period 3 year(s)
USB4 Gen 2x2 ports quantity 2
Supported memory clock speed (max) 8200 MHz
S/PDIF out port Yes
Warranty 24 (F)
Compatible processor series AMD Ryzen 9000 Series
PC health monitoring Voltage
Supported memory clock speeds 6800
RAID levels 10

Dimensions and weights

Package width
274 cm
Package height
82 cm
Package length
344 cm

Product codes

EAN
4719331871529
Manufacturer code
533117
