Home page » Computers & IT»Computer components»PSU»Power Supply Unit - DeepCool PN850M 850W 80 PLUS Gold Fully-Modular ATX Black

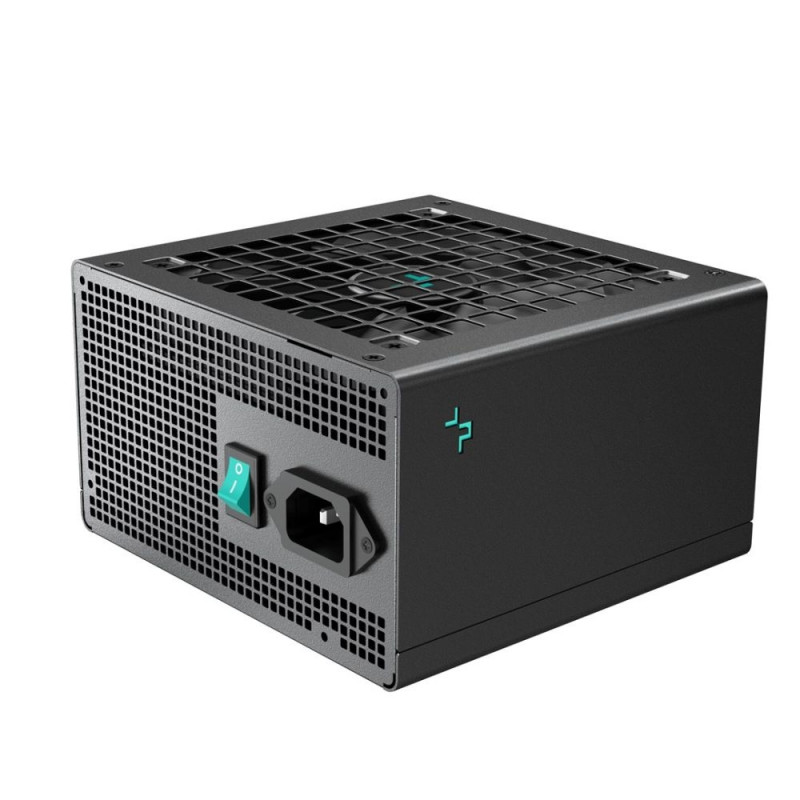

Power Supply Unit - DeepCool PN850M 850W 80 PLUS Gold Fully-Modular ATX Black

185,99 €

Monthly payment starting from 6,34 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The DeepCool PN850M power supply unit provides 850 W of power with an 80 PLUS Gold efficiency rating. It features a fully-modular design, one 12 cm top fan, and multiple connectors including 8 SATA and 3 PCI Express power connectors.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

DeepCool PN850M Power Supply Unit 850 W 20+4 Pin ATX Black

The DeepCool PN850M power supply unit provides 850 W of power with an 80 PLUS Gold efficiency rating. It features a fully-modular design, one 12 cm top fan, and multiple connectors including 8 SATA and 3 PCI Express power connectors.


  • High efficiency with 80 PLUS Gold certification, ensuring optimal power usage.
  • Robust protection features including surge protection, short circuit, and overheating safeguards.
  • Fully-modular design for easy cable management and improved airflow.
  • Powerful 850 W output with a maximum current of 70.5 A on the +12V rail.

Technical Details
Compliance Certificates RoHS, CE, WEEE, RCM, CCC, EAC, FCC
Sustainability Compliance Yes
Sustainability Certificates Triman, ErP
Design
Number of Fans 1 fan(s)
Fan Location Top
Fan Diameter 12 cm
On/Off Switch Yes
Cooling Type Active
Power
Combined Power (+12V) 846 W
Hold Time 16 ms
Combined Power (+3.3V) 110 W
Power Protection Features Surge & inrush protection, Over power, No load operation, Under voltage, Short circuit, Over voltage, Overheating
Power Factor Correction (PFC) Type Active
Max Output Current (-12V) 0.3 A
Max Output Current (+12V) 70.5 A
Combined Power (-12V) 3.6 W
Total Power 850 W
Max Output Current (+5V) 20 A
Max Output Current (+3.3V) 20 A
Combined Power (+5V) 110 W
Max Output Current (+5Vsb) 3 A
Combined Power (+5Vsb) 15 W
Efficiency 90%
Power Good Signal Delay Range 100 - 150 ms
AC Input Voltage 100 - 240 V
Input Current 10 - 5 A
AC Input Frequency 50/60 Hz
Operational Conditions
Operating Temperature (T-T) 0 - 40 °C
Weight & Dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Performance
Mean Time Between Failures (MTBF) 100000 h
ATX Version 3.1
Bearing Technology FDB
Power Supply Unit (PSU) Form Factor ATX
Purpose PC
80 PLUS Certification 80 PLUS Gold

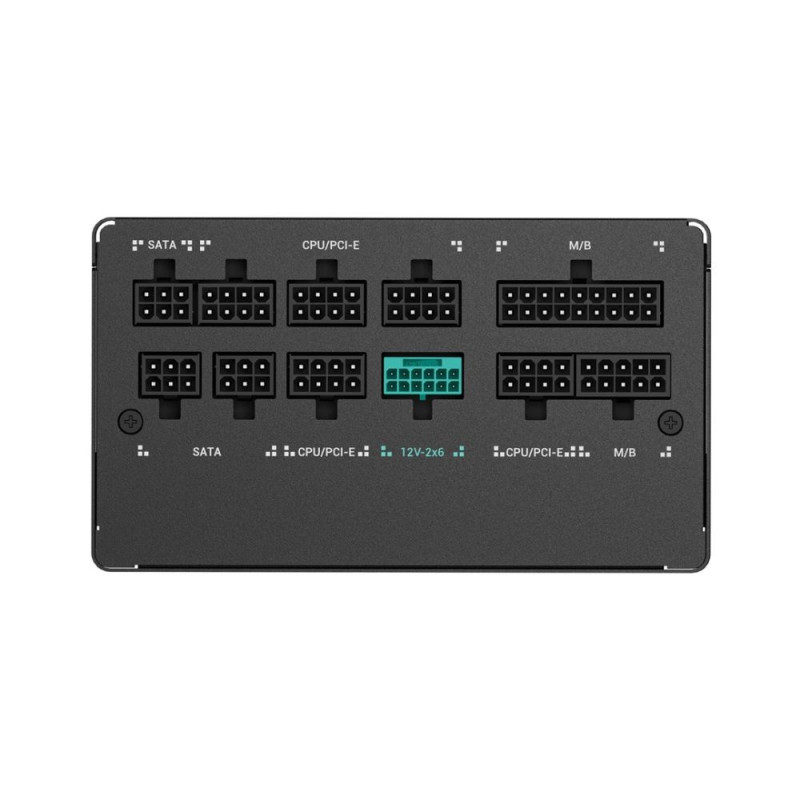

Ports & Interfaces
Number of SATA Power Connectors 8
PCI Express Power Connectors (6+2 pin) 3
Motherboard Power Connector 20+4 pin ATX
CPU Power Connector (4+4 pin) Yes
Peripheral (Molex) Power Connectors (4-pin) 2
PCI Express Power Connectors (16-pin) 1

Width 150 mm
Height 86 mm
Length 140 mm
Product Weight 1500 g
Country CN

Dimensions and weights

Gross weight
1.95 kg
Package width
25 cm
Package height
20 cm
Package length
30 cm

Product codes

EAN
6933412741053
Manufacturer code
R-PN850M-FC0B-EU
