ADATA XPG PYLON NETZTEIL 550W 80 PLUS BRONZE

57,99 €

Monthly payment starting from 1,73 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

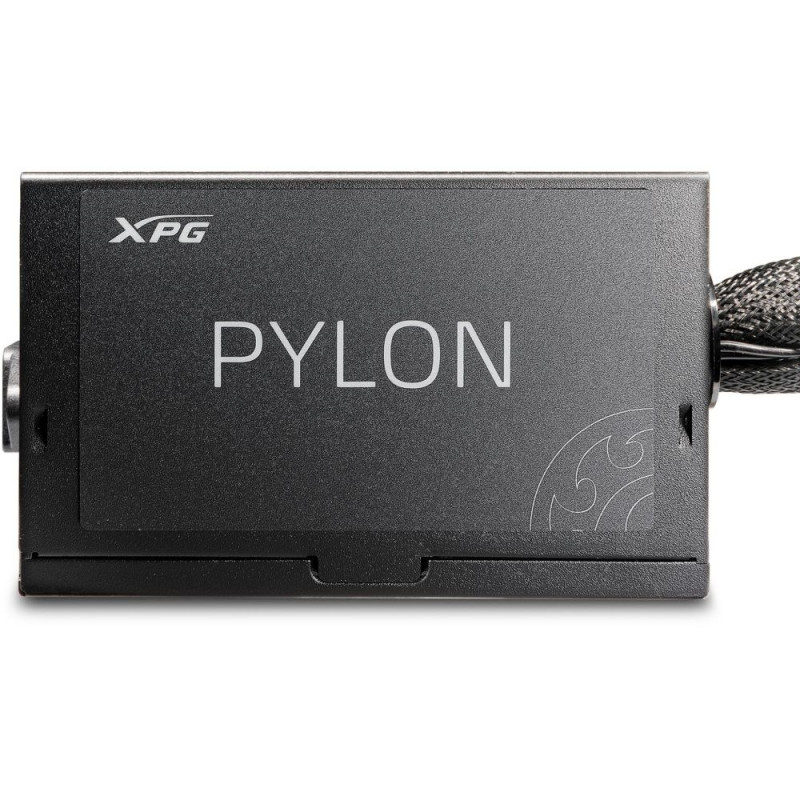

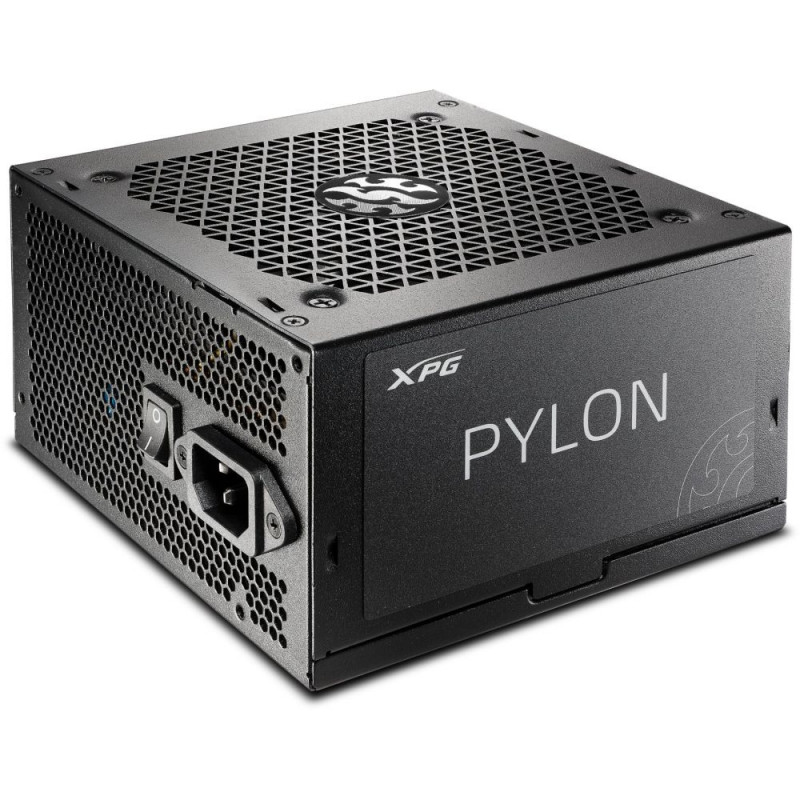

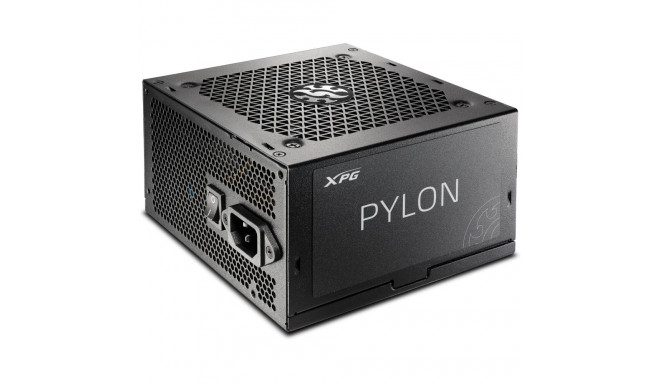

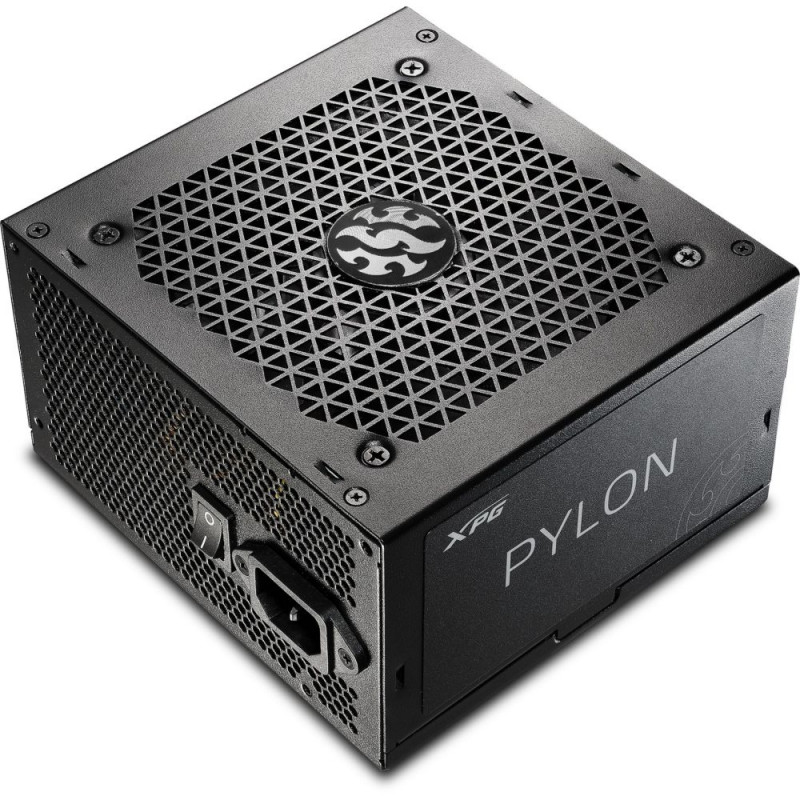

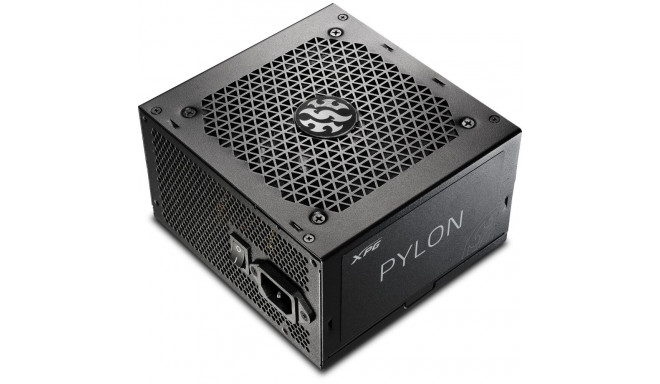

ADATA XPG PYLON Power Supply 550W 80 PLUS Bronze

The ADATA XPG PYLON 550 Bronze is an ATX power supply with 550 watts of output, 80 PLUS Bronze certification, a Japanese main capacitor, and comprehensive protection mechanisms. It comes equipped with a 120 mm FDB fan and is designed for continuous 24/7 operation.

Specifications:

  • Power Output: 550 W
  • Form Factor: ATX, Intel Version V2.52
  • 80 PLUS Bronze certified

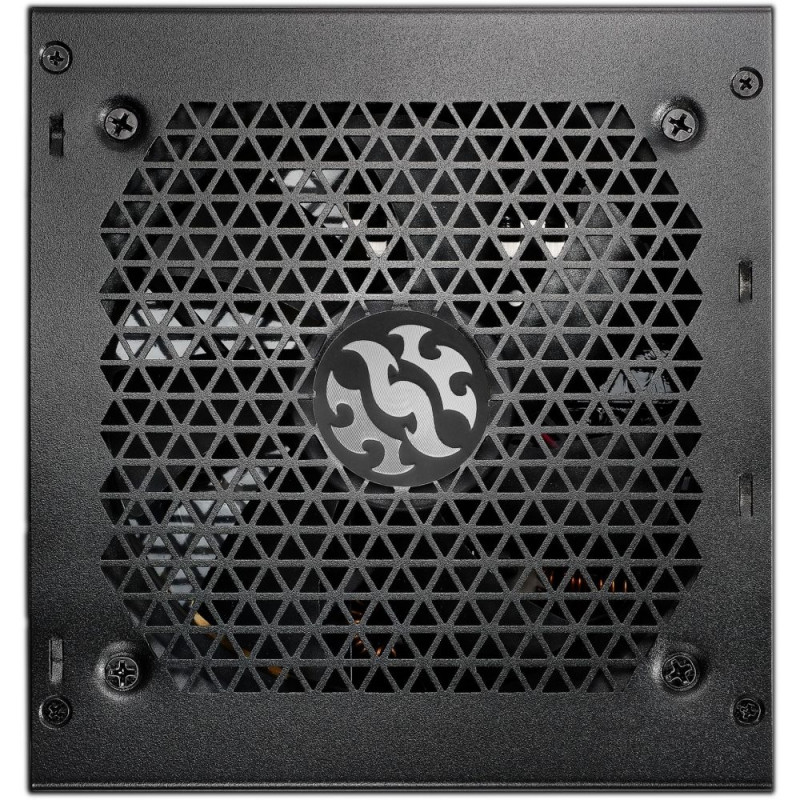

  • Fan: 120 mm Fluid Dynamic Bearing (FDB)
  • Fan Control: Starts at approx. 700 RPM, remains quiet up to ~70% load
  • MTBF: 100,000 hours at full load
  • Input Voltage: 100-240 V
  • Input Current: 10-5 A
  • Frequency: 50-60 Hz
  • PFC: 0.99 (active Power Factor Correction)
  • +12V Rail: 100% DC-to-DC, full output on +12V rail

Protection Features:

  • OCP (Over Current Protection)
  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • OTP (Over Temperature Protection)
  • NLO (No Load Operation)
  • SIP (Surge & Inrush Protection)

Connections: (non-modular):

  • 1x 24-pin ATX connector
  • 1x 8-pin EPS 12V connector
  • 5x SATA connectors
  • 2x PCI-E connectors (6+2 pins)
  • 2x IDE connectors
  • 1x Floppy connector

Dimensions:

  • 140 × 150 × 86 mm

Feature2 netzteil-nicht-modular
Power (Watt) 550
Form Factor ATX
ATX Version 2.52
Certification 80PLUS Bronze
Mean Time Between Failures (MTBF) (h) 100000
Cable Management Non Modular
Fan (Number) 1
Type of Cooling Active
Fan Diameter (mm) 120
Fan Speed +/- 10% (U/Min) 2000
ATX-Mainboard 1x 20+4pin
ATX12V 2x 4+4pin
PCIe 4x 6+2pin
S-ATA 8x
P-ATA / IDE 3x
FDD / Floppy 1x
Input Frequency (Hz) 50 - 60
Input Voltage (V) 100 - 240
Amperage 10 / 5
Colour Black

Dimensions and weights

Gross weight
2.1 kg
Package width
15 cm
Package height
8.6 cm
Package length
14 cm

Product codes

EAN
4710273776781
Manufacturer code
75261528
