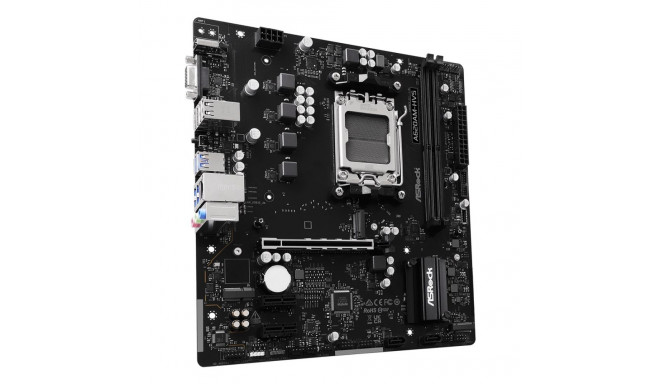

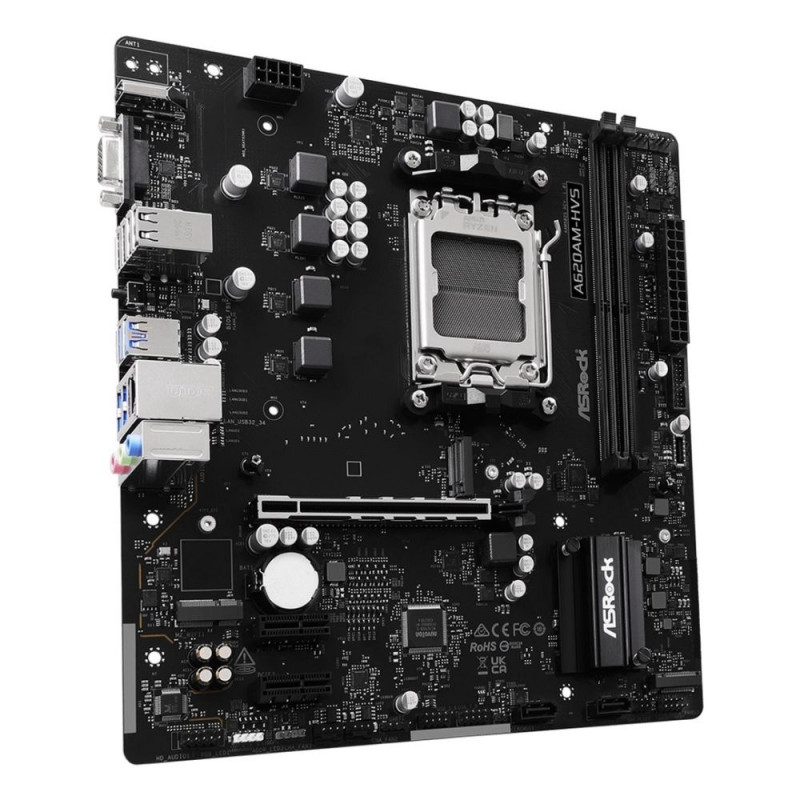

Asrock A620AM-HVS AMD A620A Socket AM5 micro ATX

Main info

Warranty 36 (G) 1st M.2 largest key size 2280

Product has been archived


Warranty 36 (G)
1st M.2 largest key size 2280
PCI Express x16 (Gen 4.x) slots 1
ECC сompatibility Non-ECC
1st M.2 highest PCI Express generation 4.0
Number of RGB LED pin headers 1
Number of CPU fan connectors 1
Supported memory clock speed (max) 6800 MHz
Number of storage drives supported 4
Ethernet LAN Yes
HDMI version 2.1
HDCP version 2.3
Line-in Yes
Number of M.2 (M) slots 1
Microphone in Yes
Supported processor sockets Socket AM5
12V power connector Yes
Number of memory slots 2
VGA (D-Sub) ports quantity 1
Number of chassis fan connectors 3
Processor manufacturer AMD
Memory slots type DIMM
Depth 229 mm
Supported memory types DDR5-SDRAM
High Dynamic Range (HDR) supported Yes
Headphone outputs 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
RGB LED pin header Yes
BIOS type UEFI AMI
Wi-Fi No
HDMI ports quantity 1
Width 244 mm
Screws included Yes
Processor socket Socket AM5
CPU fan connector Yes
Memory channels Dual-channel
Cables included SATA
Supported storage drive types HDD & SSD
Motherboard chipset AMD A620A
RAID support Yes
Ethernet LAN (RJ-45) ports 1
HDCP Yes
Maximum internal memory 128 GB
Maximum resolution 3840 x 2160 pixels
Number of SATA III connectors 2
PCI Express x1 (Gen 3.x) slots 2
Motherboard form factor micro ATX
USB connector type USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 ports quantity 4
ATX Power connector (24-pin) Yes
LAN controller Realtek RTL8111H
USB 2.0 connectors 2
Unbuffered memory Yes
Parallel processing technology support Not supported
Supported storage drive interfaces PCI Express 3.0, PCI Express 4.0, SATA III
Audio chip Realtek ALC897
Motherboard chipset family AMD
Audio output channels 7.1 channels
Front panel audio connector Yes
Product colour Black
Top Wi-Fi standard Not available
Windows operating systems supported Windows 11 x64
Compliance certificates CE
Ethernet interface type Fast Ethernet
Compatible processor series AMD Ryzen 9000 Series
RAID levels 1

Dimensions and weights

Package width
296 cm
Package height
264 cm
Package length
58 cm

Product codes

EAN
4711581490802
Manufacturer code
A620AM-HVS
