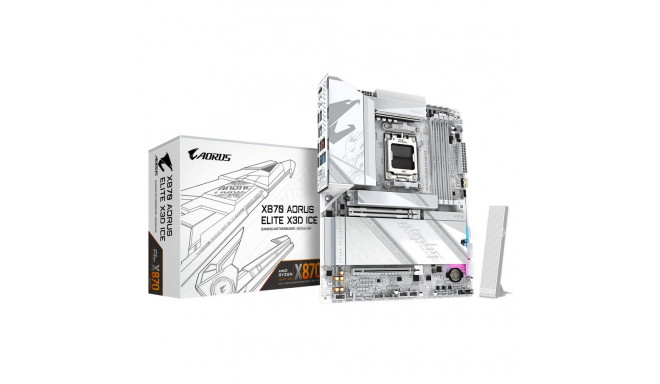

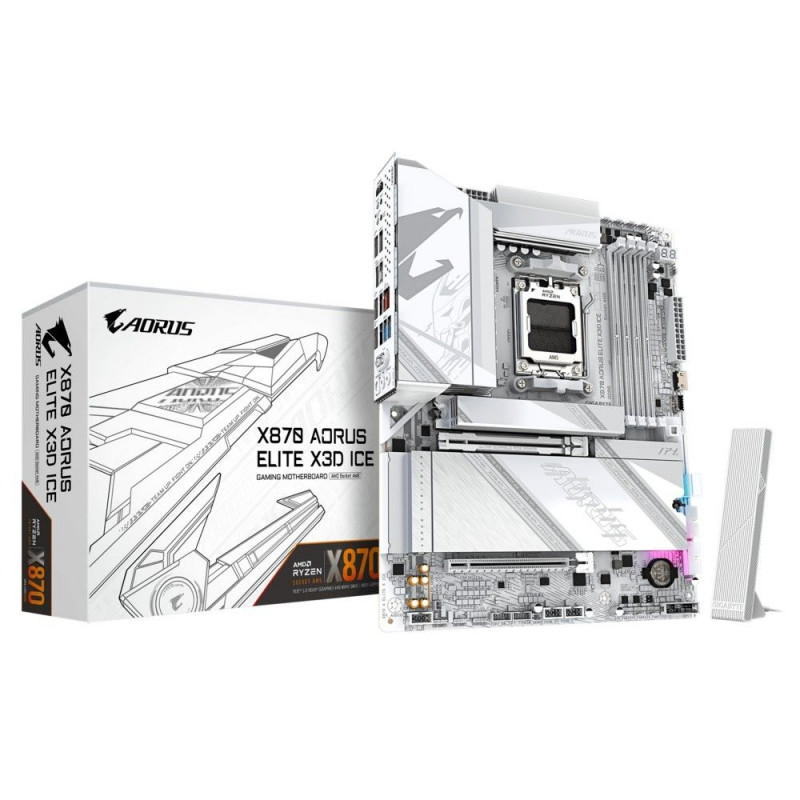

X870 AORUS ELITE X3D IC E AM5 4DDR5 HDMI ATX

329 €

Monthly payment starting from 11,21 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

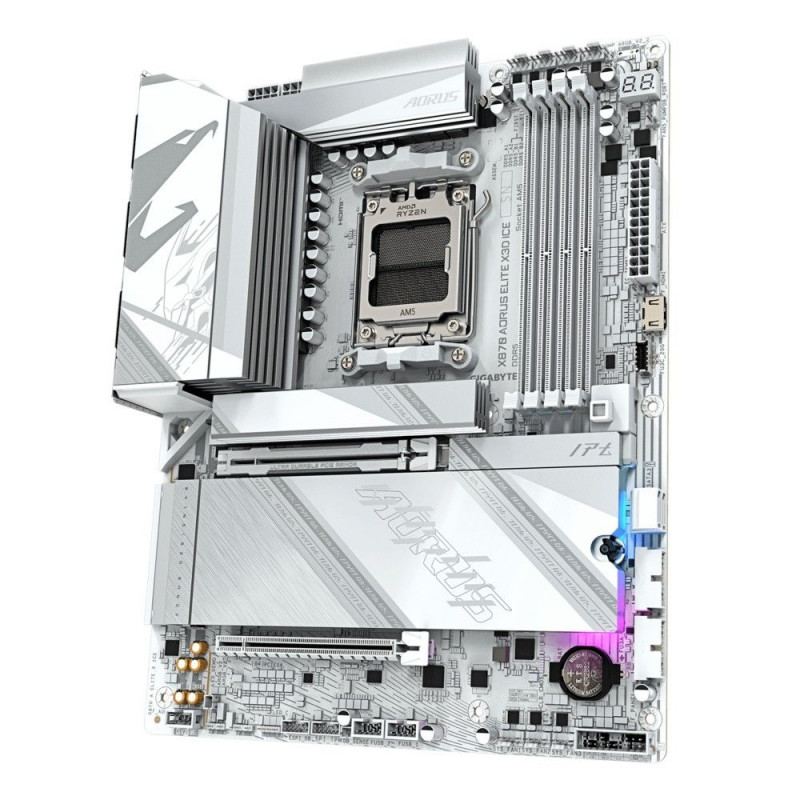

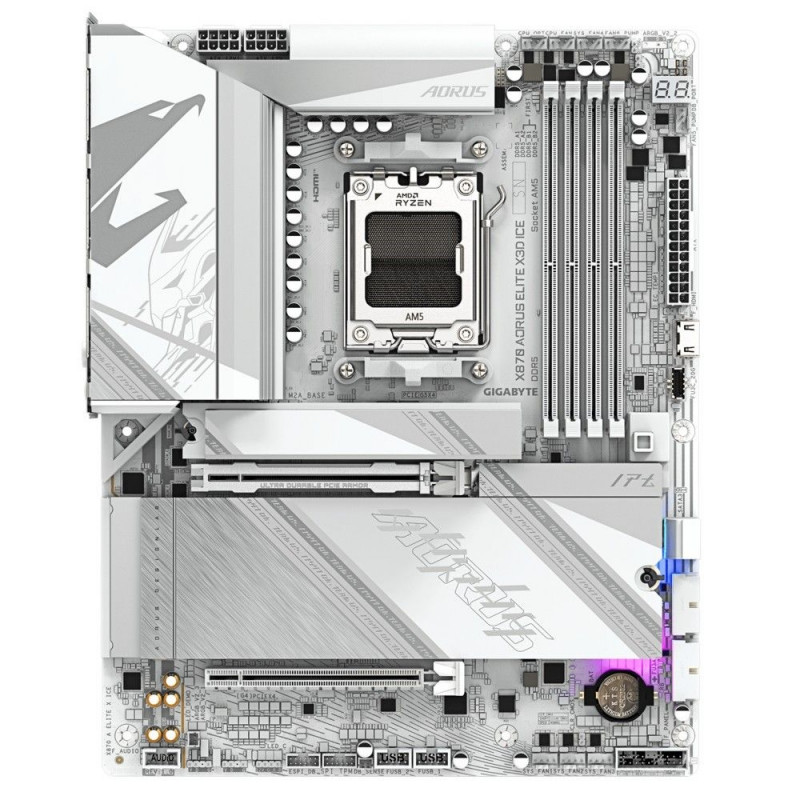

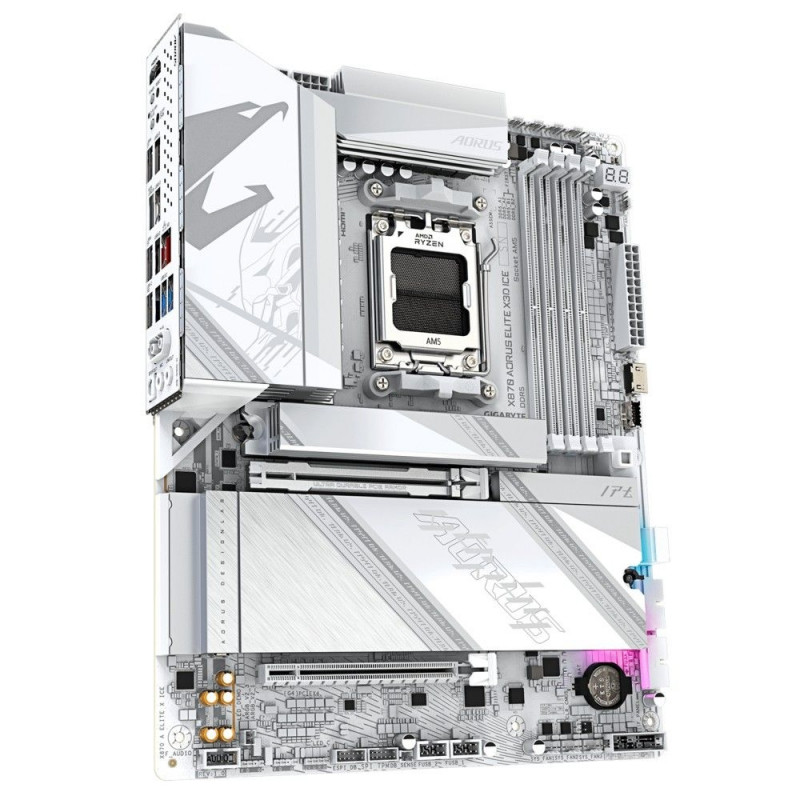

X870 AORUS Elite X3D ICE Motherboard

  • Turbo X3D 2.0 Mode: Incredible X3D performance with AI; DDR5 OC up to 9000 MT/s
  • DriverBIOS: Pre-installation of Wi-Fi driver, power-on, and easy network setup
  • AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 series processors
  • Digital Twin VRM Solution: 16+2+2 phase design
  • Dual-Channel DDR5 Memory: 4 DIMM slots supporting AMD EXPO memory modules
  • M.2 EZ-Flex: High-performance heat dissipation and flexible, patented motherboard design for M.2 SSDs
  • Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation
  • M.2 EZ-Latch Click & Plus: Fast, screwless installation for M.2 slots and heatsinks
  • User-Friendly Interface: Multi-theme UI, AIO fan control, and automatic Q-Flash scanning in BIOS and software
  • Ultra-Fast Storage: 4 M.2 slots, including PCIe 5.0 x4
  • Efficient Cooling: Advanced VRM Thermal Armor and M.2 Thermal Guard L/Ext.
  • High-Speed Networking: 5 GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna
  • Expanded Connectivity: HDMI, two USB4 Type-C ports with DP-Alt
  • PCIe UD X Slot: PCIe 5.0 x16 slot delivering 10× more power for graphics cards

CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 7600 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7800 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 8000 MHz
Memory bus frequency 8200 MHz
Memory bus frequency 8400 MHz
Memory bus frequency 8600 MHz
Memory bus frequency 8800 MHz
Memory bus frequency 9000 MHz
Max memory size 256
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x PCIe 5.0 x 16
Max. number of SATA devices 2
RAID Yes
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface Bluetooth
USB ports at back panel 10
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

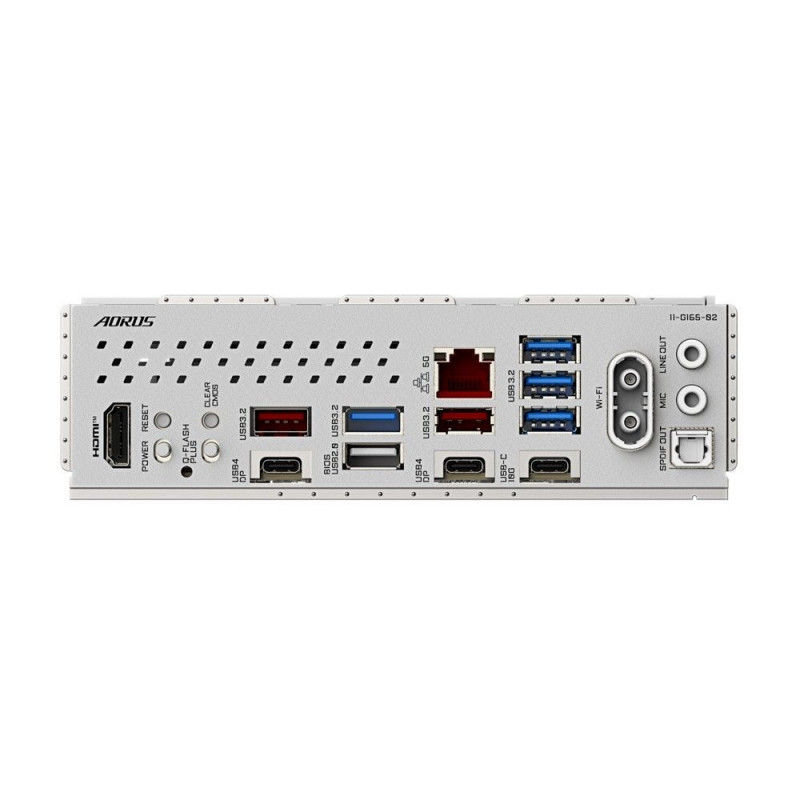

External connectors 1 x Przycisk Clear CMOS
External connectors 1 x Q-Flash Plus button
External connectors 1 x HDMI
External connectors 1 x Line Out (front)
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 1 x USB 2.0
External connectors 2 x SMA
External connectors 1 x USB 3.1 Type-C
External connectors 2 x USB4 Type-C
External connectors 4 x USB 3.0
External connectors 2 x USB 3.2 Gen 2 Type-A
Onboard connectors 3 x Addressable LED
Onboard connectors 2 x temperature sensor
Onboard connectors 1 x Noise detection header
Onboard connectors 1 x USB C
Onboard connectors 1 x HDMI
Onboard connectors 1 x TPM header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 4 x M.2
Onboard connectors 2 x SATA III 6Gb/s
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 2 x USB 3.0 header
Form factor ATX
Supported operating systems Windows 11
Designation
Model X870 Aorus Elite X3D
Chipset type AMD X870E
Sound card Realtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 S/PDIF Out support
Network interface Realtek 5GbE LAN chip: 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps Qualcomm Wi-Fi 7 QCNCM865 Supports 802.11a/b/g/n/ac/ax/be, Frequency bands: 2.4 / 5 / 6 GHz Bluetooth 5.4
Special functions Supports GIGABYTE Control Center (GCC) Supports Q-Flash Supports Q-Flash Plus Supports Smart Backup feature
BIOS 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Dimensions 30.5 x 24.4 cm
Software Norton Internet Security (OEM version)
Memory bus frequency 4800 MHz
Graphics Integrated Graphics Processor with AMD Radeon Graphics Support + ASMedia USB4 Controller 2 × USB4 Type-C ports: Support USB4 video output and DisplayPort, with a maximum resolution of 3840 × 2160 at 240 Hz Integrated Graphics Processor: Supports AMD Radeo

Dimensions and weights

Gross weight
2.422 kg
Package width
33.5 cm
Package height
27.5 cm
Package length
8.5 cm

Product codes

EAN
4719331876678
Manufacturer code
KBGBAAA8X870A09
