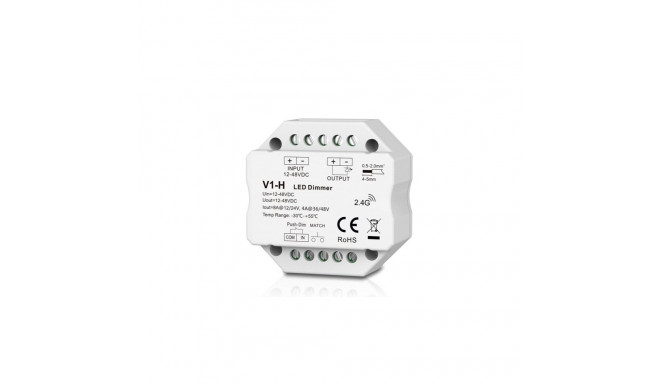

LED Controller - V1-H 12-48V 8A Push-Dimm

26,99 €

Main info

The V1-H Controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features Push-Dimm functionality, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuits.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

V1-H Controller, 12-48V, 1x 8A, Push-Dimm

The V1-H Controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features Push-Dimm functionality, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuits.


  • Compatible with single-color LED strips and panels, offering smooth dimming with 4096 levels from 0 to 100%.
  • Push-Dimm functionality allows for easy control with a standard momentary switch.
  • Supports RF 2.4 GHz remote controls, enabling pairing with up to ten remotes and synchronized operation.
  • Compact design fits into standard wall mounting boxes, with built-in protection against reverse polarity and short circuits.

Features
Product Type LED Controller
Model V1-H
Specifications
Input Voltage 12V - 48V DC
Output Voltage 12V - 48V DC
Output Current 8A @ 12/24V; 4A @ 36/48V
Power 96W @ 12V; 192W @ 24V; 144W @ 36V; 192W @ 48V
PWM Frequency 500Hz
Grey Scale 4096 levels
Dimming Range 0-100%
Dimming Curve Logarithmic
Operating Distance Up to 30m (open area)
Protection Class IP20 (non-waterproof)
Suitable Wire Cross-Section 0.5–2 mm²
Operating Temperature -30°C to +55°C
Dimensions 52 x 52 x 26 mm
Color White
Weight 49g
Certifications
Certifications CE, EMC, RoHS

Width 52 mm
Height 26 mm
Length 52 mm
Product Weight 49 g
Country DE

Dimensions and weights

Gross weight
0.075 kg
Package width
10 cm
Package height
6 cm
Package length
10 cm

Product codes

EAN
9990001084554
