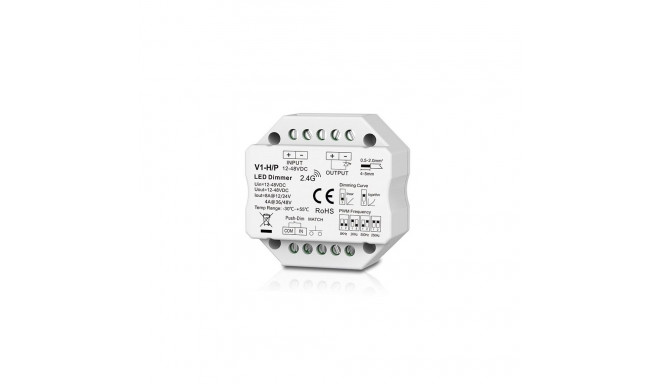

LED Controller - V1-H/P 12-48V 8A RF Remote Push-Dimm

32,99 €

Main info

V1-H/P controller operates at 12-48V DC with a maximum output of 8A and supports 4096 levels of dimming. It features RF remote control, Push-Dimm functionality, and is compact enough to fit in standard wall junction boxes.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

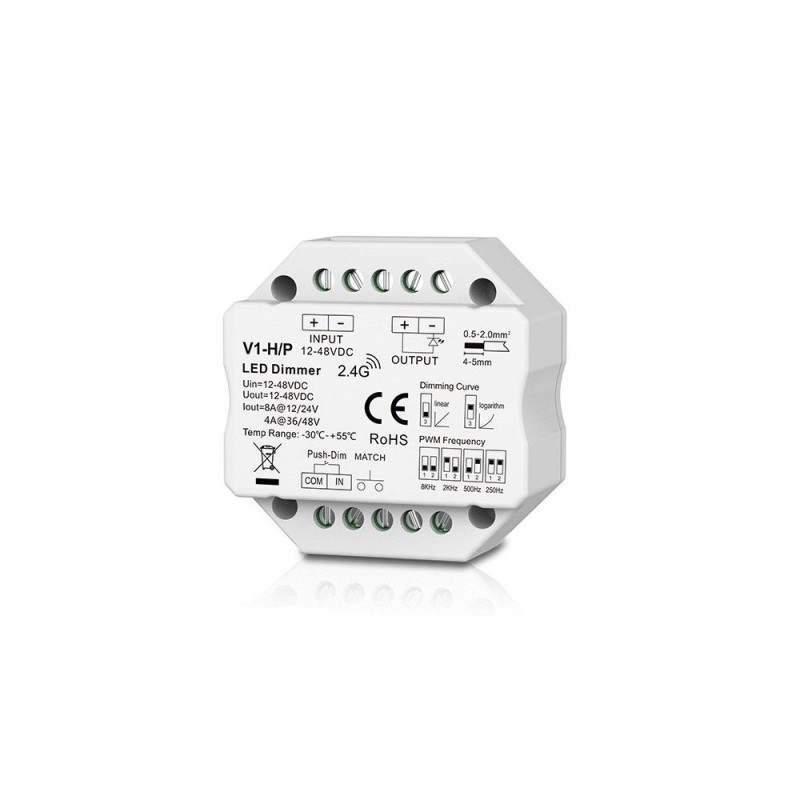

V1-H/P Controller, 12-48V, 1x 8A, Push-Dimm

V1-H/P controller operates at 12-48V DC with a maximum output of 8A and supports 4096 levels of dimming. It features RF remote control, Push-Dimm functionality, and is compact enough to fit in standard wall junction boxes.


  • Ultra-smooth dimming with 4096 levels from 0 to 100%, free from flickering.
  • Compatible with 2.4 GHz RF remote controls and standard push switches for versatile control.
  • Compact design fits standard wall junction boxes, ensuring easy installation.
  • Certified to CE and RoHS standards, providing a reliable solution for LED lighting projects.

Features
Product Model V1-H/P
Channels 1
Supported Lighting Systems Single-color
Specifications
Input Voltage 12-48V DC
Output Voltage 12-48V DC
Output Current 8A @ 12/24V; 4A @ 36/48V
Output Power 96W @ 12V; 192W @ 24V; 144W @ 36V; 192W @ 48V
PWM Frequency 500Hz / 2kHz / 8kHz / 16kHz
Gray Scale 4096 levels
Dimming Range 0-100%
Control Distance Up to 30m
Safety Class IP20 (not waterproof)
Compatible Wire Cross-section 0.5-2.0 mm²
Certifications CE, EMC, LVD, RED, RoHS
Operating Temperature -30 to +55°C
Dimensions 52 x 52 x 26 mm
Color White
Weight 61g

Width 52 mm
Height 26 mm
Length 52 mm
Product Weight 61 g
Country DE

Dimensions and weights

Gross weight
0.1 kg
Package width
8 cm
Package height
6 cm
Package length
10 cm

Product codes

EAN
9990001084578
