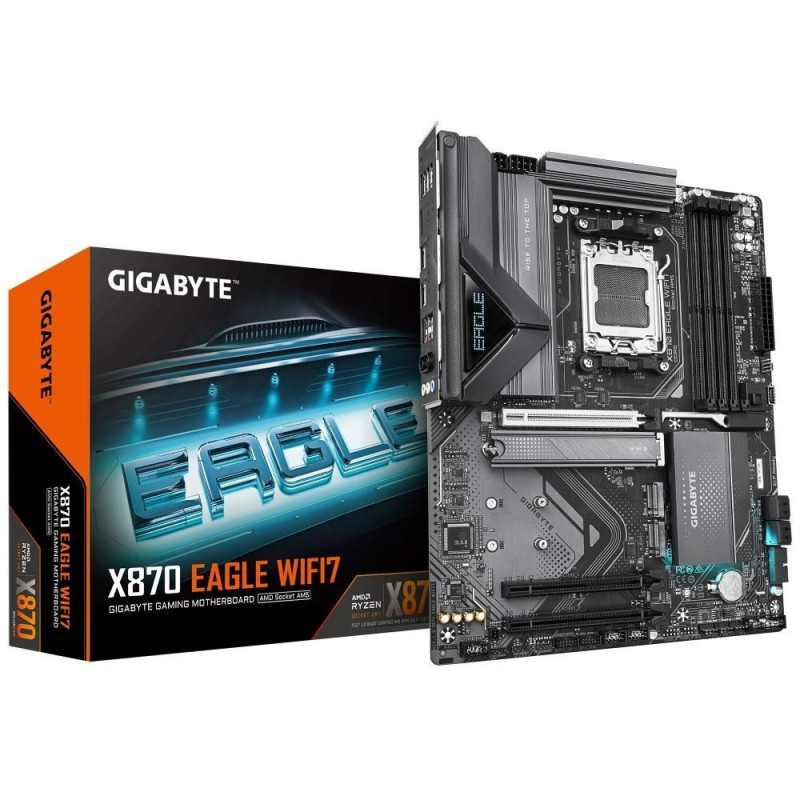

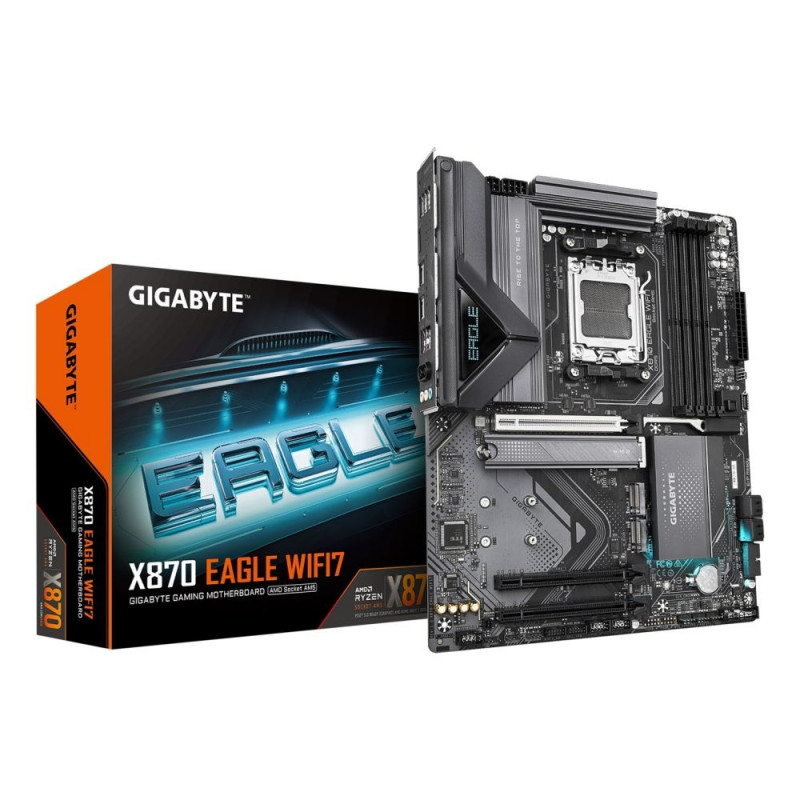

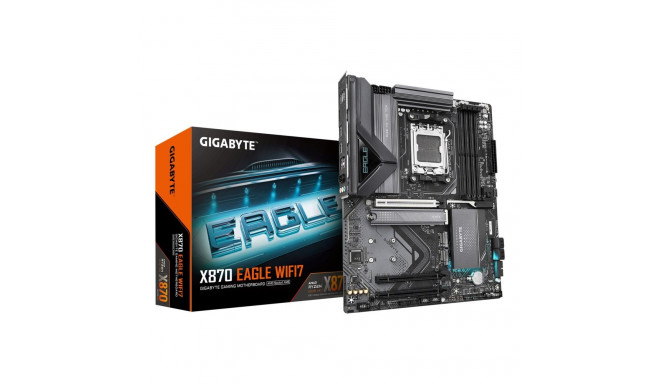

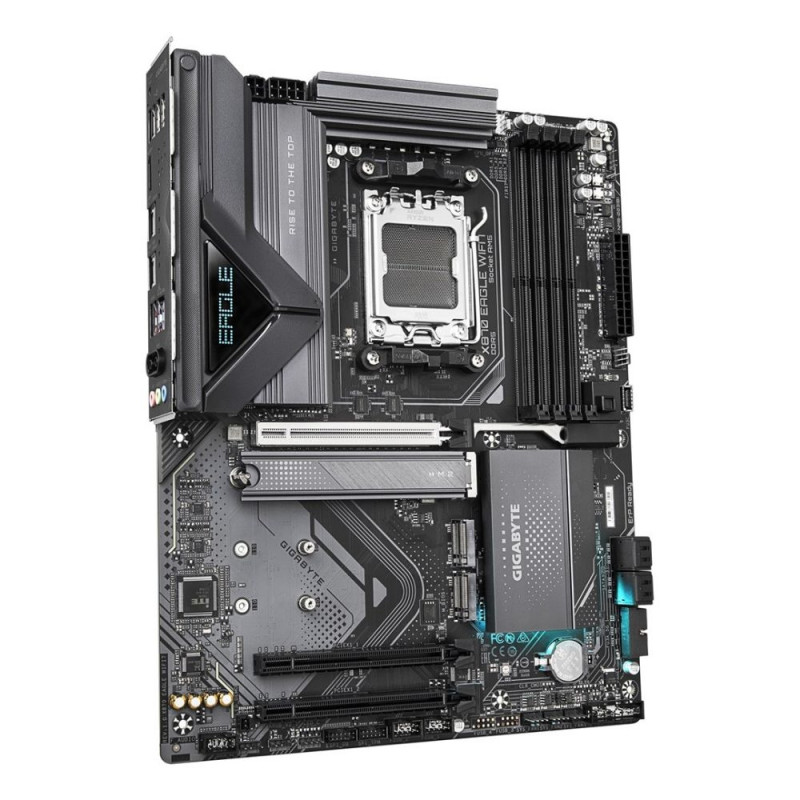

GIGABYTE X870 EAGLE WIFI7 Motherboard

FREE SHIPPING
WITHIN ESTONIA!

277,99 €

Monthly payment starting from 9,47 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software 3rd M.2 highest PCI Exp
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
Supported memory clock speed (max) 8200 MHz
USB4 Gen 2x2 ports quantity 2
PCI Express x16 (Gen 5.x) slots 1
Warranty period 3 year(s)
LAN controller Realtek RTL8125
Maximum internal memory 256 GB
DirectX version 12.0
Unbuffered memory Yes
Motherboard chipset AMD X870
Country of origin China
Product colour Black
Bluetooth Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Number of storage drives supported 7
Bluetooth version 5.4
System Management BIOS (SMBIOS) version 2.7
Maximum internal memory supported by processor 256 GB
WLAN controller model MediaTek MT7925
Headphone outputs 1
Products per shipping (inner) case 1 pc(s)
Clear CMOS jumper Yes
Ethernet LAN Yes
HDMI version 2.1
Processor manufacturer AMD
WiFi-AP antenna jack 2
Batteries included Yes
Number of EPS power connectors (8-pin) 1
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Desktop Management Interface (DMI) version 2.7
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Number of battery cells 1
Number of HDDs supported 4
Wi-Fi Yes
Memory slots type DIMM
Width 305 mm
Battery technology Lithium-Manganese Dioxide (LiMnO2)
RGB LED pin header Yes
HDMI ports quantity 1
Supported memory types DDR5-SDRAM
Height 35 mm
Number of memory slots 4
12V power connector Yes
Battery weight 3 g
Processor socket Socket AM5
Screws included Yes
On-board graphics card No
Memory channels Dual-channel
Wi-Fi standards Wi-Fi 7 (802.11be)
Antenna included Yes
1st M.2 largest key size 25110
Depth 244 mm
2nd M.2 largest key size 25110
1st M.2 highest PCI Express generation 5.0
USB 3.2 Gen 2x2 connectors 1
ECC сompatibility Non-ECC
Number of CPU fan connectors 2
Lithium weight per battery 0.07 g
Number of water pump connectors 1
2nd M.2 highest PCI Express generation 4.0
Number of RGB LED pin headers 4
Maximum internal memory per slot 64 GB
Number of chassis fan connectors 4
PCI Express x16 (Gen 3.x) slots 2
Audio output channels 7.1 channels
BIOS memory size 256 Mbit
Audio chip Realtek ALC897
Motherboard chipset family AMD
CPU fan connector Yes
Front panel audio connector Yes
Package weight 1.94 kg
Motherboard form factor ATX
Weight 1.74 kg
Component for PC
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 ports quantity 4
Peripheral (Molex) power connectors (4-pin) 1
TPM connector Yes
Windows operating systems supported Windows 11 x64
EPS power connector (8-pin) Yes
Number of M.2 (M) slots 3
DisplayPort version 1.4
ATX Power connector (24-pin) Yes
RAID support Yes
Package width 335 mm
Clear CMOS button Yes
BIOS type UEFI AMI
Package height 80 mm
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 2
Front panel connector Yes
Supported storage drive types HDD & SSD
Package depth 270 mm
Supported processor sockets Socket AM5
Parallel processing technology support Not supported
ACPI version 5.0
Warranty 24 (G)
Compatible processor series AMD Ryzen 9000 Series
PC health monitoring Fan
RAID levels 10
Supported memory module capacities 64GB
Supported memory clock speeds 7200

Dimensions and weights

Package width
340 cm
Package height
270 cm
Package length
85 cm

Product codes

EAN
4719331864996
Manufacturer code
X870 EAGLE WIFI7
