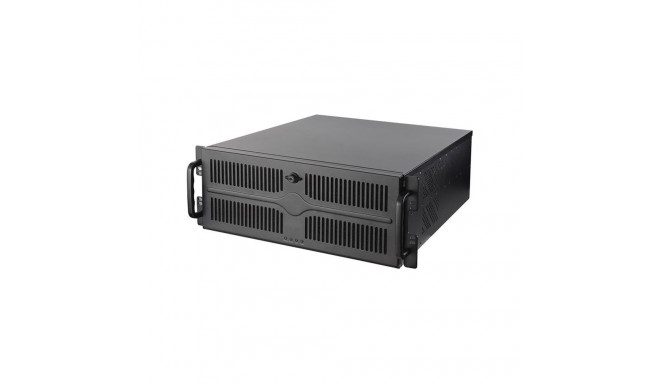

Chieftec UNC-409S-AIO-OP, Rack, Server Enclosure, Black

Addional discount of 6%
will be applied in shopping cart
(min. 10€ purchase)
239,99 €

Monthly payment starting from 8,18 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 12-17 working days

Free delivery

14 14 days return policy when purchasing online

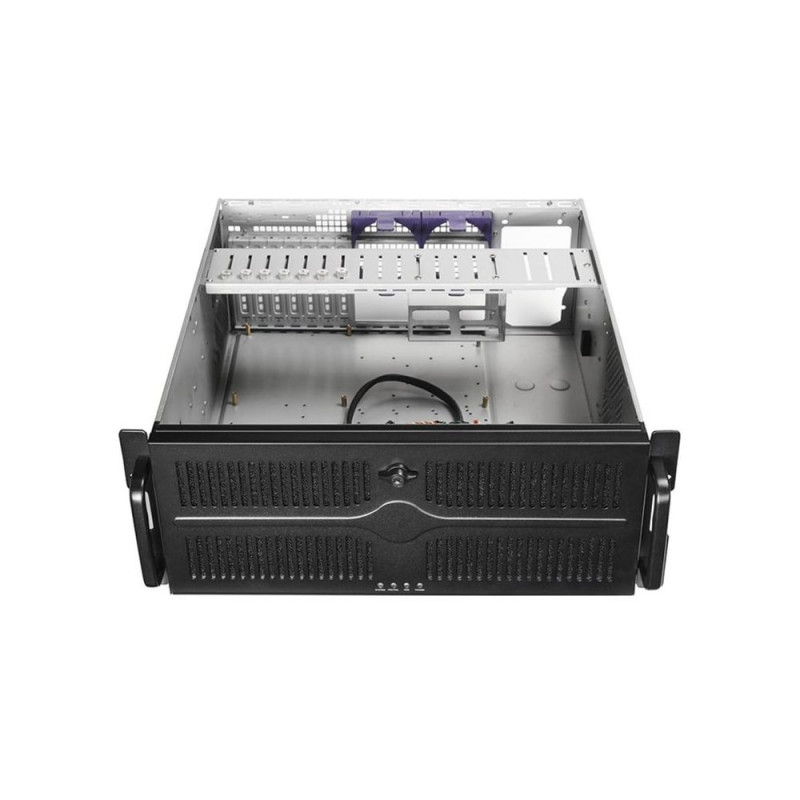

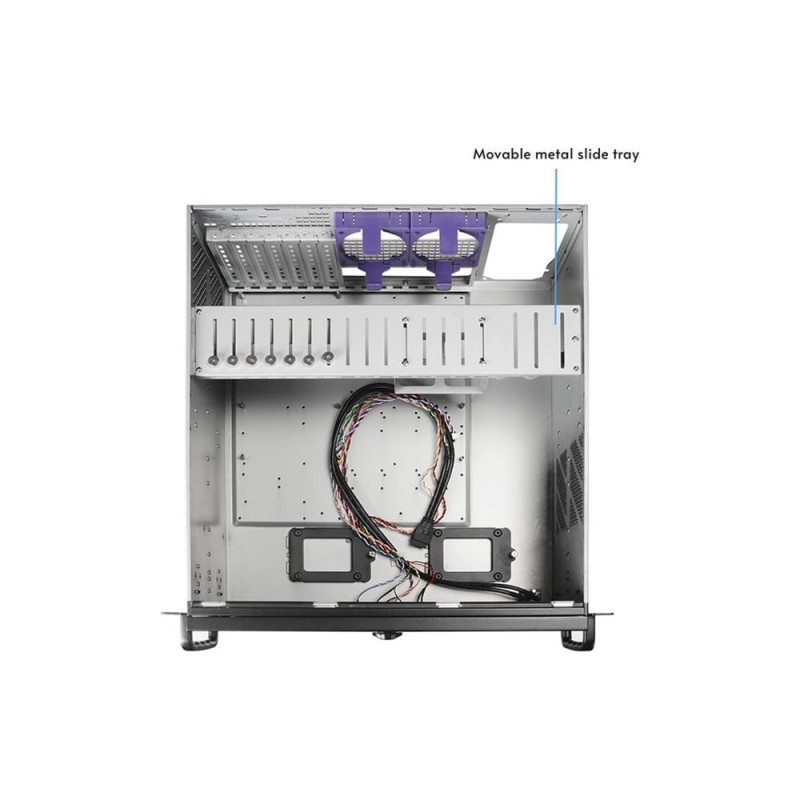

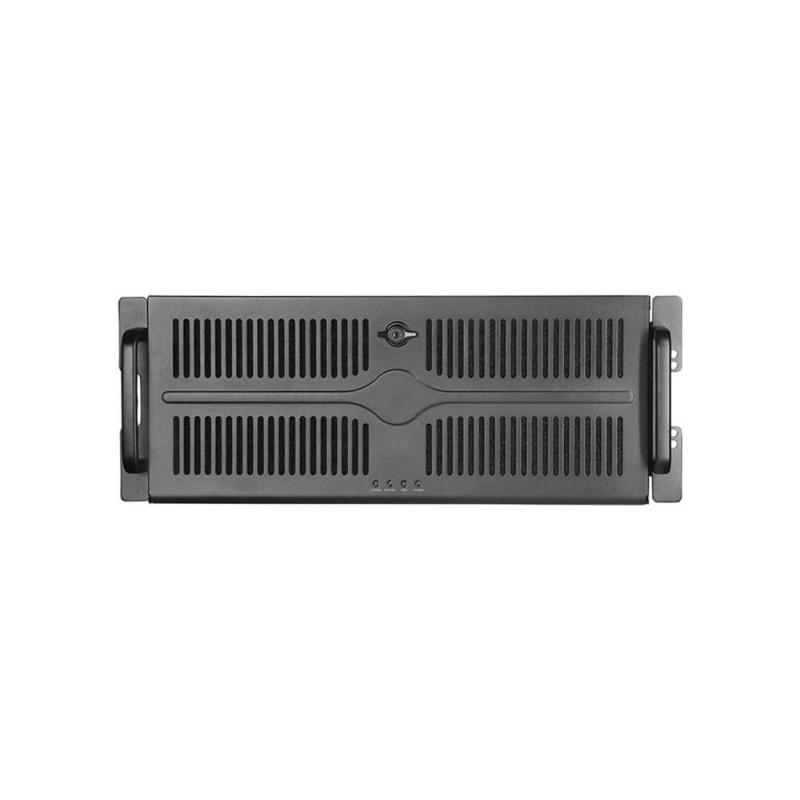

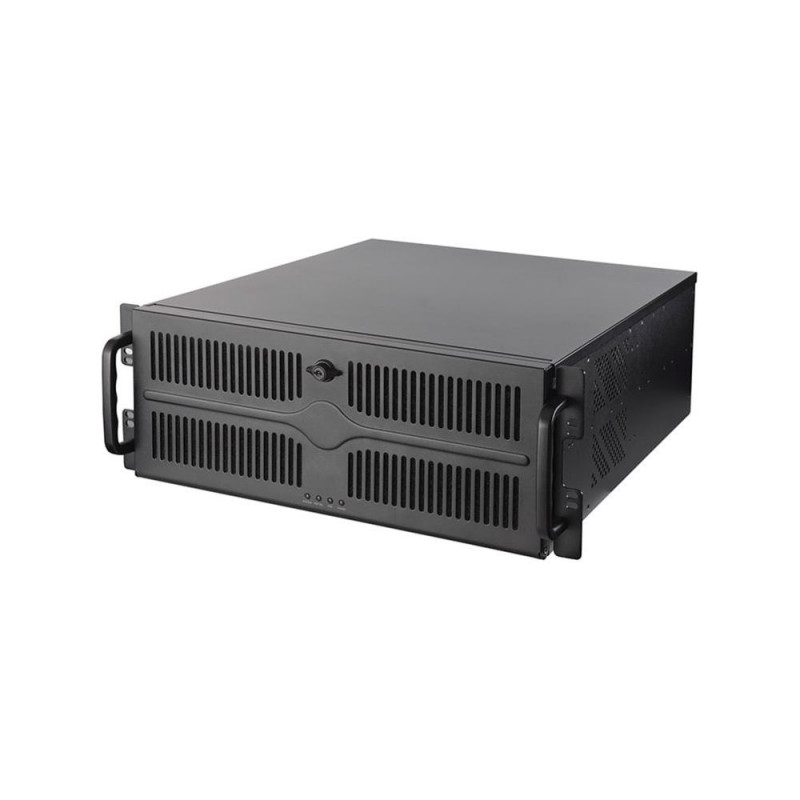

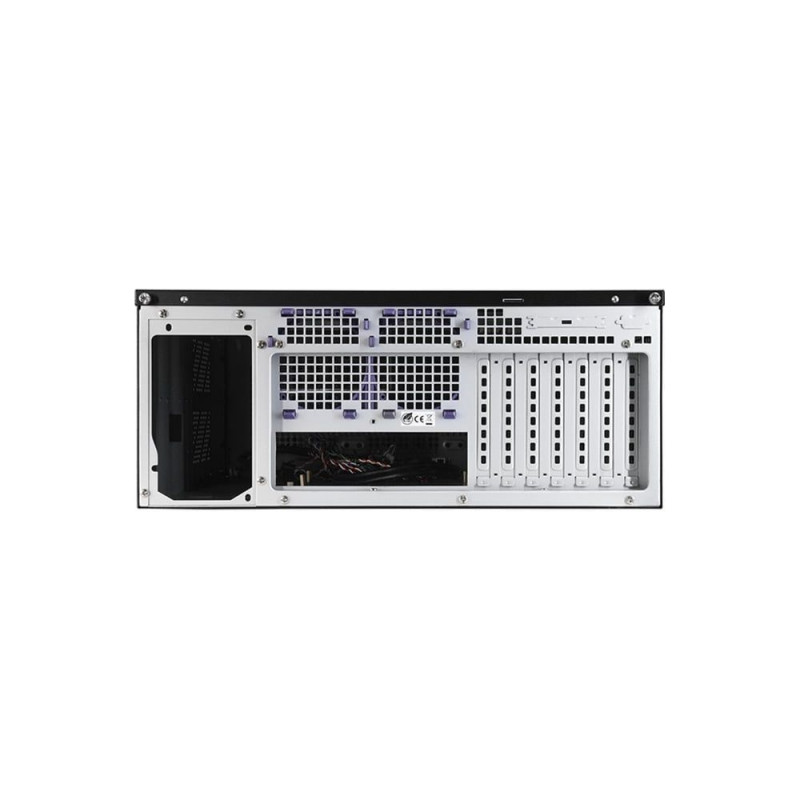

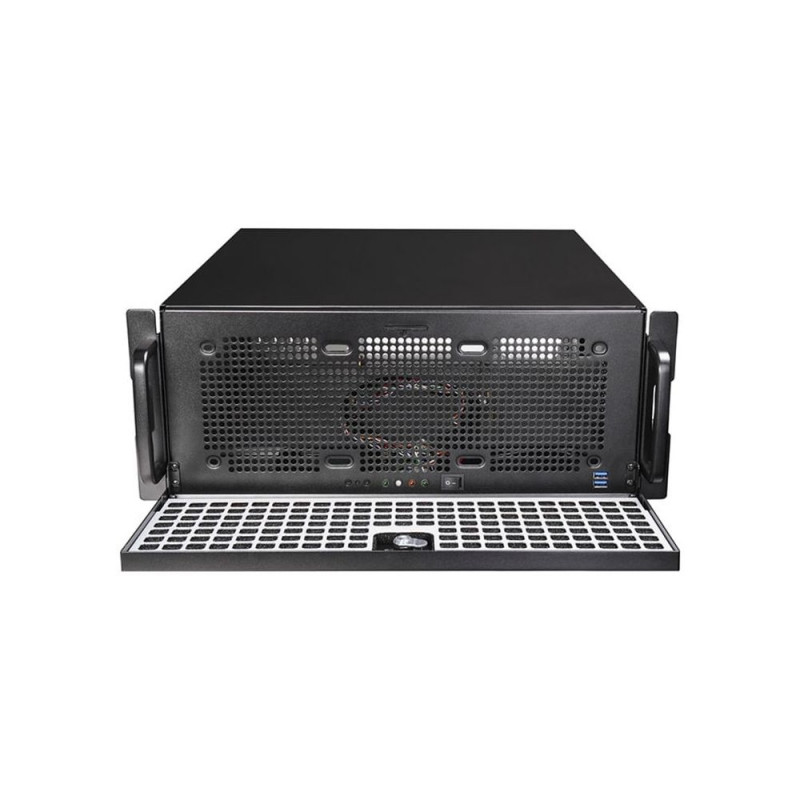

The UNC-409S-AIO 4U rackmount enclosure is designed for maximum reliability and performance in demanding industrial environments. Made from 1.2 mm thick SGCC steel, it provides optimal protection for hardware and is a durable, flexible solution for a wide range of configurations. For improved cooling performance, the chassis supports the installation of a 360 mm all-in-one (AIO) water cooling system, enabling efficient CPU heat dissipation. It is compatible with various motherboard form factors, including SSI-EEB, allowing for powerful system configurations. Either a standard ATX power supply or a mini redundant power supply can be used to ensure a stable and redundant power supply even for critical applications.


Type Rack, server case
Color: black
EAN 0753263079213
Manufacturer No. UNC-409S-AIO-OP
Manufactured in Taiwan
Design Rack
Mainboard form factor ATX, E-ATX, µATX, Mini-ITX, SSI-CEB, SSI-EEB
Material 1.2 mm SGCC steel
Internal dimensions Maximum plug-in card length 450 mm
Supported radiators Front: 240/360 mm,
Drive bays 3.5-inch internal 2 pieces
Full-size slots 7
Front connections 2x USB-A 3.2 Gen 1 (5 Gbit/s)
Front 3 x 120 mm fans can be installed
Rear 2 x 80 mm fans can be installed
Notes CPU cooler height (max.): 70 mm with 3.5-inch drive cage installed / 130 mm without 3.5-inch drive cage, VGA card length (max.) 450 mm (if no AIO radiator is installed)
Water cooling possible Yes
Rear connection of the motherboard No
Note Optional standard ATX power supply or 1+1 redundant power supply (mounting kit not included)
Accessories included Screw set, 7× PCI-E guide rails, PCI-E card bracket
Volume 36 l
Dimensions Width: 42.7 cm x Height: 17.68 cm x Depth/Length: 48 cm
Weight 9.7 kg

Dimensions and weights

Gross weight
11.1 kg

Product codes

EAN
0753263079213
Manufacturer code
UNC-409S-AIO-OP
