FANTEC SRC-4080X08 (without power supply)

Main info

Product has been archived

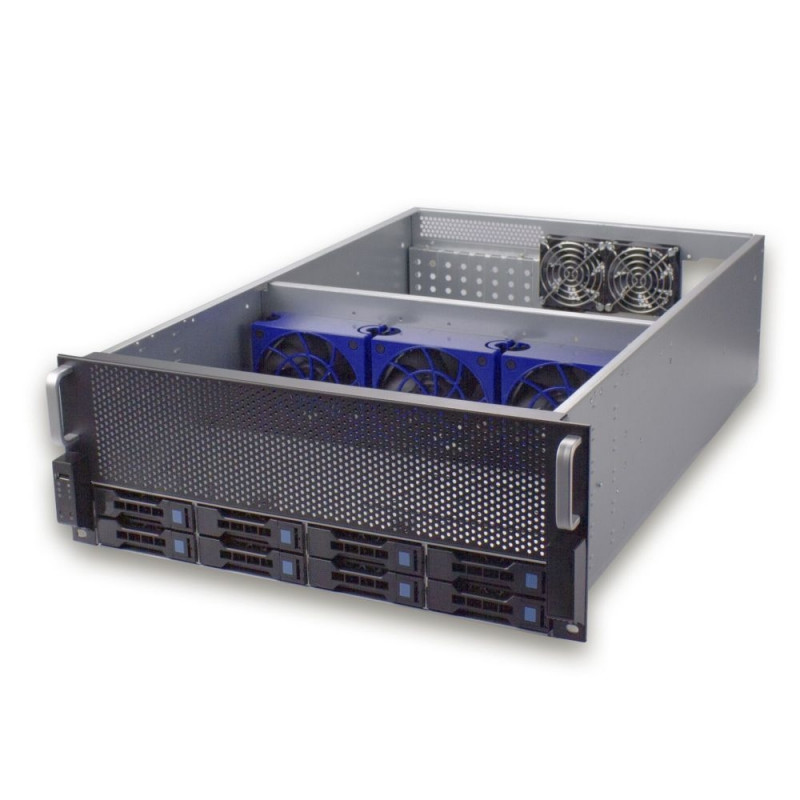

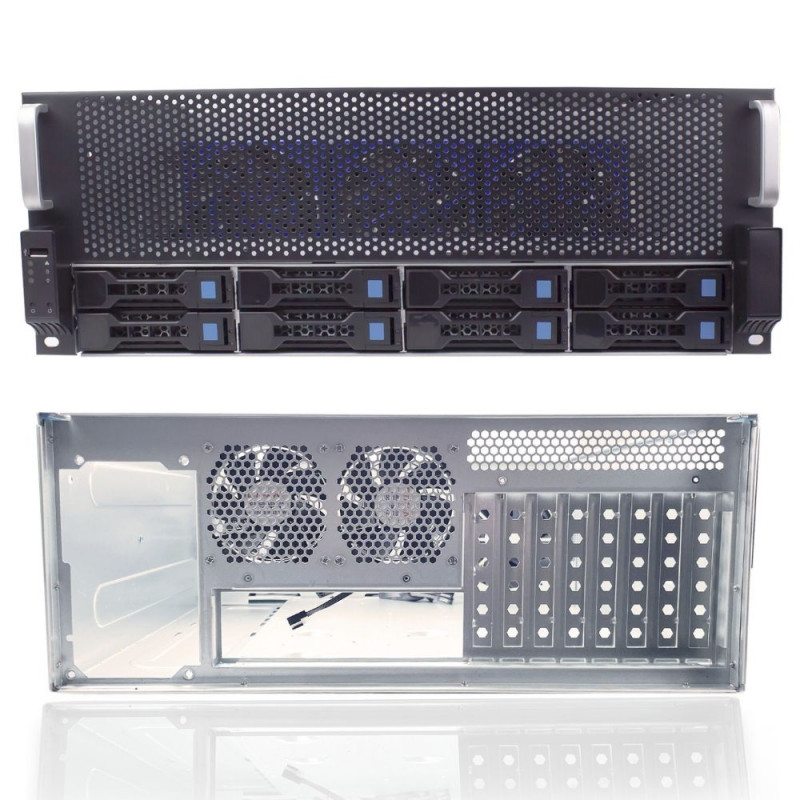

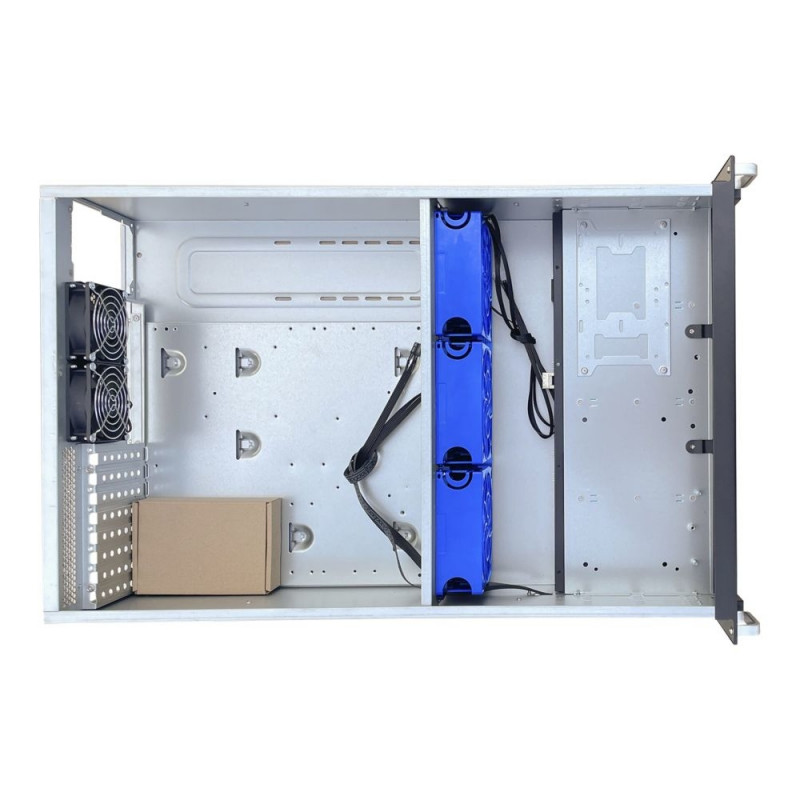

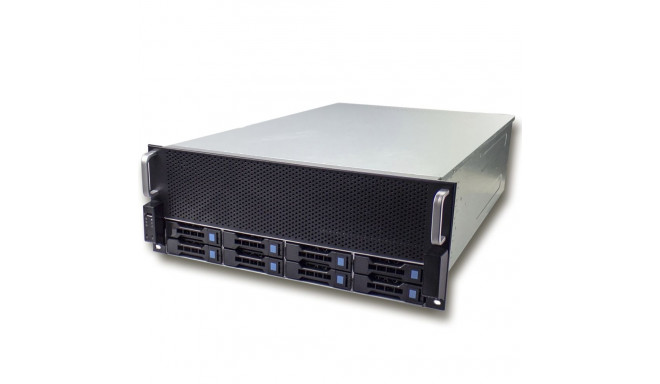

FANTEC SRC-4080X08 - 19" storage enclosure (4U 8x SAS & SATA without power supply)

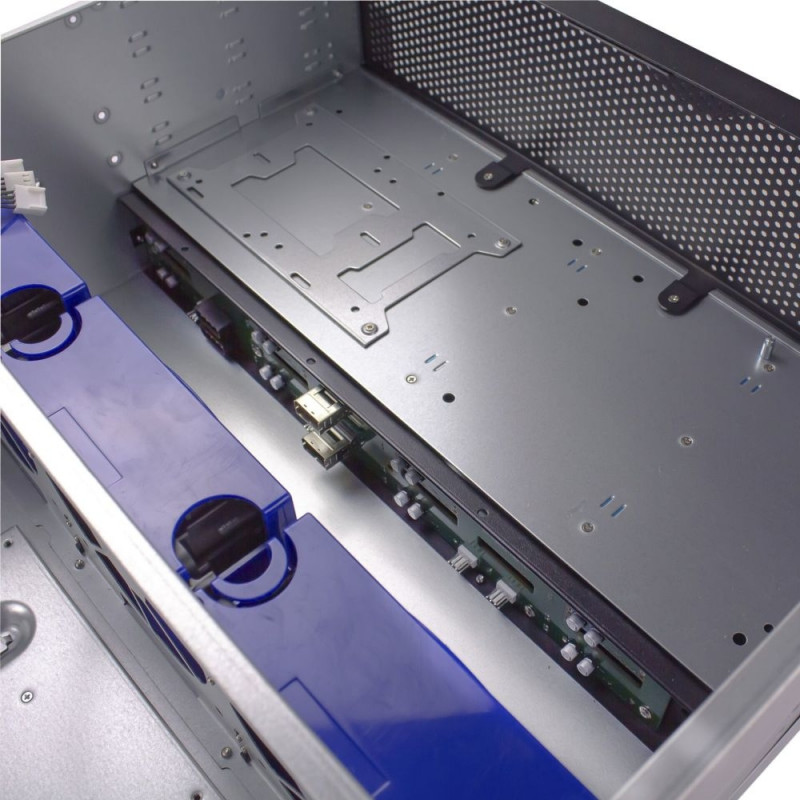

19" storage enclosure for installation in 19" industrial cabinets. Robust construction and high-quality workmanship. Pre-installed backplane for SAS or SATA hard disks. Expandable with telescopic rails.

Features:

  • 8x SAS / SATA bays with 2 status LEDs per bay.
  • Slots with holes for 3.5" and 2.5" data media
  • ON/OFF switch, system reset
  • USB 2.0 front USB port
  • 3x 120mm hot swap fans between backplane and mainboard
  • 2x 80mm fans at the rear of the case

Technical data:

  • Form factor: 4 U
  • Installation depth: 680 mm
  • Mainboard types: M-ATX, E-ATX, ATX, SSI CEB, SSI EEB
    • 12" x 10.5", 12" x 13
  • 3.5" slots: 8 slots
    • Supports SAS (6 Gbit/s connections. backward compatible)
    • Supports SATA (6 Gbit/s connectors, backward compatible)
    • Supports SAS and SATA hard disks with 29 / 22 PIN (female)
    • 2x SFF-8087: 4x SAS / SATA to one SFF-8087 each
    • 2x 4 PIN Molex power connector per backplane
    • Supports hard disks with DC +12V, +5V and +3.3V
    • 8x yellow power LED - lights up when a hard disk is connected
    • 8x blue status LED - flashes when hard disk is accessed
  • Fan type: 3x 120mm (hot swap) in the centre bar and 2x 80mm in the rear panel
  • Number of PCI slots: 7x PCI PCI slots
  • Data interfaces: USB 2.0 host
  • Case: steel / aluminium
  • Dimensions (W x H x D): 430 x 680 x 17 6mm
  • Weight: 17 kg

Type Hard Disk Casing
Compatible HDD 2,5" / 3,5"
Compatible SSD 2,5"
Max. Amount of Hard Drives 8
Storage system Network Attached Storage (NAS)
Colour Black
Body Aluminium / Metal

Dimensions and weights

Gross weight
17 kg
Package width
43 cm
Package height
68 cm
Package length
1.76 cm

Product codes

EAN
4250273424867
Manufacturer code
2486
