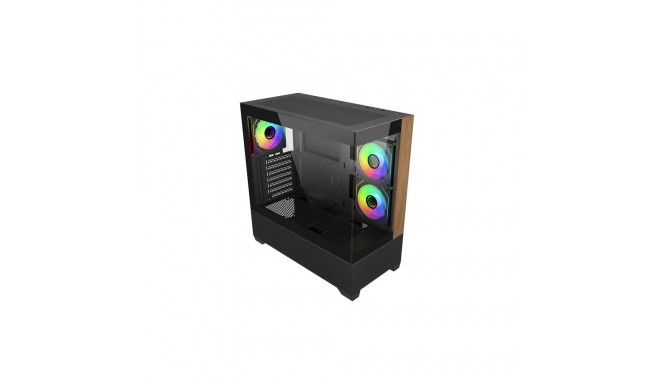

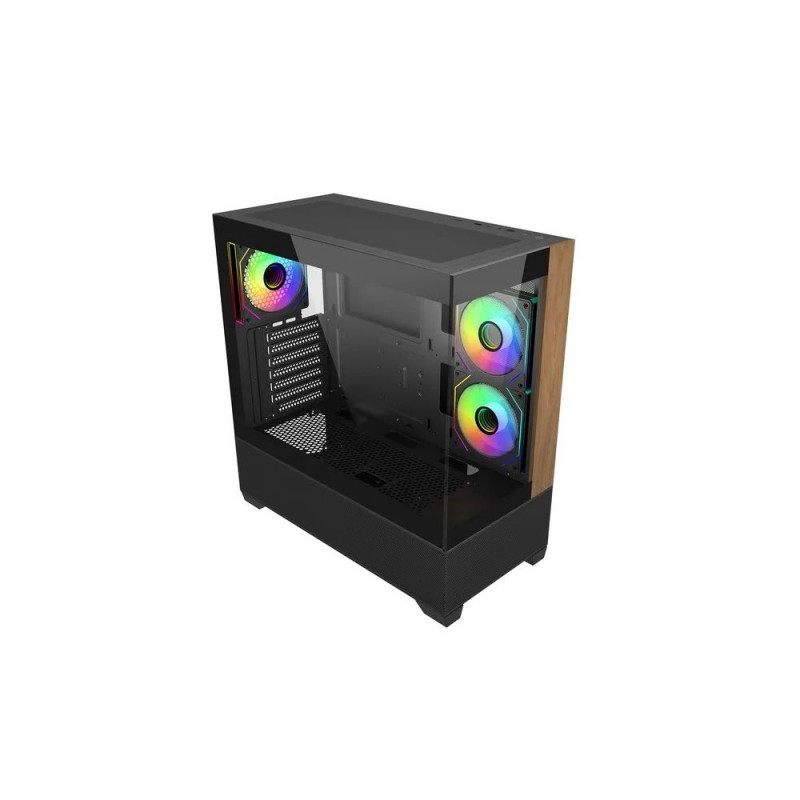

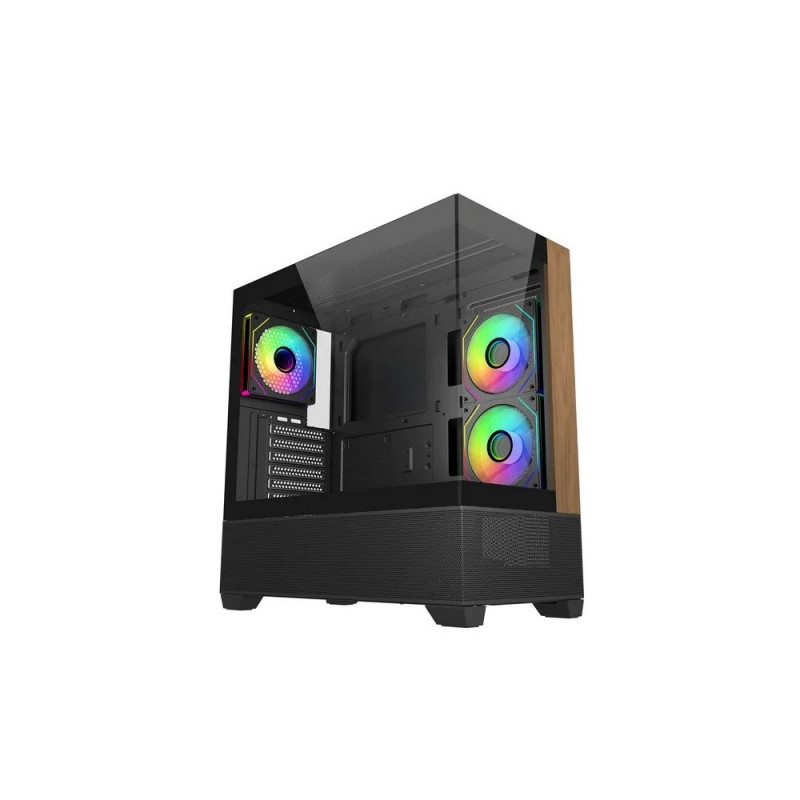

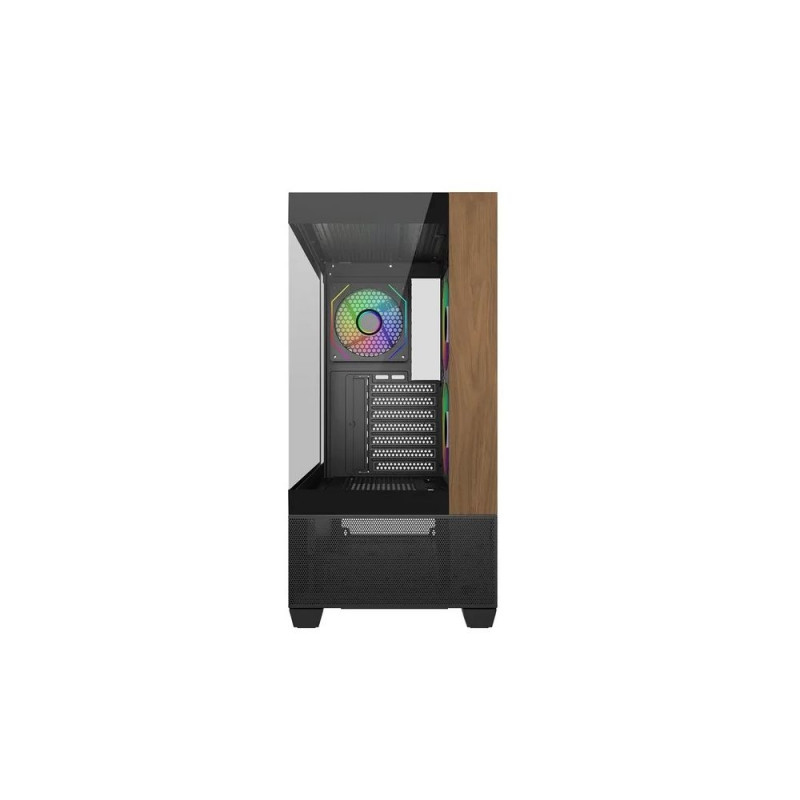

Case Elite 690

76,99 €

Monthly payment starting from 2,30 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Natural Aesthetics. Immersive View. Advanced Cooling. Elite 690 Wood The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and botto
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Natural Aesthetics. Immersive View. Advanced Cooling. Elite 690 Wood
The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setupsperfect for performance-driven or style-focused builds.

270° Panoramic Tempered Glass
Beveled glass panels create an immersive, seamless showcase of your build.

Optimized Tower with PSU Chamber
Vertical layout separates thermal zones for better airflow and cleaner cable routing.

Vertical Cooling Architecture
Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.

Natural Wood Front Panel
Crafted from real wood, the front panel adds a warm, organic touch to any space.

High-Performance Radiator Support
Top 360mm and side 240mm radiator support for powerful cooling setups.

Pre-installed ARGB Fans with Sync
Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.

Top & Bottom Mesh Ventilation
Mesh panels ensure enhanced airflow and system-wide thermal performance.

Next-Gen GPU Ready
Supports up to 425mm GPUs-ready for RTX 50 Series and beyond.

High-Speed I/O Panel
USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.


Chassis type Midi Tower
Form-factor ATX
Form-factor Micro ATX
Form-factor ITX
Side panel Tempered Glass
Computer case backlight ARGB
No. of drive bays 2
Drive bays 2.5'' intern. 1
Drive bays 3.5'' intern. 1
Power supply Failure
Number of fans installed 3
Fans installed 2 x 120 mm ARGB (side)
Fans installed 1 x 120 mm ARGB (back)
Maximum number of fans 9
Optional fans 3 x 120 mm (bottom)
Optional fans 2 x 120 mm (side)
Optional fans 1 x 120 mm (back)
Optional fans 3 x 120 mm or 2 x 140 mm (top)
Ooptional water cooling 1 x 360 mm (bottom)
Ooptional water cooling 1 x 240 mm (side)
Ooptional water cooling 1 x 120 mm (side)
Ooptional water cooling 1 x 120 mm (top)
Ooptional water cooling 1 x 240 mm (góra)
Ooptional water cooling 1 x 360 mm (top)
Ooptional water cooling 1 x 120 mm (bottom)
Ooptional water cooling 1 x 240 mm (bottom)
Number of slots for expansion cards 7
Front panel connectors 1 x mic/headphone (combo)
Front panel connectors 2 x USB 3.0
Maximum length of the graphics card 425
Maximum CPU cooling height 170
Maximum length of the power supply 250
Compatible power supply standard ATX
Color Black
Color Wood
Dimensions 434 x 218 x 454 mm
Front panel connectors 1 x USB 3.2 Gen 2x2 Type-C

Dimensions and weights

Gross weight
7.74 kg
Package width
28.5 cm
Package height
52 cm
Package length
49.5 cm

Product codes

EAN
4719512160879
Manufacturer code
KOCLMOD00000157
