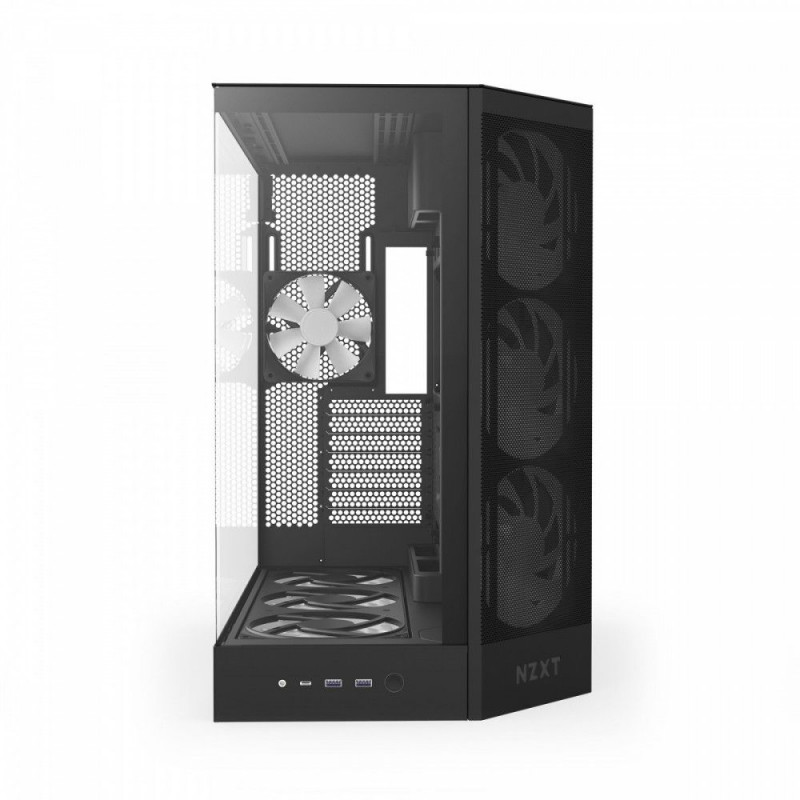

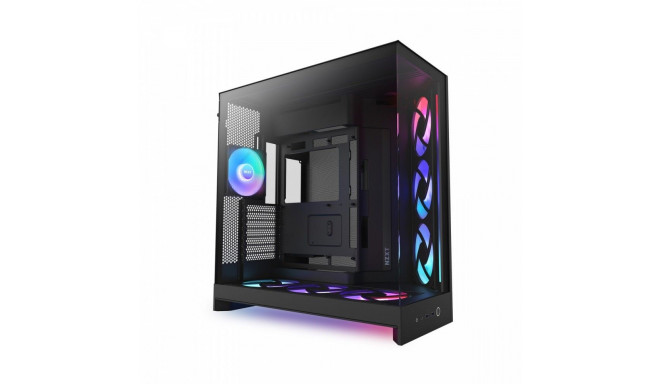

PC Case H9 Flow RGB+ Midi Tower window black

250,99 €

Monthly payment starting from 8,55 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The H9 Flow RGB+ is a spacious mid-tower ATX case designed for high-performance PC builds, combining effective cooling with aesthetics. Its dual-chamber design improves airflow and cable management, while perforated panels, angled fans, and ample sup

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

The H9 Flow RGB+ is a spacious mid-tower ATX case designed for high-performance PC builds, combining effective cooling with aesthetics. Its dual-chamber design improves airflow and cable management, while perforated panels, angled fans, and ample support for fans and radiators ensure optimal thermal performance.

Key Features:

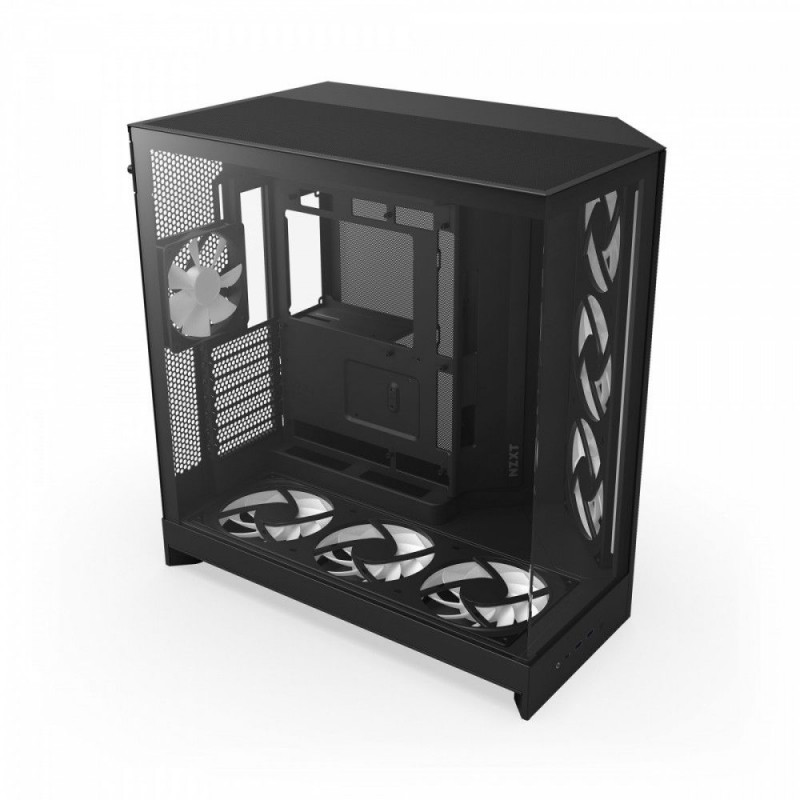

Dual-chamber design: Separates core components from the power supply and drives, improving thermal efficiency and simplifying cable management.

Optimized airflow: Perforated steel panels and angled fans on the front right side ensure efficient cooling for demanding builds.

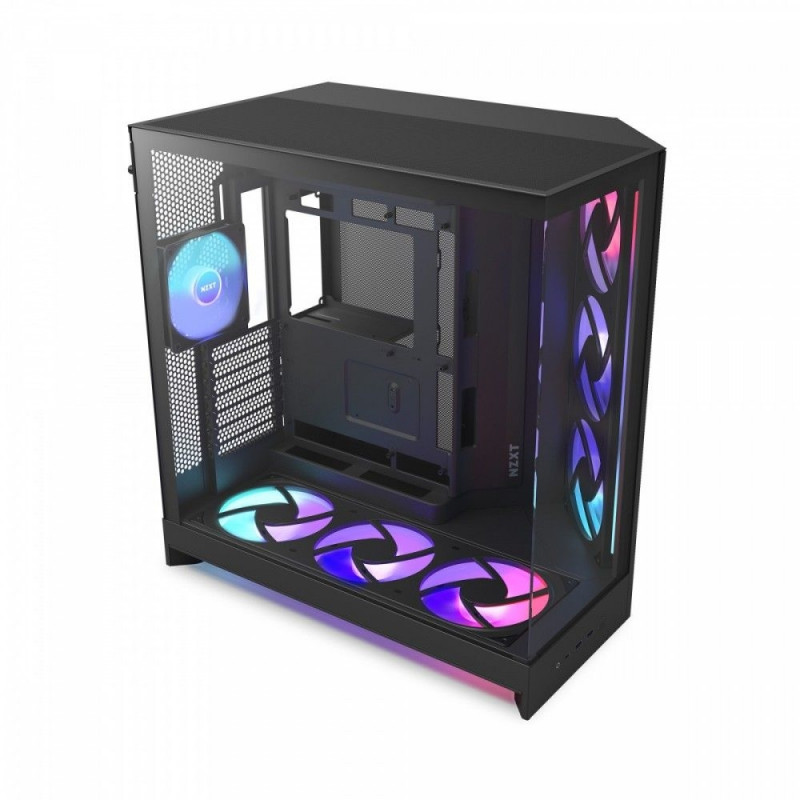

RGB Ready: Includes two F420 RGB Core fans in a single-frame design, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub controller.

CV = Case Version (3-pin DC)

Up to 10 Fan Capacity: Supports up to nine 140mm fans (top, front-right, bottom) and one 120mm fan in the rear.

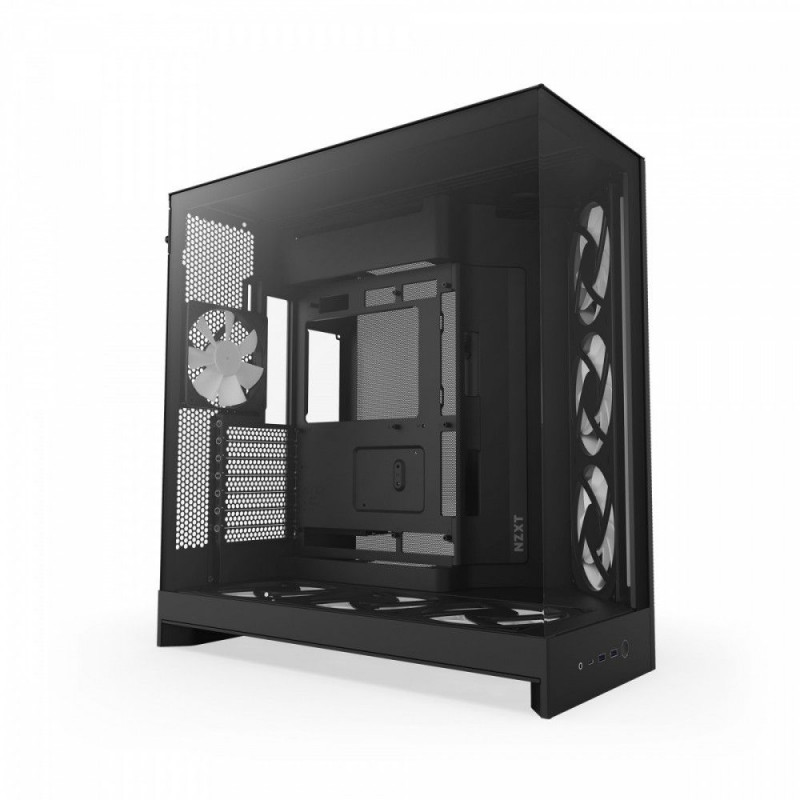

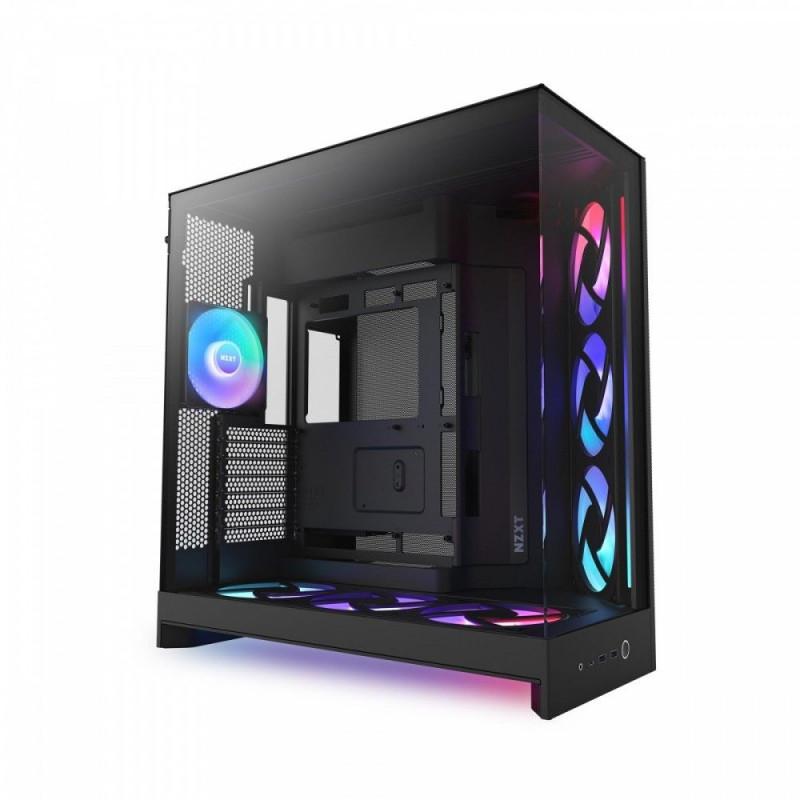

Panoramic View: Showcase every detail of your build with a frameless tempered glass panel.

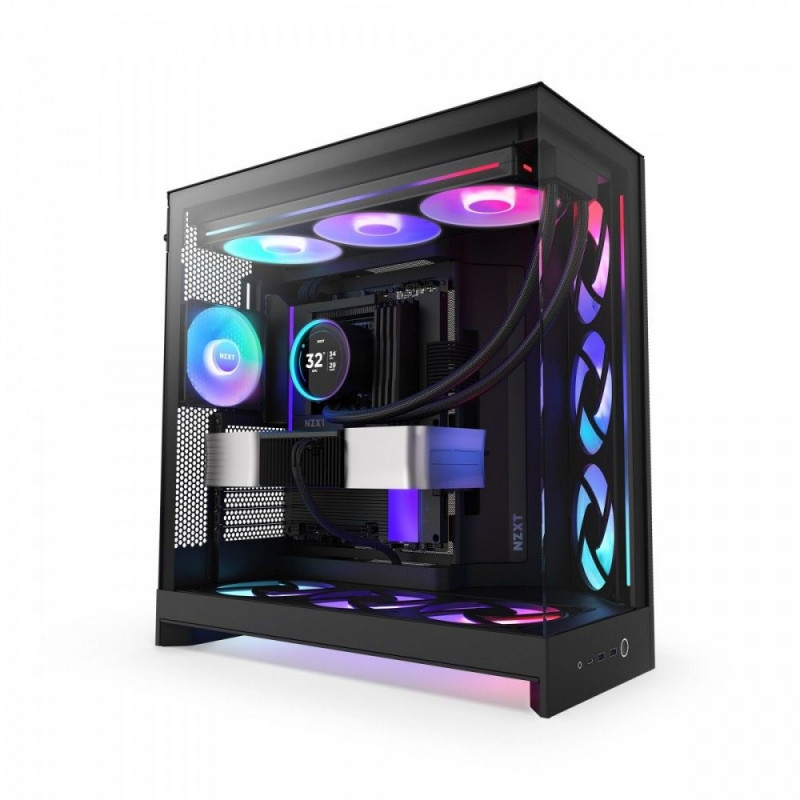

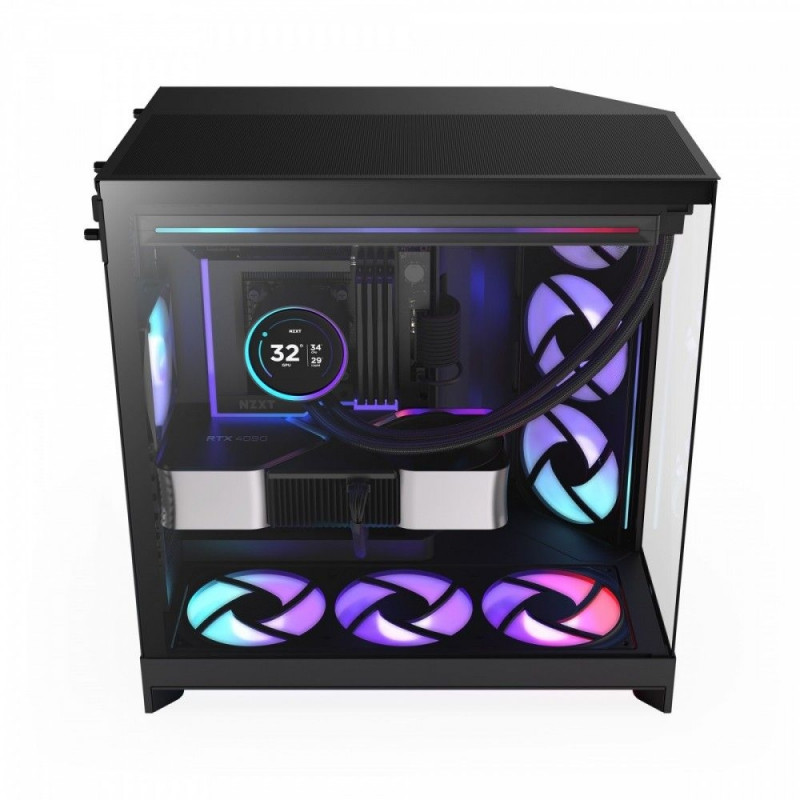

Supports Large Radiators and Graphics Cards: Accommodates radiators up to 420mm in the top and front-right, offering ample space for high-end graphics cards.

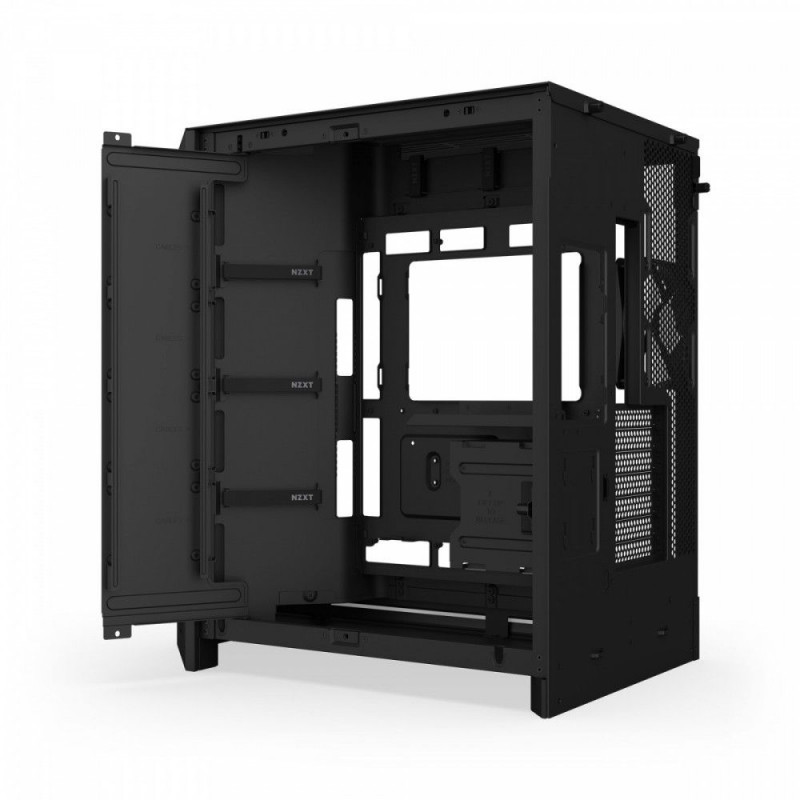

Easy Cable Management: Wide channels, built-in Velcro straps, and mounting points make cable management much easier.

Back-Connect Ready: Compatible with rear-connected motherboards like ASUS BTF and MSI Project Zero for a clean interior without visible cables.

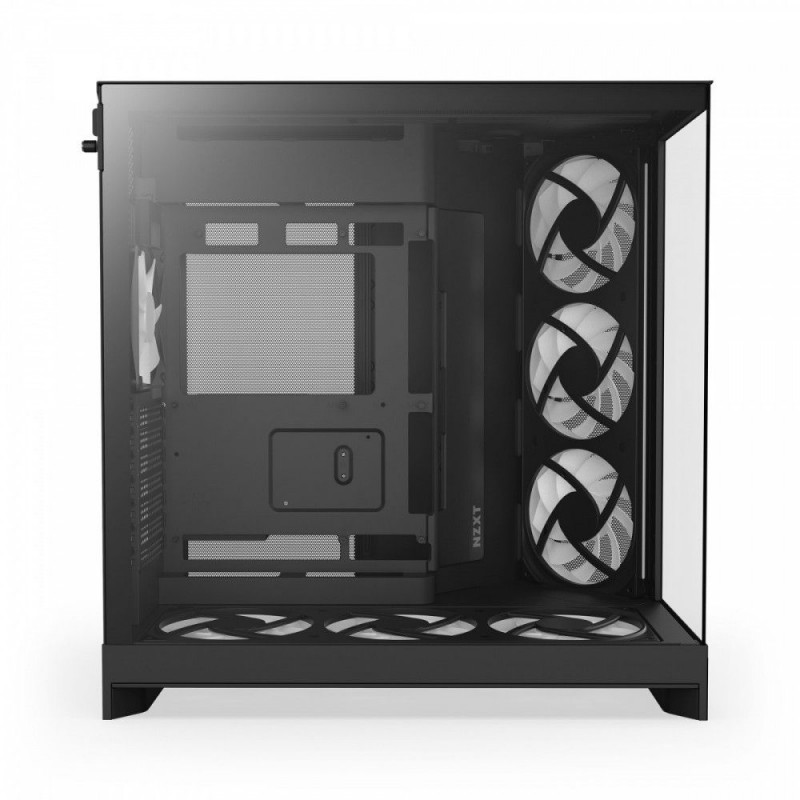

Optimized Airflow

Angled fans in the front-right and an optimized internal layout keep temperatures low and performance high.

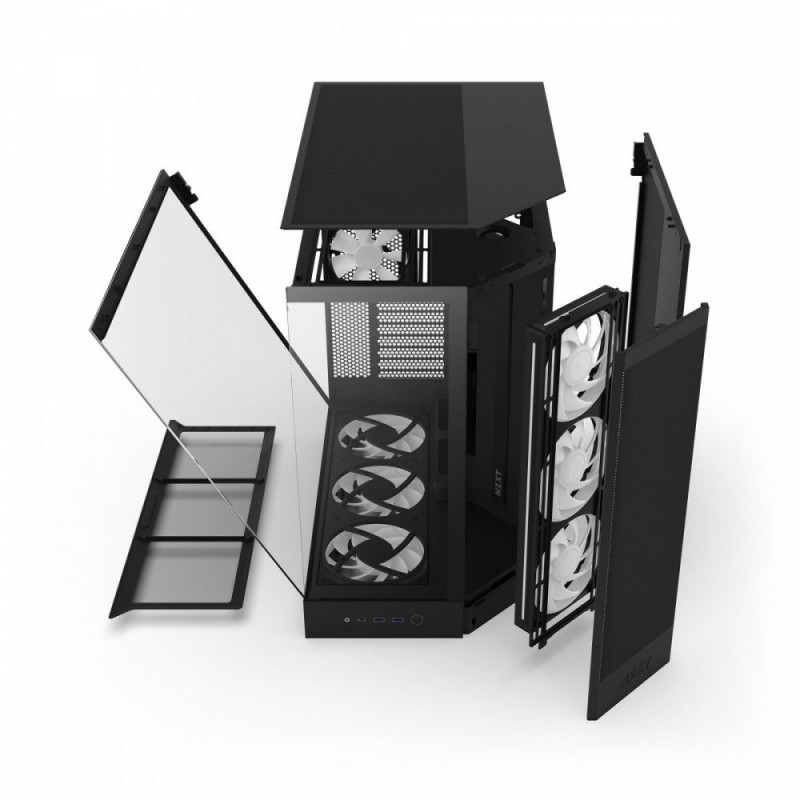

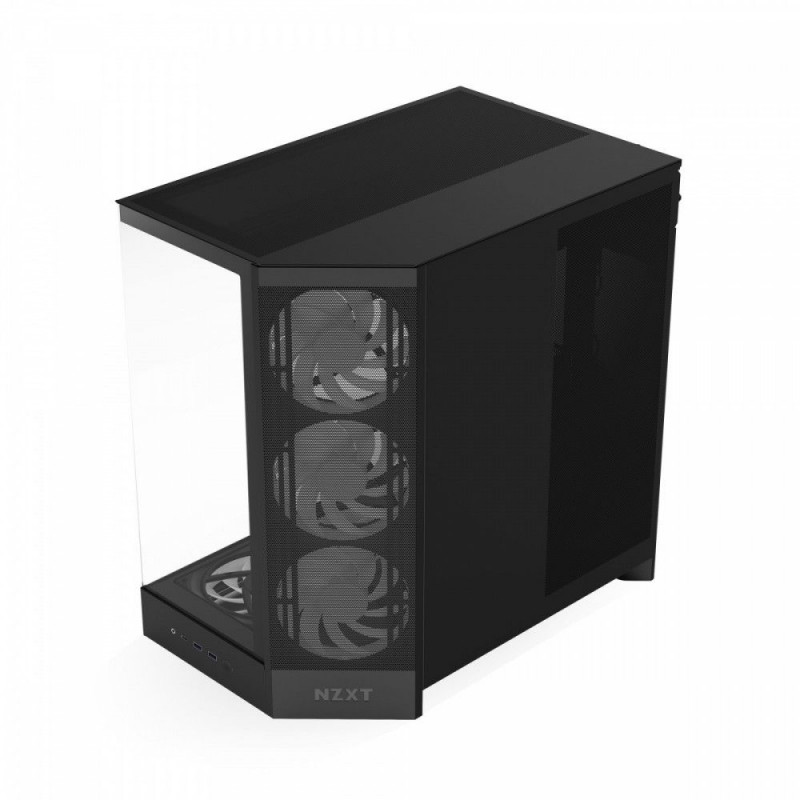

Mesh Panels

Ultra-permeable mesh panels maximize airflow while filtering dust.

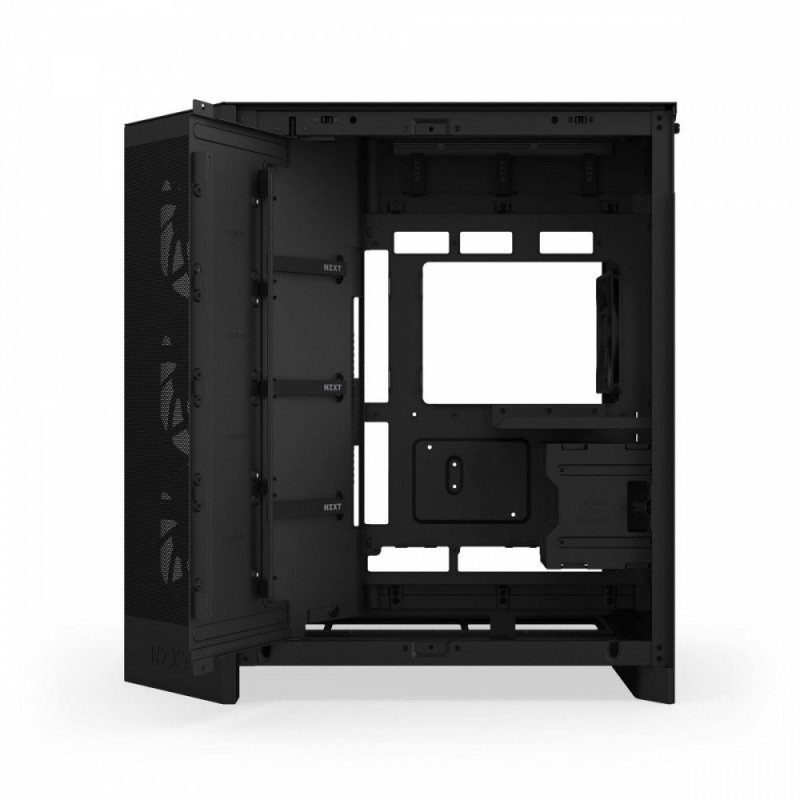

Spacious Dual-Chamber Design

Separates heat-generating components, improving airflow and interior aesthetics.

10-Fan Cooling

Supports up to nine 140mm fans and one 120mm fan in the rear.

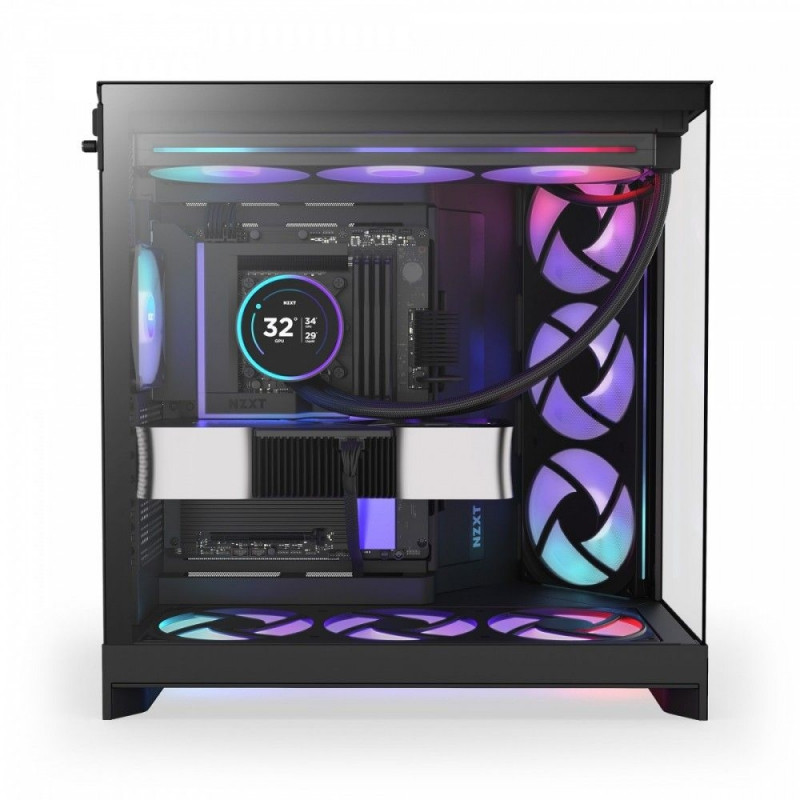

Large Radiator Support

Supports radiators up to 420mm on the top and front right panels.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free build.

Simple Cable Management

Wide channels, Velcro straps, and mounting points simplify cable management.

Controller Specifications

Fan Channels:

  • 3 × NZXT 8-pin (PWM only)
  • 1 × NZXT 8-pin (DC + PWM control)
  • 1 × 4-pin PWM (DC + PWM control)

RGB Channels:

  • 4 × NZXT 8-pin
  • 1 × NZXT RGB

Maximum LED Support:

  • Each NZXT 8-pin channel supports a maximum of 96 LEDs.
  • The NZXT RGB channel supports up to 40 LEDs and a maximum of 5 NZXT devices.

Chassis type Midi Tower
Form-factor E-ATX
Form-factor Mini ITX
Form-factor Micro ATX
Form-factor ATX
Side panel Tempered Glass
Computer case backlight RGB
No. of drive bays 10
Drive bays 2.5'' intern. 6
Drive bays 3.5'' intern. 2
Power supply Failure
Number of fans installed 3
Fans installed 1 x 120 mm RGB (front)
Fans installed 1 x 120 mm ARGB (bottom)
Fans installed 1 x 120 mm RGB (back)
Maximum number of fans 10
Optional fans 3 x 120 mm lub 3 x 140 mm (side)
Optional fans 3 x 120 mm lub 3 x 140 mm (top)
Optional fans 1 x 120 mm (back)
Optional fans 3 x 120 mm or 3 x 140 mm (bottom)
Ooptional water cooling 1 x 120 mm (back)
Number of slots for expansion cards 7
Front panel connectors 1 x mic/headphone (combo)
Front panel connectors 1 x UB1 x USB 3.2 Gen 2 Type-CavS 3.2 Gen 2 Type-C
Front panel connectors 2 x USB 3.1
Maximum length of the graphics card 459
Maximum CPU cooling height 165
Maximum length of the power supply 200
Compatible power supply standard ATX
Color Black
Weight 2
Dimensions Length 481 mm Width 315 mm Height 506 mm
Accessories included Mounting hardware kit Assembly instructions RGB controller
System Requirements Internal USB 2.0 connector 8-pin PCIe power
Other features Maximum fan speed +/- 10% 1300 RPM Maximum fan airflow 55.17 CFM Fan noise level 26.1 dB Fan controller Water cooling (AIO) compatible RGB control via motherboard PSU compartment

Dimensions and weights

Gross weight
13.5 kg
Package width
31.5 cm
Package height
50.6 cm
Package length
48.1 cm

Product codes

EAN
5056547207681
Manufacturer code
KONZXOE00000011
