Home page » Computers & IT»Computer components»PSU»Power Supply - Chieftec Eon Zpu-700s 700w

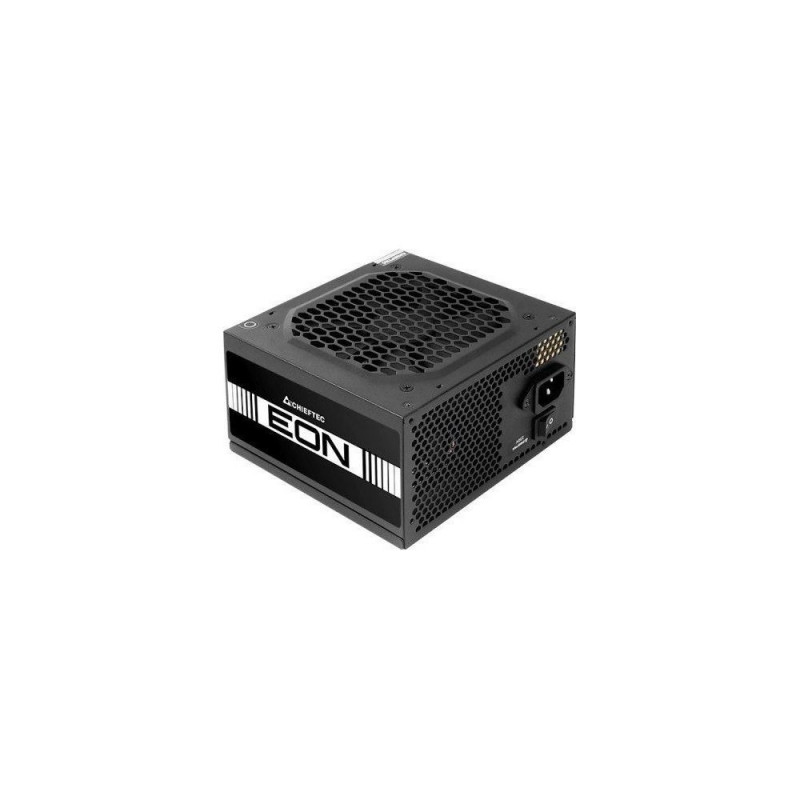

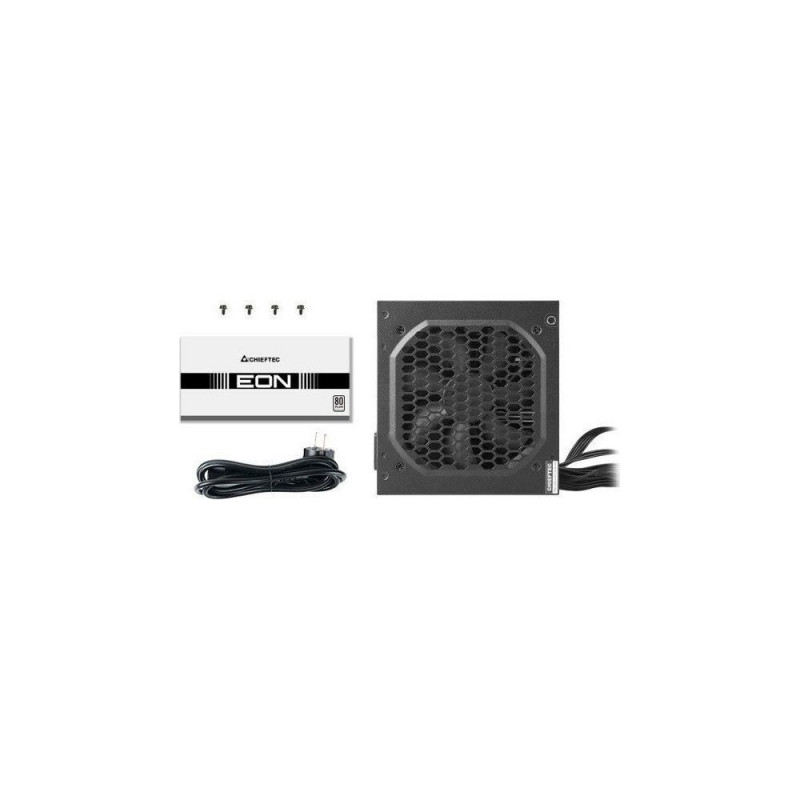

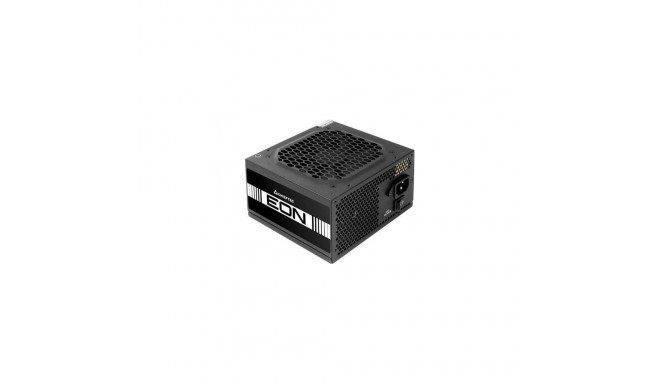

Power Supply - Chieftec Eon Zpu-700s 700w

94,99 €

Monthly payment starting from 2,84 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The Chieftec EON ZPU-700S power supply unit has a total power rating of 700W and features active cooling with one 12cm fan. It also has an 80 PLUS certification, ATX form factor, and supports high output currents including +5V up to 20A and +12V up to 53A.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Power Supply - Chieftec Eon Zpu-700s 700w

The Chieftec EON ZPU-700S is a high-performance power supply unit with an 80 PLUS certification and ATX form factor. It features active cooling for efficient heat dissipation.

Key Features
  • Active cooling system with one fan (12 cm in diameter)
  • Total power: 700W, AC input voltage: 200-240V, frequency: 50-60Hz
  • +5V output current up to 20A, +12V output current up to 53A, and more

Design
Cooling type Active
Number of fans 1 fan(s)
Fan location Top
Fan diameter 12 cm
Product colour Black
Backlight No
On/off switch Yes
Power
Total power 700 W
AC input voltage 200 - 240 V
Max output current (+5V) 20 A
Max output current (+12V) 53 A
AC input frequency 50 - 60 Hz
Power Factor Correction (PFC) type Active
Max output current (+3.3V) 20 A
Max output current (-12V) 0.4 A
Max output current (+5Vsb) 2.5 A
Weight & dimensions
Height 86 mm
Depth 140 mm
Weight 1.4 kg
Width 150 mm
Performance
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS
ATX version 2.3
Packaging data
Package weight 1.68 kg
Ports & interfaces
SATA power cable length 450, 150
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 4
EPS power connector (4+4 pin) 2
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 4
PCI Express power cable length 55 cm
Peripheral (Molex) power cable length 150, 450 mm
Motherboard power cable length 65 cm

Width 150 mm
Height 140 mm
Length 160 mm
Product Weight 2000 g
Country TW

Dimensions and weights

Gross weight
2.2 kg
Package width
25 cm
Package height
20 cm
Package length
30 cm

Product codes

EAN
753263078445
