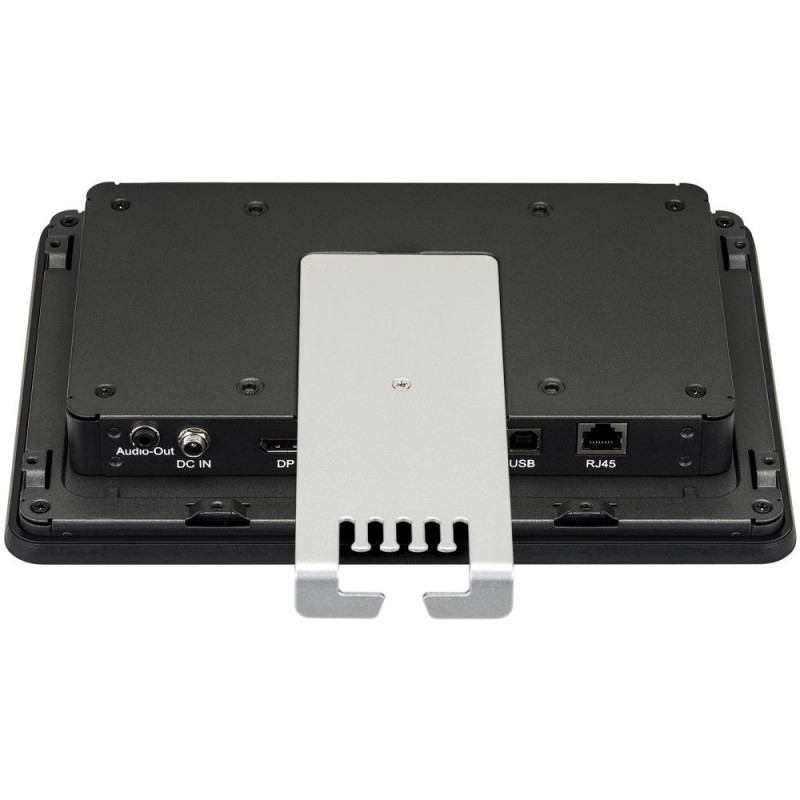

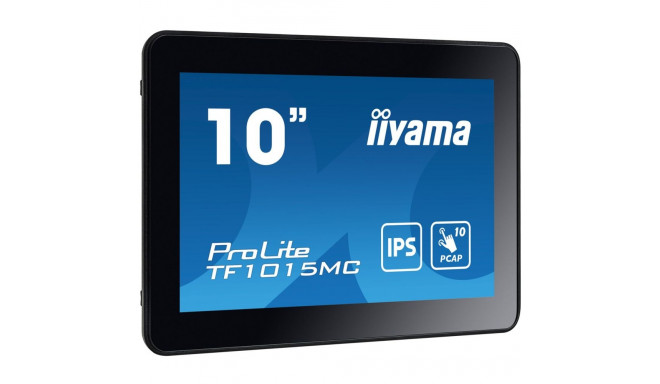

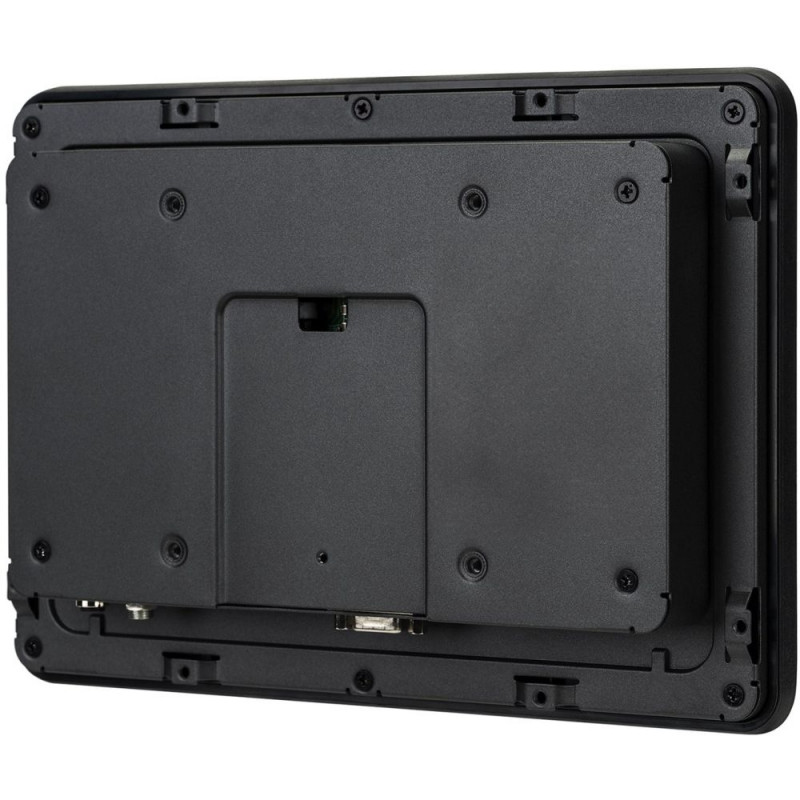

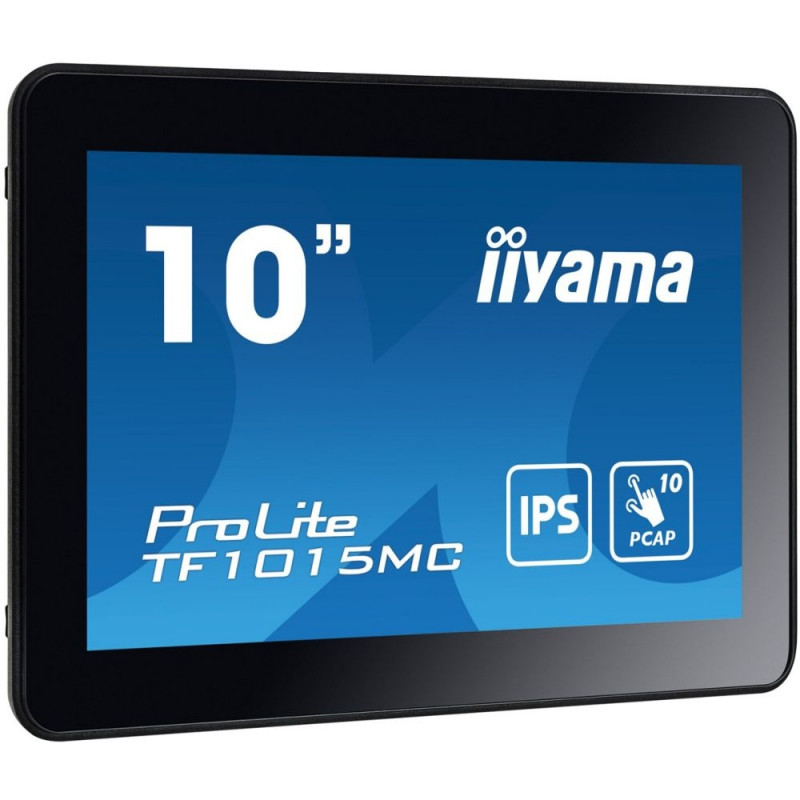

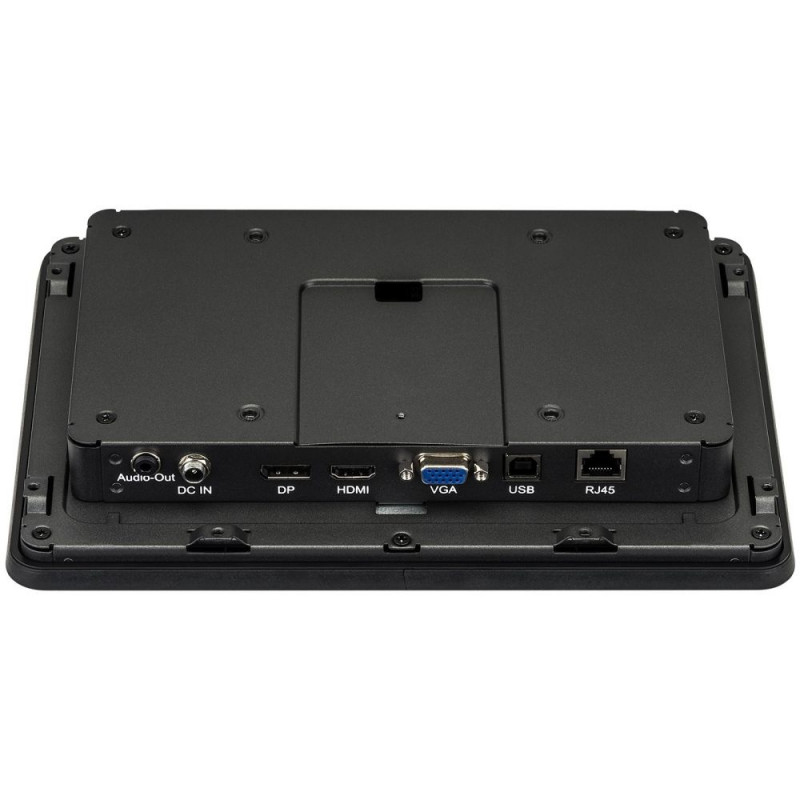

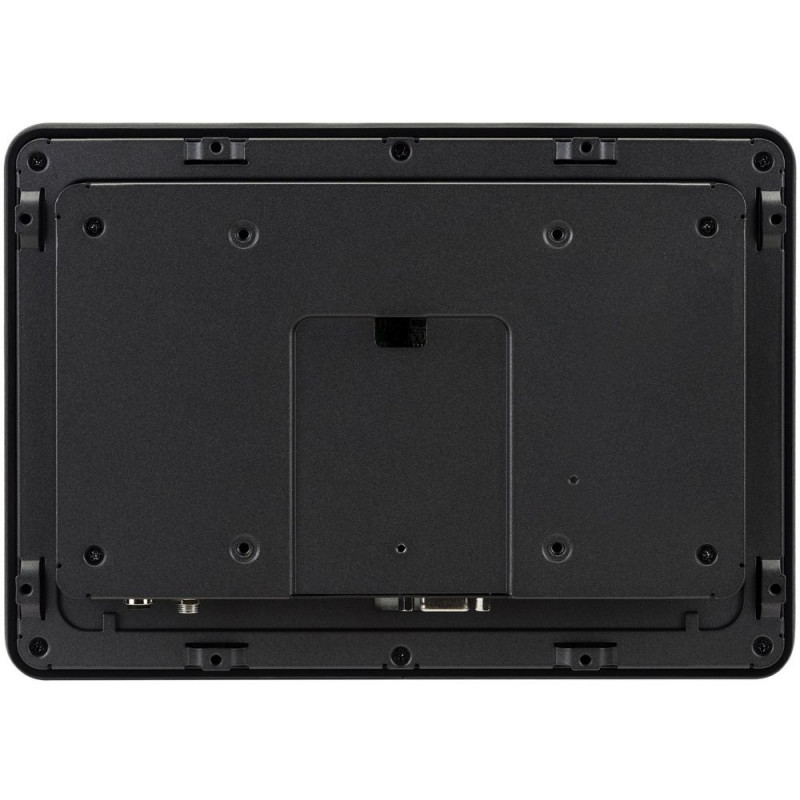

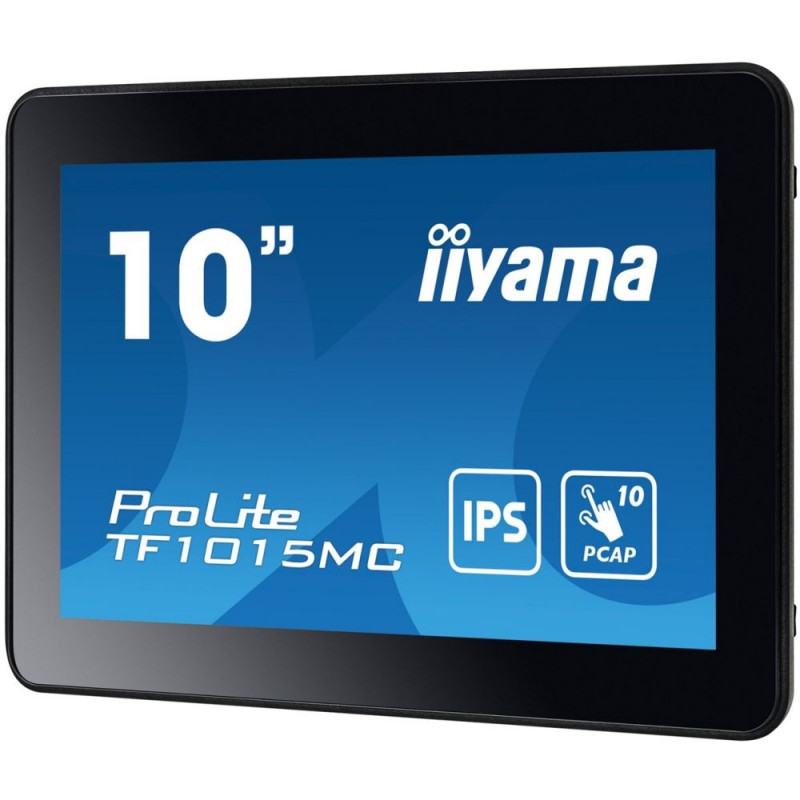

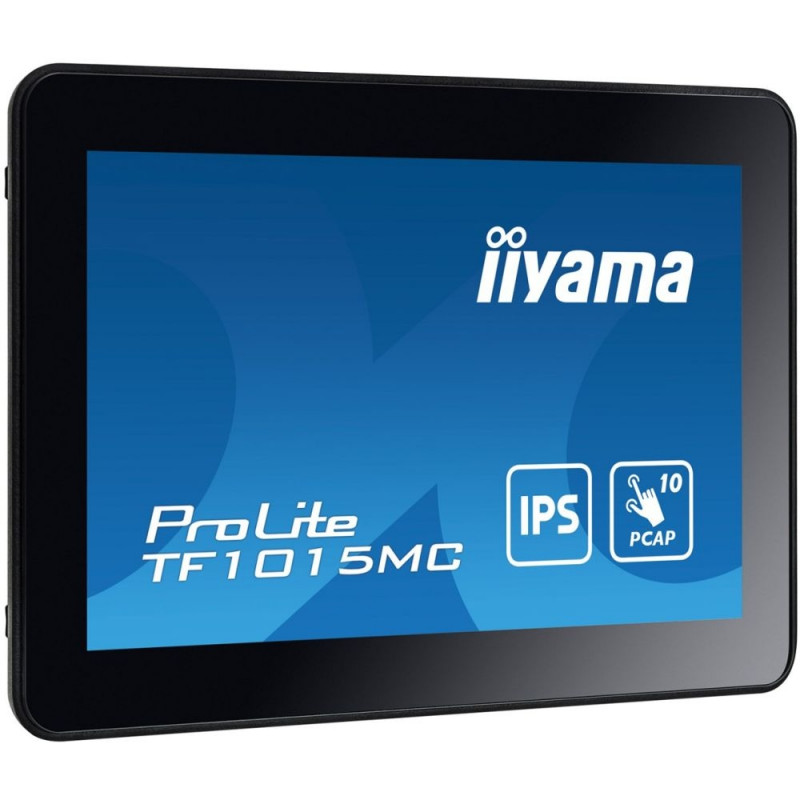

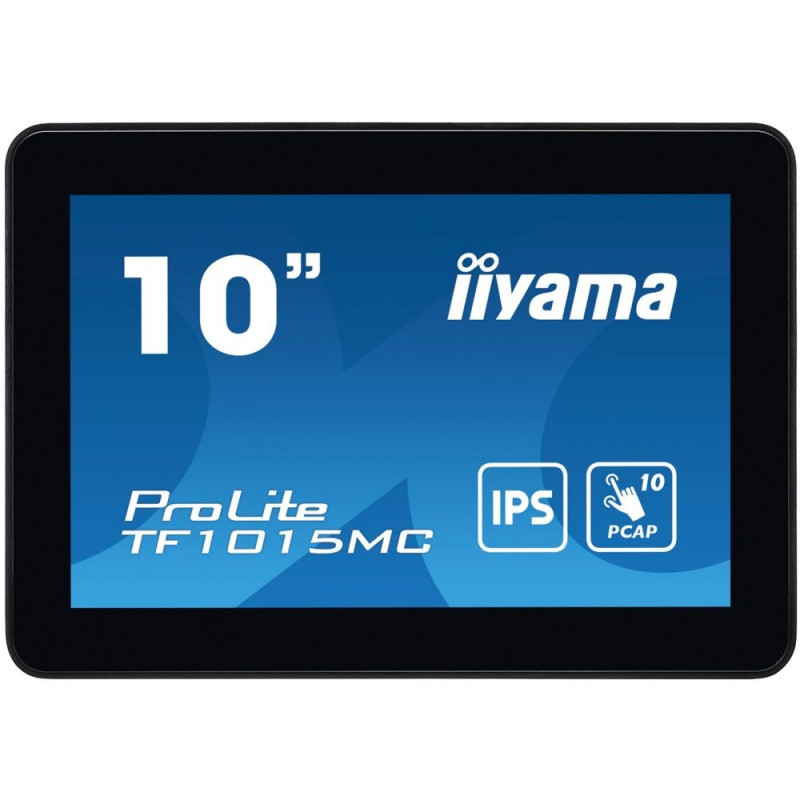

Touchpanel IIYAMA TF1015MC-B2 IP65

459 €

Monthly payment starting from 15,64 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Certification CB, CE, TÜV-Bauart, EAC, cULus Number of simultaneous touchpoints 10
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Certification CB, CE, TÜV-Bauart, EAC, cULus
Number of simultaneous touchpoints 10
Touchscreen technology Projected capacitive system
Glass thickness 3.3 mm
Display brightness (peak) 500 cd/m²
HDMI Yes
Energy efficiency class (SDR) C
USB Touch port Yes
Surface hardness 7H
Energy efficiency scale A to G
Height (without stand) 183.5 mm
Depth (without stand) 39.5 mm
Energy efficiency class (HDR) Not available
Weight (without stand) 2.7 kg
Front bezel colour Black
Touch technology Multi-touch
Package width 310 mm
VESA mounting Yes
Viewable size, vertical 13.6 cm
Horizontal scan range 30 - 49.7 kHz
Ethernet LAN Yes
Display diagonal (metric) 25.7 cm
Product colour Black
Quick start guide Yes
Response time 29 ms
Viewing angle, vertical 178°
International Protection (IP) code IP65
Wall mountable Yes
Number of upstream ports 1
Panel type IPS
Active display area (W x H) 216.96 x 135.6 mm
Touchscreen Yes
On Screen Display (OSD) Yes
Power consumption (off) 0.3 W
USB ports quantity 1
Package height 160 mm
Market positioning Business
Plug and Play Yes
VGA (D-Sub) ports quantity 1
Mean time between failures (MTBF) 50000 h
Viewable size, horizontal 21.7 cm
Ethernet LAN (RJ-45) ports 1
Power consumption (typical) 6 W
Operating temperature (T-T) 0 - 40 °C
DVI port No
DisplayPorts quantity 1
Display technology LED
Number of OSD languages 7
Digital horizontal frequency 30 - 49.7 kHz
Display resolution 1280 x 800 pixels
Power supply type External
AMD FreeSync No
Display diagonal 25.6 cm (10.1")
Package weight 2.7 kg
HD type HD
Storage temperature (T-T) -20 - 60 °C
AC adapter output voltage 12 V
Depth (with stand) 39.5 mm
Viewing angle, horizontal 178°
Maximum refresh rate 75 Hz
Width (without stand) 260.5 mm
Placement supported Indoor
Pixel pitch 0.1695 x 0.1695 mm
Weight (with stand) 1.4 kg
Height (with stand) 183.5 mm
Display brightness (typical) 500 cd/m²
LED indicators Yes
Screen shape Flat
Display number of colours 16.7 million colours
NVIDIA G-SYNC No
Width (with stand) 260.5 mm
Remote control included Yes
HDCP Yes
HDMI ports quantity 1
Native aspect ratio 16:10
Contrast ratio (typical) 800:1
Power consumption (standby) 0.7 W
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

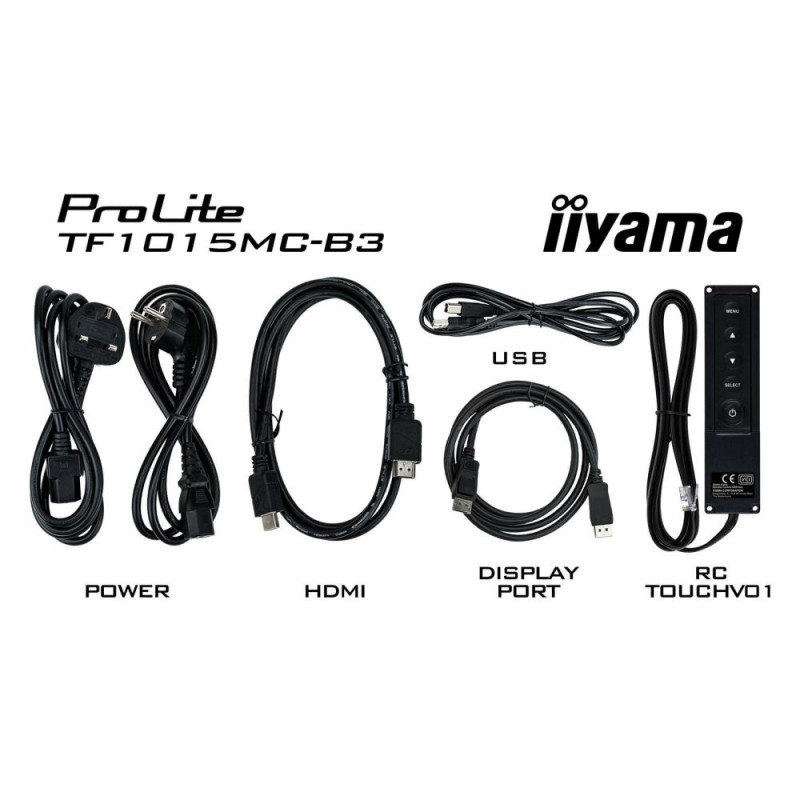

Packaging content AC adapter, external control pad
Weight 1.4 kg
AC adapter included Yes
Depth 39.5 mm
Width 260.5 mm
Built-in USB hub Yes
Package depth 370 mm
Control panel Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Height 183.5 mm
Display brightness 425 cd/m²
Palm rejection Yes
Brightness 425 cd/m²
Touch method stylus, finger, glove (latex)
Sustainability certificates ErP
Headphone connectivity 3.5 mm
Energy consumption (SDR) per 1000 hours 5.7 kWh
Warranty 24 (F)
Cables included DisplayPort
Compliance certificates REACH
Panel mounting interface 100 x 100 mm
On Screen Display (OSD) languages Spanish

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 89,99 €
  • Additional warranty (2 years) - 59,99 €
  • Insurance (1 year) - 69,99 €
  • Insurance (2 years) - 129,99 €

Choose a suitable extended warranty and insurance in checkout..

Display

Display size
10.1"
25.6 cm

Dimensions and weights

Package width
355 cm
Package height
145 cm
Package length
295 cm

Product codes

EAN
4948570124107
Manufacturer code
TF1015MC-B3
