Home page » Computers & IT»Computers»HTPC & miniPC»Shuttle XPC slim Barebone DS50U3, Intel i3-1315U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP,

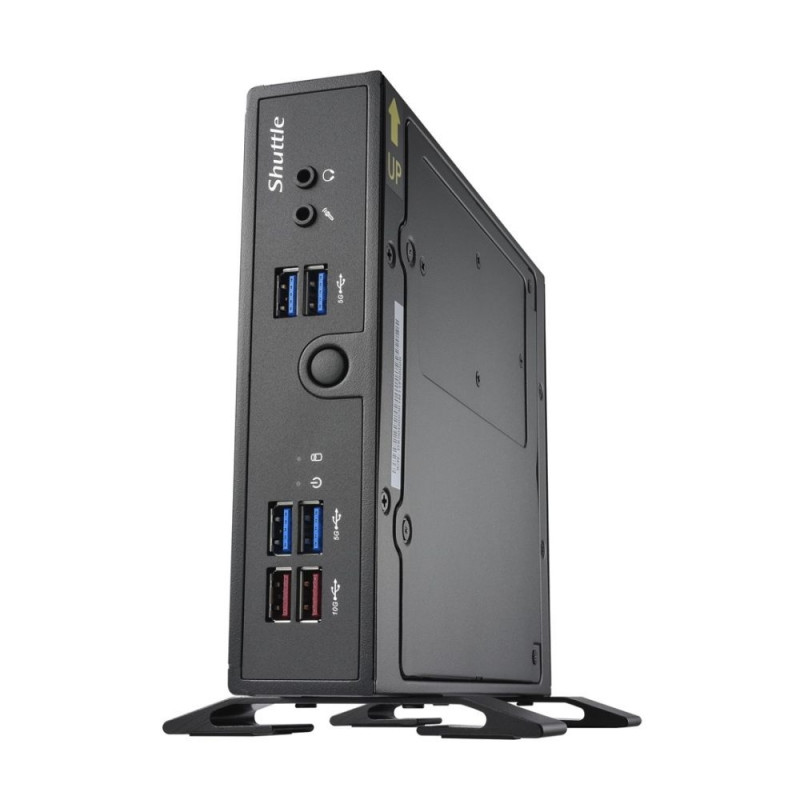

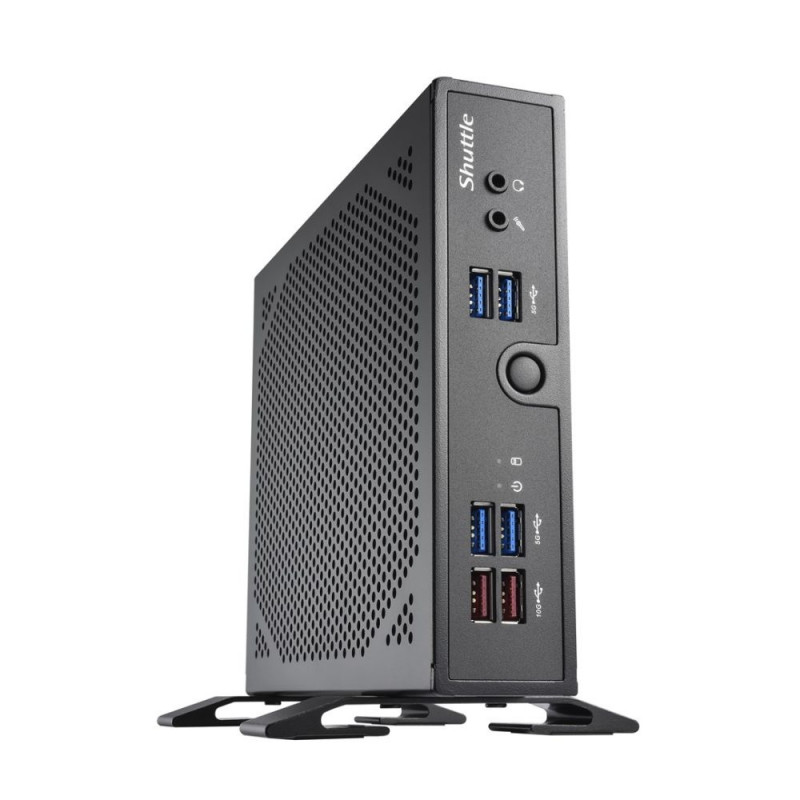

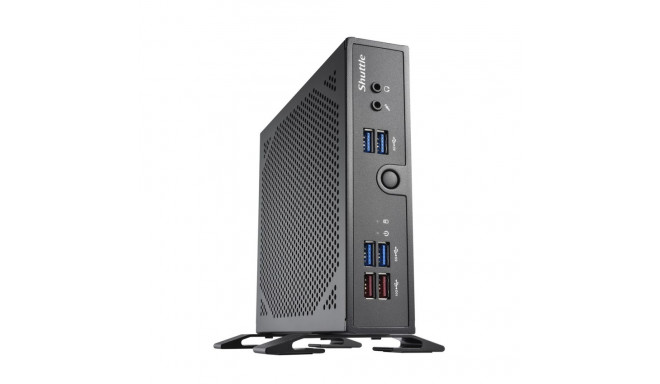

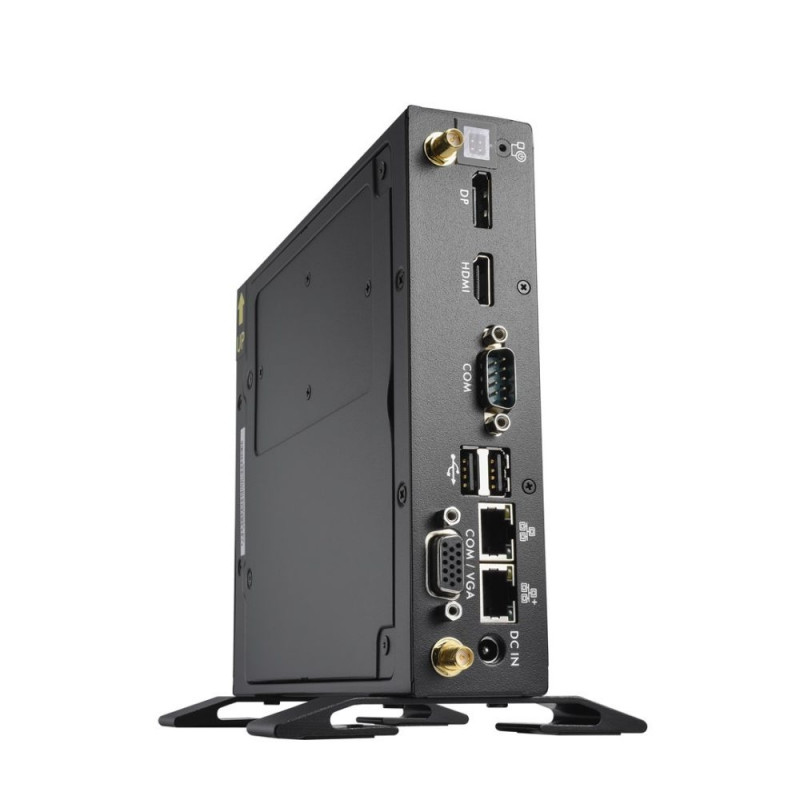

Shuttle XPC slim Barebone DS50U3, Intel i3-1315U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP,

Main info

Product has been archived


Processor model i3-1315U
AC adapter output current 1.6 A
LAN controller Intel I226-LM
Sustainability compliance Yes
Cable lock slot Yes
AC input voltage 100 - 240 V
Product type Mini PC barebone
NVMe Yes
Product colour Black
AC adapter output voltage 19 V
Power cord included Yes
Ethernet LAN (RJ-45) ports 2
Efficient-core boost frequency 3.3 GHz
Processor generation Intel Core i3-13xxx
ECC supported by processor No
Graphics card family Intel
DC-in jack Yes
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
Quick start guide Yes
Processor cores 6
Microphone in Yes
Depth 165 mm
Maximum internal memory 64 GB
Built-in processor Yes
Operating system installed No
Linux operating systems supported Yes
Supported memory types DDR5-SDRAM
Memory slots type SO-DIMM
DisplayPort version 1.4
On-board graphics card model Intel® UHD Graphics
Processor boost frequency 4.5 GHz
BIOS type UEFI AMI
Chassis type 1.3L sized PC
Processor cache 10 MB
On/off switch Yes
Cooling type Passive
Wi-Fi No
VESA mounting Yes
Cable lock slot type Kensington
Trusted Platform Module (TPM) Yes
HDMI version 2.0b
Number of processors supported 1
Audio chip Realtek ALC888S
Processor manufacturer Intel
Performance cores 2
Processor family Intel® Core™ i3
Operating relative humidity (H-H) 10 - 90%
Package weight 2.3 kg
Memory channels Dual-channel
Serial ports quantity 1
Height 39.5 mm
USB 2.0 ports quantity 2
Ethernet LAN Yes
Performance-core boost frequency 4.5 GHz
Number of storage drives supported 3
Headphone outputs 1
Built-in speaker(s) No
DisplayPorts quantity 1
Weight 1.6 kg
Processor threads 8
Sustainability certificates ErP
Trusted Platform Module (TPM) version 2.0
Operating temperature (T-T) 0 - 40 °C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
AC input frequency 50/60 Hz
Storage drive interface PCI Express, Serial ATA III
Number of memory slots 2
On-board graphics card Yes
Housing material Steel
Panel mounting interface 75 x 75,100 x 100 mm
Number of power supply units 1
Power supply type External AC adapter
Efficient cores 4
Supported storage drive types HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Power supply 90 W
Harmonized System (HS) code 84733080
Width 200 mm
AC adapter included Yes
Warranty 24 (G)
Internal memory installed No
Storage drives installed No
Memory voltage 1.1 V
Supported memory clock speeds 5200
Windows operating systems supported Windows 10
LED indicators HDD
Storage drive sizes supported 2.5
Compliance certificates BSMI

Dimensions and weights

Package width
178 cm
Package height
102 cm
Package length
260 cm

Product codes

EAN
0887993006192
Manufacturer code
DS50U3
