Home page » Computers & IT»Computers»HTPC & miniPC»MINI PC Minis Forum NAB9 Plus Inte Core i9-12900HK 32GB RAM + 1TB

MINI PC Minis Forum NAB9 Plus Inte Core i9-12900HK 32GB RAM + 1TB

Main info

Product has been archived

MINI PC Minis Forum NAB9 Plus Inte Core i9-12900HK 32GB RAM + 1TB

The Minis Forum NAB9 Plus combines high performance with compact dimensions. The Intel® Core™ i9-12900HK Alder Lake processor is equipped with 14 cores and 20 threads, which translates to a maximum clock speed of up to 5 GHz. You'll also gain 32GB of DDR4 RAM and a fast 1TB PCIe 4.0 SSD, allowing you to work comfortably. Importantly, the hardware can be easily mounted with a VESA mount, saving space on your desk.

Intel Core i9 processor

The Intel® Core™ i9-12900HK chip used is a unit with 14 cores and 20 threads, which can operate at up to 5 GHz. Thanks to the use of Intel 7 architecture and Alder Lake technology, the processor can perfectly handle multitasking and advanced programs. It will be perfect for video editing, using advanced analytical tools, etc.

RAM and SSD drive

The Minis Forum NAB9 Plus is equipped with 32 GB of DDR4 RAM clocked at 3200 MHz, giving it a good starting point for most daily tasks. What's more, the fast 1TB PCIe 4.0 SSD is expandable up to 4TB. Additionally, space is available for a 2.5" SATA HDD.

Cooling that keeps up with the pace of work

A built-in cooling system with fans backed by PCM (Phase Change Materials) technology is responsible for stability during operation. This allows the design to dissipate heat more efficiently, even under heavy load. As a result, it improves cooling efficiency by more than 25%, resulting in lower temperatures and efficient operation while maintaining quiet operation.

Integrated graphics card

The device has an integrated Intel® Iris® Xe graphics card, which will prove useful for everyday tasks, multimedia handling, photo editing or simpler 3D projects. Importantly, the NAB9 Plus supports external graphics cards via the OCulink connector, which allows you to easily connect a GPU without occupying an M.2 slot, a great option for those who want to expand the computer's graphics capabilities in the future, such as for gaming or AI.

Wide connectivity and expansion options

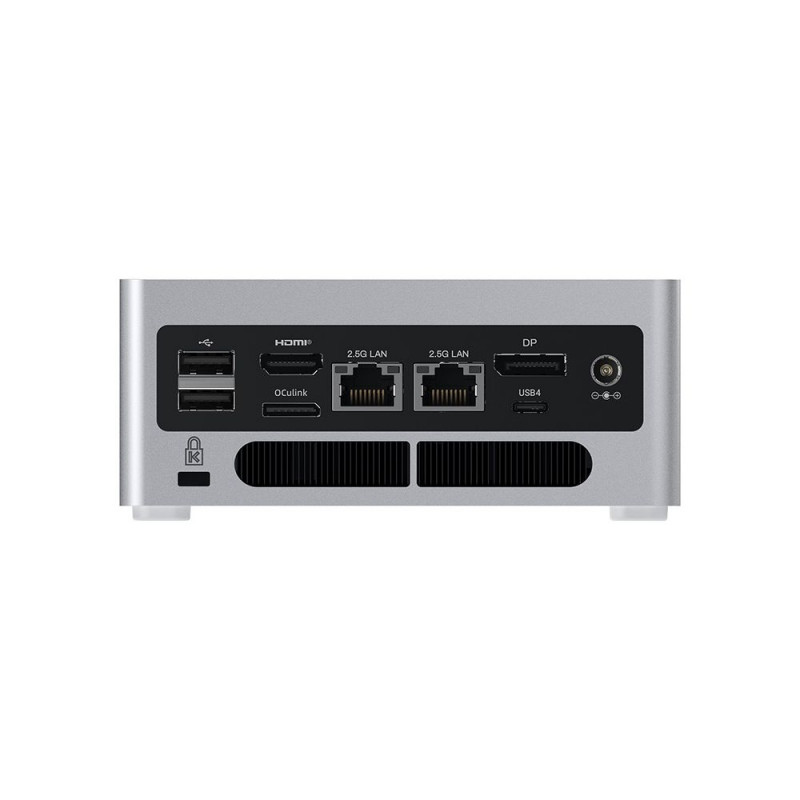

On the back of the chassis is a USB4 port, which supports PD power (65-100 W), data transfer at up to 40 Gbps, as well as video output. There are also two USB 3.2 Gen2 ports, two USB 2.0, HDMI 2.0, DisplayPort 1.4, OCulink, 3.5mm combo jack, and 2 RJ45 2.5G Ethernet ports. That's a rich set of connectors that allows you to connect virtually any peripheral, monitor or accessory - without the use of additional adapters.

Wireless connectivity

The NAB9 Plus features Wi-Fi 6e and Bluetooth 5.3, ensuring fast and stable connection to the network and wireless accessories. This is important especially in remote and mobile work environments, where network reliability is critical.

Included
  • Mini PC
  • Power cable
  • Power adapter
  • HDMI cable
  • VESA mount
  • Screws
  • User manual
Manufacturer Minis Forum
Model NAB9 Plus
Processor Intel® Core™ i9-12900HK
Architecture Alder Lake
Number of cores 14
Number of threads 20
Base frequency none
Maximum frequency 5 GHz
Processor technology Intel 7
RAM type (DDR) DDR4
RAM capacity 32 GB
RAM memory frequency 3200 MHz
Maximum RAM memory capacity 32 GB
SSD type M.2 2280 PCIe4.0 SSD ×1; 2.5" SATA HDD ×1
SSD capacity 1 TB
Maximum capacity of SSD 4 TB
Graphics card Intel® Iris® Xe
Connectivity M.2 2230 Wi-Fi (Wi-Fi 6e, BT5.3)
Ports RJ45 2.5 Gigabit Ethernet ×2; USB4 ×1 (rear); USB3.2 Gen2 Type-A ×2; USB2.0 Type-A ×2; HDMI2.0 ×1; DP1.4 ×1; OCulink ×1; DMIC ×1; 3.5mm Combo Jack ×1
Operating system none
Cooling system built-in fans
Mounting VESA

Dimensions and weights

Gross weight
1.34 kg
Package width
15.9 cm
Package height
11.2 cm
Package length
18.2 cm

Product codes

EAN
4897118833585
Manufacturer code
NAB9 Plus 32+1
