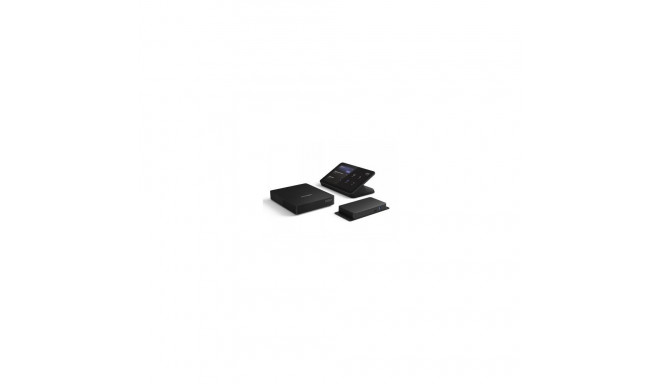

LENOVO THINKSMART CORE GEN2 + IP CONTROLLER

Main info

The refreshed ThinkSmart Core Gen2 meeting-room solution delivers an even better experience with AI-optimized technology. An Intel® Core™ Ultra processor with integrated NPU and the Intel vPro platform provide a secure, stable foundation for a smoot

Product has been archived


The refreshed ThinkSmart Core Gen2 meeting-room solution delivers an even better experience with AI-optimized technology. An Intel® Core™ Ultra processor with integrated NPU and the Intel vPro platform provide a secure, stable foundation for a smooth, productive, user-friendly meeting environment—using up to 40% less power than its predecessor.

ThinkSmart Core Gen2 supports Microsoft Teams Rooms and Zoom Rooms, enhancing collaboration through AI capabilities via Microsoft Copilot or Zoom AI Companion. AI-driven features such as smart participant framing, automatic speaker identification, intelligent name tags, meeting summaries, and real-time assistance are just some of the smart functions available.

Versatile connectivity enables easy integration with different devices, simplifying installation and deployment in almost any space. A major enhancement is the BYOM (bring your own meeting) USB-C connection, allowing you to use the room’s AV equipment by plugging in your own laptop—regardless of which UC platform you use.
Lenovo IP Controller enables a clean, easy installation of the table-top console—only one network cable is brought to the table, which is easy to route even in tight cable trays, and USB length limitations are no longer a barrier to tidy cabling.

Cloud-based ThinkSmart Manager enables secure remote management and troubleshooting, so IT can stay in control while users focus on meetings without disruption.

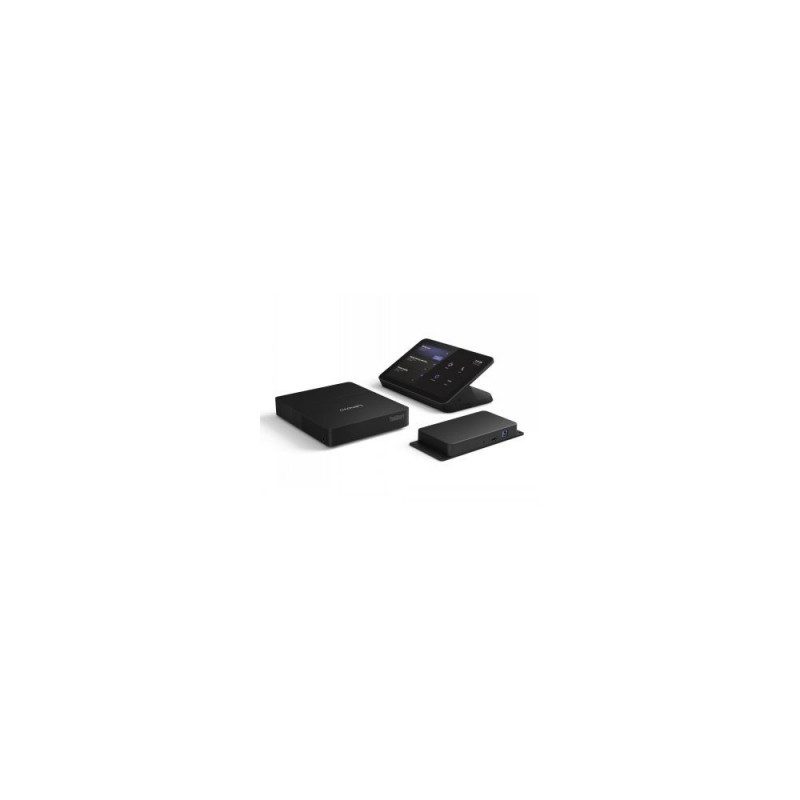

Lenovo ThinkSmart Core Gen2 + Lenovo IP Controller

Key features:

  • Operating system Windows® 11 IoT Enterprise for Collaboration GAC 64bit
  • Preinstalled Microsoft Teams Rooms
  • Intel® vPro® management
  • Intel® Core™ Ultra 5 135H
  • Intel® Arc™ Graphics
  • 2x 8GB SO-DIMM DDR5-5600
  • 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
  • Gigabit Ethernet, Intel® Ethernet Connection I219-LM
  • Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, vPro
  • 170W power adapter with BYOM support
  • Ports:
    • 2x USB-C® (USB 10Gbps/3.2 Gen2), with 15W power delivery and DisplayPort™ 1.4
    • BYOM port: 1x USB-C® in (USB 5Gbps/3.2 Gen1), 45W power delivery
    • 3x USB-A (USB 5Gbps/3.2 Gen1)
    • 1x HDMI® in 2.1 TMDS
    • 2x HDMI® out 2.1 TMDS
    • 1x Ethernet (RJ-45)
    • 1x DC in (slim tip)

  • Core dimensions with cable management: 185x220x38mm, weight 1.01kg
  • Core dimensions without cable management: 185x140x38mm, weight 0.86kg
  • TPM 2.0
  • Kensington lock slot
  • VESA mount

  • Lenovo IP Controller
    • 10.1" 16:10 HD display (1280x800), 10-point touch
    • Anti-glare and smudge-resistant
    • Brightness 340 cd/m²
    • IR motion detection (<3m, +/- 45°)
    • Ready for wall mounting
    • HDMI ingest connection
    • Link box: USB-B, HDMI-out, RJ-45, power connector
    • 5m CAT6 cable (max 100m)
    • Kensington® MiniSaver Security Slot
    • IP Controller dimensions: 248x151x100mm, weight 0.97kg

  • In the box:
    • ThinkSmart Core Gen 2
    • Lenovo IP Controller
    • Removable cable management box
    • VESA mounting plate and power-adapter enclosure
    • 3m USB-C BYOM cable
  • Three-year Premier Support warranty
  • Three-year Software Maintenance for Smart Office Solution service


Number of performance-cores 4
Operating system provided Windows 11 IoT Enterprise
Connections USB-C (Gen2)
Processor family Intel Core Ultra 5
Processor number of cores 14
Internal memory 16 GB
Total storage capacity 256 GB SSD
Maximum internal memory, GB 16 GB
Graphic adapter Intel ARC Graphics
Processor model Intel Core Ultra 5 135H (Max. 4.60GHz, 18M, 14C)
Power supply, W 170
Processor manufacturer Intel
Dimensions W x D x H, mm Thinksmart Core: 185 x 220 x 38 IP Controller: 248 x 151 x 100
Internal memory type DDR5
Weight, g Thinksmart Core: 1010 IP Controller: 970
Ethernet LAN (RJ-45) ports quantity 1
Memory clock speed, MHz 5600
Intel Virtualization technology VT-x / VT-d
USB-A (USB 3.2) ports quantity 3
Bluetooth version 5.3
WLAN type Intel Wi-Fi 6E
Graphics adapter family Intel Arc
HDMI ports quantity 3
Intel Smart Cache, MB 18
Intel Turbo Boost, GHz 4.60
USB-C (USB 3.2) ports quantity 2
USB-A (USB 2.0) ports quantity 1
WLAN antennas 2x2
Number of efficient-cores 8
Wireles LAN (WLAN) Yes
Optical drive No
Integrated Memory Card Reader No
Bluetooth Yes
Intel HyperThreading Yes
Dedicated video memory (GB) Uses system memory
Intel vPro Yes
Motherboard chipset Intel SoC platform

Processor

L3 cache
18 MB

Memory

Expandable up to
16 GB

Storage

Capacity
256 GB
Drive type
SSD

Connectivity

Intel vPro
Yes

Rear panel ports

RJ45
Yes

Dimensions and weights

Gross weight
6.5 kg
Package width
17.9 cm
Package height
30 cm
Package length
57.4 cm

Product codes

EAN
198155758935
Manufacturer code
12WE000BMT
