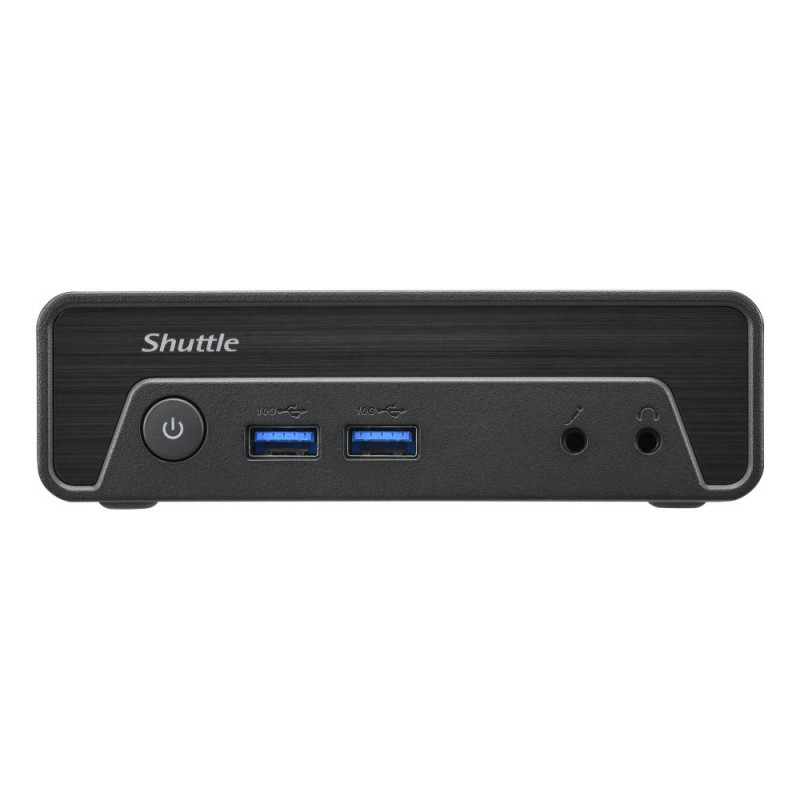

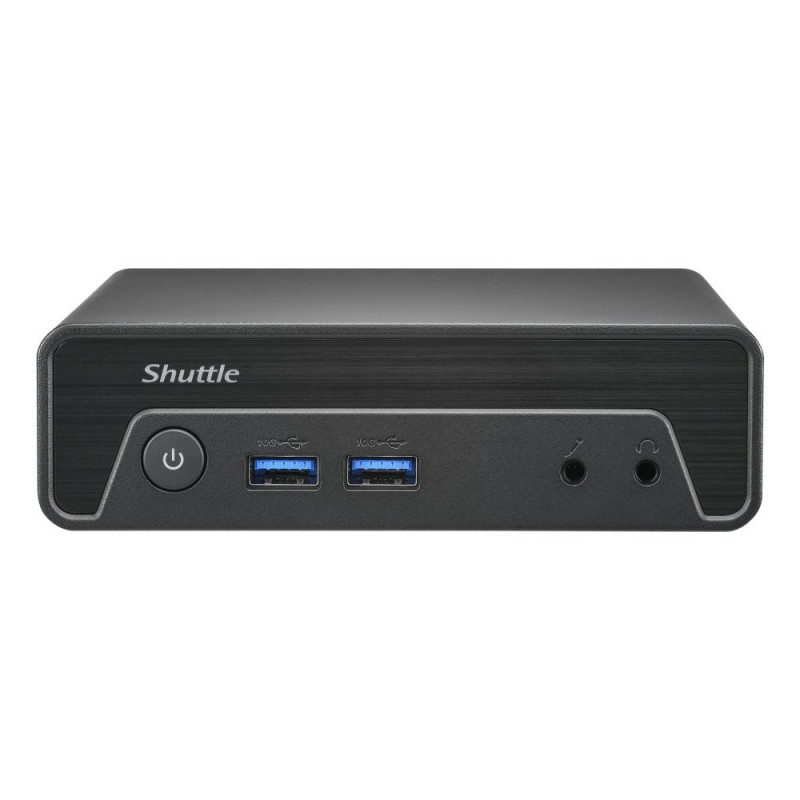

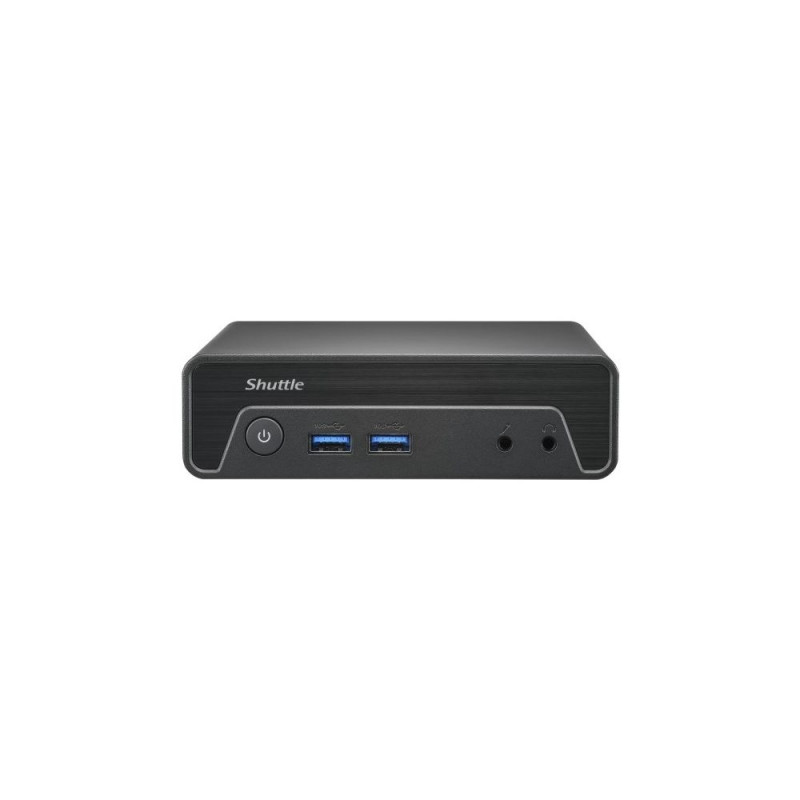

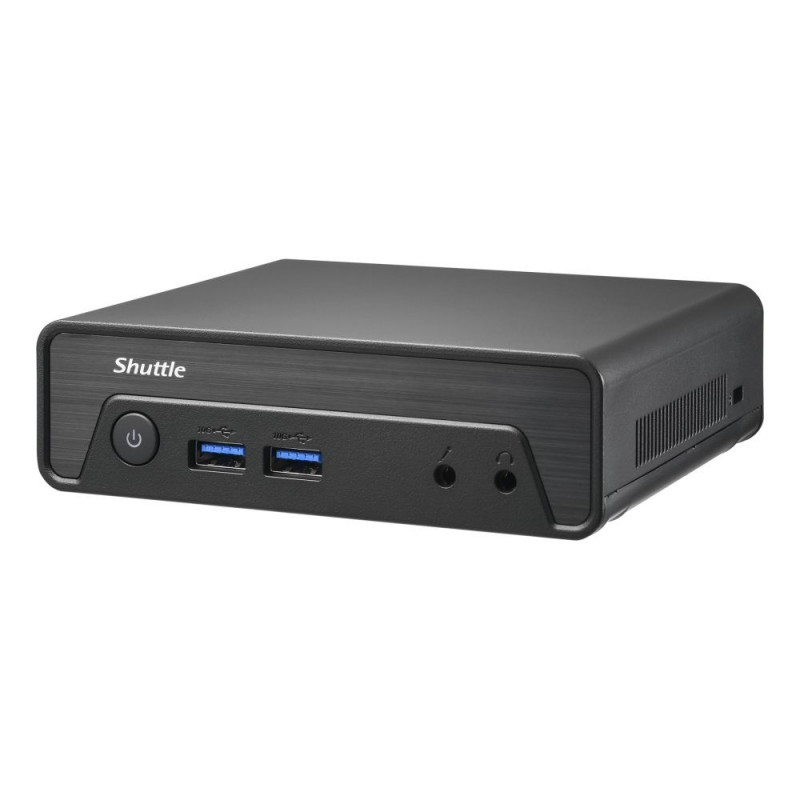

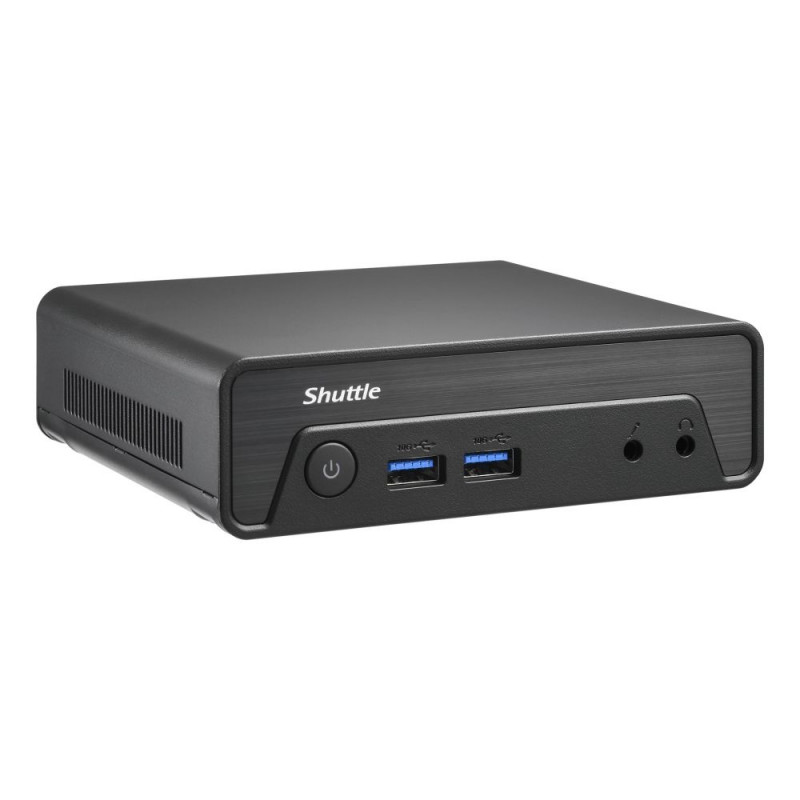

Shuttle Nano PC NE10N, Intel N 100, 1x HDMI, 1x DP, 6x USB, 1x LAN, fanless, 24/7 permanent operatio

Main info

Product has been archived


Warranty 24 (G)
Cable lock slot Yes
Cooling type Passive
Wi-Fi No
VESA mounting Yes
Windows operating systems supported Windows 11
Operating temperature (T-T) 0 - 40 °C
Supported storage drive types SSD
Storage drive interface PCI Express, Serial ATA
Package weight 1.5 kg
Power cord included Yes
Number of memory slots 1
AC adapter included Yes
Maximum internal memory 16 GB
Power supply 65 W
Processor manufacturer Intel
Product colour Black
AC adapter output voltage 19 V
Trusted Platform Module (TPM) Yes
DisplayPort version 1.4
On-board graphics card model Intel® UHD Graphics
Weight 600 g
Supported memory types DDR4-SDRAM
On-board graphics card Yes
Ethernet LAN (RJ-45) ports 1
Drivers included Yes
Audio chip Senary SN6141
Memory slots type SO-DIMM
DisplayPorts quantity 1
Harmonized System (HS) code 84733080
Headphone outputs 1
Built-in speaker(s) No
Quick start guide Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Built-in processor Yes
DC-in jack Yes
Ethernet LAN Yes
SSD form factor M.2
Number of processors supported 1
Depth 115 mm
BIOS type EFI AMI
Cable lock slot type Kensington
Processor boost frequency 3.4 GHz
Trusted Platform Module (TPM) version 2.0
Chassis type 0.6L sized PC
HDMI version 2.0
Memory channels Single-channel
Height 39 mm
LED indicators Yes
Microphone in Yes
USB 2.0 ports quantity 2
Power supply type External AC adapter
AC adapter output current 3.42 A
Product type Mini PC barebone
Processor cores 4
Linux operating systems supported Yes
HDMI ports quantity 1
AC input voltage 100 - 240 V
Processor threads 4
Storage drive sizes supported M.2
Non-ECC Yes
Width 135 mm
Card reader integrated No
Operating relative humidity (H-H) 10 - 90%
Housing material Plastic
Panel mounting interface 75 x 75,100 x 100 mm
Number of power supply units 1
ECC No
Processor cache 6 MB
AC input frequency 50/60 Hz
Sustainability certificates ErP
Processor model N100
Graphics card family Intel
Motherboard chipset Intel SoC
Supported memory clock speeds 3200
Memory voltage 1.2
Compliance certificates UKCA

Dimensions and weights

Package width
530 cm
Package height
120 cm
Package length
400 cm

Product codes

EAN
0887993007779
Manufacturer code
539788
