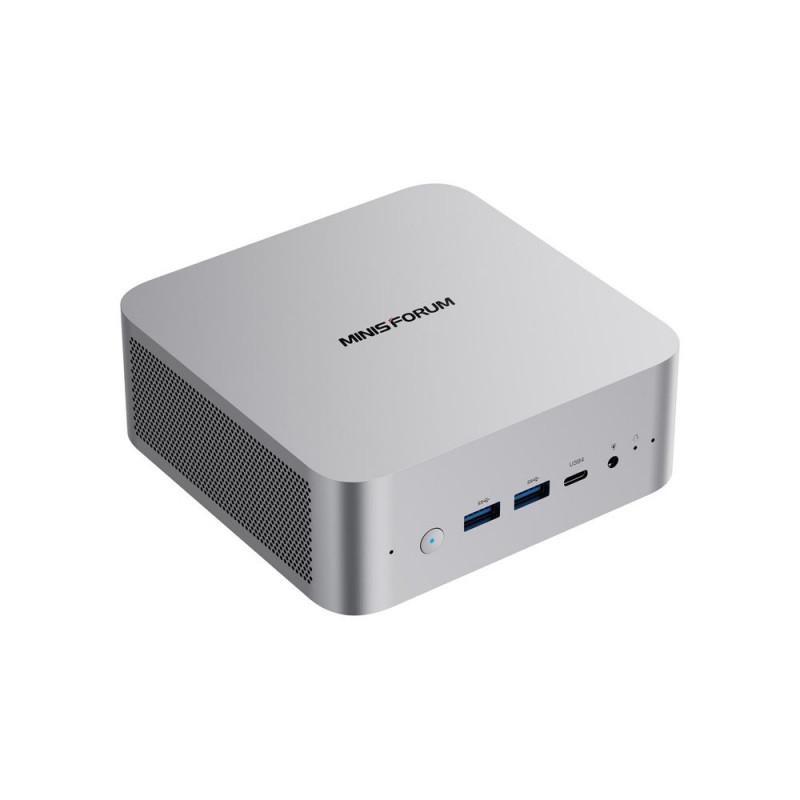

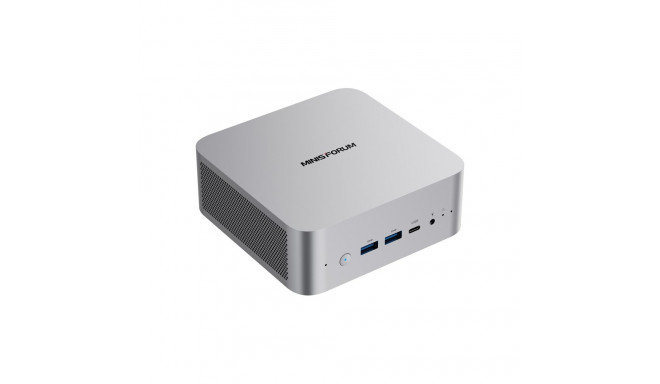

MINI-PC Minis Forum M1 Pro-285H Intel Core Ultra 9 285H Barebone

The MINIS FORUM M1 Pro-285H is equipped with an Intel Core™ Ultra 9 285H processor with 16 cores and 16 threads and integrated Intel Arc 140T™ graphics. It supports up to 128GB of DDR5 6400 MHz RAM and two fast NVMe PCIe 4.0 SSDs (up to 4TB). The set of connectors includes, among others, 2 USB4 ports, HDMI 2.1, DP 1.4, OcuLink (for eGPU), LAN 2.5G, as well as Wi-Fi 7 and Bluetooth 5.4. The computer can be placed on a desk or attached to the back of a monitor (VESA bracket included). The whole thing weighs just 600 g with dimensions of 128 × 126 × 52 mm.

AI-based performance - Intel Core™ Ultra 9 285H

The M1 Pro-285H is equipped with an Intel Core™ Ultra 9 285H processor with 16 cores and 16 threads. Clocked at up to 5.4 GHz and supporting advanced AI features, the computer easily handles multitasking, video editing, data work, virtualization or gaming.

Support for up to 128 GB DDR5 RAM and 4 TB SSD

The MINIS FORUM M1 Pro supports DDR5 RAM in a dual-channel configuration, with up to 6400 MHz and a maximum capacity of up to 128 GB - making it unique in this class of devices. Two M.2 PCIe 4.0 slots enable storage expansion of up to 4TB and support RAID 0/1, which translates into instant access to data and greater data security.

Capable of connecting 4 monitors and GPU expansion

With HDMI 2.1, DP 1.4 and two USB4 ports, the M1 Pro supports up to 4 4K (or even 8K) displays simultaneously. This is ideal for those working with multiple applications and screens. In addition, the available OcuLink port allows you to connect an external graphics card (eGPU), extending the mini-PC's graphics capabilities to the level of a workstation or gaming PC.

Reliable connectivity

The M1 Pro offers the fastest standards: Wi-Fi 7 (up to 5.8 Gbps), Bluetooth 5.4 and Ethernet 2.5G, so you can count on lightning-fast data transfers, smooth video conferencing and stable network connectivity.

Advanced cooling and quiet operation

A dual fan system and pure copper heatpipes are responsible for efficient cooling. Even under full load, temperatures do not exceed 86°C, and the noise level does not exceed 45 dB - guaranteeing comfortable and stable operation in any conditions.

Clear sound

The built-in sound card (YH-SP6740-01) with active noise cancellation ensures clear sound during meetings and recordings. The ability to connect external audio devices via USB enables even better sound quality and flexibility for multimedia work.

General
Manufacturer Minis Forum
Model Pro-285H
Supported operating system Windows 11 Pro
Dimensions 128 x 126 x 52 mm (L x W x H)
Weight 0.6kg
Processor (CPU)
Processor Intel® Core™ Ultra 9 285H
Number of cores 16 (6 P cores + 8 E cores + 2 LPE cores)
Number of threads 16
Base frequency 2.9 GHz
Max Turbo frequency 5.4 GHz
TDP (Performance Mode) Fast: 65W / Slow: 65W
TDP (Balance Mode) Fast: 65W / Slow: 45W
Graphics card (GPU)
Integrated graphics Intel® Arc™ 140T
Memory (RAM)
Memory type DDR5 (SO-DIMM x 2)
Optional RAM capacity 0/32/64GB
Supported clocking 6400 MHz
Maximum supported memory 128GB
Drive
SSD slots 2×M.2 2280 NVME SSD (up to 4TB) (PCIe4.0x4)
Optional SSD capacity 0/1TB/2TB
Wireless connectivity
WiFi/BT module (PCIe only) M.2 2230 E-Key
Wi-Fi Wi-Fi 7
Bluetooth Bluetooth® 5.4
Wired connectivity
Ethernet network card 2.5Gigabit LAN (RJ45) - 1x (Module: i226-v)
Video/audio inputs and outputs
Video outputs
HDMI 2.1 (TMDS) x1 (up to 4K@60Hz)
DP 1.4 x1 (up to 8K@60Hz/4K@144Hz)
USB4 x2 (up to 8K@60Hz/4K@144Hz)
Audio outputs HDMI 1x
3.5mm combo jack 1x
Speakers 2x
Audio inputs Digital microphone (DMIC) 2x
3.5 mm combo jack 1x
Ports
Front USB Type A (USB3.2 Gen2) 2x
3.5 mm combo jack 1x
Reset hole 1x
USB4 1x (Alt PD, 40Gbps, Alt PD Out 15W)

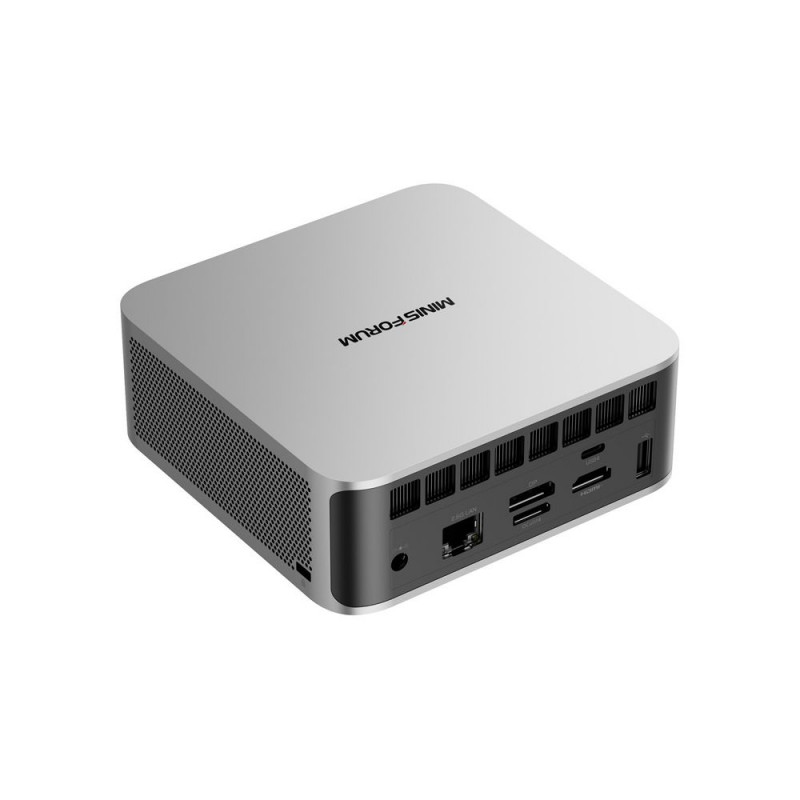

Rear HDMI 2.1 1x
DP 1.4 1x
USB4 1x (Alt PD, 40Gbps, PD in 65-100W, PD out 15W)
LAN RJ45 (2.5Gb) 1x
OCulink 1x
USB Type A (USB2.0) 1x
Power port (DC-In) 1x
Buttons and openings
Buttons Power button 1x
Openings Reset hole 1x
Other
VESA mounting Supported
Power supply 19V⎓6.32A 120W

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 129,99 €
  • Additional warranty (2 years) - 79,99 €
  • Insurance (1 year) - 119,99 €
  • Insurance (2 years) - 189,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
1.36 kg
Package width
16 cm
Package height
11 cm
Package length
18 cm

Product codes

EAN
4897118834834
Manufacturer code
M1 Pro-285H
