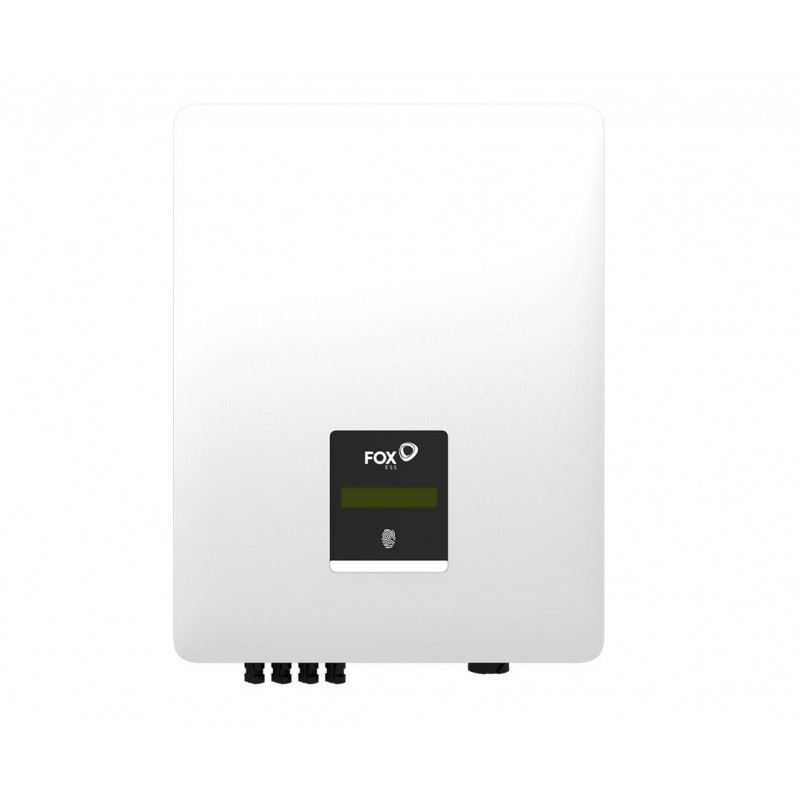

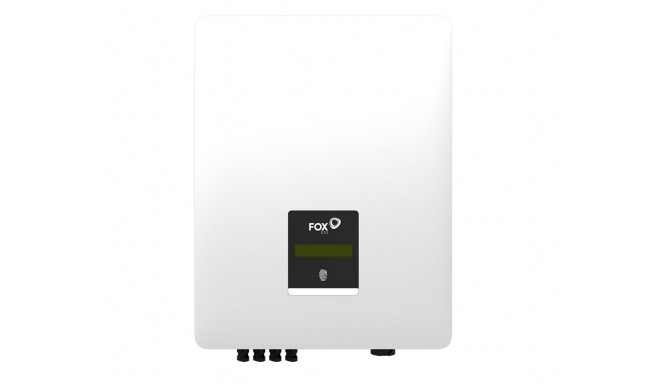

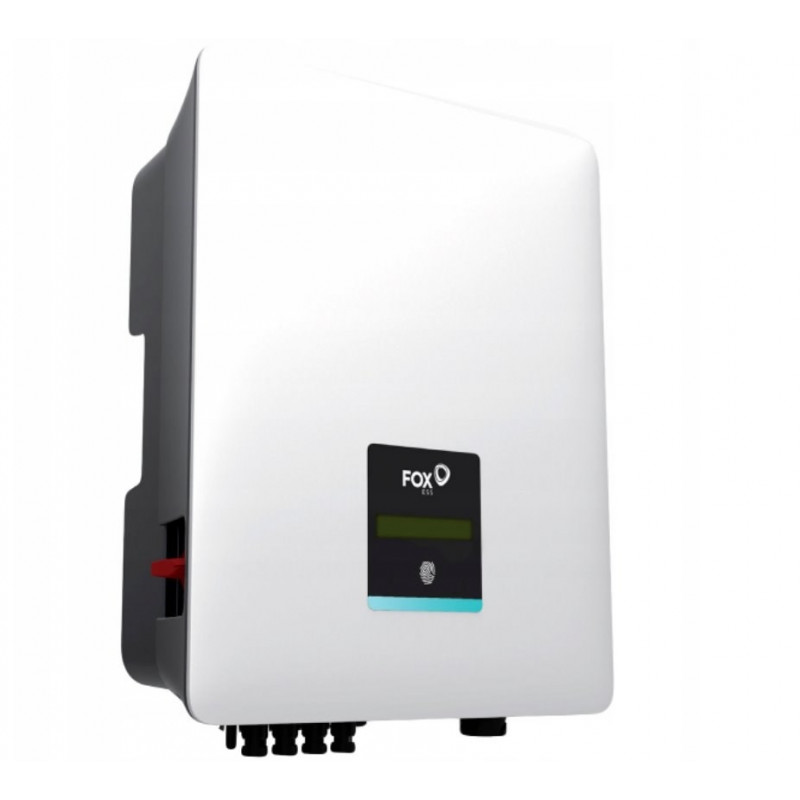

Inverter FoxEss T4-G3 / 3-phase

Main info

Certification AS4777.2-2015 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004 IEC62116 /IEC61727 /IEC61683

Product has been archived


Certification AS4777.2-2015 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004 IEC62116 /IEC61727 /IEC61683
Maximum AC current 6.4 A
Overvoltage protection Y
Topology Transformerless
Nominal AC current 5.8 A
Rated mains frequency (Hz) 50/60, ±5
Monitoring of isolation Y
Nominal operating voltage 600 V
Strings for MPP tracker 1+1
Nominal AC power 4000 W
RS-485 port Yes
Monitoring of leakage current Y
Overvoltage protection of AC output Y
Start-up voltage 140 V
Temperature protection Y
Maximum input voltage 1100 V
Number of MPP trackers 2
Cooling system Convection
MPPT voltage range 140 - 1000 V
Max. short circuit current of the module field 18.2 / 18.2 A
Short circuit protection Yes
Built-in display LCD
Output voltage 3/N/PE, 220V/380V, 230V/400V 240V/415V
Storage temperature (T-T) -40 - 70 °C
Installation height (max) 3000 m
Electromagnetic compatibility IEC 61000-6-1 /IEC 61000-6-2 /IEC 61000-6-3 /IEC61000-4-2/3/4/5/6/8
Efficiency 98.6%
Operating relative humidity (H-H) 0 - 100%
Depth 183.5 mm
Power supply type Indoor/outdoor
Operating temperature (T-T) -25 - 60 °C
Purpose Solar panel
Noise level 30 dB
Width 480 mm
Power current type DC-to-AC
Protection class 1 / AC: III; DC: ll
Weight 17 kg
Wi-Fi Yes
International Protection (IP) code IP65
Quantity per pack 1 pc(s)
Height 370 mm
Number of phases 3
Input current 14 / 14 A
Safety IEC 62109-1/2
Product colour White
Mobile app support Yes
Maximum input power 6000 W
Apparent power 4400 VA
Island mode protection Y
Overcurrent protection Yes
Warranty 144 (F)
Polarity reverse circuit protection Yes
Connectivity USB update

Dimensions and weights

Package width
590 cm
Package height
320 cm
Package length
470 cm

Product codes

Manufacturer code
FoxESS T4 G3
