Inverter MUST 2kW, 1-phase, DC12V, PURE SINUS

529 €

Monthly payment starting from 18,03 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

This inverter combines the functions of a true sine wave inverter and a battery charger to ensure uninterrupted power supply. Especially intended for devices with alternating current electric motors: refrigerators, heating boilers, air conditioners, gate opening automation, powering machines. Solar or AC priorities are set: with PV priority, solar power charges batteries first; if PV power is insufficient, AC can also charge the battery. System loading takes place in the most optimal way. The pure copper conductor transformer allows the inverter to operate extremely efficiently.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

True sine inverter MUST EP3000 PLUS 2kW, single-phase, 12V, with integrated charger, from 35A to 70A.
Features:

  • This inverter combines the functions of a true sine wave inverter and a battery charger to ensure uninterrupted power supply. Especially intended for devices with alternating current electric motors: refrigerators, heating boilers, air conditioners, gate opening automation, powering machines.

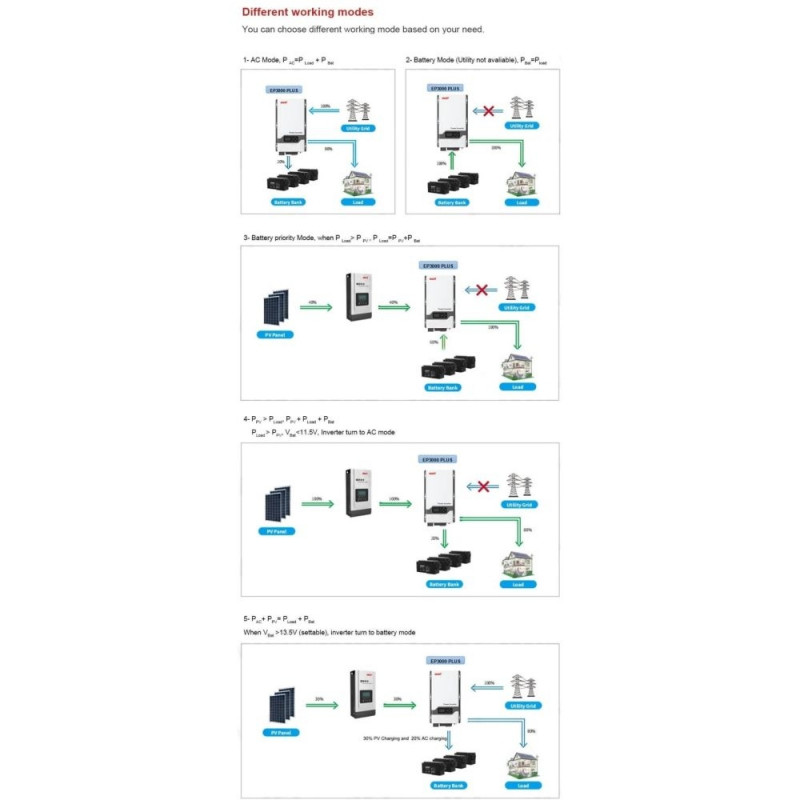

  • Solar or AC priorities are set: when PV is priority, solar power charges batteries first; if PV power is insufficient, AC can also charge the battery. System loading takes place in the most optimal way.
  • The transformer of pure copper conductors allows the inverter to work extremely efficiently.
  • Convenient user interface: On the MDF (Multi-Function-Display) screen, operating parameters and priorities can be set as needed.
  • Nominal power 2kW.
  • Sets the charging voltage/current.
  • Power/battery charging priorities are set.
  • Low voltage battery cut-off point 10V/10.5V/11V can be set.
  • Inverter voltage can be set to 120V: 110V/115V/120V or 220V: 220V/230V/240V.
  • The frequency can be set to 50/60 Hz.
  • Protection against overload, short circuit.
  • Has a power saving mode.



Technical data:

  • Battery voltage: DC12V.
  • Nominal power: 2000W.
  • Fuse tripping: at 6000VA.
  • Waveform: true sinusoid.
  • Switching time: max. 10ms.
  • Frequency: 50/60Hz, range: 40~80Hz.
  • Rated output voltage: AC 220V / 230V / 240V ±10% (RMS).
  • Inverter efficiency: >88%.
  • Selectable voltage range: 96~132V AC 155~280V AC (for PCs).
  • Battery starting voltage: min 10V/ 10.5V/ 11V (+0.5V).
  • Max. battery charging current: 60A.
  • Noise level: max. 60dB.
  • Screen: LCD+LED.
  • Operating temperature: 0°C ~ +40°C.
  • Dimensions: 423x247x197mm.
  • Weight: 21.1kg.



Specifications

Nominal battery system voltage 12V DC
Inverter Output
Rated power 2000W
Surge power 6000VA
Capable of starting electric motor 1HP
Waveform pure sine wave
Nominal output voltage RMS 220V / 230V / 240V AC ±10%
Output frequency 50Hz/60Hz ±0.3Hz
Inverter efficiency (Peak) >88%
Line mode efficiency >95%
Power factor 1.0
Typical transfer time 10ms (max)
Input AC
Voltage 230V AC
Selectable voltage range 96~132V AC 155~280V AC (for personal computers)
Frequency range 50Hz/60Hz (Auto sensing) 40~80Hz
Battery
Minimum start voltage (10V/10.5V/11V) +0.5V
Low battery alarm (10V/10.5V/11V) +0.5V
Low battery cut off 10V/10.5V/11V
High voltage alarm (13.8-14.5V) +1V
High battery voltage recover (13.8-14.5V) +0.5V
Idle consumption - Search mode Load 100±20W (220V)
Charger
Output voltage Depends on battery type
Charge AC input breaker rating 2-3K/30A
Overcharge protection 15.7V DC
Maximum charge current 60A
Bypass protection
Input voltage waveform Sine wave (grid or generator)
Nominal input frequency 50Hz or 60Hz
Overload protection Circuit breaker
Output short circuit protection Circuit breaker
Bypass breaker rating 1-3K/30A
Max bypass current 30A
Other specifications
Dimensions(H*W*D) 423*247*197 mm
Package dimensions(H*W*D) 585*387*322 mm
Net weight 21.1 kg
Gross weight 24.1 kg
Operating temperature 0°C to 40°C
Storage temperature -15°C to 60°C
Audible noise 60dB max
Display LED+LCD

Width 300 mm
Height 200 mm
Length 400 mm
Product Weight 15000 g

Dimensions and weights

Gross weight
7.5 kg
Package width
30 cm
Package height
15 cm
Package length
40 cm

Product codes

EAN
9990000820672
