Home page » Electronics»Energy»Energy meters»Single phase electronic meter DIN rail 230V 30A

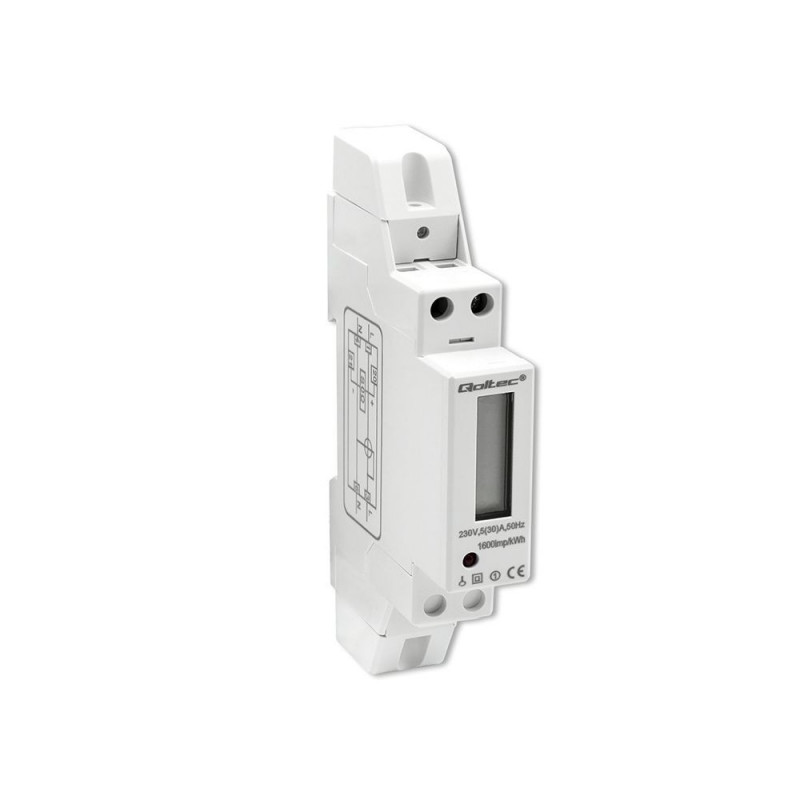

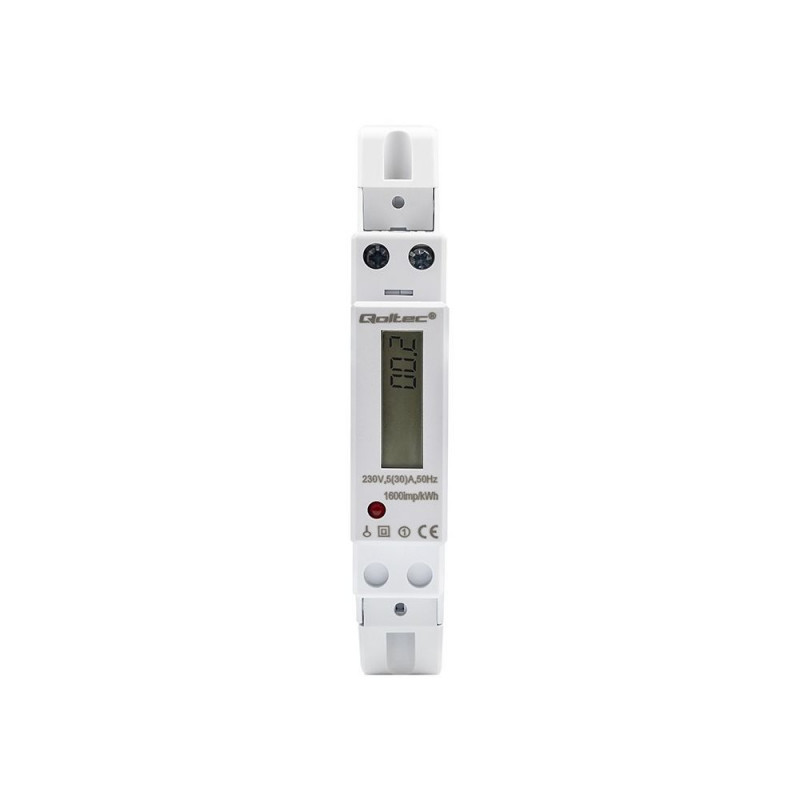

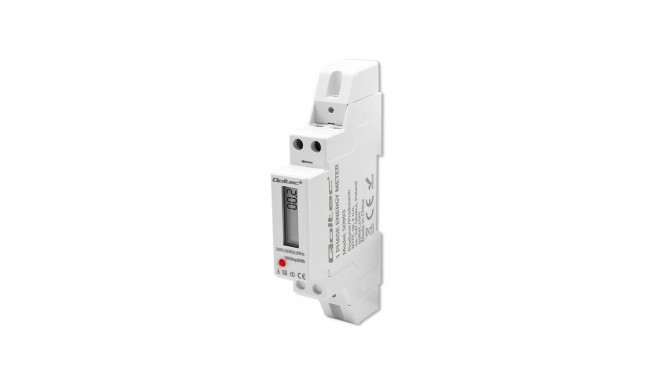

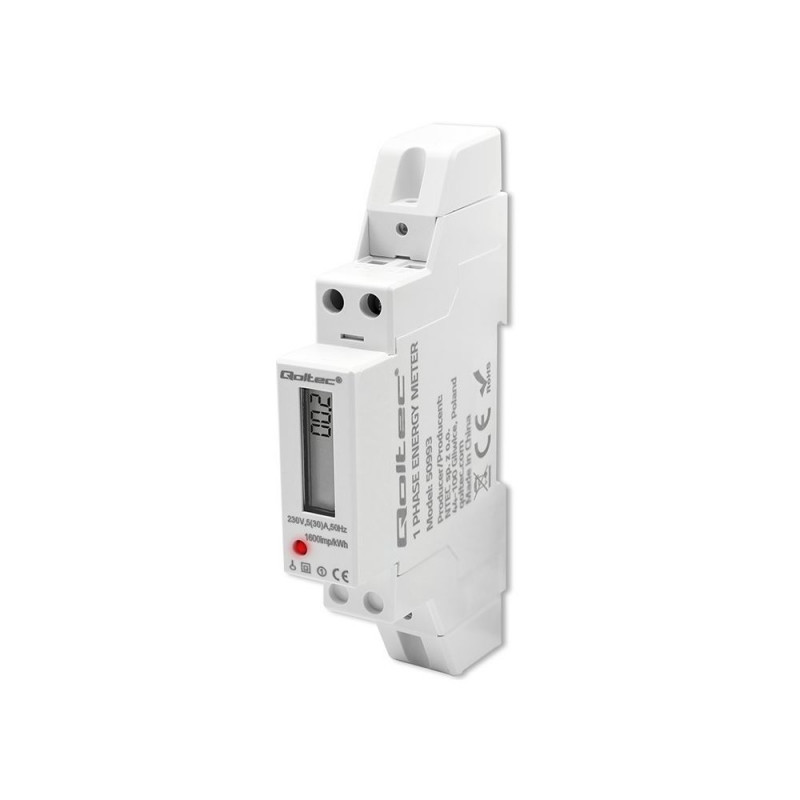

Single phase electronic meter DIN rail 230V 30A

FREE SHIPPING
WITHIN ESTONIA!

15,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Investment in energy conservation and control

Electronic meter enables real-time monitoring of the level of electricity consumption by single-phase receivers supplied with 230V alternating current 50Hz frequency. The device has an LED indicator, which indicates energy consumption, the diode flashes at a frequency that depends on the energy consumed with a pulsing constant of 1600imp/kWh. LCD display, indicates the value of energy consumed converted based on the number of pulses. The meter is designed for mounting in switchboards on DIN rail TH35.

Save on your bills today

The Qoltec power consumption meter is not only an accurate tool for monitoring energy consumption, but also a compact and easy to use device. Thanks to its small size, installation is extremely easy and fast, making it ideal for both domestic and larger industrial applications. LCD display provides clear and accurate data on energy consumed, which allows for effective management of energy consumption and identification of potential savings. Counter can be used In domestic installations as well as in industrial plants.

Product Features:
Single-phase,
Unidirectional, counts energy regardless of the direction of its flow,

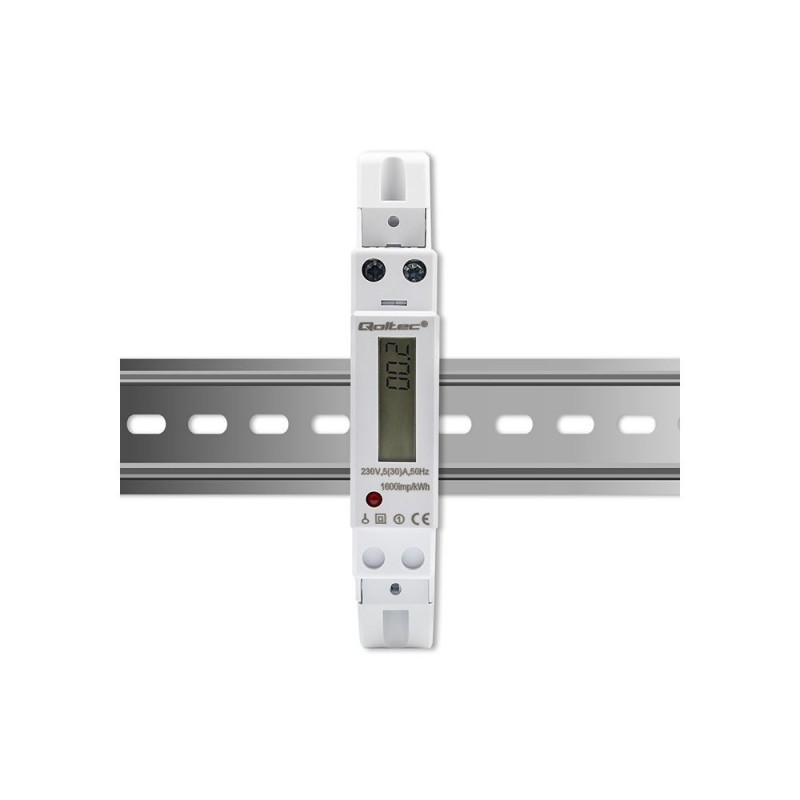

Standard mounting of the device on 35mm DIN rail,
Energy consumption measurement displayed in kWh,
It has LCD display, for monitoring measurements,
Complies with IEC 62053-21 and DIN EN50022 standards,
Base current is 5A, maximum current is 30A,
Accurate measurement, Class 1.0,

Remote monitoring of energy consumption

Qoltec Electricity Meter, Thanks to its compact size and intuitive operation, it is ideal even in limited installation spaces - such as:
Industrial and building switchgear,
Home installations (e.g., monitoring of household energy consumption),
Industrial facilities - Production halls, workshops, warehouses,
Leased premises energy billing for tenants.


Connectors None
Environment requirements Operating temperature: -20C ~ +55C
Power Not applicable
Accessories included 1 x Energy meter 1 x User manual
Color white
Dimensions (D/L x W x H): 63 x 17 x 115 mm
Weight 74
Designation

Dimensions and weights

Gross weight
0.08 kg
Package width
7 cm
Package height
12 cm
Package length
2 cm

Product codes

EAN
5901878509938
Manufacturer code
QUQOLME00050993
