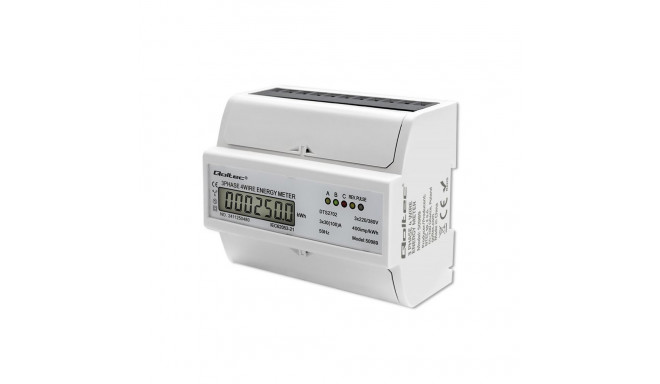

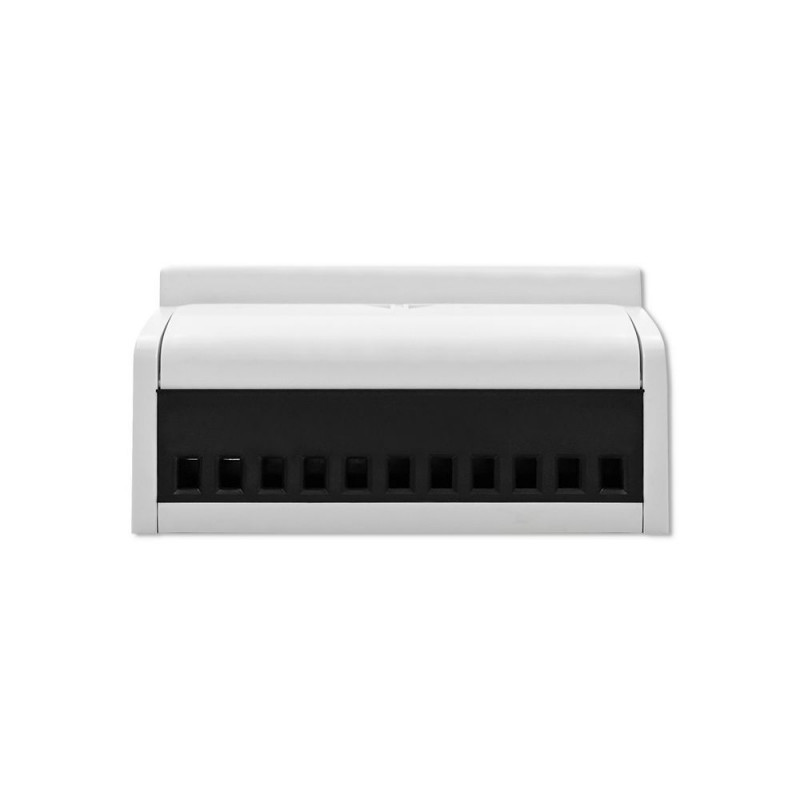

Three phase electronic meter DIN rail 400V 100

Addional discount of 10%
will be applied in shopping cart
(min. 15€ purchase)
32,99 €

Main info

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Investment in energy conservation and control

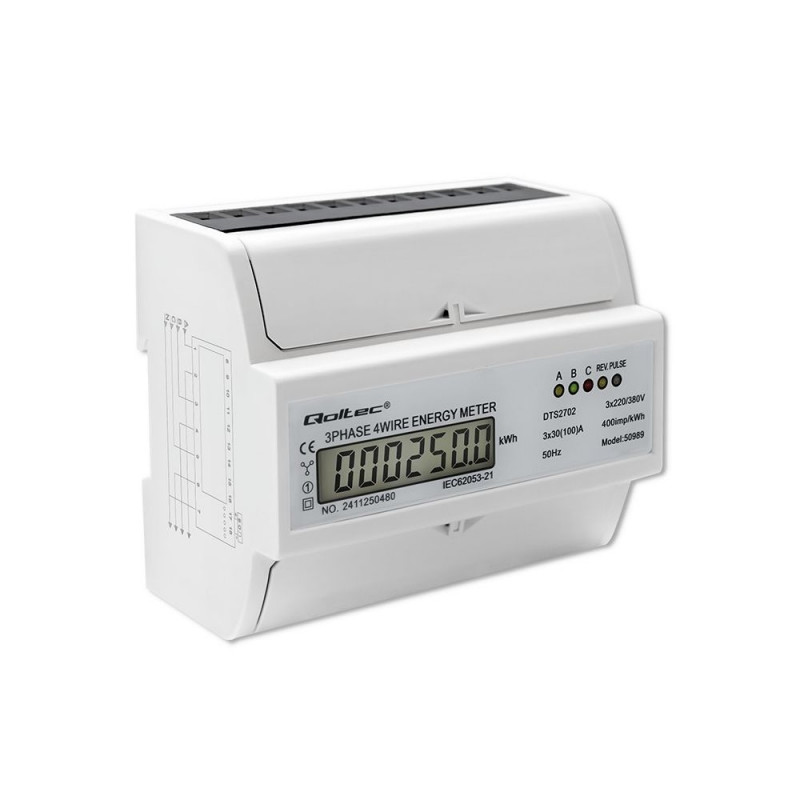

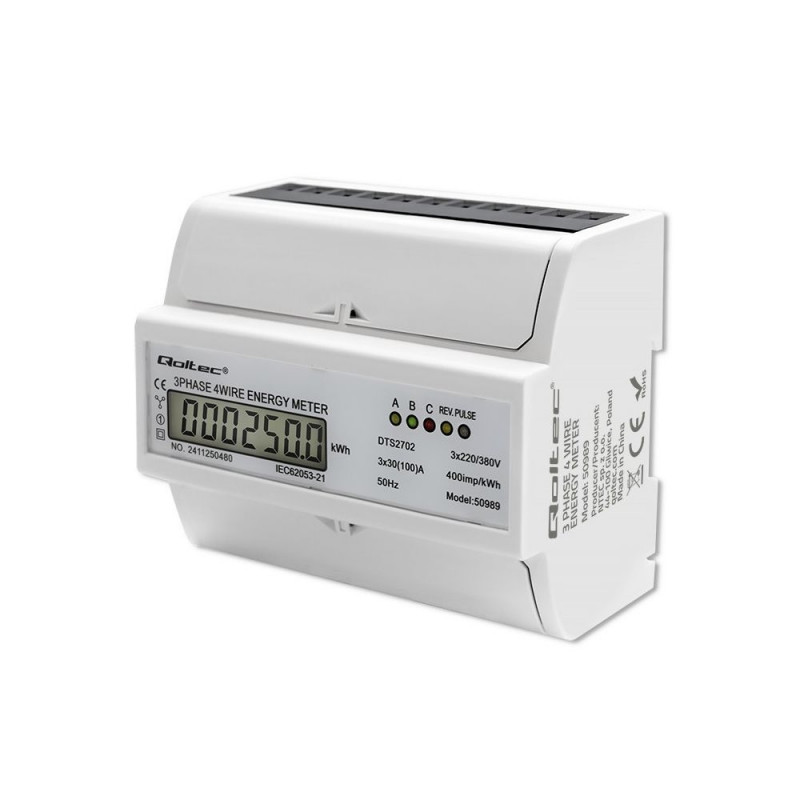

Electronic meter enables real-time monitoring of the level of electricity consumption by three-phase receivers supplied with 230V/400V alternating current 50Hz frequency. Operating at an inrush current of 0.4%Ib and 230V AC at 50Hz, the meter is extremely efficient and stable. The device has an LED indicator, which indicates energy consumption, the diode flashes at a frequency that depends on the energy consumed with a pulsing constant of 400imp/kWh. LCD display, indicates the value of energy consumed converted based on the number of pulses. The meter is designed for mounting in switchboards on DIN rail TH35.

Save on your bills today

The Qoltec power consumption meter is not only an accurate tool for monitoring energy consumption, but also a compact and easy to use device. Thanks to its small size, installation is extremely easy and fast, making it ideal for both domestic and larger industrial applications. LCD display provides clear and accurate data on energy consumed, which allows for effective management of energy consumption and identification of potential savings. Counter can be used In domestic installations as well as in industrial plants.

Product Features:

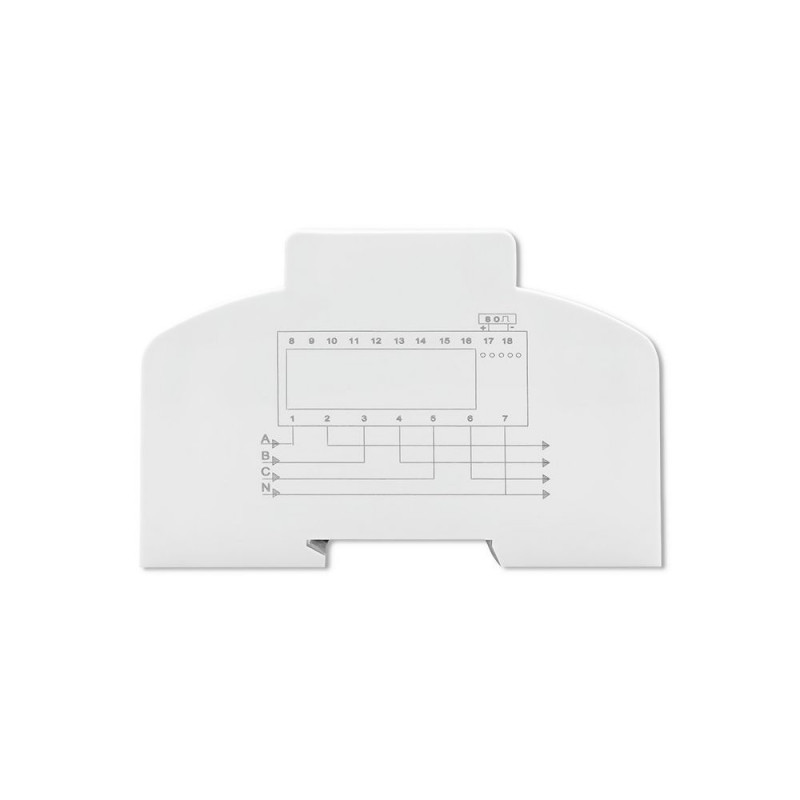

Three-phase, 4-wire, 4-module,
Unidirectional, counts energy regardless of the direction of its flow,

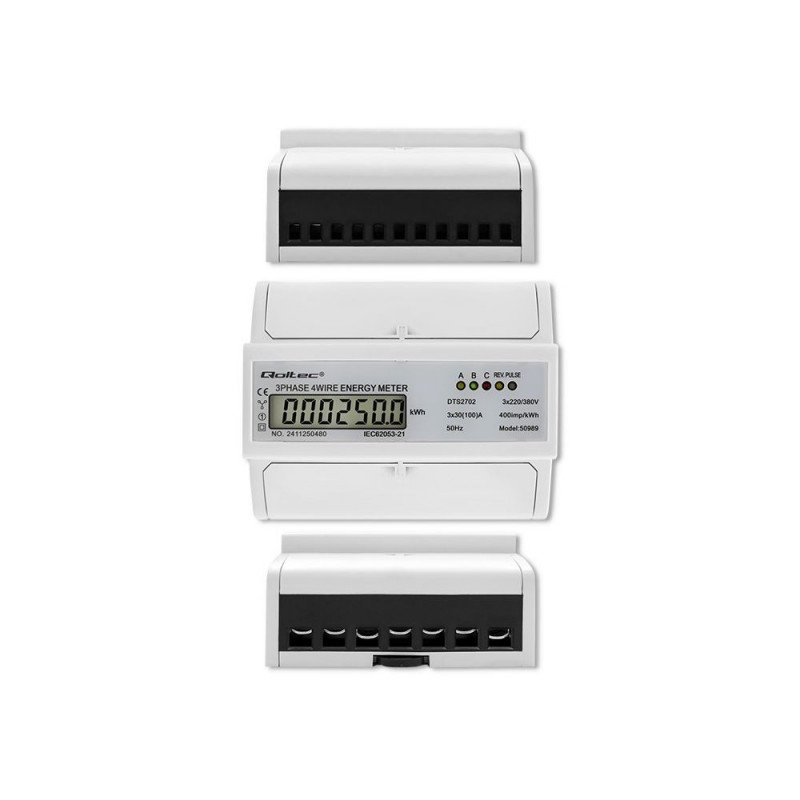

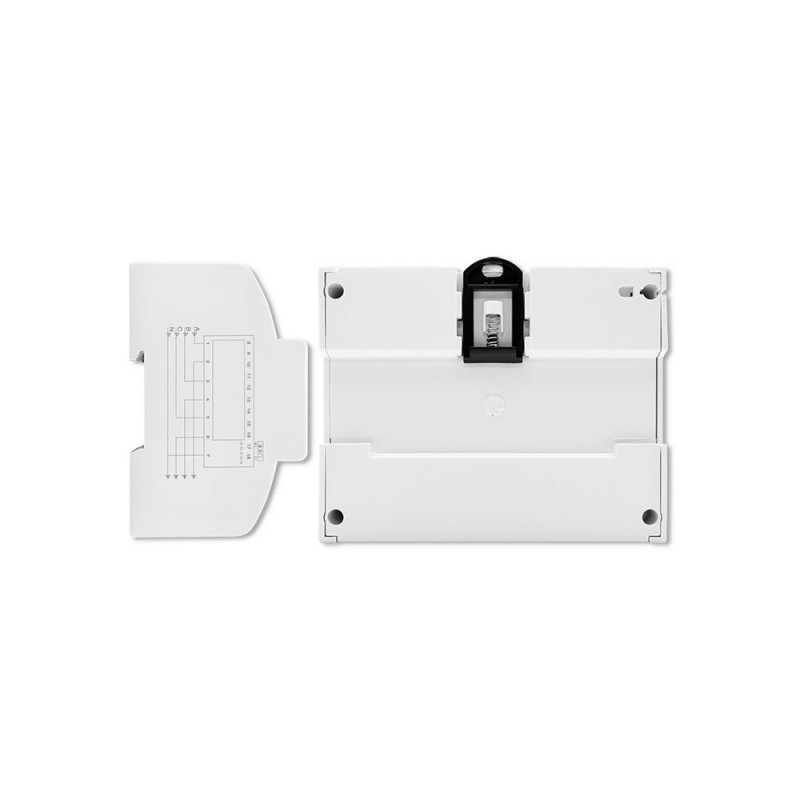

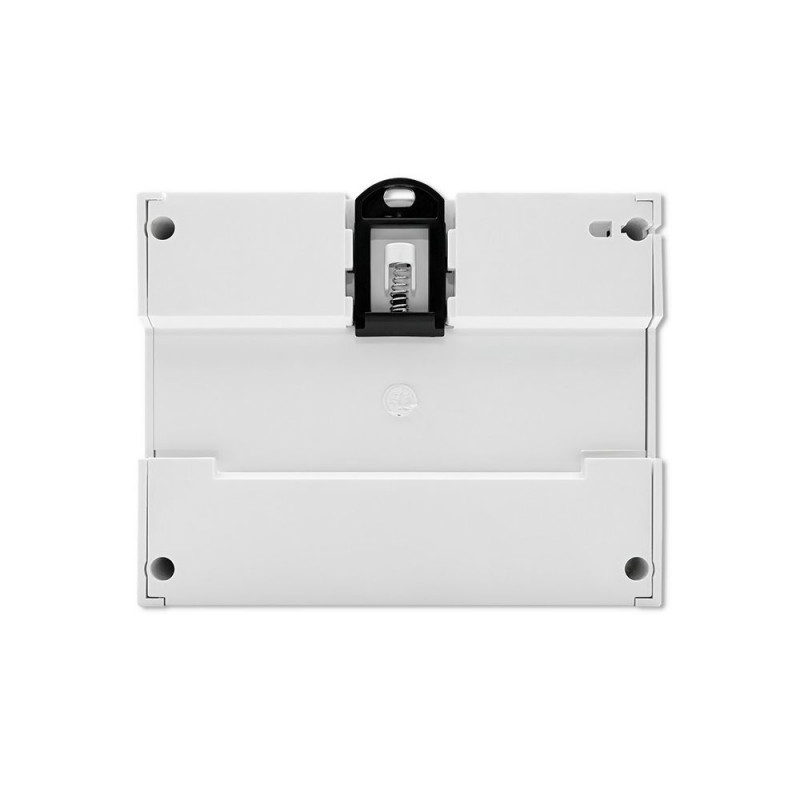

Standard mounting of the device on 35mm DIN rail,
Energy consumption measurement displayed in kWh,

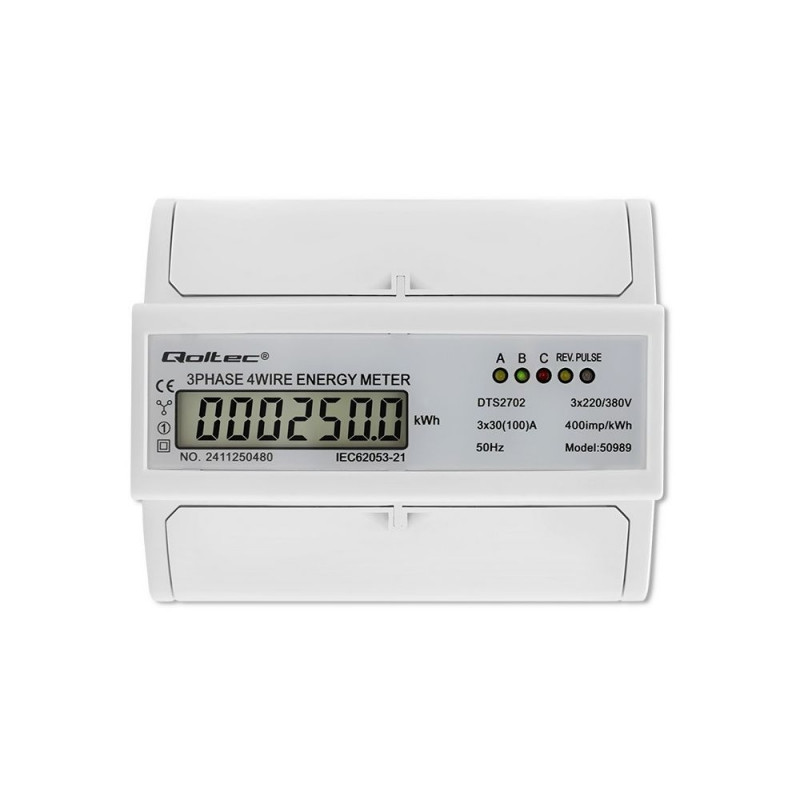

It has 6+1 LCD display, for monitoring measurements,
Complies with IEC 62053-21 and DIN EN50022 standards,
Base current is 30A, maximum current is 100A,
Accurate measurement, Class 1.0,

Remote monitoring of energy consumption

Qoltec Electricity Meter, Thanks to its compact size and intuitive operation, it is ideal even in limited installation spaces - such as:
Industrial and building switchgear,
Home installations (e.g., monitoring of household energy consumption),
Industrial facilities - Production halls, workshops, warehouses,
Leased premises energy billing for tenants,
Ideal for apartments or premises that have photovoltaic installations.


Connectors None
Environment requirements Operating temperature: -20C ~ +55C
Power Not applicable
Accessories included 1 x Energy meter 1 x User manual
Color white
Weight 384
Designation
Dimensions (D/L x W x H): 65 x 122 x 100 mm

Dimensions and weights

Gross weight
0.425 kg
Package width
10 cm
Package height
13 cm
Package length
8.5 cm

Product codes

EAN
5901878509891
Manufacturer code
QUQOLME00050898
