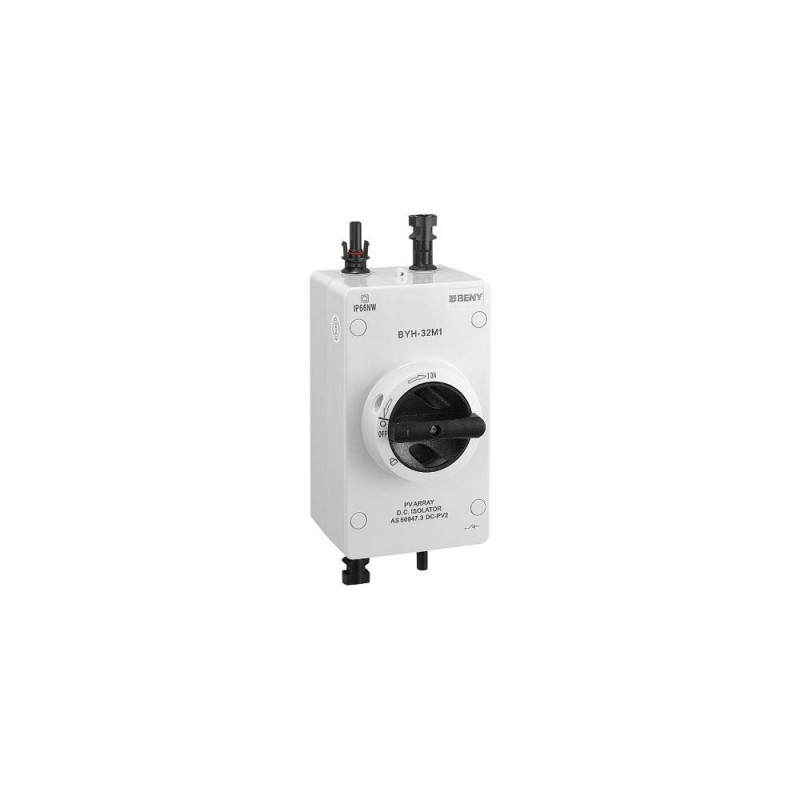

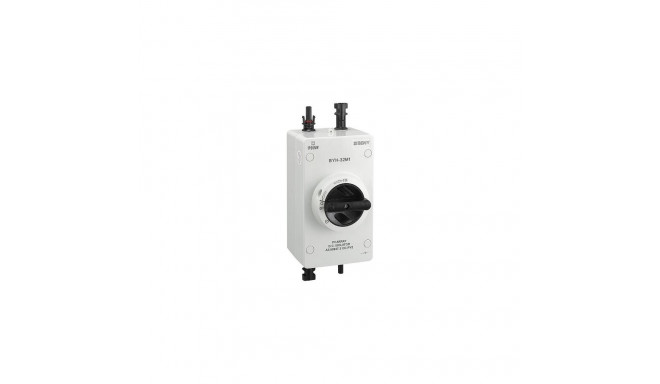

DC Isolator Switch - 2P 32A 1000VDC MC4 IP66

62,99 €

Monthly payment starting from 1,88 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

DC isolator switch with 4 poles, rated for 1000V DC and 32A, features a breathing valve and pre-wired MC4 for easy installation. It has an IP66 protection class, disconnection time of less than 3ms, and operates in temperatures from -40°C to 85°C.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Dc Isolator Switch - 2P, 32A, 1000Vdc, Mc4, Ip66

DC isolator switch with 4 poles, rated for 1000V DC and 32A, features a breathing valve and pre-wired MC4 for easy installation. It has an IP66 protection class, disconnection time of less than 3ms, and operates in temperatures from -40°C to 85°C.


  • First DC switch compliant with AS 60947.3:2018 DC-PV2 standards for global use in PV systems.
  • Fire retardant, UV resistant, and features a locking mechanism for safe operation.
  • Pre-wired with MC4 connectors for faster and safer installation, minimizing wiring errors.
  • Rapid disconnection time of less than 3ms ensures effective safety for solar PV systems.

Features
Product Type DC Isolator Switch
Model 2P, 32A, 1000VDC
Specifications
Number of Contacts 4
Rated Voltage (Ue) DC 1000V
Insulation Voltage (Ui) DC 1200V
Rated Current (In) 16A / 25A / 32A
Maximum Current 32A
Rated Impulse Voltage (Uimp) 8kV
Mechanical Life 15000 cycles
Electrical Life 1000 cycles
Connection Type M4 (min. 1.2Nm, max. 1.8Nm)
Wire Cross-Sectional Area max. 4-16mm²
Disconnection Time < 3ms
Protection Class IP66 (housing), IP20 (switch)
Dimensions 188 × 99 × 108 mm
Operating Temperature -40°C to 85°C
Additional Information
Certificates IEC/EN 60947-3, AS/NZS 5033:2014; DC-21B, DC-PV2

Width 150 mm
Height 200 mm
Length 250 mm
Product Weight 800 g

Dimensions and weights

Gross weight
0.35 kg
Package width
7.5 cm
Package height
9.8 cm
Package length
7.5 cm

Product codes

EAN
9990000821396
