Inverter - SUNGROW SG15RT-20 15kW 3-phase 2 MPPT IP65

1 579 €

Monthly payment starting from 53,82 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

15kW, 3-phase inverter with 2 MPPTs and a maximum efficiency of 98.60%. Operates in a wide temperature range of -25°C to 60°C and features IP65 protection.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

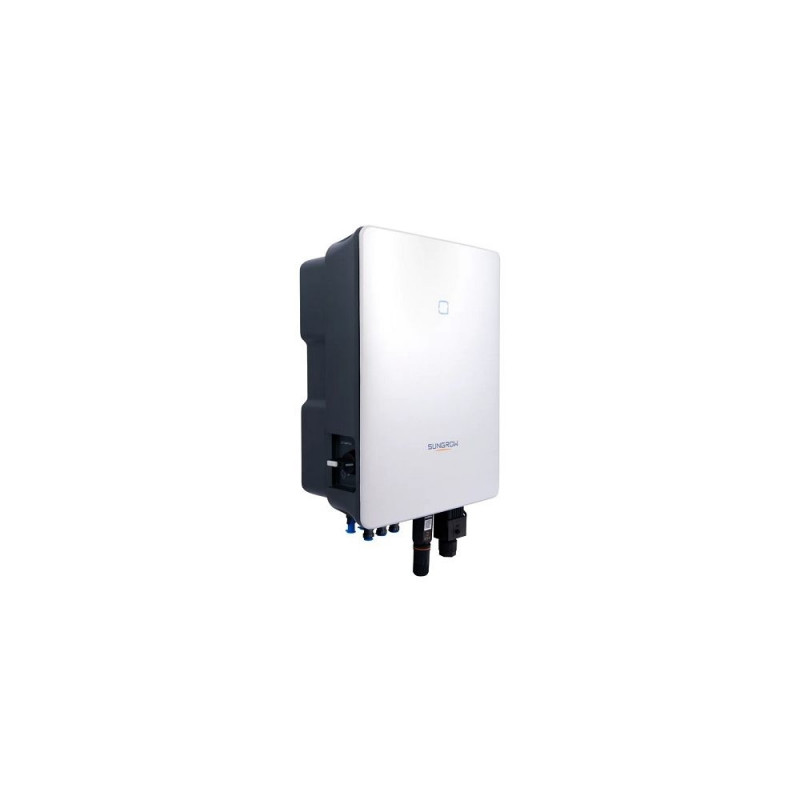

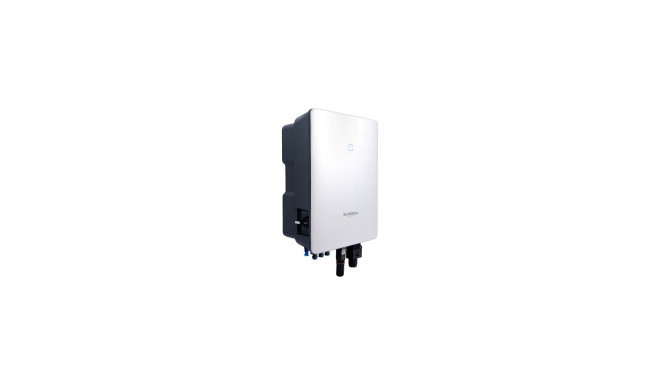

Inverter Sungrow SG15RT-20

15kW, 3-phase inverter with 2 MPPTs and a maximum efficiency of 98.60%. Operates in a wide temperature range of -25°C to 60°C and features IP65 protection.


  • High efficiency with a maximum of 98.60% and European efficiency of 98.10% for optimal energy conversion.
  • Robust protection features including DC reverse connection, AC short-circuit, and leakage current protection.
  • Designed for durability with an IP65 rating, suitable for various environmental conditions from -25°C to 60°C.
  • Lightweight and compact design (17 kg) with wall-mounting capability for easy installation.

Features
Product Type Inverter
Model SUNGROW SG15RT-20
Specifications
Input (DC)
Recommended max. PV input power 22.5 kWps
Max. PV input voltage 1100 V
Min. PV input voltage / Start-up input voltage 180V / 180V
Rated input voltage 600 V
MPP voltage range 160 V - 1000 V
No. of independent MPP inputs 2
No. of PV strings per MPPT 2/1
Max. PV input current 37.5 A (25 A / 12.5 A)
Max. DC short-circuit current 48 A (32 A / 16 A)
Output (AC)
Rated AC output power 15000 W
Max. AC output apparent power 16500 VA
Max. AC output current 25 A
Rated AC voltage 3 / N / PE, 400 V
AC voltage range 270V - 480V
Rated grid frequency 50 Hz
Grid frequency range 45/55 Hz
Harmonic (THD) <3 % (at rated power)
Power factor at Rated power / Adjustable power factor 0.99/0.8 leading - 0.8 lagging
Feed-in phases / Connection phases 3 / 3-PE
Efficiency
Max. efficiency 98.60%
European efficiency 98.10%
Protection & Function
Grid monitoring Yes
DC reverse connection protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
Overvoltage category DC Type II / AC Type III
DC switch Yes
Arc fault circuit interrupter (AFCI) Yes
PID recovery function Yes
General Data
Dimensions (W*H*D) 370*480*195 mm
Weight 17 kg
Mounting method Wall-mounting bracket
Topology Transformerless
Degree of protection IP65
Operating ambient temperature range -25°C to 60 °C
Allowable relative humidity range (non-condensing) 0% - 100%
Cooling method Smart forced air cooling
Max. operating altitude 4000 m
Display LED
Communication GPRS
DC connection type MC4
AC connection type Plug and play
Compliance IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, NB/T32004-2018

Width 600 mm
Height 400 mm
Length 500 mm
Product Weight 12000 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
123 kg
Package width
50 cm
Package height
70 cm
Package length
60 cm

Product codes

EAN
9990000820191
