Inverter - GROWATT MOD 15KTL3X 15kW 3-phase 2 MPPT 98.6% Efficiency

Addional discount of 7%
will be applied in shopping cart
(min. 10€ purchase)
1 879 €

Monthly payment starting from 64,04 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

15kW, 3-phase inverter with 2 MPPT and a maximum efficiency of 98.6%. It supports a PV input voltage range of 140 V to 1000 V and includes multiple protection features such as DC reverse polarity protection and ground fault monitoring.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

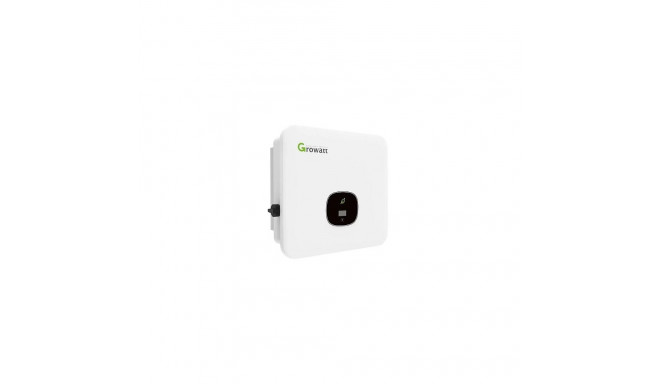

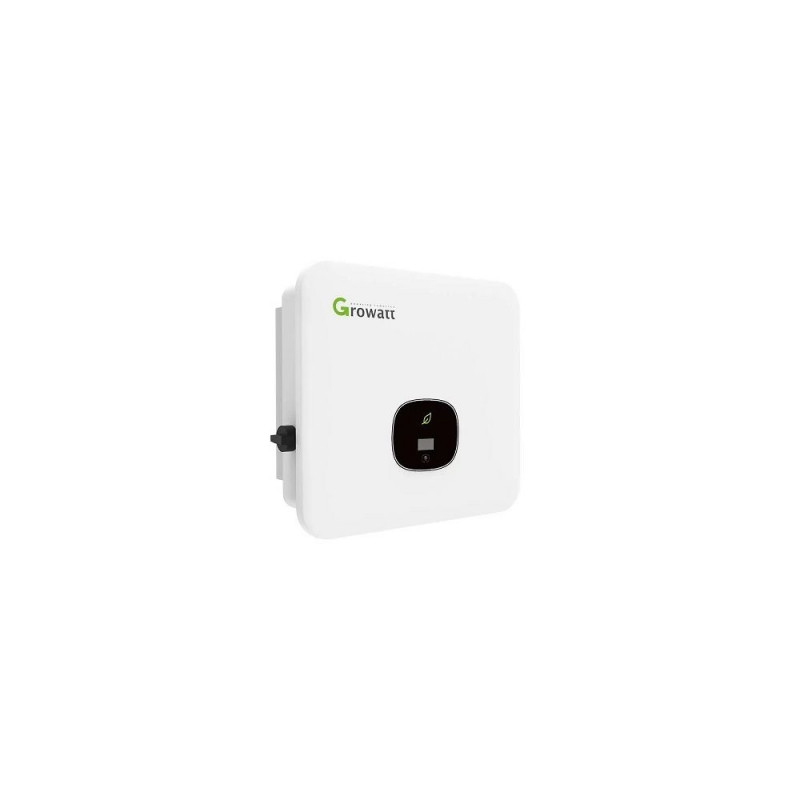

Inverter Growatt Mod 15KTL3X

15kW, 3-phase inverter with 2 MPPT and a maximum efficiency of 98.6%. It supports a PV input voltage range of 140 V to 1000 V and includes multiple protection features such as DC reverse polarity protection and ground fault monitoring.


  • High efficiency with a maximum efficiency of 98.6% and MPPT efficiency of 99.9%.
  • Robust design with IP66 protection, suitable for harsh environments and a wide operating temperature range (-25 °C to +60 °C).
  • Comprehensive safety features including DC reverse polarity protection, ground fault monitoring, and anti-islanding protection.
  • 10-year warranty with conditions for reliable long-term performance and peace of mind.

Features
Product Type Inverter
Brand GROWATT
Model MOD 15KTL3X
Specifications
Input (DC)
Recommended max. PV input power 22500 W
Max. PV input voltage 1100 V
Start-up input voltage 160 V
Rated input voltage 580 V
MPP voltage range 140 V – 1000 V
No. of independent MPP inputs 2
No. of PV strings per MPP 1/2
Max. input current per MPP tracker 13/26 A
Max. short-circuit current per MPP tracker 16/32 A
Output (AC)
Rated AC output power 15000 W
Max. AC output apparent power 16500 VA
Rated AC voltage (range) 220/380 V, 230/400 V (340-440 V)
Max. output current 25 A
AC grid frequency 50 Hz / 60 Hz
AC grid frequency range 45 – 55 Hz / 55 – 65 Hz
Harmonic (THD) < 3 % (at rated power)
Adjustable power factor 0.8 leading – 0.8 lagging
AC grid connection type 3 W + N + PE
Efficiency
Max. efficiency 98.6%
European efficiency 98.2%
MPPT efficiency 99.9%
Protection devices
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Insulation resistance monitoring Yes
Surge Protection DC Type II / AC Type II
Ground fault monitoring Yes
DC switch Yes
String fault monitoring Yes
Arc fault circuit interrupter (AFCI) Optional
Anti-islanding protection Yes
Residual-current monitoring unit Yes
General Data
Dimensions (W*H*D) 425 × 387 × 178 mm
Weight 16 kg
Topology Transformerless
Degree of protection IP66
Night power consumption < 1 W
Operating ambient temperature range -25 °C to +60 °C
Allowable relative humidity range (non-condensing) 0% – 100%
Cooling method Natural convection
Max. operating altitude 4000 m
Display OLED + LED / WiFi + app
Interfaces RS-485 / USB
Optional interfaces Wi-Fi / GPRS / RF / LAN
AC connection type Connector
Certification CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2

Width 600 mm
Height 400 mm
Length 500 mm
Product Weight 12000 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 219,99 €
  • Additional warranty (2 years) - 129,99 €
  • Insurance (1 year) - 229,99 €
  • Insurance (2 years) - 349,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
12.5 kg
Package width
65 cm
Package height
45 cm
Package length
55 cm

Product codes

EAN
9990000820276
