EV Charge MG2AC Adapter Type 2 Plug to Type 1 Inlet 32A AC Charging For Type 1 EV

Addional discount of 6%
will be applied in shopping cart
(min. 10€ purchase)
69,99 €

Monthly payment starting from 2,09 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

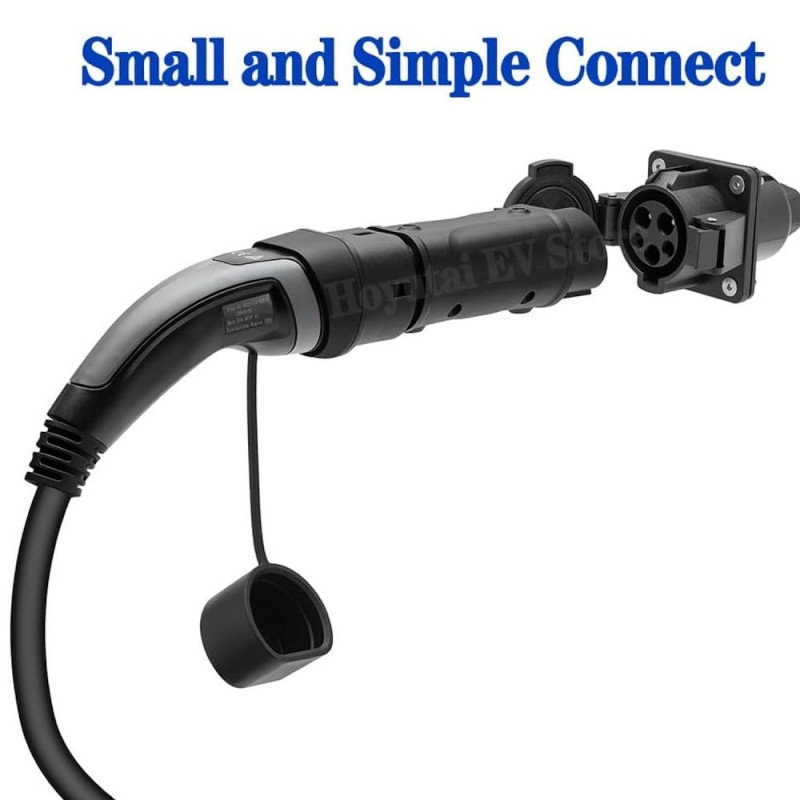

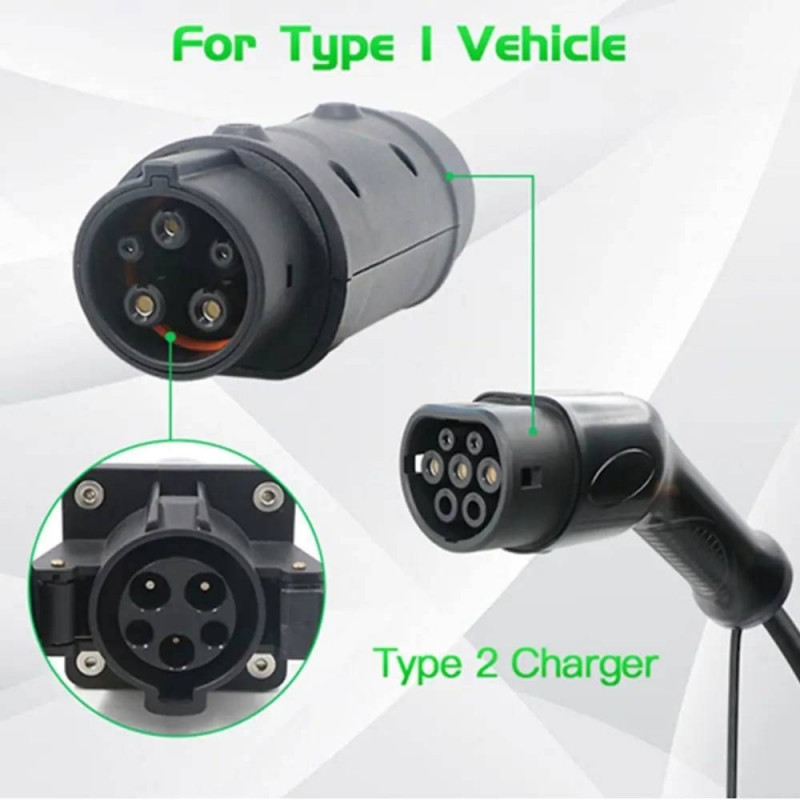

Enable Type 1 Vehicle Charging Across Europe's Type 2 Infrastructure

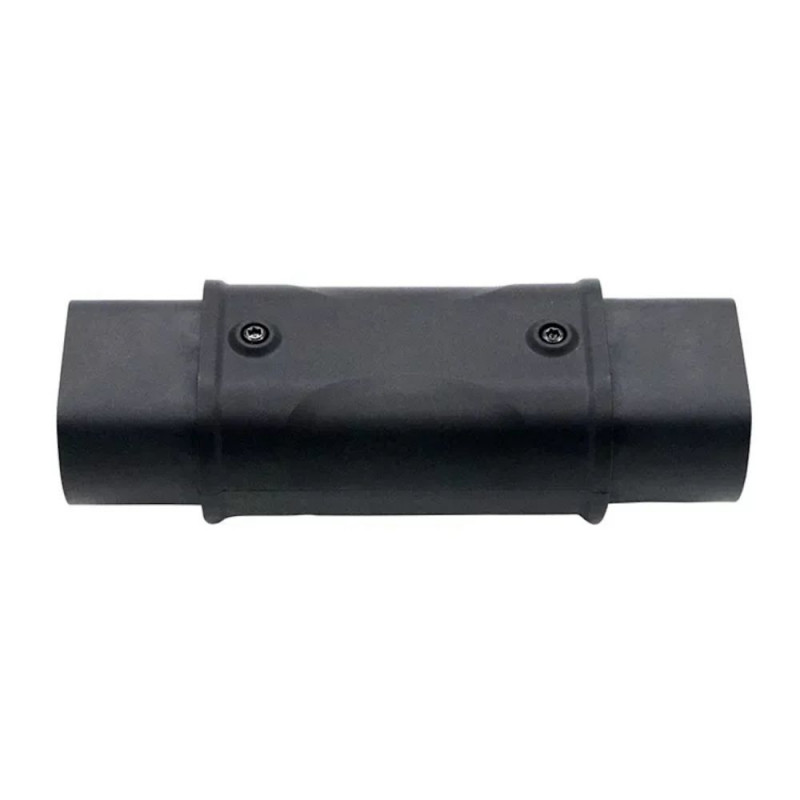

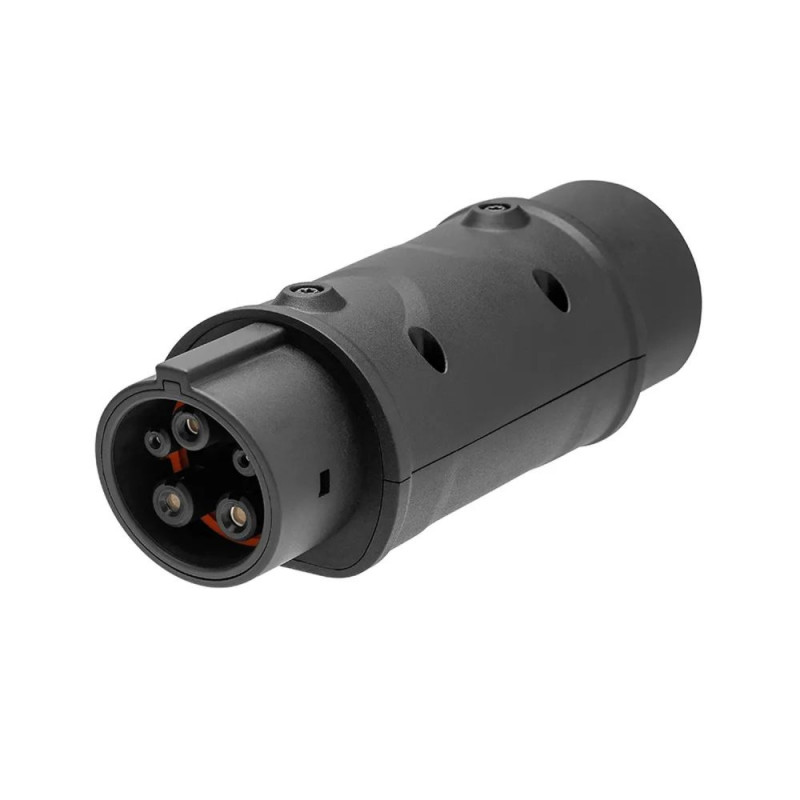

The EVCharge MG2AC is a high-performance AC charging adapter designed to connect electric vehicles equipped with a Type 1 (SAE J1772) charging port to European Type 2 (IEC 62196-2) AC charging stations. This adapter is an essential solution for drivers of imported EVs and plug-in hybrids from the US or Japan who need reliable charging access across Europe’s public or residential charging networks.

Supporting up to 32 amps of single-phase AC current and delivering up to 7.2 kW of power, the MG2AC ensures fast and safe charging wherever a Type 2 outlet is available. Built for durability, weather resistance, and compatibility, it simplifies charging for Type 1-based vehicles in a predominantly Type 2 environment.

Key Features & Benefits

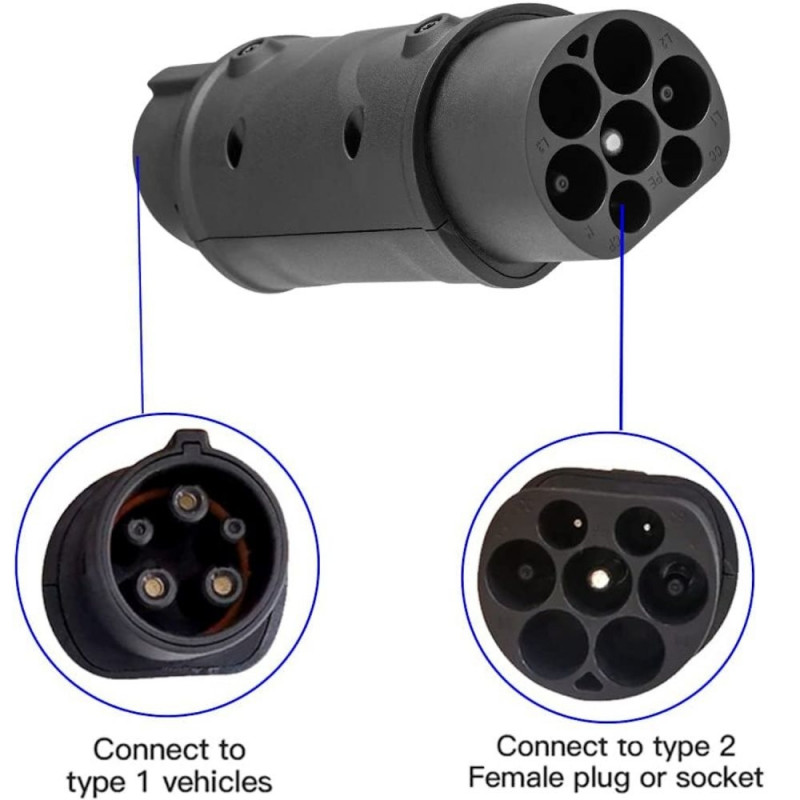

  • Type 2 to Type 1 Interface
    Enables seamless connection between EU-standard Type 2 charging stations and Type 1 electric vehicles or plug-in hybrids.
  • 32A AC, Single-Phase Power
    Delivers up to 7.2 kW of AC power — optimal for compact EVs and PHEVs using single-phase systems.
  • Universal Charging Access for Imports
    Ideal for imported EVs with Type 1 ports, allowing access to thousands of Type 2 public and wall-mounted chargers across Europe.
  • Weather-Resistant & Durable
    Rated IP55 for dust and splash protection; built with flame-retardant thermoplastics and silver-plated copper contacts.
  • Safe, Certified Performance
    Overcurrent, overvoltage, and environmental protection integrated into robust industrial-grade construction.
Technical Specifications
  • Model: EVCharge MG2AC

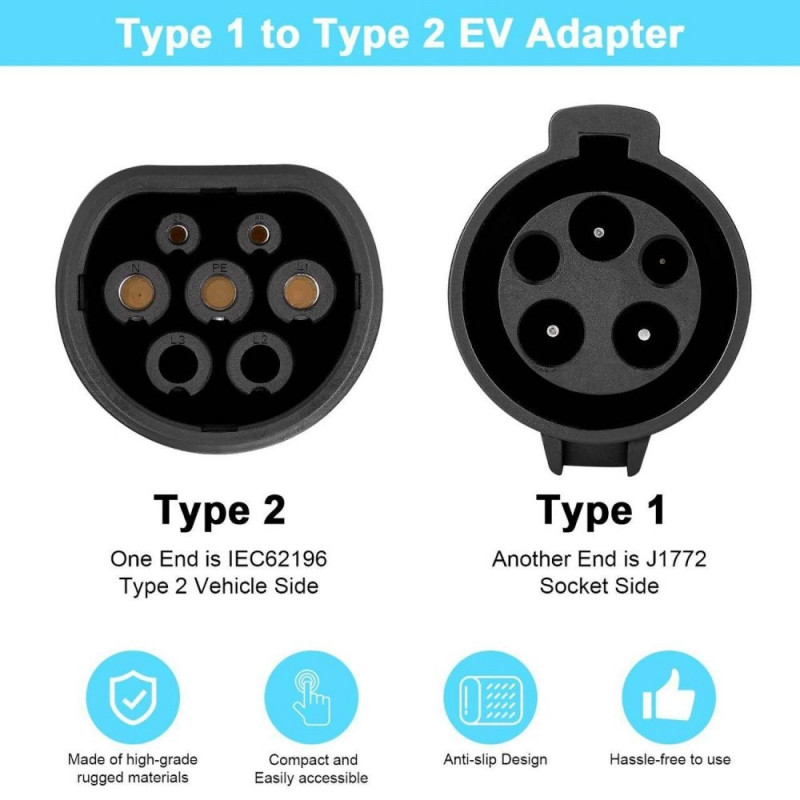

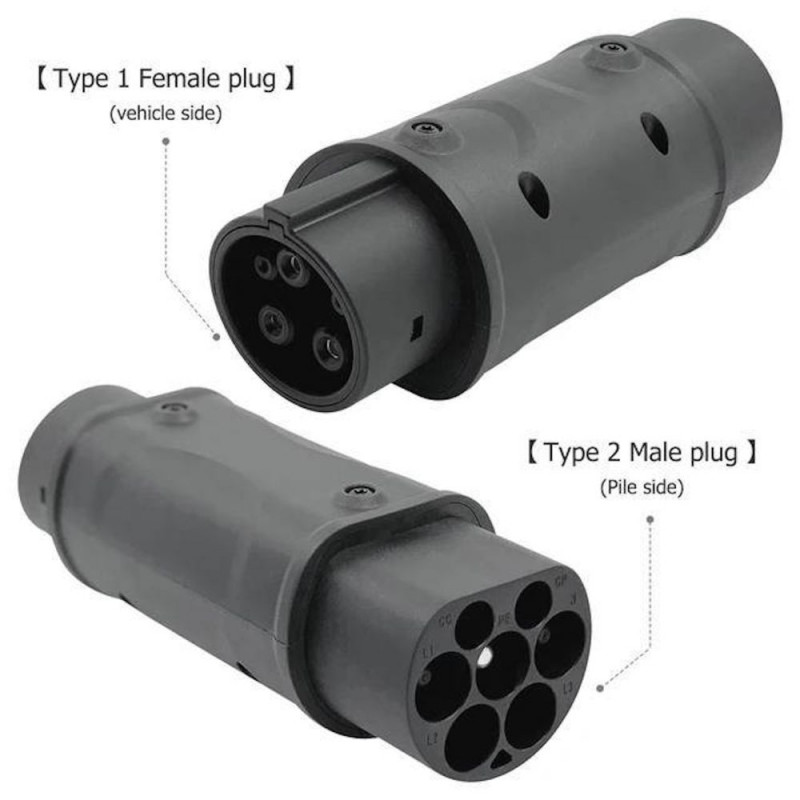

  • Input Connector: Type 2 Male (IEC 62196-2)
  • Output Connector: Type 1 Female (SAE J1772)
  • Max Current: 32A AC
  • Max Power Output: 7.2 kW
  • Voltage: 250V AC (single-phase)
  • Ingress Protection: IP55
  • Operating Temperature: -30°C to +50°C
  • Material: High-strength flame-retardant plastic (UL94 V-0)
  • Pins: Silver-plated copper alloy
  • Lifecycle: >10,000 mating cycles
  • Length: Approx. 20 cm
  • Weight: ~1 kg
Vehicle Compatibility

This adapter supports all EVs and PHEVs that feature a Type 1 (SAE J1772) inlet.

Fully Electric Vehicles (BEVs):
  • Nissan Leaf (US/Japan versions)
  • Kia Soul EV (Type 1)
  • Chevrolet Spark EV
  • Ford Focus Electric
  • Hyundai Ioniq Electric (early Type 1 models)
Plug-In Hybrids (PHEVs):
  • Mitsubishi Outlander PHEV
  • Chevrolet Volt
  • Toyota Prius Plug-in (Type 1 variant)
  • Ford C-Max Energi
Not Compatible With:
  • European EVs with Type 2 inlets (e.g. Tesla Model 3, VW ID series, BMW i3, Audi e-tron)
  • DC fast charging stations (e.g. CCS Combo or CHAdeMO)
  • Any vehicle that uses CCS2 or Type 2 AC input

This adapter is strictly for Type 1 EVs needing access to Type 2 AC stations.

What’s in the Box
  • 1x EVCharge MG2AC Type 2 to Type 1 Adapter
  • 1x Dust cap set (inlet and plug)
  • 1x User instruction guide
  • 1x Storage pouch
Use Case Scenarios
  • Imported Vehicle Charging: Ideal for EVs imported from the US/Japan operating in Europe
  • Public Infrastructure Access: Charge safely at any public AC Type 2 charger
  • Travel & Portability: Lightweight, compact design fits in trunk for on-the-go access
  • Home Setup Integration: Compatible with wall-mounted Type 2 home chargers
Why Choose the MG2AC?
  • Enables global charging flexibility for Type 1 EVs in Europe
  • Rugged, certified, and ready for continuous use
  • Eliminates compatibility issues between US-spec vehicles and EU charging networks
  • Designed by EVCharge — a trusted brand in EV infrastructure solutions

Värvus Black
Pakend (EU Blister) - Retail packaging
Materjalid Plast, Silikoonid
Tüübid Adapteris, Auto / Velo aksesuārs

Dimensions and weights

Gross weight
1.1 kg
Package width
18 cm
Package height
7 cm
Package length
7 cm

Product codes

EAN
4751048111048
