KNIPEX Pliers for Electrical Installation

Main info

Product has been archived

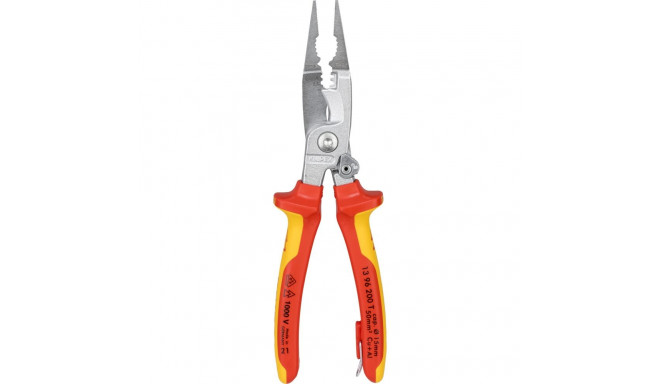

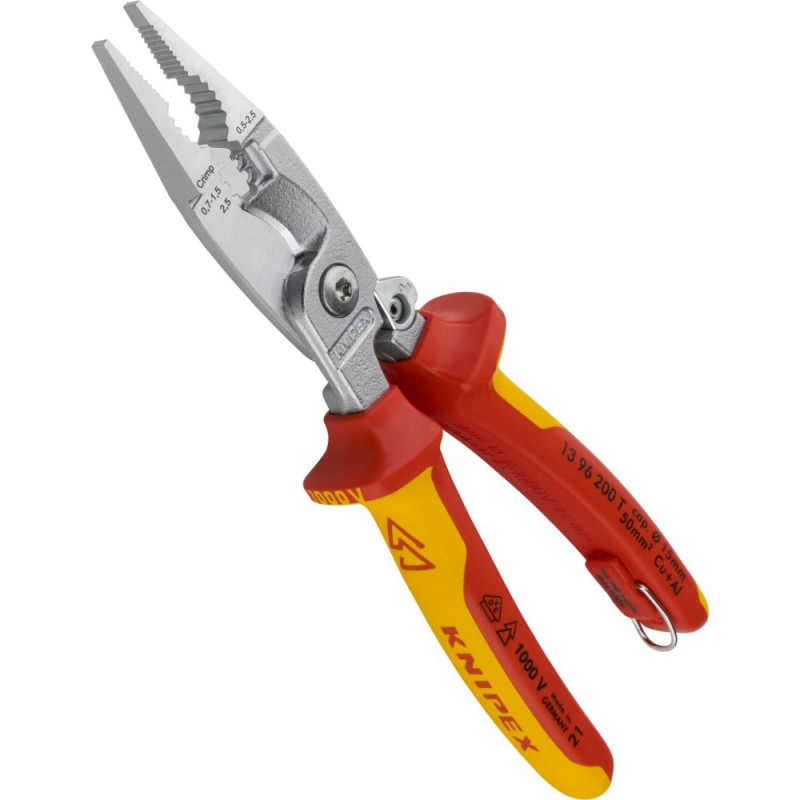

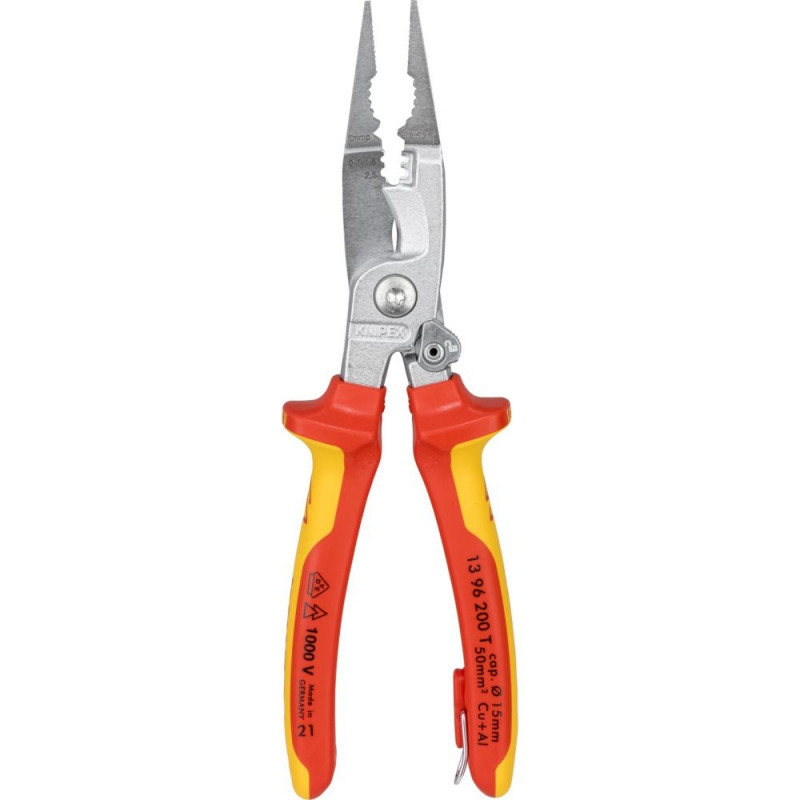

KNIPEX 13 96 200 T Electrical Installation Pliers

With 6 different functions in one pair of pliers.

Features:

  • Multi-purpose pliers for electrical installation; for gripping flat and round material, bending, deburring, cable cutting, stripping and crimping wire end ferrules.
  • With integrated insulated fastening eyelet for attaching a fall protection device
  • Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes
  • Smoothed gripping surfaces at the tip for damage-free gripping of single wires
  • Profiled gripping surfaces and burner hole for gripping flat and round material
  • Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring through-holes
  • Crimping insert for wire-end ferrules 0.5 - 2.5 mm²
  • Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
  • Cable shears for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm with inductively hardened precision cutting edges
  • Narrow design for good accessibility
  • Bolted joint: precise, backlash-free movement of the pliers
  • Tool steel in special quality, forged, multi-stage oil-hardened
  • Cutting value Cu-cable, stranded: Ø 15 mm
  • Cutting value Cu-cable, stranded: 50 mm²
  • Stripping values for single wires: 0.75 - 1.5 mm² / 2.5 mm²
  • Capacity square millimetre: 0.5 - 2.5 mm²
  • Dimensions: 200 x 65 x 28 mm
  • Weight: 275 g

Type Electrical Installation Pliers
Type of Handle Multi-Component Grip
Overall Length (mm) 200
Colour Red / Yellow

Dimensions and weights

Gross weight
0.275 kg
Package width
6.6 cm
Package height
3.1 cm
Package length
21.1 cm

Product codes

EAN
4003773081425
Manufacturer code
13 96 200 T
