Board lifter 4,5m

979 €

195,80 € / M

Monthly payment starting from 33,37 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

The EDMA panel lifter 267355 is a professional solution for lifting, positioning, and installing large plasterboards and other construction panels. It allows a single operator to install boards horizontally on ceilings, at an angle on sloping ceiling

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

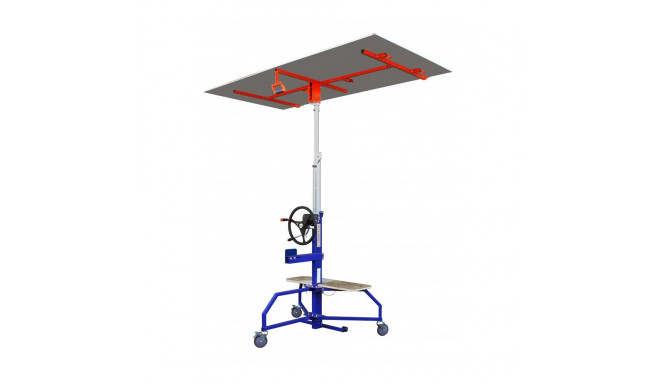

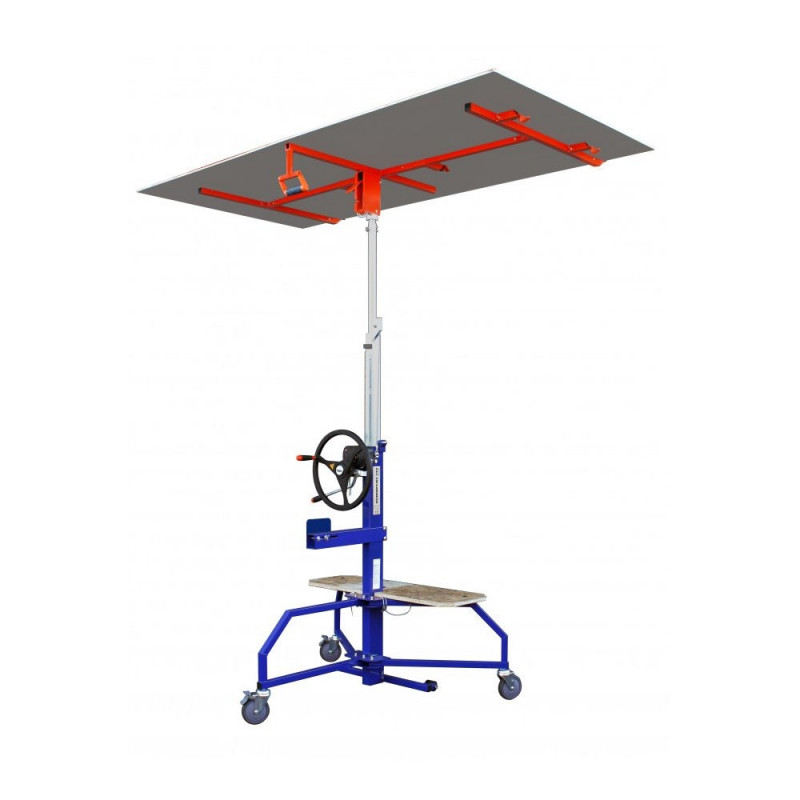

The EDMA panel lifter 267355 is a professional solution for lifting, positioning, and installing large plasterboards and other construction panels. It allows a single operator to install boards horizontally on ceilings, at an angle on sloping ceilings, and vertically on walls. The rack-and-pinion lifting system reduces the physical effort required, while the braking system with two levers allows controlled lowering of the upper support rack.

An ergonomic bi-material handle makes it easy to tilt the upper rack into a vertical position. Three braked wheels provide excellent stability and safety during use. Foldable feet make the lifter compact enough to pass through doorways for easier transportation between work areas. A wooden tool carrier is included, and power drill assistance can also be used for lifting.

KEY FEATURES:

• Horizontal board installation – ideal for ceilings
• Angled board installation – suitable for sloping ceilings
• Vertical board installation – suitable for walls
• Rack-and-pinion system reduces the physical effort required for lifting
• Two-lever braking system provides controlled lowering of the upper rack
• Ergonomic bi-material handle for tilting the upper rack into a vertical position
• Power drill assistance available for lifting
• 3 braked wheels measuring Ø 125 × 32 mm provide improved stability and safety
• Foldable feet allow easy passage through doorways and simplify transportation
• Wooden tool carrier included
• Quiet lifting operation on job sites
• CE certified
• Complies with European Machinery Directive 2006/42/EC

TECHNICAL SPECIFICATIONS:

• Maximum load: 60 kg
• Maximum board dimensions: 1.20 × 3.60 m
• Minimum board dimensions: 0.15 × 0.60 m
• Maximum lifting height with extension: 4.50 m
• Maximum lifting height without extension: 3.50 m
• Minimum height: 1.61 m
• Maximum vertical lifting height with a 2.50 m high board: 5.75 m
• Board loading height without extension: 84 cm
• Minimum width in transport/storage position: 63 cm

APPLICATIONS:

The EDMA panel lifter is ideal for professional builders, drywall installers, and renovation specialists who regularly install large construction boards on walls, ceilings, and sloping surfaces. It reduces the need for manual lifting, improves working ergonomics, and helps position large boards more accurately and safely during installation.

TECHNICAL DATA:

SKU: 267355
EAN: 3476060026736
ABC A
Parcel locker NO
Short descr eng Make lifting and installing large panels easier and safer with the Edma plaaditõstuk panel lifter. Its ergonomic, durable metal design supports comfortable handling and improves efficiency on site, reducing strain and helping you achieve precise results.
Short descr est Edma plaaditõstuk muudab suurte ehituspaneelide tõstmise ja paigaldamise lihtsamaks, turvalisemaks ning mugavamaks. Vastupidav metallkonstruktsioon ja ergonoomiline disain tagavad stabiilse ning tõhusa tööprotsessi. Kerge ja käsitsi juhitav tõstuk sobib i

Dimensions and weights

Gross weight
54 kg
Package width
800 cm
Package height
1200 cm
Package length
300 cm

Product codes

EAN
3476060026736
