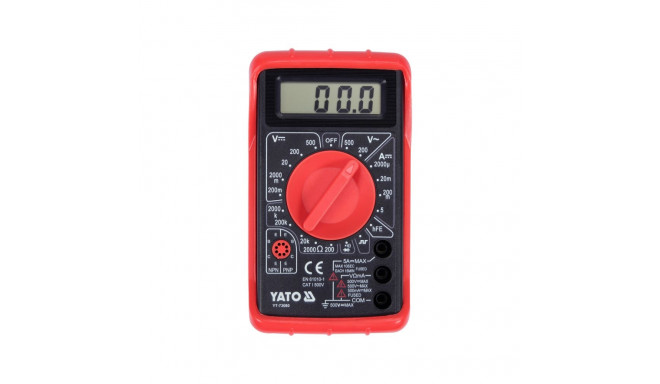

Digital Multimeter YT-73080 YATO

6,99 €

Main info

The YATO Digital Multimeter YT-73080 is a versatile meter designed for making both basic and advanced electrical measurements with manual range settings. This entry-level model comes equipped with a rubber case for added protection against mechanical
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

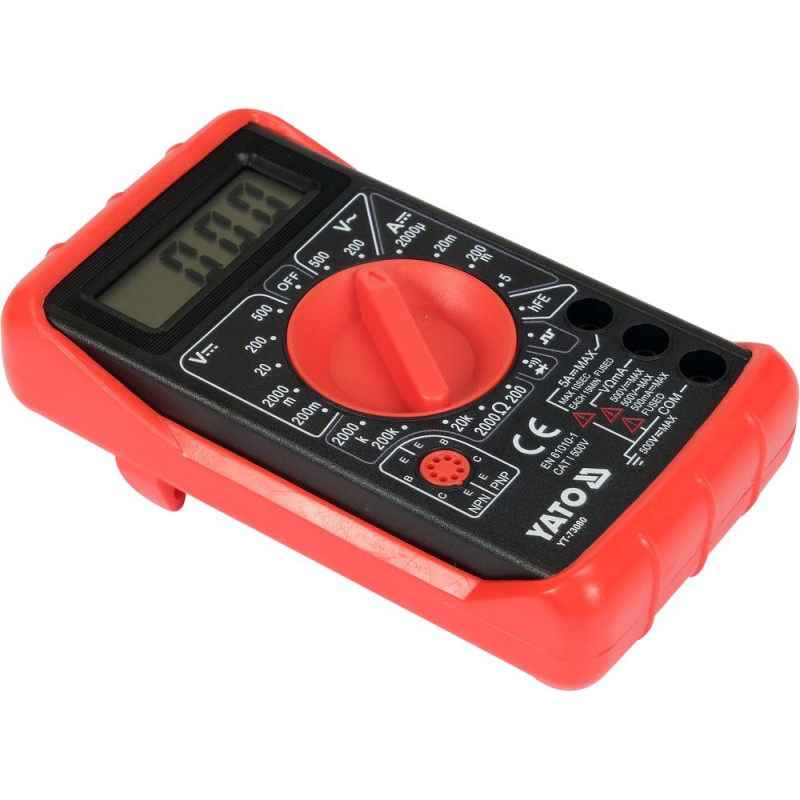

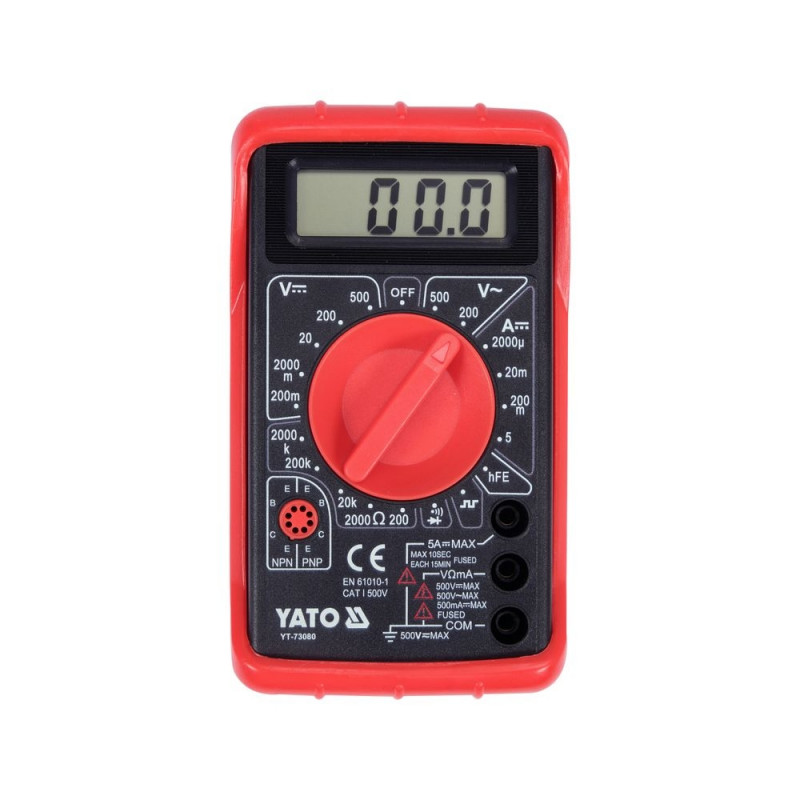

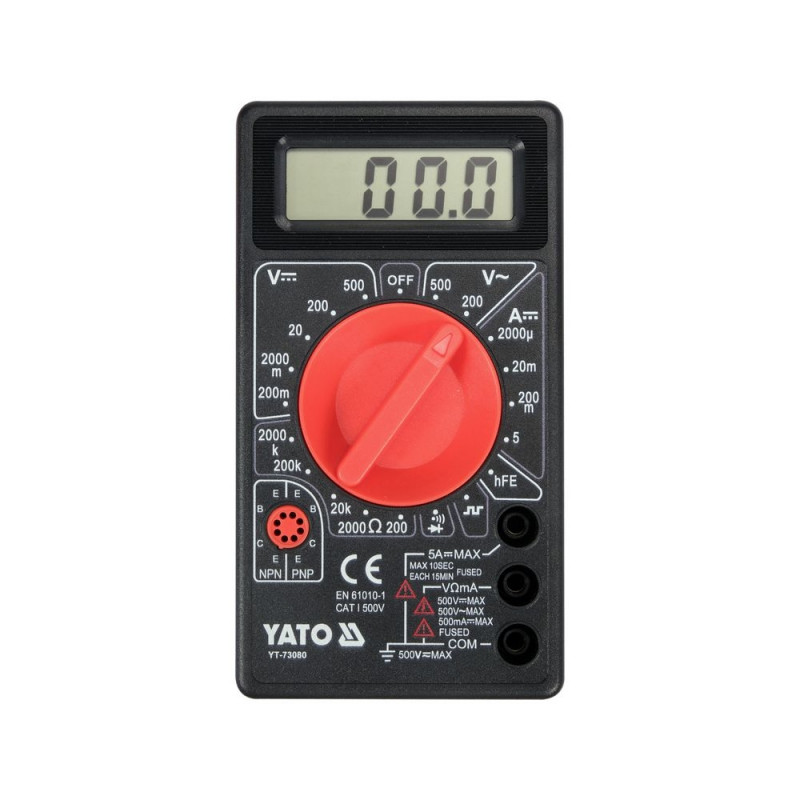

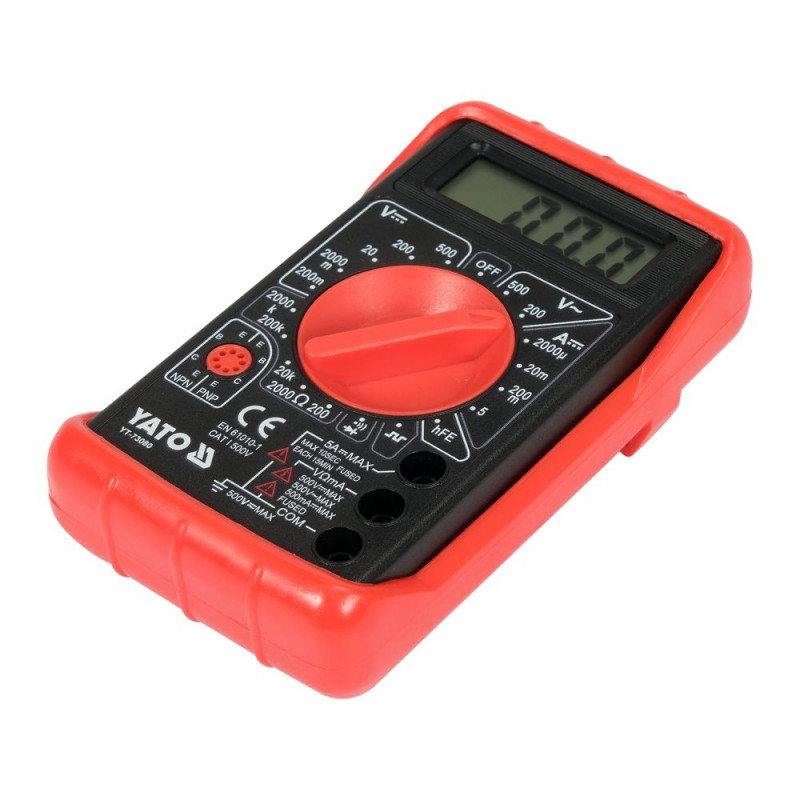

The YATO Digital Multimeter YT-73080 is a versatile meter designed for making both basic and advanced electrical measurements with manual range settings. This entry-level model comes equipped with a rubber case for added protection against mechanical damage.


Basic measurements include:


  • AC voltage measurement: A.C. 0-500 V
  • DC voltage measurement: D.C. 0-500 V
  • DC current measurement: D.C. 0-5 A
  • Resistance measurement: 0-2 MΩ
  • Diode test: IF 1 mA, UR 3 V
  • Circuit continuity test: 0-30 Ω

Additional measurements provided are:


  • hFe transistor test: 0-1000, with a built-in measuring socket
  • Rectangular waveform generator: 5 Vpp, 50 Hz

Measurement accuracies:


For AC voltage measurement at 235 V, the accuracy of the YT-73080 is ±(2% + 10), with a resolution of 1 V. Therefore, the measurement error calculation is as follows:


  • Measurement accuracy: (235 x 2%) + 10 x 1 = 4.7 + 10 = 14.7 V

This means the result for an indication of 235 V is 235 ± 14.7 V.*


For DC voltage measurement, an indication of 12 V results in 12 ± 0.146 V. Please refer to the instruction manual for additional details on resolution and accuracy for given measurements.


*Note that the YT-73080 does not have a true RMS measurement function, so the results reflect real RMS values for AC voltage only for a normal sine waveform.


Built-in functions include:


  • Waveform generator for generating a rectangular waveform with a peak-to-peak voltage of 5 Vpp at approximately 50 Hz, useful for audio technology such as speaker diagnostics.
  • DATA HOLD [H] for retaining the currently measured value on the display.

Additional features:


  • LCD display, capable of showing up to 1999 results.
  • Audible signal for circuit continuity tests at resistance levels below 30 Ω.
  • Automatic switching from diode test to continuity test at circuit resistance below 30 Ω (the meter cannot be set exclusively for diode testing).

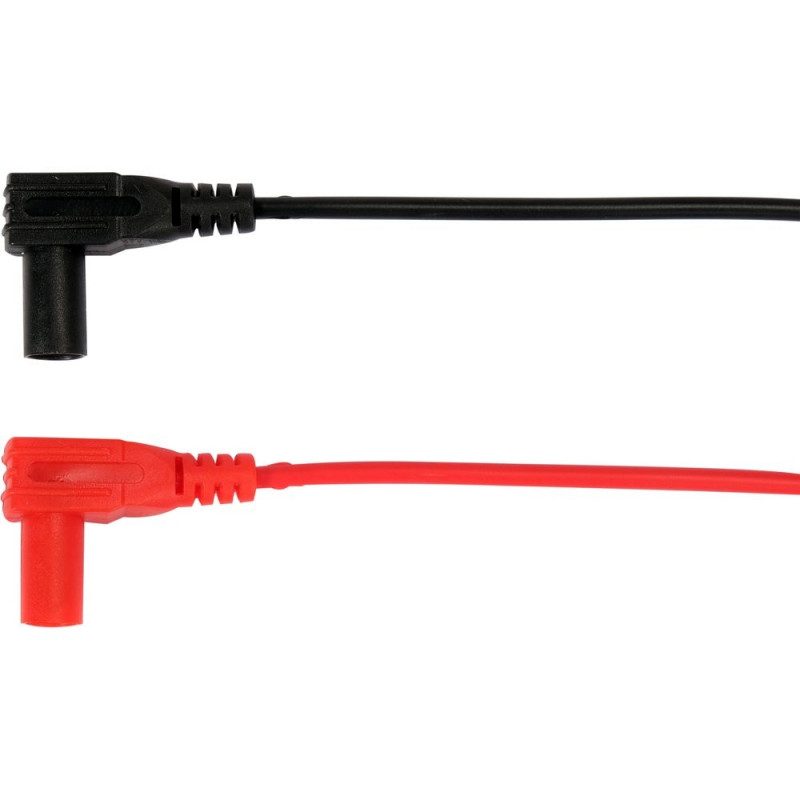

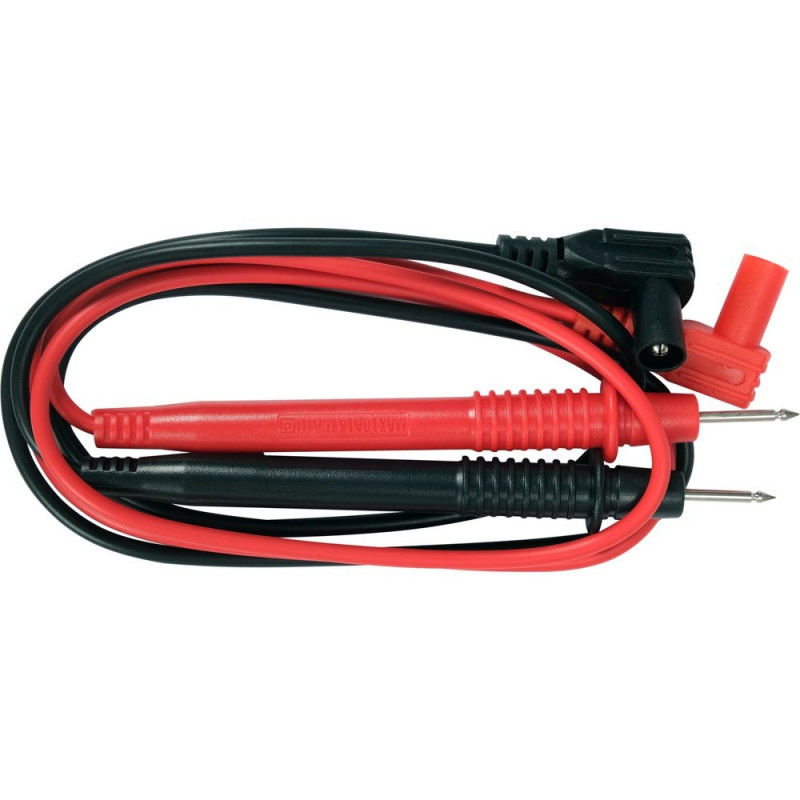

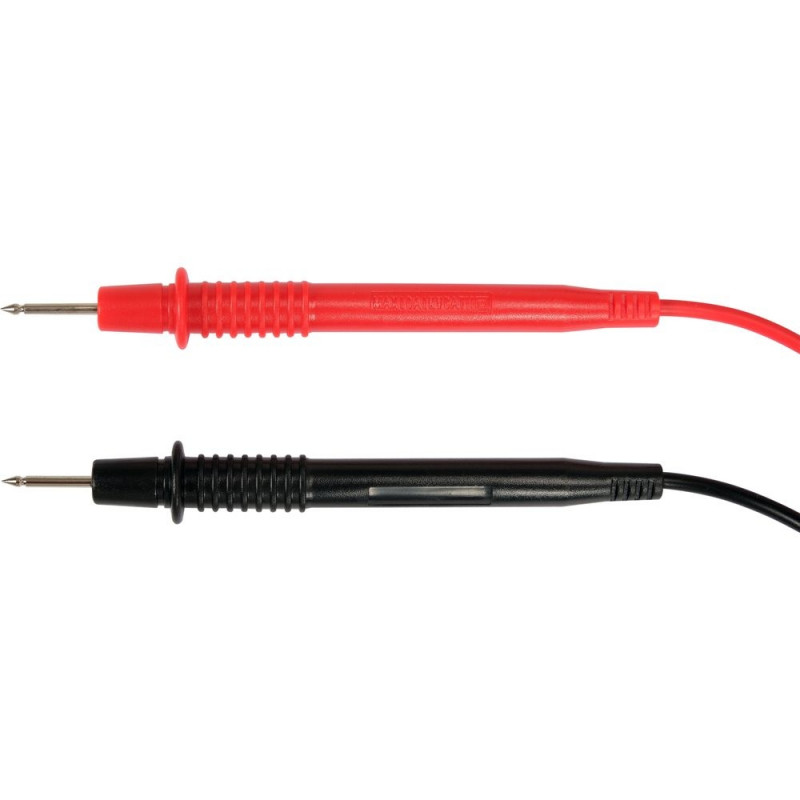

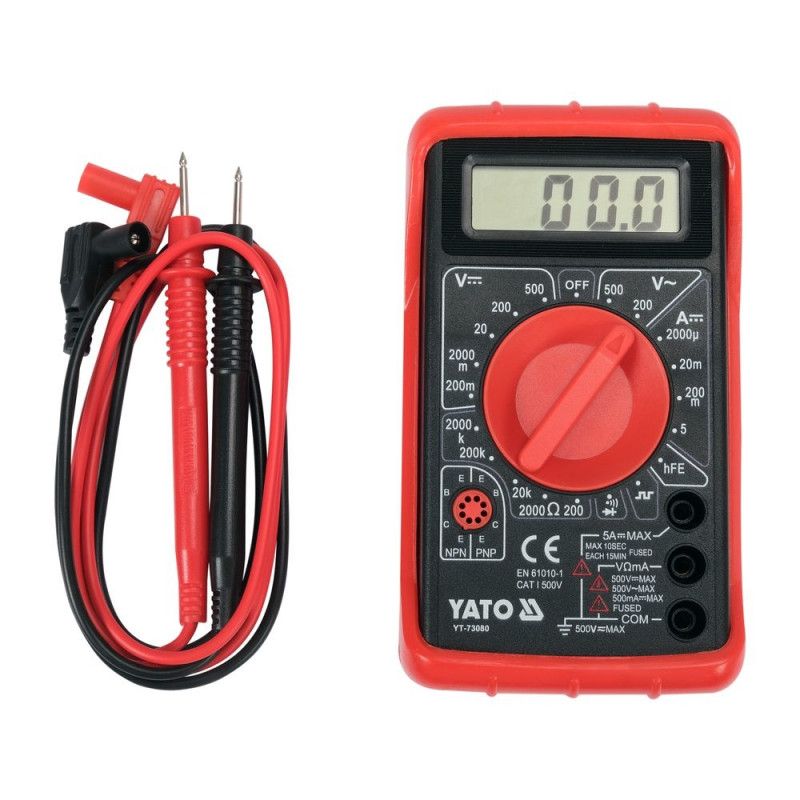

  • Measuring probes are included with the device.
  • Robust construction with overload protection.

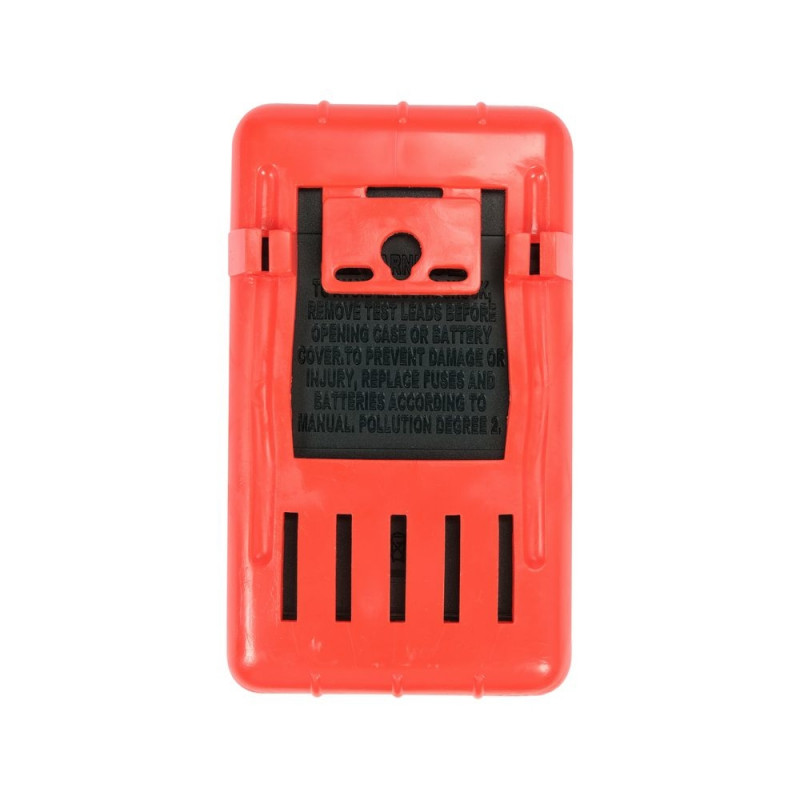

  • Made from ABS plastic with a rubber casing for protection against mechanical damage.
  • Low battery indicator alerts users to power supply needs.

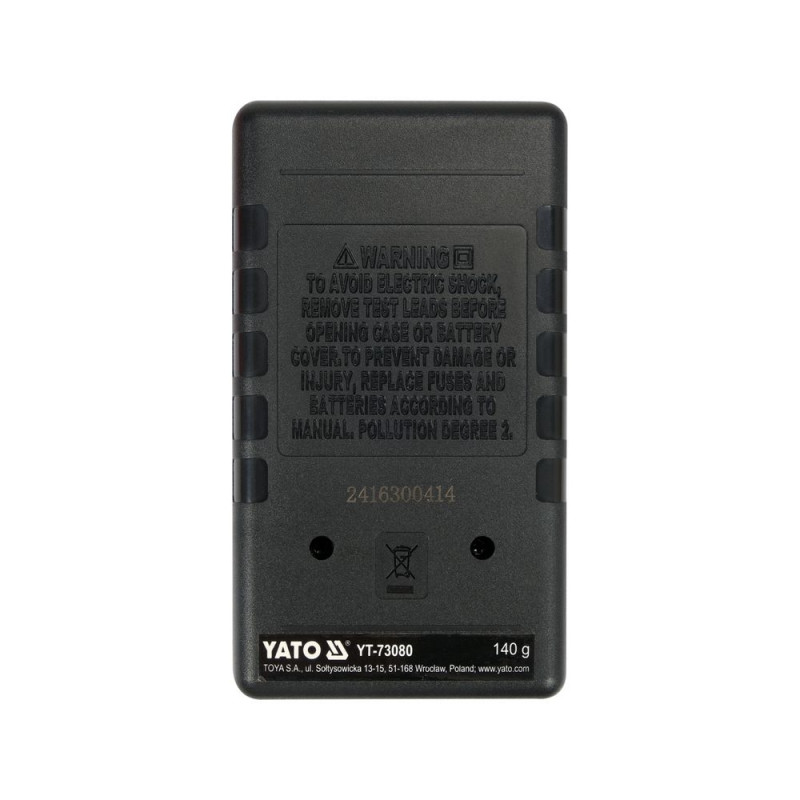

  • Powered by a 9 V (6F22) battery.

Warning!


When measuring unknown values, always start with the largest range and work down to avoid damaging the device.


  • Series: GRF
  • Alternating voltage: 0-500 V a.c.
  • Direct voltage: 0-500 V d.c.
  • Direct current: 0-5 A
  • Resistance: 0-2 MΩ
  • Transistor HFE measurement: PNP, NPN
  • Continuity test: 0-30 Ω
  • Conduction test: yes
  • Diode test: yes
  • Rectangular signal generator: 50 Hz
  • Dimensions: 126x70x24 mm
  • Material: ABS
  • Display type: LCD
  • Display range: 1999 mm
  • Sampling frequency: 2-3 times per second
  • Bell ring: yes
  • Sine wave generator: 5 V p-p
  • Power supply: battery
  • Cell type: 9V; 6F22
  • Working temperature range: 0~40 ˚C
  • Storage temperature: -10 ~ +50 ˚C
  • Weight: 0.14 kg
  • Application: electric

Dimensions and weights

Gross weight
0.28 kg
Package width
26 cm
Package height
34 cm
Package length
47.5 cm

Product codes

EAN
5906083730801
