Ermenrich NetGeeks NP25 PoE Tester

53,99 €

Monthly payment starting from 1,62 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Ermenrich NetGeeks NP25 is a PoE cable tester for PoE-powered networks. It is used for setting up IP telephony, deploying IP surveillance systems, connecting wireless access points, etc. The Ermenrich NetGeeks NP25 supports all types of PoE devices. It can check the serviceability of cables, identify the PSE type, identify the midspan/endspan, and measure power and voltage.

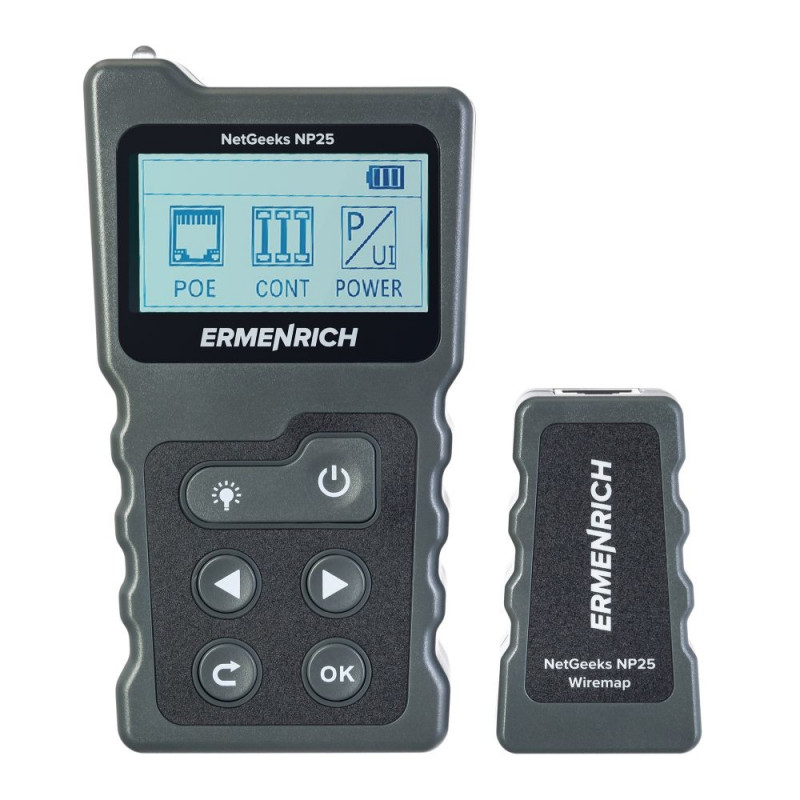

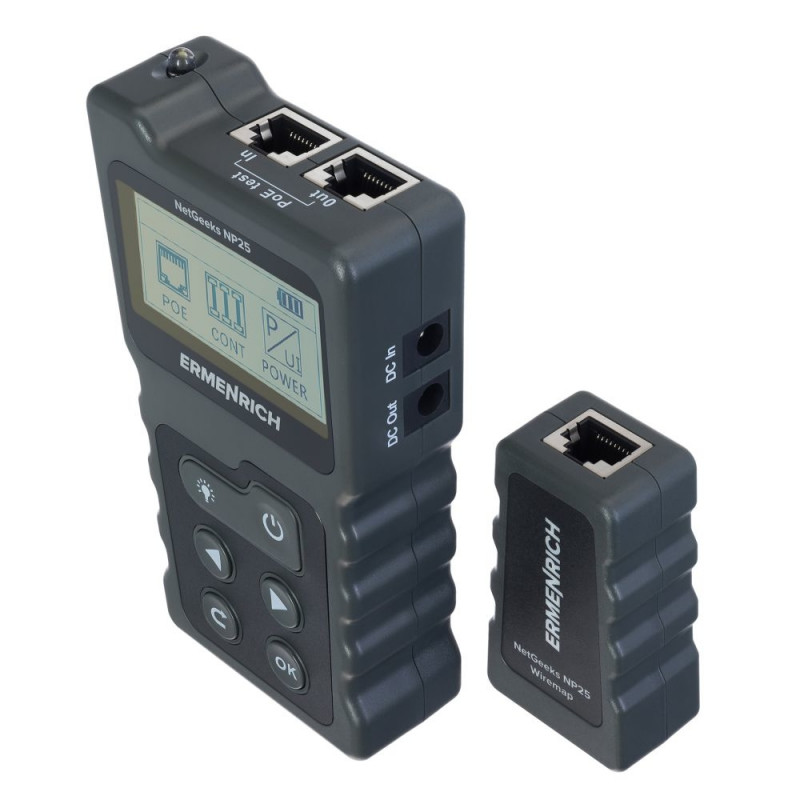

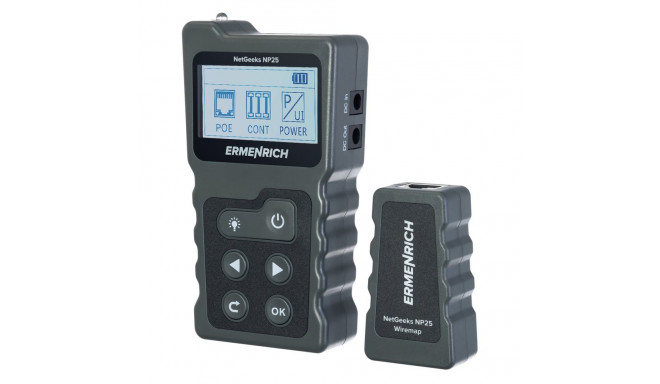

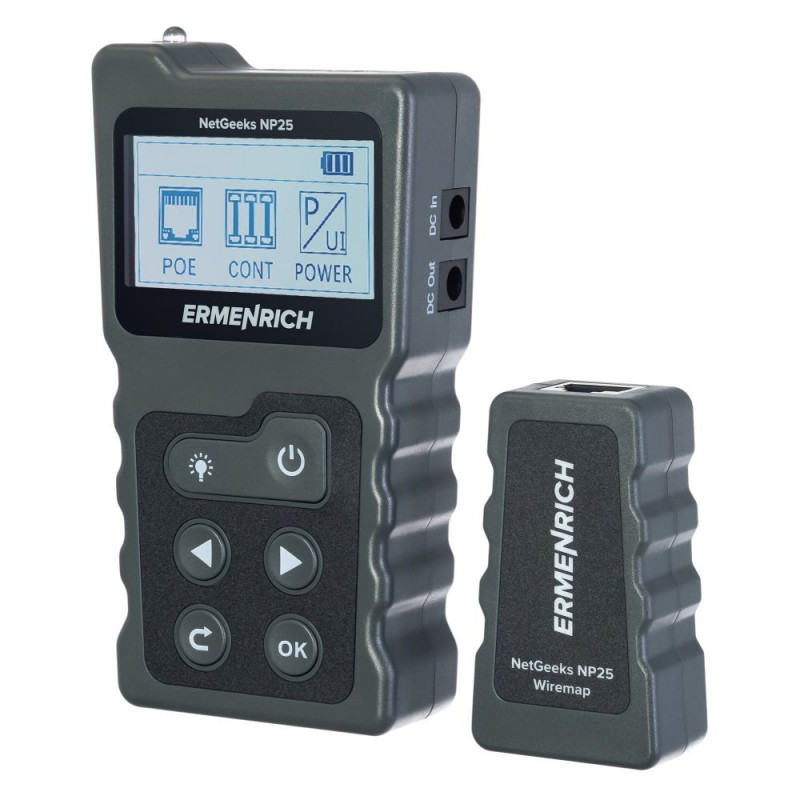

The device includes a transmitter and a remote unit. The transmitter requires three standard batteries (not included). Compact and lightweight, the Ermenrich NetGeeks NP25 is easily operated with just a few buttons. The results are displayed on the built-in backlit LCD display. Suitable for testing STP/UTP cables (CAT5, CAT6), telephone cables. The length of a tested cable should not be longer than 600 meters (1970ft).

Key features:

  • Identification of the PSE type (standard or non-standard), midspan/endspan identification
  • Power and DC voltage testing, powered device test function
  • Testing cables for open circuits, short circuits, crossed pairs
  • Testing cable types: STP/UTP (CAT5, CAT6), telephone cables

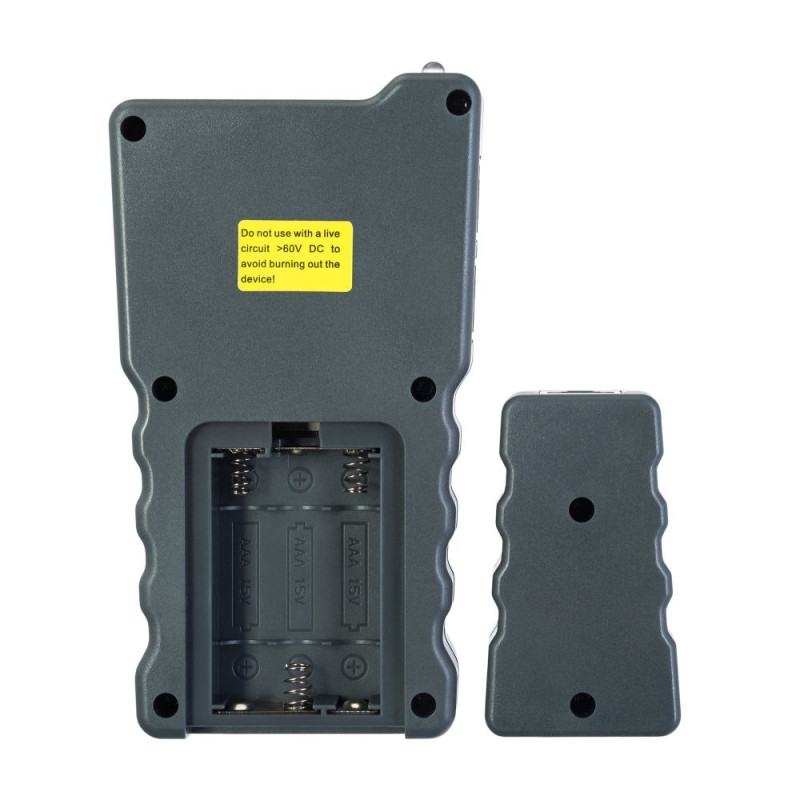

  • Power supply (transmitter only): 3pcs AAA alkaline batteries

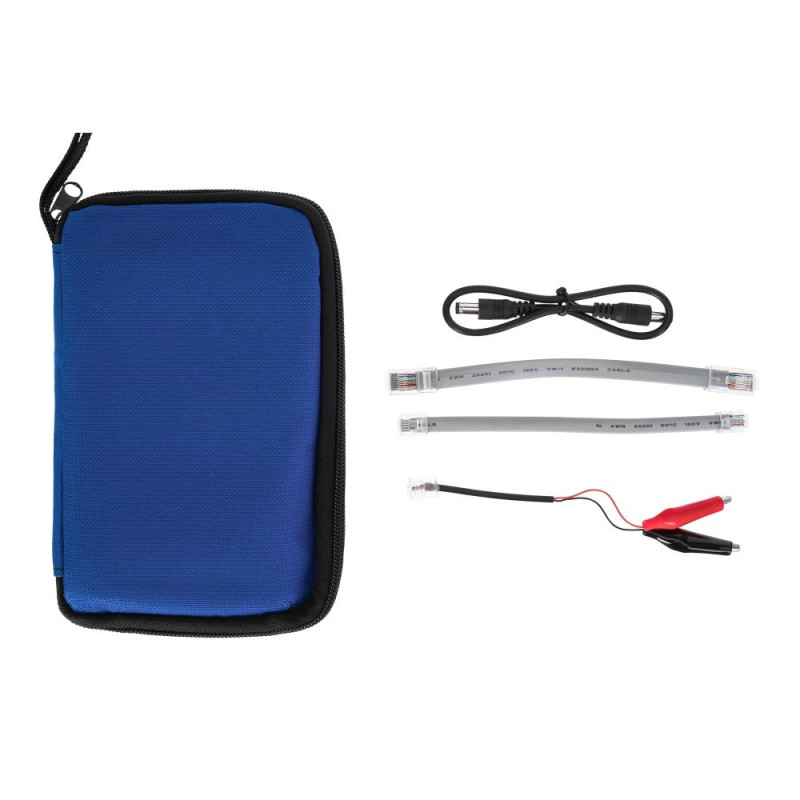

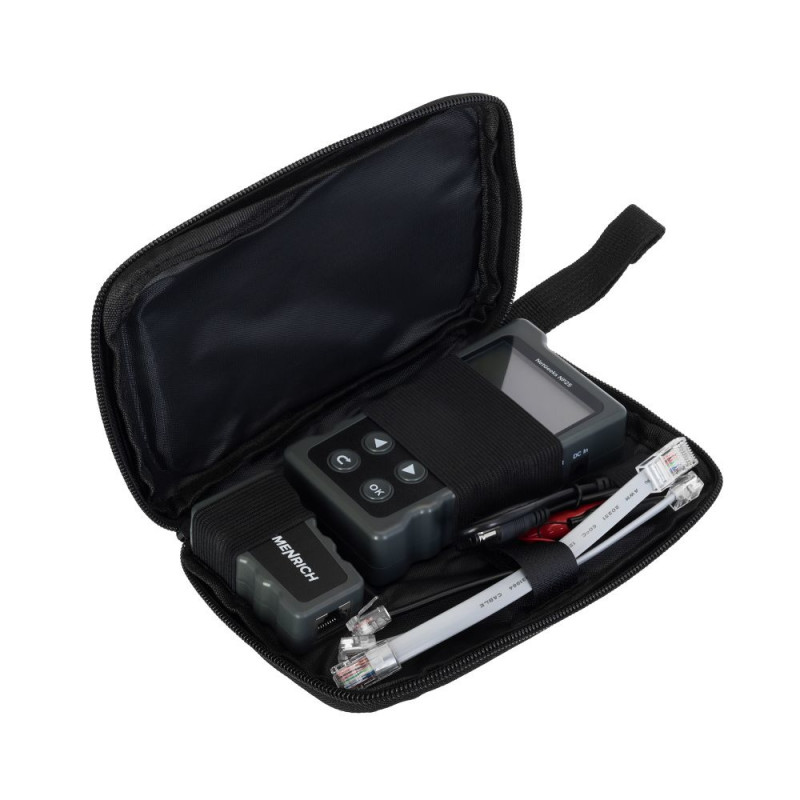

The kit includes:

  • Transmitter
  • Remote unit
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555016856
Package size (LxWxH), cm 18.5x4.5x11
Shipping Weight, kg 0.26
PoE test yes
Powered device (PD) test yes
Voltage polarity detection yes
=== Delimiter === PoE test
Midspan/endspan identification yes
Operating voltage range (DC), V 5 — 60
Power measurement range, W 0 — 18
=== Delimiter === Powered device (PD) test
Operating voltage range (DC), V 5 — 60
Current measuring range, A 0 — 3
Power measurement range, W 0 — 18
Display resolution, px 128х64
Display backlight yes
Operating humidity range, % 20…70

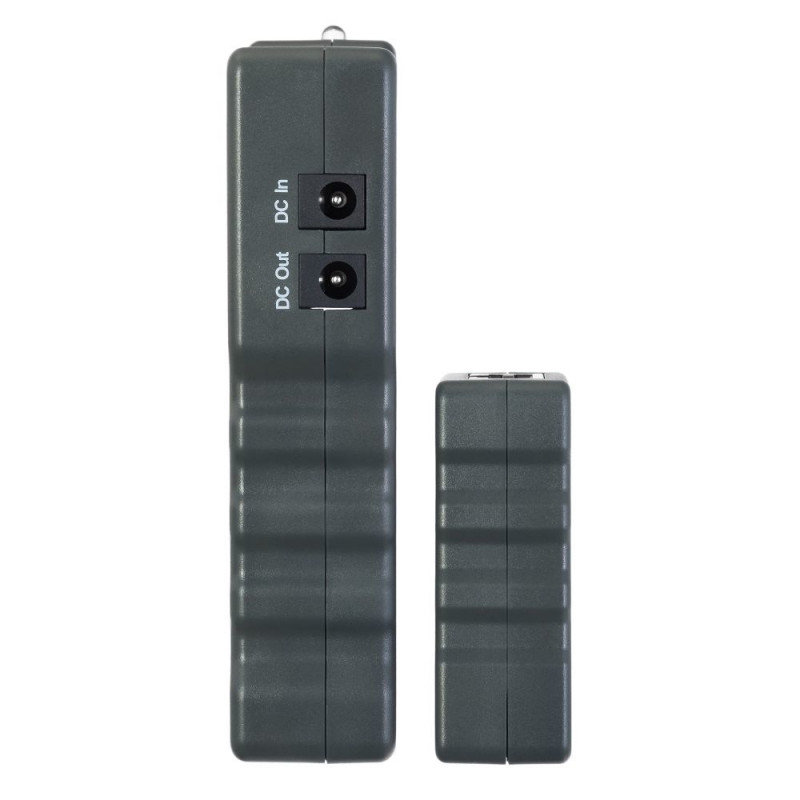

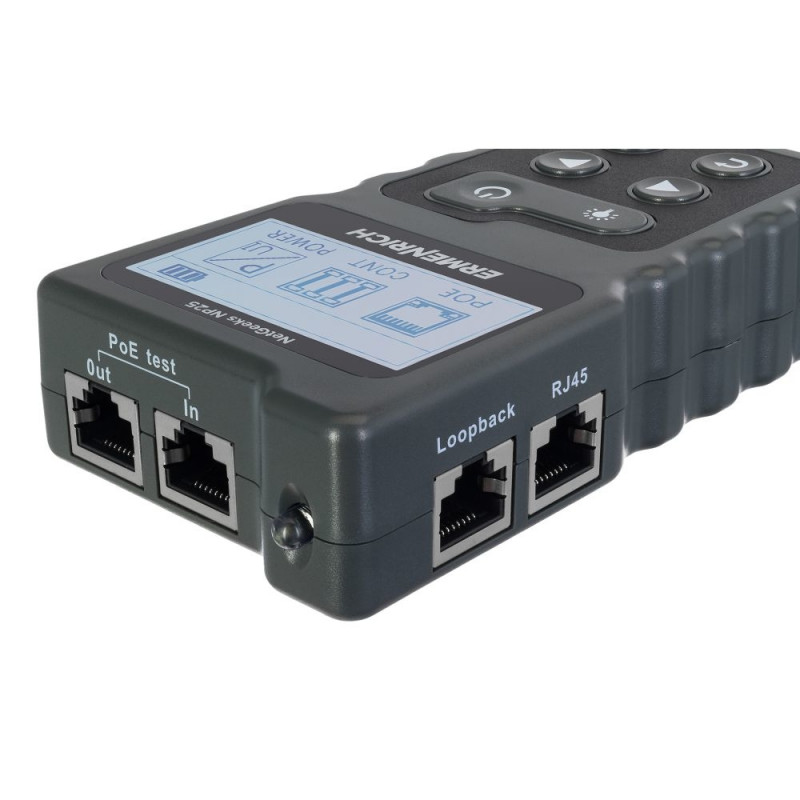

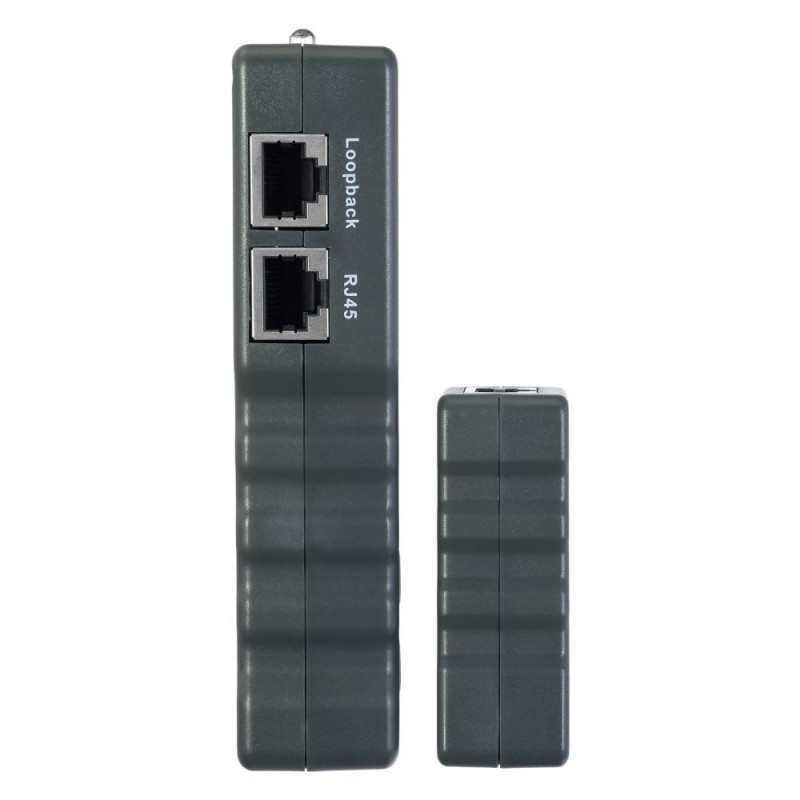

Ports RJ45, PoE, Loopback, DC (input), DC (output)
Tracing cable types telephone, STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, m (ft) 600 (1970)
Cable testing +, (open circuits, short circuits, crossed pairs)
Loop-back test function +, compatible with 10/100Mbps switches
Power source equipment (PSE) type test standard (IEEE 802.3at/af)/non-standard
Maximum operating current, mA ≤80
Protection input voltage: 48V, current: 5mA
Display LCD
Power supply AAA alkaline batteries – 3 pcs. (not included)
Auto power off 15 min, 60 min, 30 min
Operating temperature range,°C −10… +60 (14… 140)
Ports RJ45

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
0.3 kg
Package width
11.5 cm
Package height
4.5 cm
Package length
19 cm

Product codes

EAN
5905555016856
