TUYA controller for LED RGBW 4in1 strips, Wi-Fi

Main info

Operating temperature: -20-60°C. Supply voltage: DC12V-24V. Static power consumption: <1W. Grayscale: 1024 levels. Speed ​​Stage: 100 levels. RF frequency: 2.4 GHz. Wi-Fi frequency: 2.4Ghz.

Product has been archived

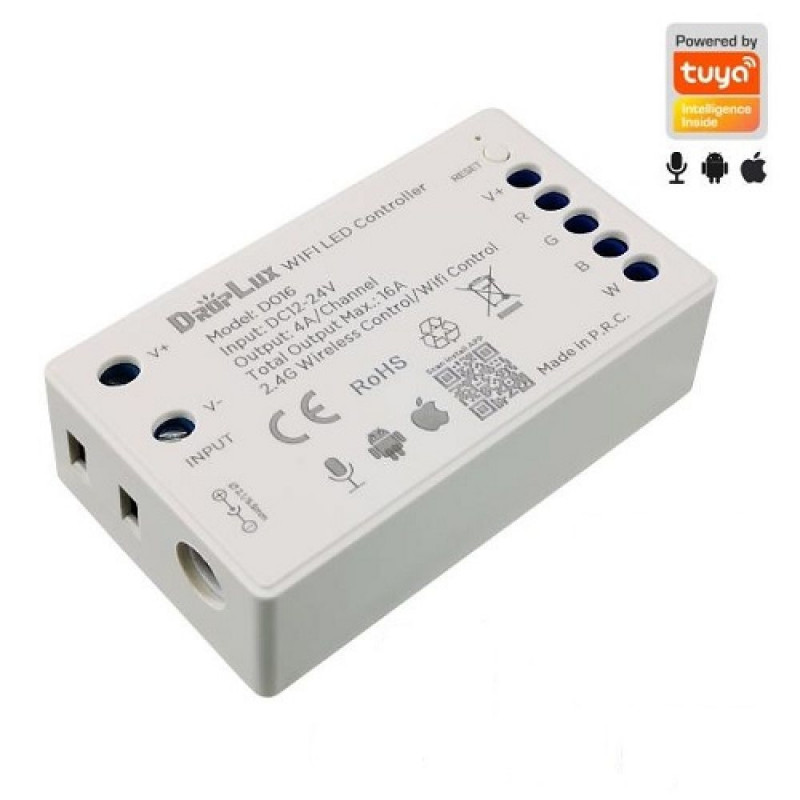

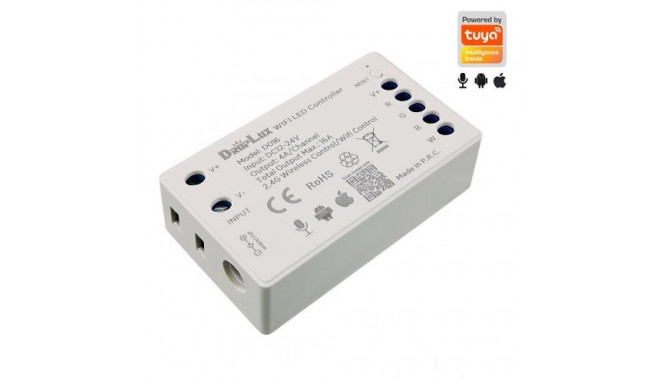

Tuya controller for LED RGBW 4in1 strips, Wi-Fi.



Features:

  • The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED RGBW lamps. For example, point light source, flexible light strip, LED modules, etc.
  • Can be controlled by both 2.4GHz RF remote control and Tuya APP smart app.
  • Supports control by voice: Amazon Alexa, Google Assistant, JD Dingdong, Duer OS, Yandex Alice.
  • Short-circuit protection.

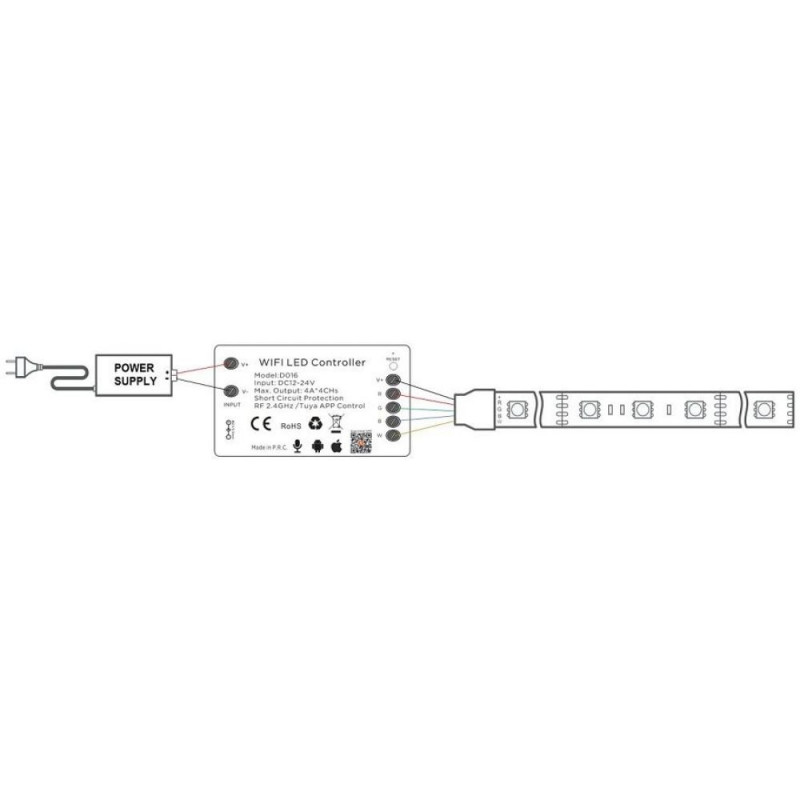

  • DC12-24V (depending on the specification of LED lights), four-channel output , max. load current: 4x4A. Max. load power: 192W / 12V, 384W / 24V.
  • RF remote control is optional. Compatible consoles: HX-RFBK-RGB-2.4G, HX-SWC-RGBW-2.4G, HX-HWP86-RGBW-2.4G. Recommended remote controlTV00DVBT21.
  • Memory function: the last used mode is updated every time it is turned on.
  • Certificates: CE (EMC/LVD), RoHS.





Technical data:

  • Operating temperature: -20-60°C.
  • Power supply voltage: DC12V-24V.
  • Static power consumption: <1W.
  • Gray scale: 1024 levels.
  • Speed ​​stage: 100 levels.
  • RF frequency: 2.4 GHz.
  • Wi-Fi frequency: 2.4Ghz.
  • RF distance: up to 20m.
  • Protection against short circuit: yes.
  • Memory function: yes.
  • Output: 4 channels.
  • Output current: up to 4A per channel.
  • PWM frequency: 1.95 kHz.
  • Max. output power: 12V: <192 W, 24V: <384 W.
  • Dimensions: 40x70x20mm.
  • Material: ABS+PC.
  • Weight: 45g.




Instructions for use:
1. Tuya Smart application smart control via Wifi is possible.
Download the "Tuya Smart" program from the App store / Google play on your smartphone. After pressing the "Reset" button on the controller, please wait 5 seconds until the lights start to flash and connect with the Tuya app. Follow the app's instructions to finish setting up the connection with the controller.
Voice control via Amazon Alexa is supported, " Google Assistant" and other platforms.
2. Control by 2.4 GHz RF remote control, optional of the following models: HX-RFBK-RGB-2.4G, HX-SWC-RGBW-2.4G or HX-HWP86-RGBW-2.4 G. Recommended remote control TV00DVBT21.
Pair the controller with the remote control before use. You can find the instructions and functions of the remote control.
Wireless synchronization is possible with the help of multiple receivers, one by remote control, both in static and dynamic mode. 10m distance between receivers is recommended.
